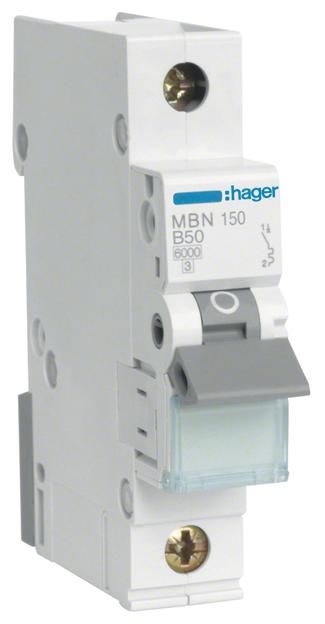

Hager Machine 1 Built-pin B50 MBN150,
|
28,69 EUR 29,90 EUR |
|||||||||||
|
( 34,14 EUR incl. VAT ) ≈ £24.27 | ≈ $32.08 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |||||||||||
| In Stock: >5 pieces | |||||||||||
| Lieske Part No.: | 484439 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | MBN150 | ||||||||||
| UPC/EAN: | 3250614310140 | ||||||||||
| Weight: | 0.121 kg | ||||||||||
| Type: | MBN150 | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Circuit breaker from HagerFurther products in category Circuit breaker
All products of Hager
Product information for Hager MBN150:
Circuit breaker
Rated switch capacity 6 kA, characteristic B
- Standard: DIN VDE 0641 Part 11/08/92
- Limiting class 3
- Rated voltage 230/400 V ~
- Single phase extraction from the composite rail possible
- With installation-friendly bi-connect terminal
- Suitable for retro-fitting of additional equipment (busbars, connectors, end caps)
- Electric shock protection to DIN VDE 0106 part 100
Characteristic B, DIN VDE 0641, Part 08/11/92
Version: 1 pole
Current: 50 A
Type: MBN150
Quantity: 1 unit.
Rated switch capacity 6 kA, characteristic B
- Standard: DIN VDE 0641 Part 11/08/92
- Limiting class 3
- Rated voltage 230/400 V ~
- Single phase extraction from the composite rail possible
- With installation-friendly bi-connect terminal
- Suitable for retro-fitting of additional equipment (busbars, connectors, end caps)
- Electric shock protection to DIN VDE 0106 part 100
Characteristic B, DIN VDE 0641, Part 08/11/92
Version: 1 pole
Current: 50 A
Type: MBN150
Quantity: 1 unit.
| General | |
| Release characteristic | B |
| Number of poles (total) | 1 |
| Number of protected poles | 1 |
| Rated current | 50 A |
| Rated voltage | 230 V |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V | 6 kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V | 6 kA |
| Voltage type | AC |
| Frequency | 60 Hz |
| Current limiting class | 3 |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Width in number of modular spacings | 1 |
| Built-in depth | 70 mm |
| Degree of protection (IP) | IP20 |
| Ambient temperature during operating | 70 °C |
| Connectable conductor cross section multi-wired | 25 mm² |
| Connectable conductor cross section solid-core | 35 mm² |
| Power loss | 4.7 W |
| Concurrently switching N-neutral | |
| Additional equipment possible | |
| Explosion-proof | |
| Flush-mounted installation | |
