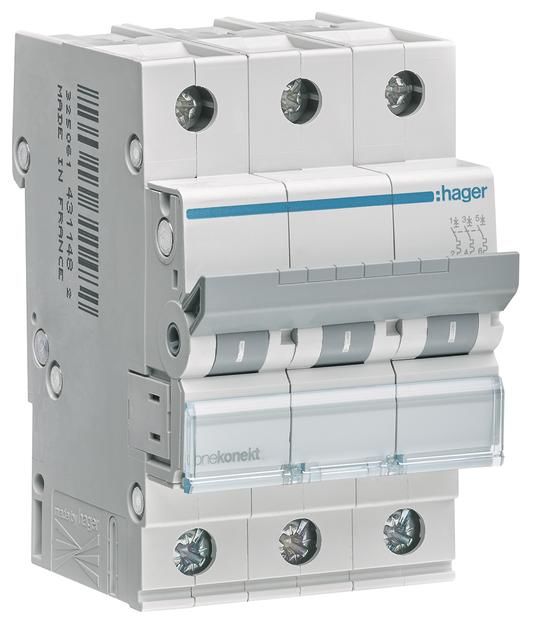

Hager built-out 3-pin C6 MCN306,
|
131,48 EUR 137,02 EUR |
|||||||||||
|
( 156,46 EUR incl. VAT ) ≈ £111.23 | ≈ $146.99 plus delivery charges: 53,00 € |
|||||||||||
| On order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 306340 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | MCN306 | ||||||||||
| UPC/EAN: | 3250614311420 | ||||||||||
| Weight: | 0.28 kg | ||||||||||
| Type: | MCN306 | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Circuit breaker from HagerFurther products in category Circuit breaker
All products of Hager
Product information for Hager MCN306:
Circuit breaker 3-pole 6kA C characteristic 6A 3 modules. Circuit breaker in accordance with DIN EN 60898-1 (VDE 0641-11) with time-delayed thermal release for overload protection and electromagnetic release for short-circuit protection. Suitable for the subsequent installation of additional devices. Labeling option directly on the device and individual removal from the phase rail assembly by unlocking the quick-release top hat rail fastening.
| General | |
| Release characteristic | C |
| Number of poles (total) | 3 |
| Number of protected poles | 3 |
| Rated current | 6 A |
| Rated voltage | 400 |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V | 6 kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V | 10 kA |
| Voltage type | AC |
| Frequency | 60 |
| Current limiting class | 3 |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Width in number of modular spacings | 3 |
| Built-in depth | 70 mm |
| Degree of protection (IP) | IP20 |
| Ambient temperature during operating | 70 |
| Connectable conductor cross section multi-wired | 25 |
| Connectable conductor cross section solid-core | 35 |
| Power loss | 3.80 W |
| Concurrently switching N-neutral | |
| Additional equipment possible | |
| Explosion-proof | |
| Flush-mounted installation | |
Questions & answers
What is the delivery time of Hager built-out 3-pin C6 MCN306,?
The article Hager built-out 3-pin C6 MCN306, is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager MCN306 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager built-out 3-pin C6 MCN306, always at the best possible price. We can give you a discount of 2% on Hager built-out 3-pin C6 MCN306, if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Hager built-out 3-pin C6 MCN306, we can offer you a price of 115,70 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
