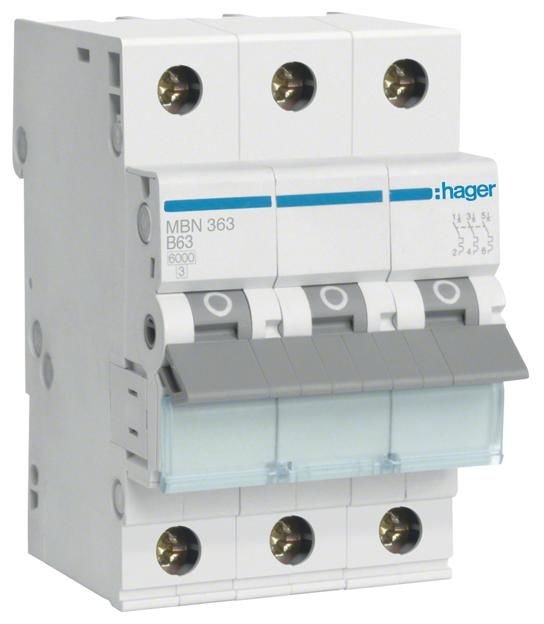

Hager built-out 3-pin B63 MBN363,
|
179,45 EUR 187,01 EUR |
|||||||||||
|
( 213,55 EUR incl. VAT ) ≈ £151.81 | ≈ $200.63 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |||||||||||
| In Stock: 3 pieces | |||||||||||
| Lieske Part No.: | 580043 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | MBN363 | ||||||||||
| UPC/EAN: | 3250614310461 | ||||||||||
| Weight: | 0.363 kg | ||||||||||
| Type: | MBN363 | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Circuit breaker from HagerFurther products in category Circuit breaker
All products of Hager
Product information for Hager MBN363:
Circuit breaker
Rated switch capacity 6 kA characteristic B
Rated switch capacity 6 kA characteristic B
- Standard: DIN VDE 0641 Part 11/08/92
- limiting class 3
- Rated voltage 230/400 VAC
- Single extraction of the phase rail network possible
- With installation-friendly bi-connect terminal
- suitable for retro-fitting of additional equipment (phase busbars, connection pieces , end caps) - Electric shock protection to DIN VDE 0106 part 100
Characteristic B, DIN VDE 0641, Part 08/11/92
Design: 3-pin
Current: 63 A Type: MBN363
Quantity: 1 unit.
| General | |
| Release characteristic | B |
| Number of poles (total) | 3 |
| Number of protected poles | 3 |
| Rated current | 63 A |
| Rated voltage | 400 V |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V | 6 kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V | 6 kA |
| Voltage type | AC |
| Frequency | 60 Hz |
| Current limiting class | 3 |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Width in number of modular spacings | 3 |
| Built-in depth | 70 mm |
| Degree of protection (IP) | IP20 |
| Ambient temperature during operating | 70 °C |
| Connectable conductor cross section multi-wired | 25 mm² |
| Connectable conductor cross section solid-core | 35 mm² |
| Power loss | 19.9 W |
| Concurrently switching N-neutral | |
| Additional equipment possible | |
| Explosion-proof | |
| Flush-mounted installation | |
Questions & answers
What is the delivery time of Hager built-out 3-pin B63 MBN363,?
The article Hager built-out 3-pin B63 MBN363, is currently in stock
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager MBN363 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager built-out 3-pin B63 MBN363, always at the best possible price. We can give you a discount of 2% on Hager built-out 3-pin B63 MBN363, if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Hager built-out 3-pin B63 MBN363, we can offer you a price of 163,30 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
