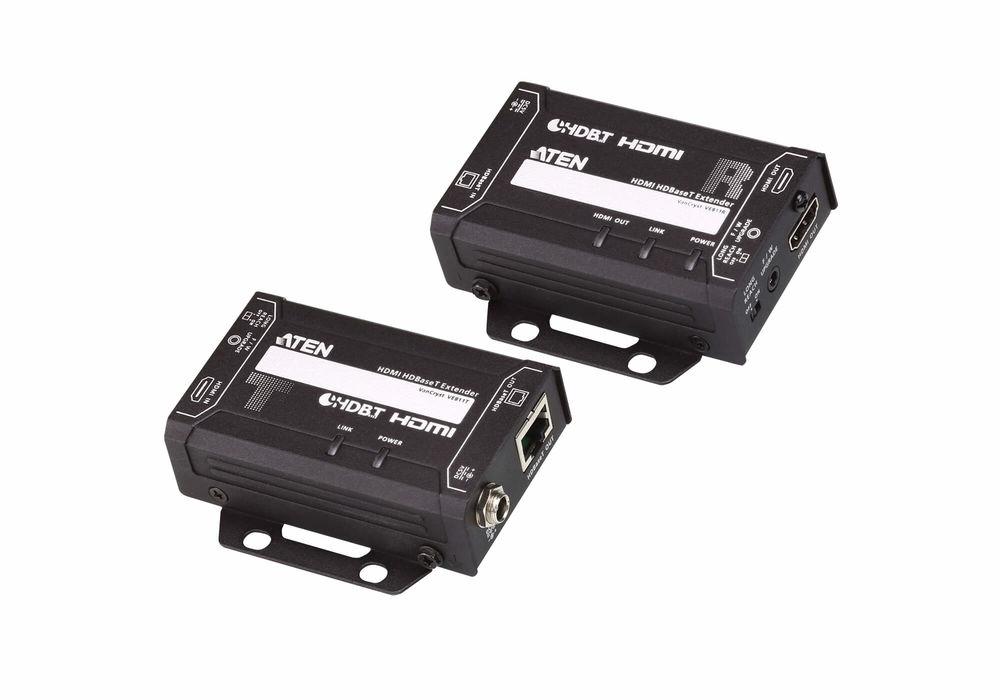

Aten video/audio extender, 70/100m, HDMI, transmitter/receiver set, (4K at 100 m)
|
-49% 233,34 EUR 456,05 EUR |
|
|
( 277,67 EUR incl. VAT ) ≈ £196.47 | ≈ $262.04 plus delivery charges: 53,00 € |
|
| On order · Expected to be available from 28.10.2026info_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1367785 |
| Mfg Part No: | VE811 |
| UPC/EAN: | 4719264645747 |
| Weight: | 0.9 kg |
Product information for Aten VE811:
Made-to-order order * Up to 4K @ 70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat 6) 1080p @ 100m (Cat 5e/6/6a) *4K support: 4096 x 2160 / 3840 x 2160 at 60 Hz (4:2:0) 4096 x 2160 / 3840 x 2160 at 30 Hz (4:4:4) Transmitter: HDMI socket, RJ45 socket, Receiver: HDMI socket, RJ45 socket,
| Features | |
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance | 150 m |
| Bandwidth | 10.2 Gbit/s |
| Material | Metal |
| Impedance | 100 Ω |
| Product colour | Black |
| HDCP | |
| Logistics data | |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 4.02 kg |
| Master (outer) case net weight | 3.15 kg |
| Products per master (outer) case | 5 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Quick start guide | |
| Packaging data | |
| Quantity per pack | 2 pc(s) |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 705 g |
| Ports & interfaces | |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Audio input | 1 |
| Audio output | 1 |
| DC-in jack | |
| Power | |
| Operating voltage (transmitter) | 5 V |
| Operating voltage (receiver) | 5 V |
| Technical data | |
| Article type | Extender bundle |
| Max. distance | 100m |
| Width packaging | 0.059m |
| Length packaging | 0.239m |
| Packaging volume | 0.0023m³ |
| Weight | 0.705kg |
| Height packaging | 0.160m |
| Weight & dimensions | |
| Weight | 630 g |
| Receiver dimensions (WxDxH) | 86.4 x 73 x 24.7 mm |
| Receiver weight | 170 g |
| Transmitter dimensions (WxDxH) | 86.4 x 73 x 24.7 mm |
| Transmitter weight | 160 g |
