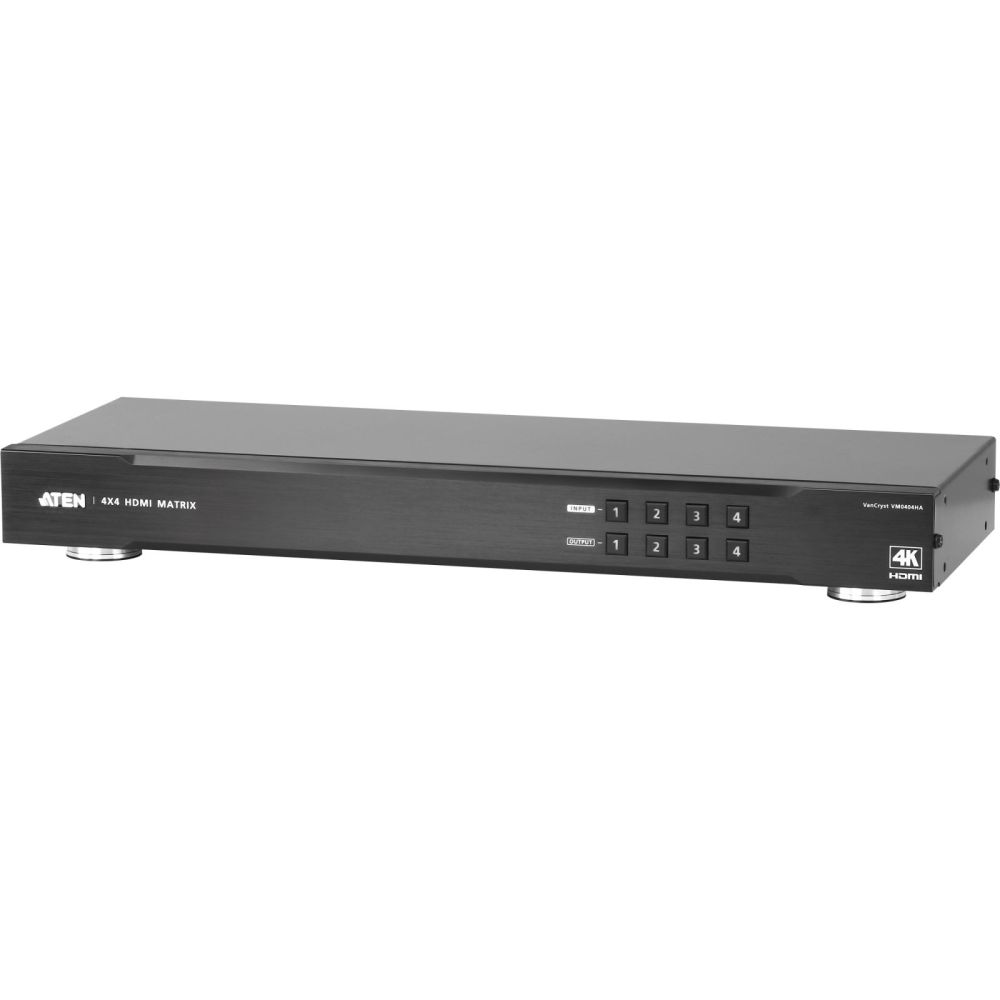

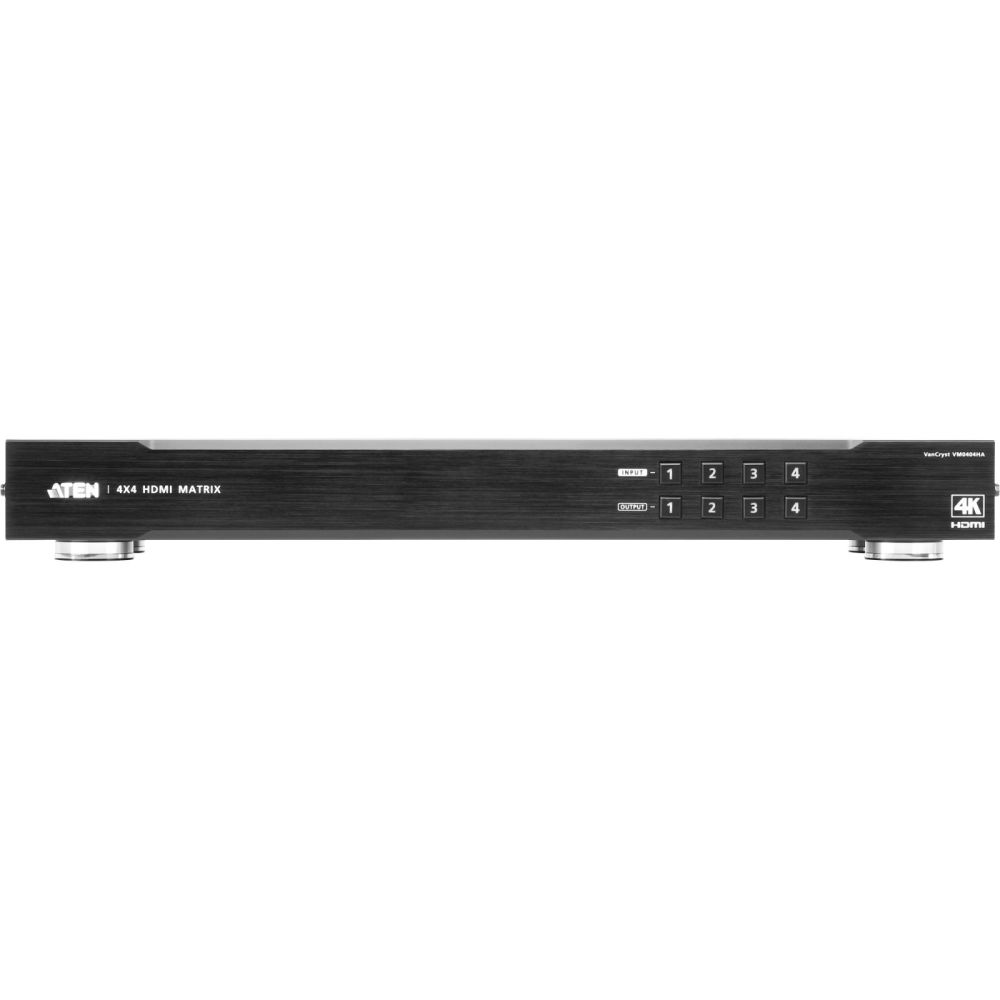

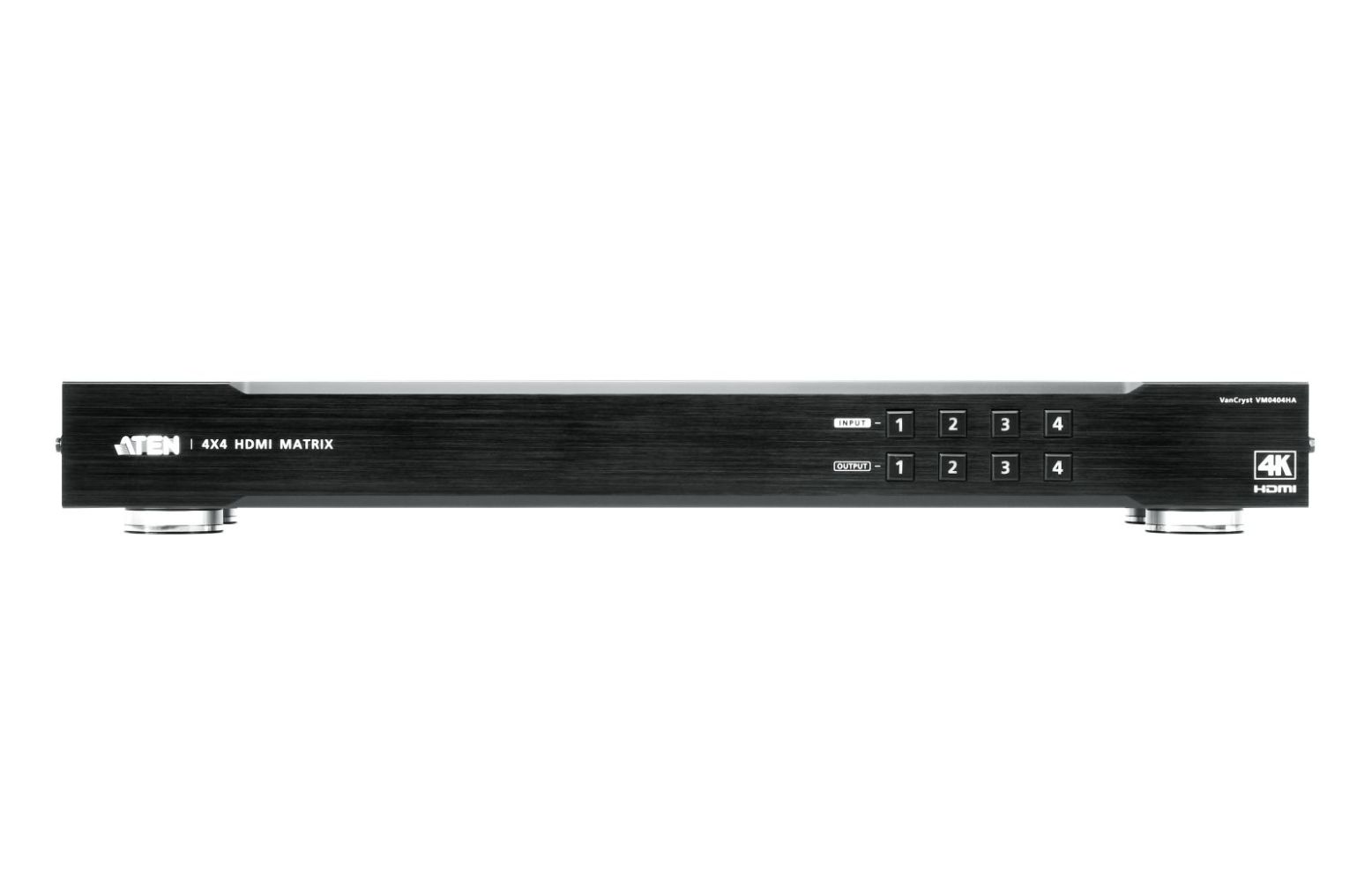

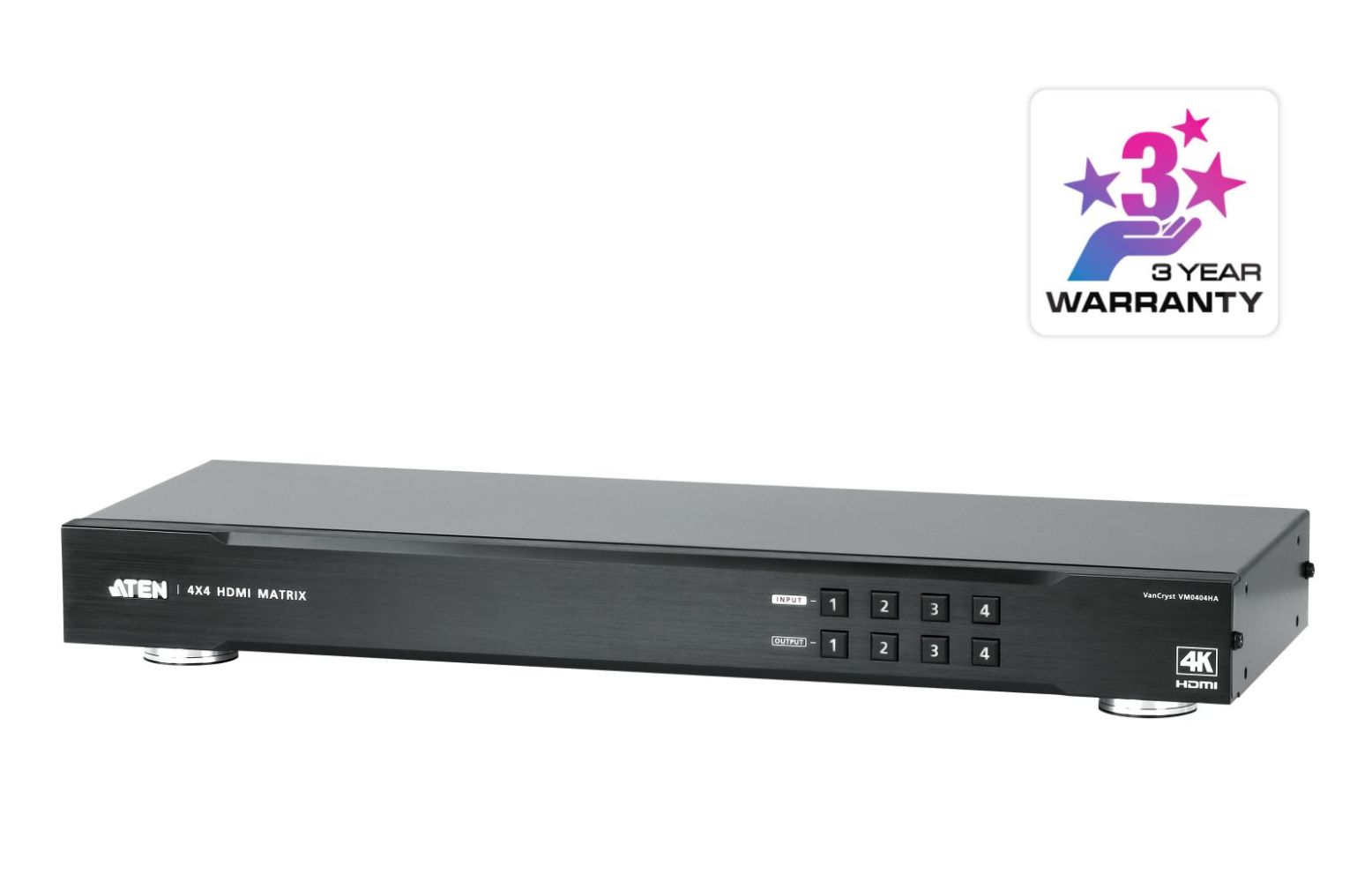

ATEN VM0404HA 4 x 4 4K HDMI Audio/Video Matrix Switch
|
-42% 229,49 EUR 395,48 EUR |
|
|
( 273,09 EUR incl. VAT ) ≈ £193.23 | ≈ $257.72 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 2 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1477107 |
| Mfg Part No: | VM0404HA |
| UPC/EAN: | 4719264643873 |
| Weight: | 3 kg |
Product information for Aten VM0404HA:
*Make-to-order*, The ATEN VM0404HA 4x4 4K HDMI Matrix Switch supports 4K resolutions of UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2: 0). The VM0404HA is ready for the future of high-definition video switching and is ideal for applications requiring routing of 4K digital signals, such as classrooms, lecture halls, department stores and more.

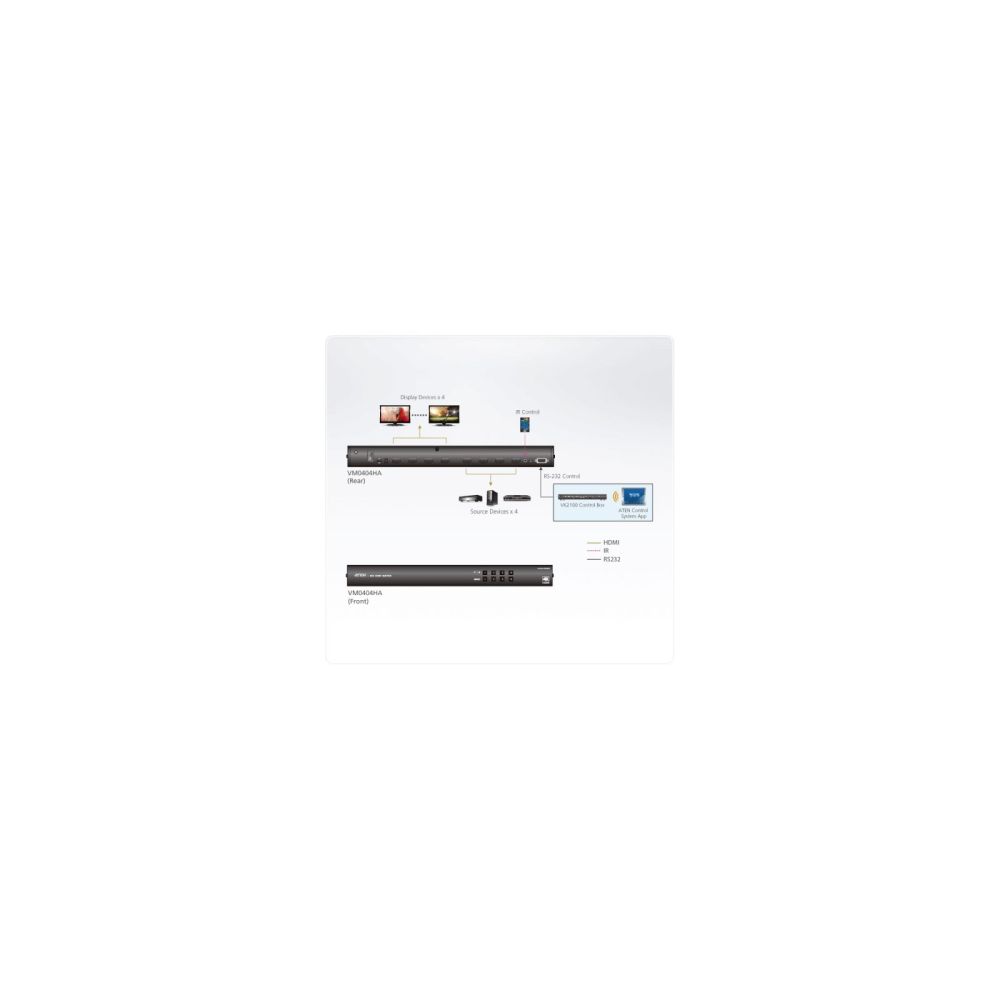

The VM0404HA Matrix Switch provides a simple and affordable way to route 4 HDMI video sources to 4 HDMI monitors and can be operated via front panel buttons, IR remote control and RS-232 control, ensuring optimal viewing and control of high-resolution video. Input: 4xHDMI socket Output: 4xHDMI socket
The VM0404HA Matrix Switch provides a simple and affordable way to route 4 HDMI video sources to 4 HDMI monitors and can be operated via front panel buttons, IR remote control and RS-232 control, ensuring optimal viewing and control of high-resolution video. Input: 4xHDMI socket Output: 4xHDMI socket
| Design | |
| Housing colour | Black |
| Housing material | Metal |
| Rack mounting | |
| Remote control included | |
| Display | |
| Built-in display | |
| Features | |
| Product type | AV matrix switcher |
| Data transfer rate | 10.2 Gbit/s |
| Maximum pixel clock | 340 MHz |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP version | 1.4 |
| HDCP | |
| 3D | |
| Extended display identification data (EDID) | |
| Logistics data | |
| Products per master (outer) case | 3 pc(s) |
| Master (outer) case gross weight | 9.54 kg |
| Master (outer) case length | 565 mm |
| Master (outer) case width | 375 mm |
| Master (outer) case height | 258 mm |
| Master (outer) case net weight | 7.53 kg |
| Harmonized System (HS) code | 85299097 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Rack mount kit | |
| Manual | |
| Mounting brackets included | |
| AC adapter included | |

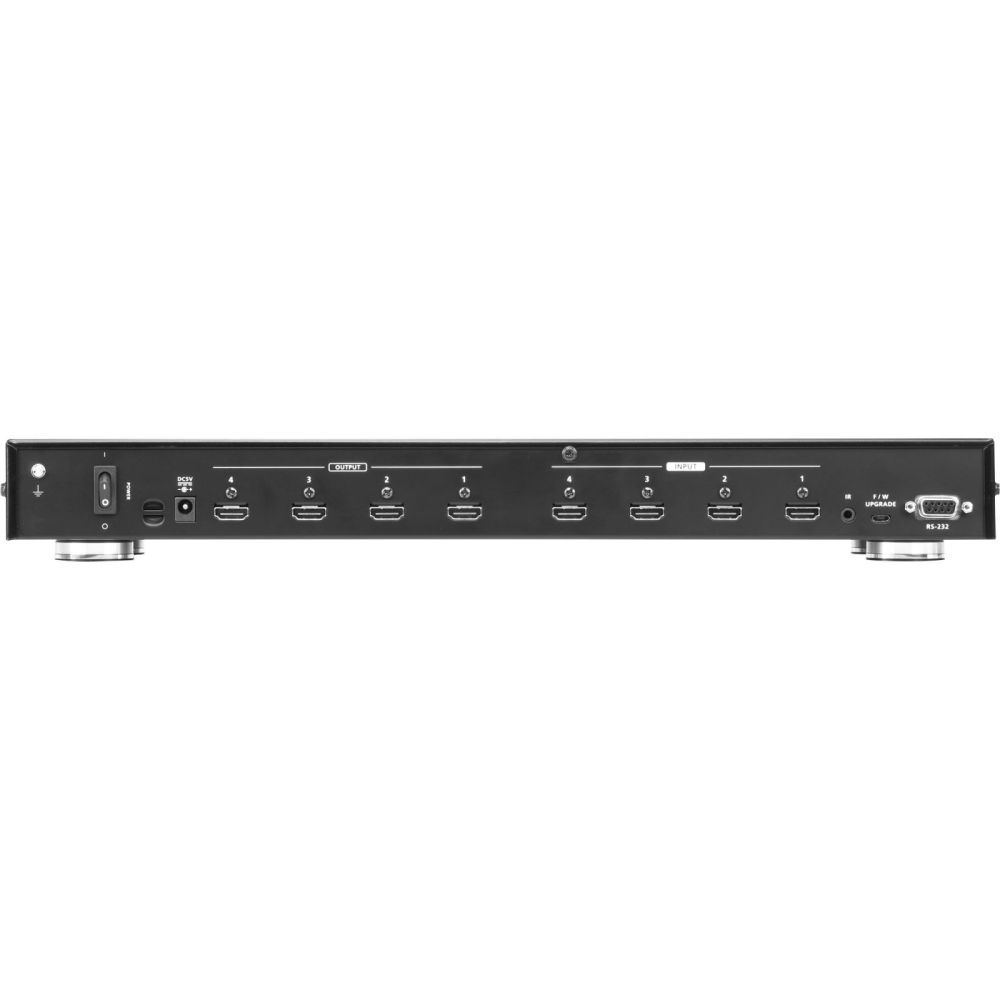

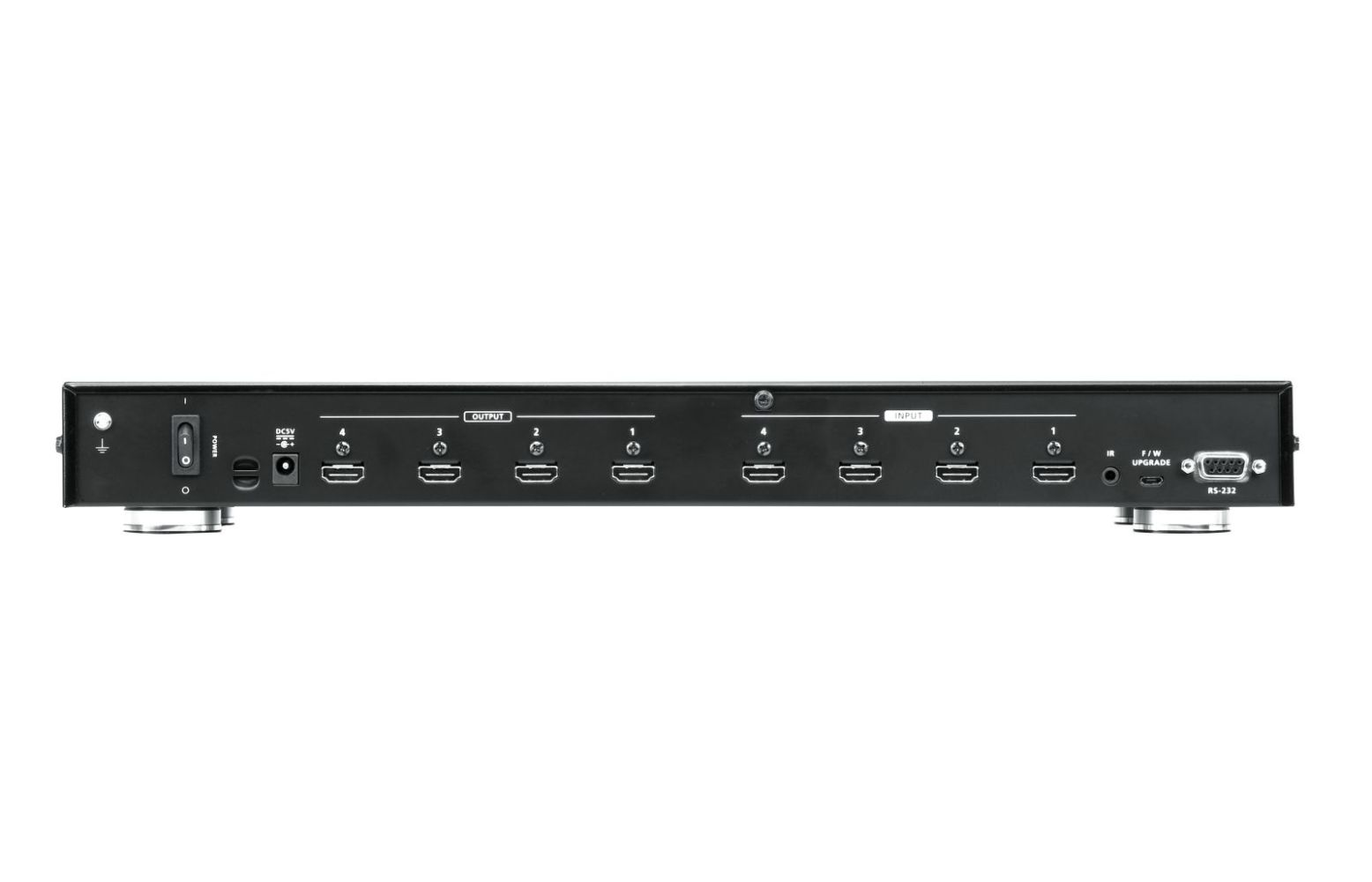

| Ports & interfaces | |
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 4 |
| USB connector type | Micro-USB |
| USB ports quantity | 1 |
| RS-232 ports | 1 |
| Remote (IR) input | 1 |
| DC-in jack | |
| Power | |
| Power consumption (max) | 9.62 W |
| Technical data | |
| Weight | 2.899kg |
| Length packaging | 0.540m |
| Width packaging | 0.116m |
| Height packaging | 0.233m |
| Packaging volume | 0.0146m³ |
| Inputs x outputs | 4x4 |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 162.9 mm |
| Depth | 437.2 mm |
| Height | 44 mm |
| Weight | 2.51 kg |
| Package width | 116 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 2.9 kg |
Questions & answers
What is the delivery time of ATEN VM0404HA 4 x 4 4K HDMI Audio/Video Matrix Switch?
The article ATEN VM0404HA 4 x 4 4K HDMI Audio/Video Matrix Switch is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten VM0404HA to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ATEN VM0404HA 4 x 4 4K HDMI Audio/Video Matrix Switch always at the best possible price. We can give you a discount of 2% on ATEN VM0404HA 4 x 4 4K HDMI Audio/Video Matrix Switch if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
