ATEN VE1830 4K HDMI HDBaseT Lite Extender content_copy

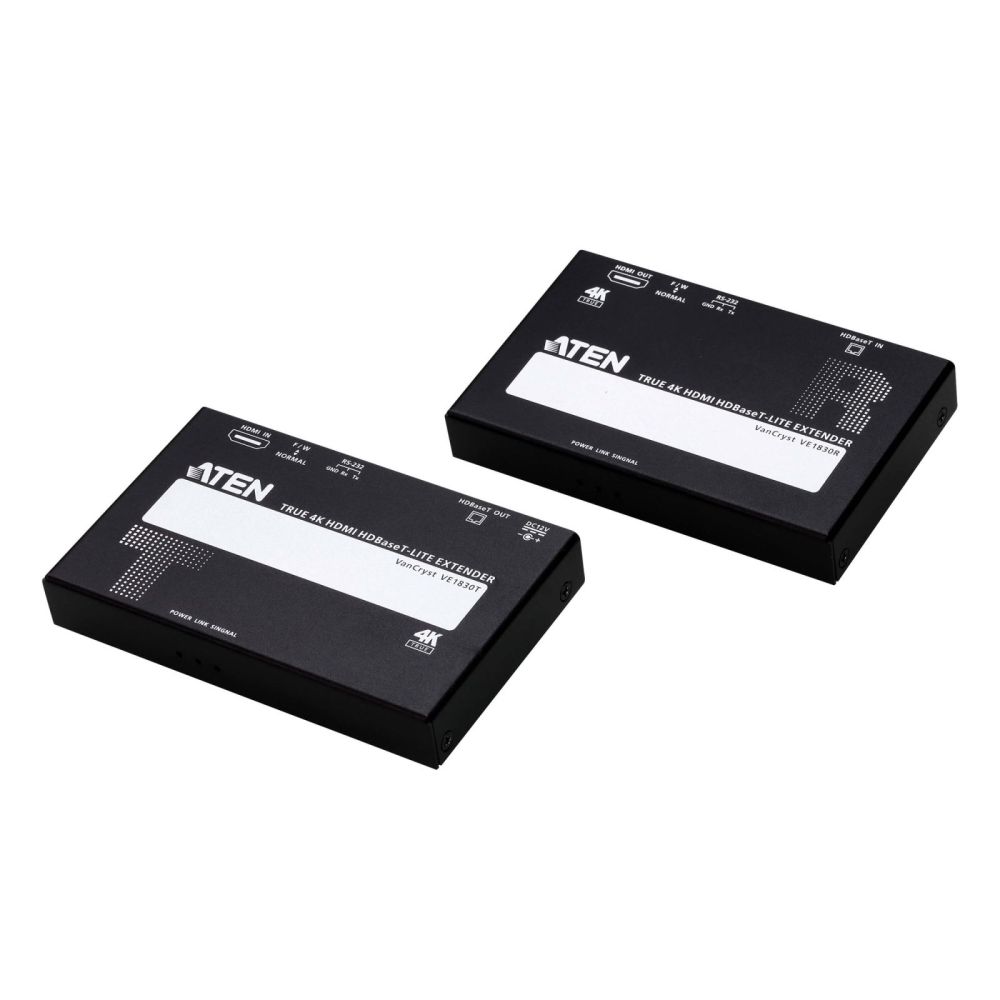

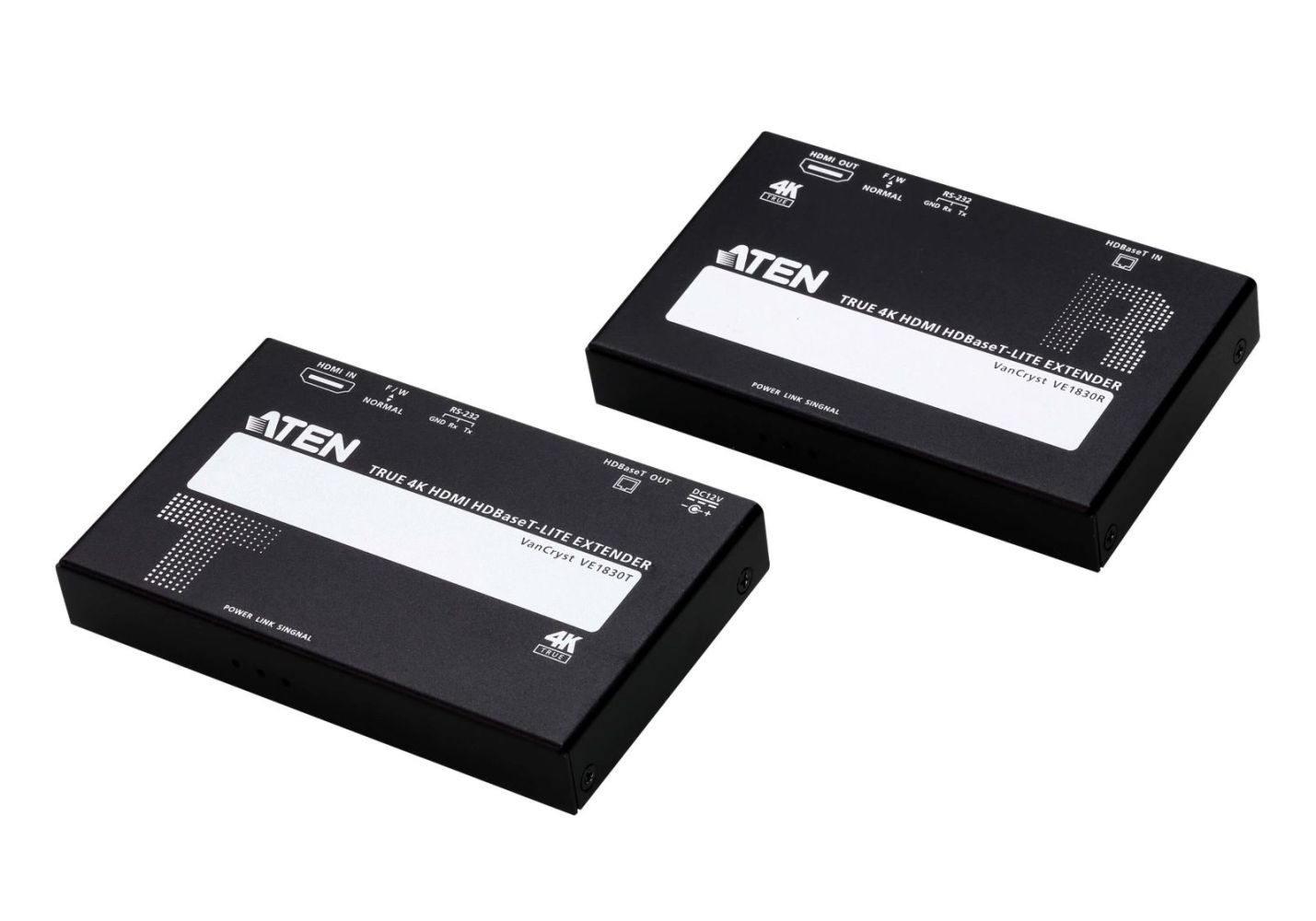

The VE1830 True 4K HDMI HDBaseT-Lite Extender provides great flexibility in professional A/V installation with its high-quality transmitter VE1830T and receiver VE1830R. Powered by HDBaseT™ technology, the VE1830 transmits True 4K HDMI signals up to 35m using a single Cat 5e/6 cable. This HDBaseT-Lite Extender supports HDCP 2.2 and meets the HDMI 2.0a specifications (3D, Deep Color, 4k) to ensure visually lossless high quality video and image. In addition, it features PoC (Power over Cable) which can power the receiver unit from the transmitter side with power supply. The VE1830 offers an easy-to-use and cost-effective solution for professional A/V installations that require superior HDMI video quality, such as in digital classrooms, video conference rooms and home theater.HDMI 2.0a (3D, Deep Color, True 4K); HDCP 2.2 compliant
Superior video qualityExtends True 4K HDMI signals (3840 x 2160 @ 60Hz 4:4:4) up to 35 m
Extends Full HD 1080p signals up to 70 m
Supports HDR10+
Features PoC (Power over Cable) – supplies power from the VE1830T unit to the VE1830R unit

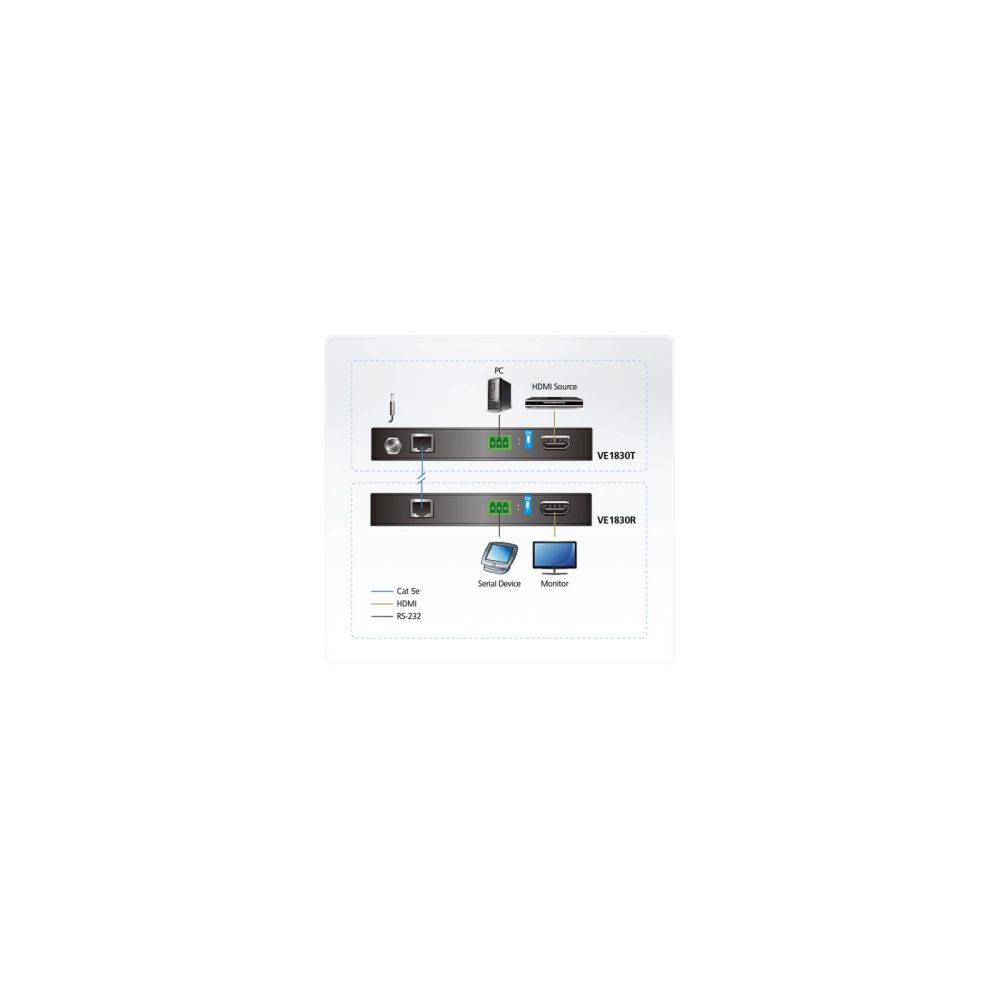

Features RS-232 serial port for connecting peripherals such as touch screens, and barcode scanners
Plug-and-play
Compact size for space saving
Rack-mountable with attached rack mounting kit in the package
Package Contents:1x VE1830T True 4K HDMI HDBaseT-Lite Transmitter
1x VE1830R True 4K HDMI HDBaseT-Lite Receiver
2x RS-232 Terminal Blocks
1x Power Adapter
1x Mounting Kit
1x User Instructions
FunctionVE1830RVE1830T
Video Input
InterfacesN/A1 x HDMI Type A Female (Black)
ImpedanceN/A100 Ohms
Max. DistanceN/A1.8 m
Video Output

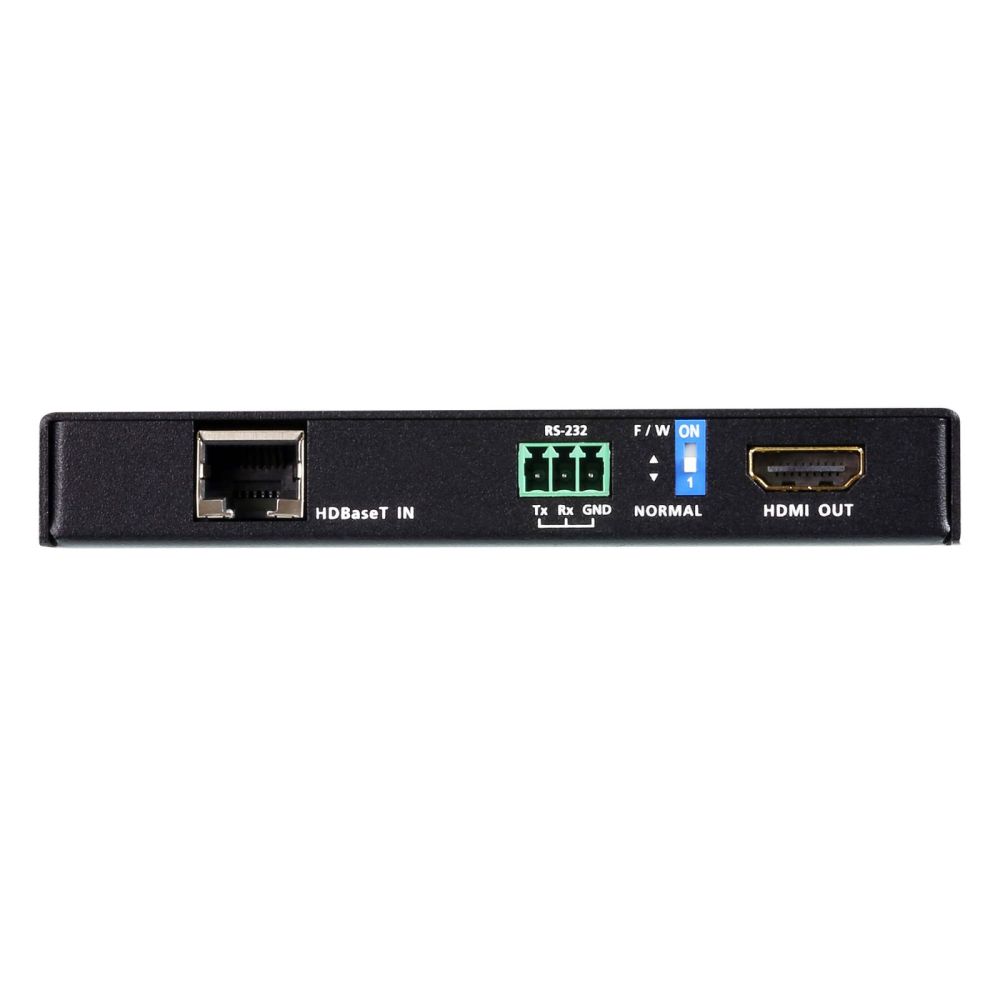

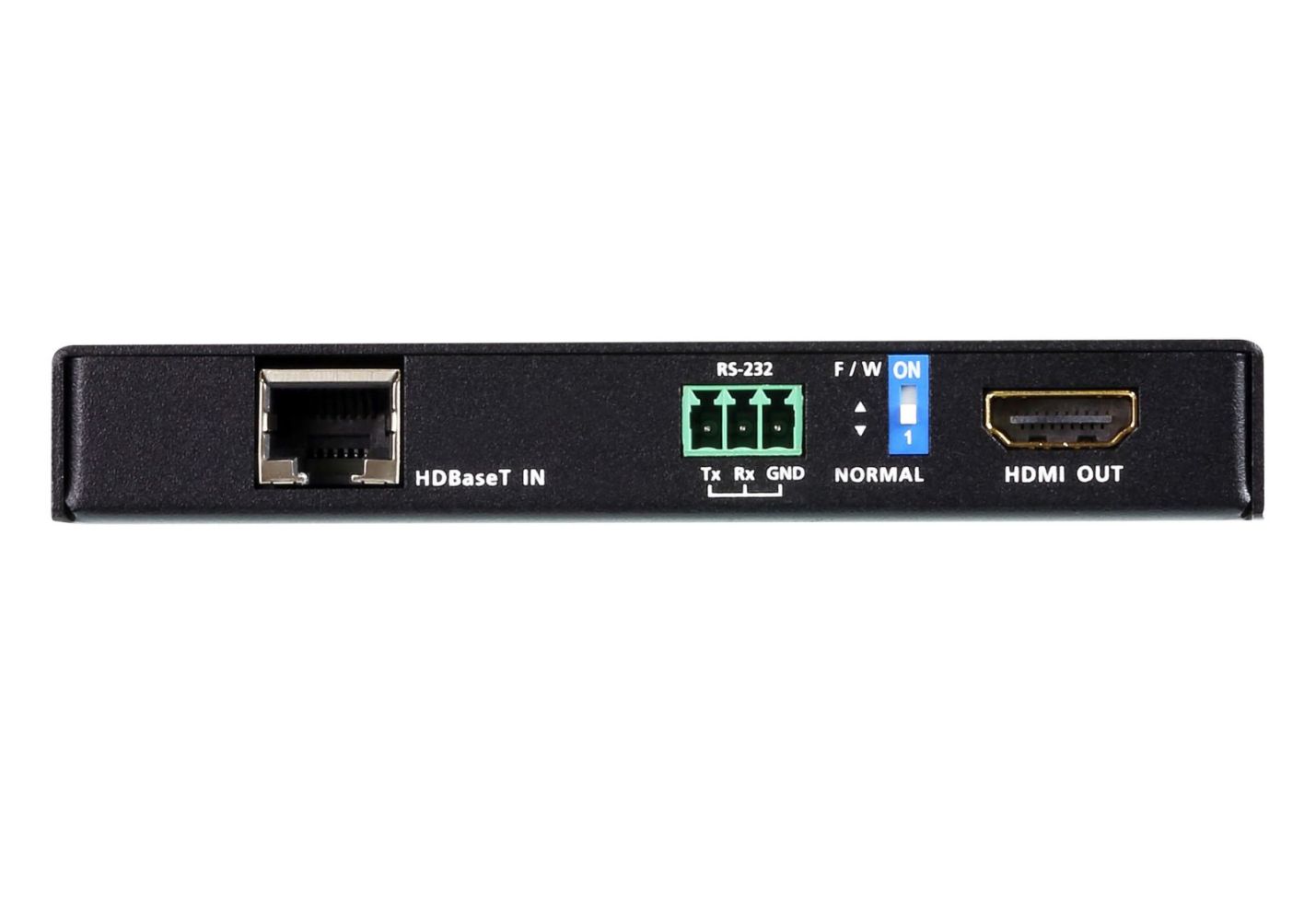

Interfaces1 x HDMI Type A Female (Black)N/A
Impedance100 OhmsN/A
Video
Max. Data Rate10.2Gbps (3.4Gbps per lane)10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock340 MHz340 MHz
ComplianceHDMI 2.0 (3D, Deep Color, 4K); 4K HDR
HDCP2.2 Compatible
Consumer Electronics Control (CEC)HDMI 2.0 (3D, Deep Color, 4K); 4K HDR
HDCP2.2 Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / DistanceUp to True 4K: 3840 x 2160 @ 60Hz (4:4:4) @35m (Cat 5e/6);
Up to 1080p@70m (Cat6a/ATEN 2L-2910 Cat6)
Up to True 4K: 3840 x 2160 @ 60Hz (4:4:4) @35m (Cat 5e/6);
Up to 1080p@70m (Cat6a/ATEN 2L-2910 Cat6)
Supported Resolutions4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0) @35m (Cat5e/6);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) @35m (Cat5e/6);
1080P@60m (Cat 5e/6)4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0) @35m (Cat5e/6);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) @35m (Cat5e/6);
1080P@60m (Cat 5e/6)
Audio
InputN/A1 x HDMI Type A Female (Black)
Output1 x HDMI Type A Female (Black)N/A
Connectors
Unit To Unit1 x RJ-45 Female1 x RJ-45 Female

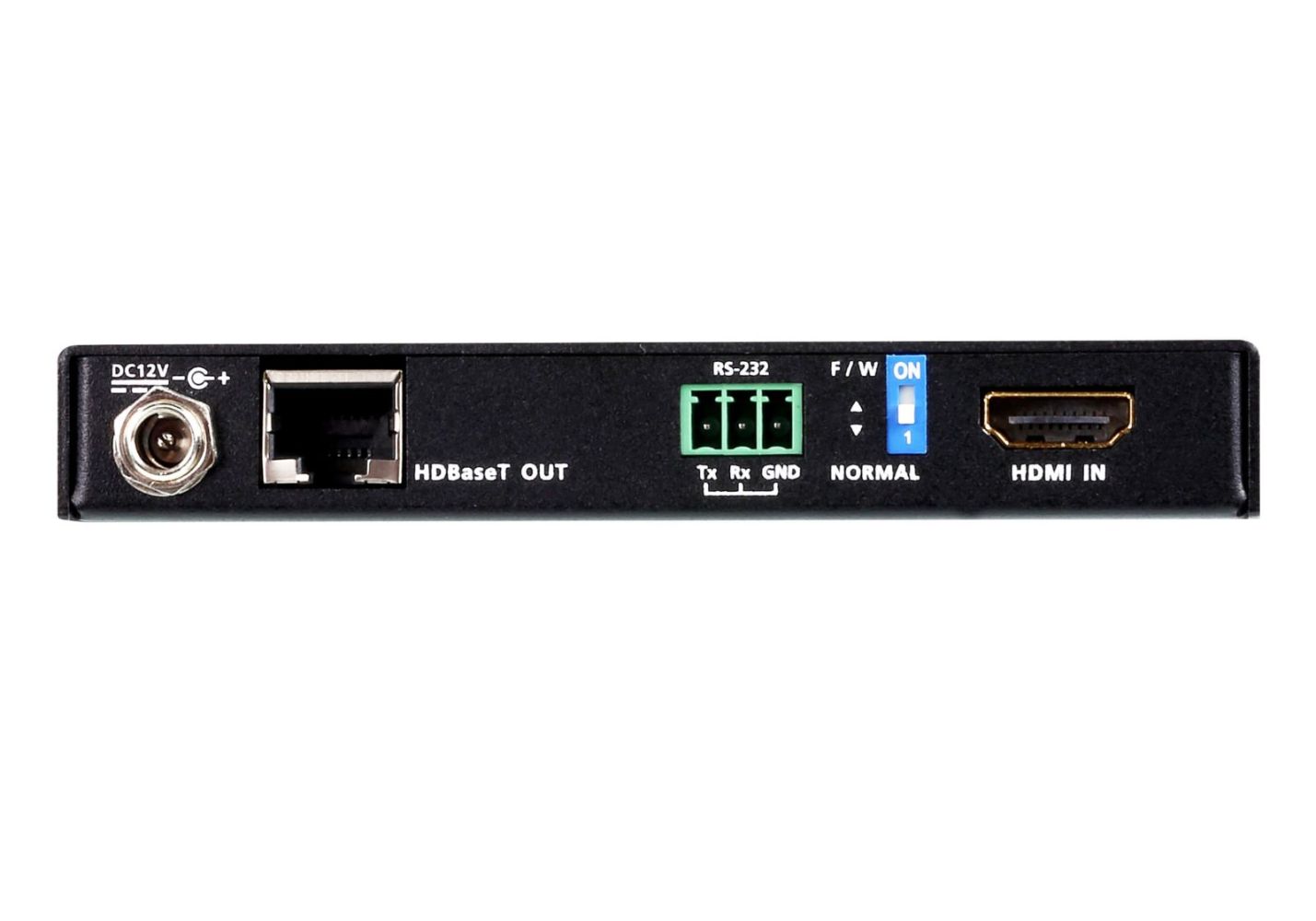

Power1 x RJ-45 Female
(Power over Cable, power supply from VE1830T)1 x DC Jack (Black) with locking
Control
RS-232 ChannelConnector: 1 x Terminal Block, 3 poleConnector: 1 x Terminal Block, 3 pole
Power ConsumptionBTU12.432WBTU
Switches
Firmware Upgrade1 x Slide Switch - ON/OFF1 x Slide Switch - ON/OFF
Environmental
Operating Temperature0 - 40°C0 - 40°C
Storage Temperature-20 - 60°C-20 - 60°C
Humidity0 - 80% RH, Non-Condensing0 - 80% RH, Non-Condensing
Physical Properties
HousingMetalMetal
Weight0.12 kg ( 0.28 lb )0.15 kg ( 0.35 lb )
Dimensions (L x W x H)11.86 x 7.19 x 1.68 cm
(4.67 x 2.83 x 0.66 in.)11.86 x 7.19 x 1.68 cm
(4.67 x 2.83 x 0.66 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Features
Type	AV transmitter & receiver
Maximum resolution	4096 x 2160 pixels
Cable types supported	Cat5e, Cat6, Cat6a
Maximum transfer distance	5 m
Maximum refresh rate	60 Hz
Bandwidth	10.2 Gbit/s
Material	Metal
Impedance	100 Ω
HDCP version	2.2
Product colour	Black
On/off switch
HDCP
Firmware upgradeable
Logistics data
Master (outer) case width	292 mm
Master (outer) case length	517 mm
Master (outer) case height	194 mm
Master (outer) case gross weight	4.56 kg
Master (outer) case net weight	4 kg
Products per master (outer) case	5 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Packaging data
Package width	100 mm
Package depth	283 mm
Package height	173 mm
Package weight	1 kg
Ports & interfaces
Connectivity technology	Wired
RJ-45 input ports	1
RJ-45 output ports	1
HDMI in	1
Number of HDMI outputs	1
HDMI version	2.0
DC-in jack
Technical data
Height packaging	0.173m
Width packaging	0.100m
Weight	1.000kg
Article type	Extender bundle
Packaging volume	0.0049m³
Max. distance	70m
Length packaging	0.283m
Technical details
Compliance certificates	RoHS
Weight & dimensions
Weight	800 g
Receiver dimensions (WxDxH)	71.9 x 118.9 x 16.8 mm
Receiver weight	120 g
Transmitter dimensions (WxDxH)	71.9 x 118.9 x 16.8 mm
Transmitter weight	150 g

---
