ATEN VS184A HDMI HighSpeed Video Splitter 4 Ports
|
58,58 EUR 59,25 EUR |
|
|
( 69,71 EUR incl. VAT ) ≈ £49.32 | ≈ $65.79 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1122272 |
| Mfg Part No: | VS184A-AT-G |
| UPC/EAN: | 4710423779938 |
| Weight: | 0.825 kg |
Product information for Aten VS184A-AT-G:

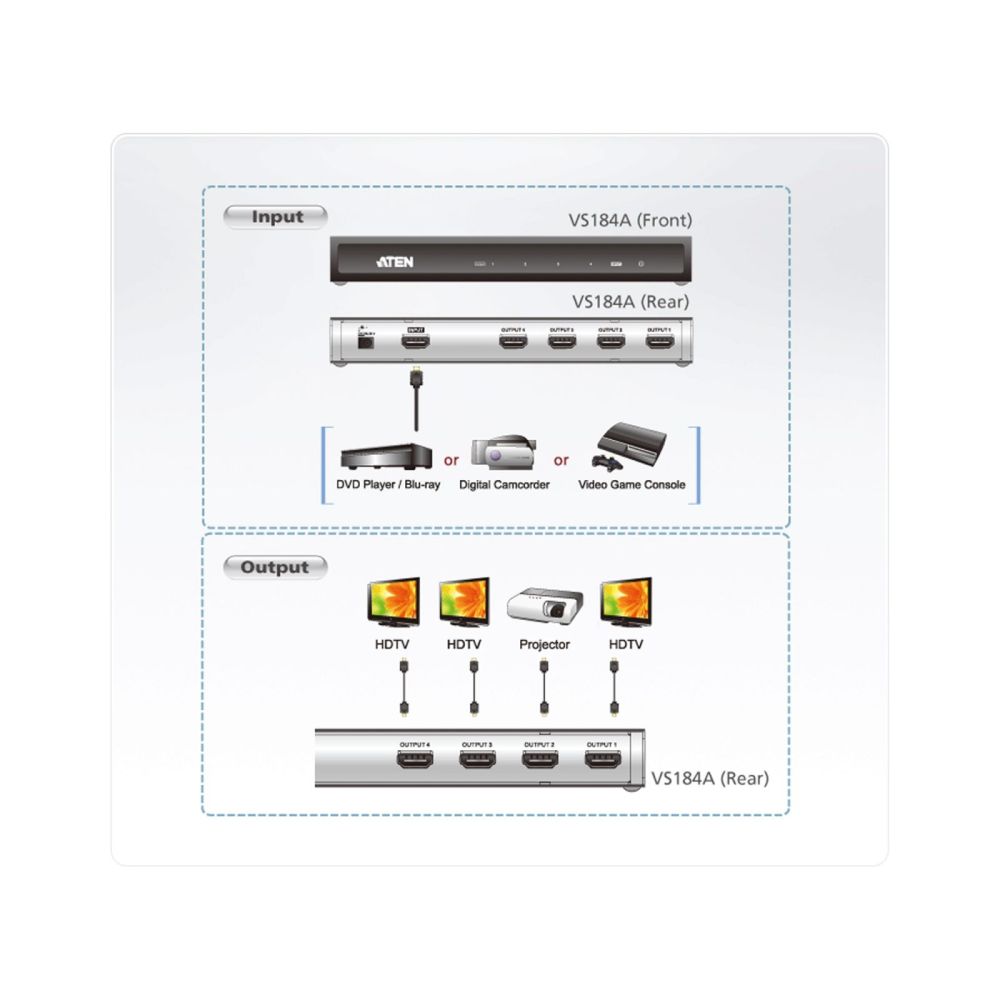

The VS184A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays. The VS184A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings. connects one HDMI source to four HDMI displays at the same time
HDMI (3D, Deep Color, 4kx2k) / HDCP Compatible
supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
supports Dolby True HD and DTS HD Master Audio
long distance transmission: up to 15m (24 AWG)
supports up to 340MHz bandwidth for high performance video
signaling rates up to 3.4 Gbits in support of 1080p display
Plug and Play: no software installation required
HDMI (3D, Deep Color, 4kx2k) / HDCP Compatible
supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
supports Dolby True HD and DTS HD Master Audio
long distance transmission: up to 15m (24 AWG)
supports up to 340MHz bandwidth for high performance video
signaling rates up to 3.4 Gbits in support of 1080p display
Plug and Play: no software installation required
| Features | |
| Product colour | Black |
| Maximum resolution | 4096 x 2160 pixels |
| HD type | 4K Ultra HD |
| Maximum operating distance | 15 m |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 340 MHz |
| HDCP version | 1.4 |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| 3D | |
| HDCP | |
| Plug and Play | |
| LED indicators | |
| Logistics data | |
| Master (outer) case net weight | 14.1 kg |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 338 mm |
| Master (outer) case gross weight | 17.3 kg |
| Products per master (outer) case | 20 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Cables included | HDMI |
| Manual | |
| AC adapter included | |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 825 g |
| Ports & interfaces | |
| Video port type | HDMI |
| Video out | 4x HDMI |
| Video ports quantity | 5 |
| DC-in jack | |
| Power | |
| AC input voltage | 5 V |
| Power consumption (typical) | 6.02 W |
| Technical data | |
| Height packaging | 0.160m |
| Width packaging | 0.059m |
| Outputs | HDMI socket x4 |
| Weight | 0.825kg |
| Packaging volume | 0.0023m³ |
| Length packaging | 0.239m |
| Weight & dimensions | |
| Width | 80 mm |
| Depth | 200 mm |
| Height | 25 mm |
| Weight | 703 g |
Questions & answers
What is the delivery time of ATEN VS184A HDMI HighSpeed Video Splitter 4 Ports?
The article ATEN VS184A HDMI HighSpeed Video Splitter 4 Ports is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten VS184A-AT-G to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ATEN VS184A HDMI HighSpeed Video Splitter 4 Ports always at the best possible price. We can give you a discount of 2% on ATEN VS184A HDMI HighSpeed Video Splitter 4 Ports if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
