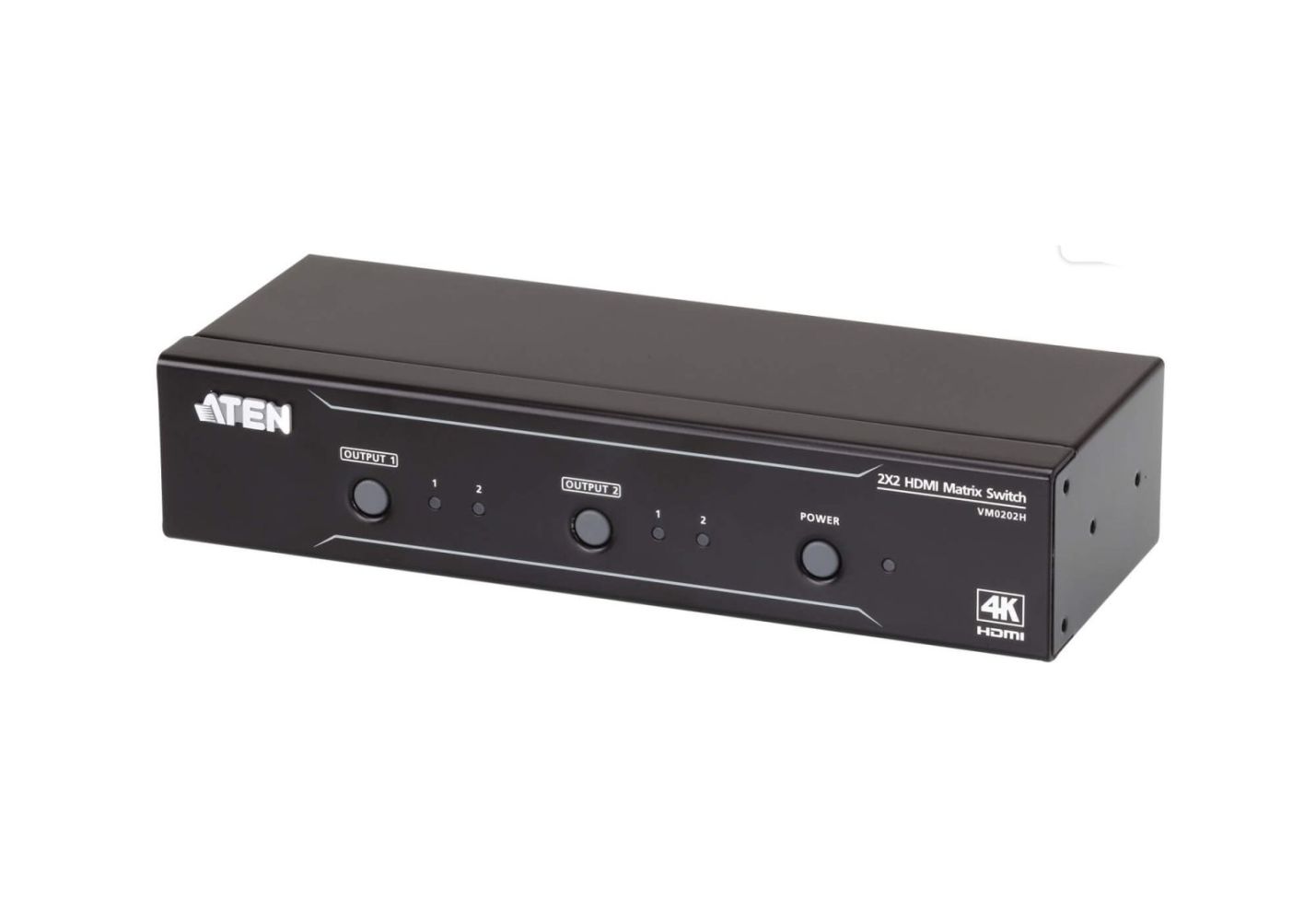

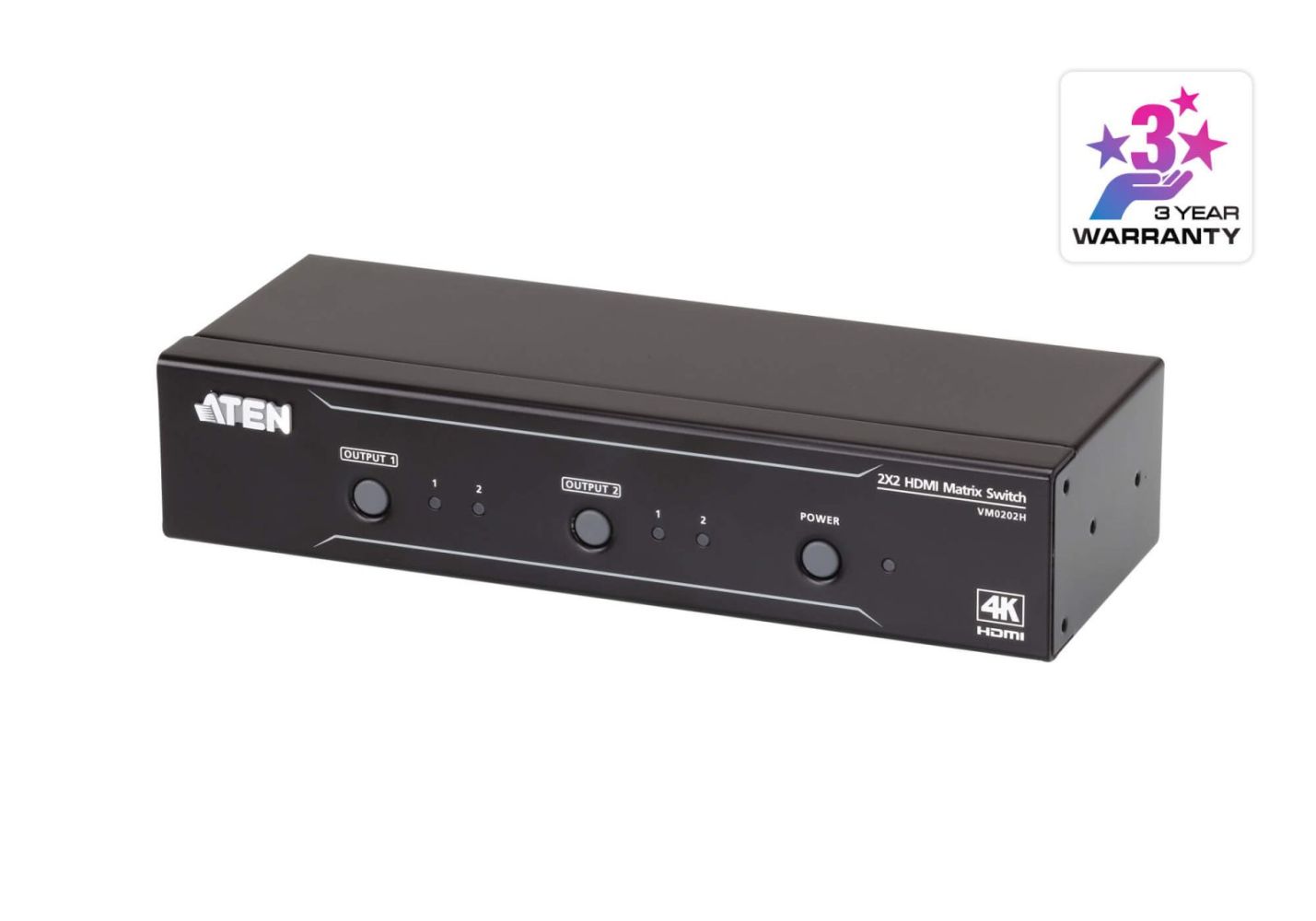

ATEN VM0202H 2 x 2 4K HDMI Audio/Video Matrix Switch
|
153,00 EUR |
|
|
( 182,07 EUR incl. VAT ) ≈ £127.60 | ≈ $170.90 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1058724 |
| Mfg Part No: | ATEN VM0202H |
| UPC/EAN: | 4719264645501 |
| Weight: | 1 kg |
Product information for Aten ATEN VM0202H:
The VM0202H is a 2 X 2 HDMI Matrix Switch that meets HDMI Specification features including 3D, Deep Color up to 12- bit, and data rates up to 10.2 Gbps. Engineered for the future trend of high-definition video switching, the VM0202H supports computer and video signals at resolutions up to 4K. The VM0202H matrix switch provides high performance routing of 2 HDMI video sources such as HD camcorders, satellite boxes, HD-DVD players, high-definition Blue- ray players, home theater PCs and stand-alone streaming media players to any 2 HDMI displays. The remote control and convenient front panel pushbuttons allow you to efficiently cycle through HDMI source devices and displays, while the front panel LEDs indicate the source device for each display at a glance.Connects 2 HDMI sources to any 2 HDMI displays
HDMI (3D, Deep Color, 4k); HDCP 1.4 Compatible
Supports computer and video resolutions up to 4K
Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
Supports long distance transmission at a distance up to 15 meters

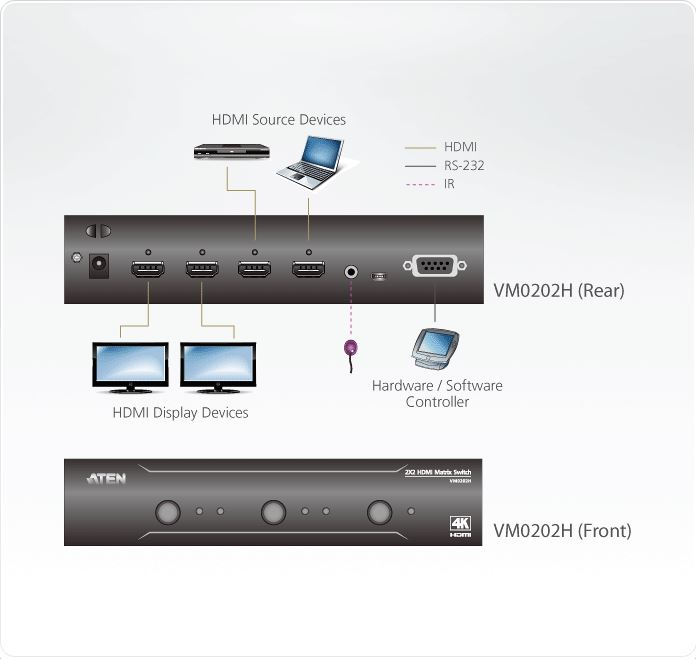

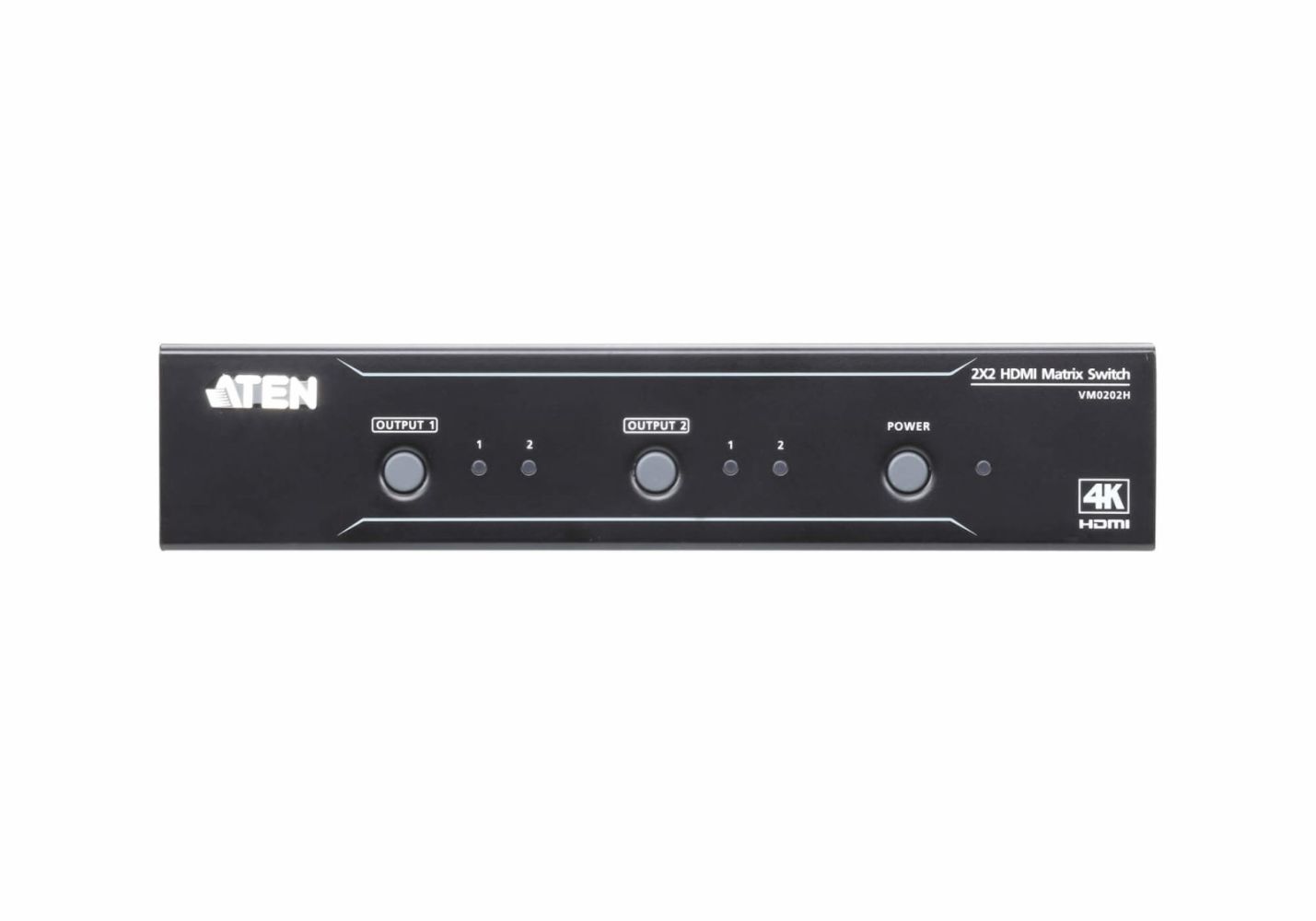

Multiple Control Methods- system management via front panel push buttons, IR remote and RS- 232 control
Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
EDID Expert™ — Selects optimum EDID settings for smooth power- up, high- quality display and use of the best video resolution across different screens
Supports ATEN’s Lock Pro™ HDMI cable lock for securing HDMI cable connections
All- metal casing
Firmware upgradable
Rack mountable
Package Contents: 1x VM0202H 2x2 4K HDMI Matrix Switch, 1x Rack Mount Kit, 1x Power Adapter, 1x IR Control, 1x IR Receiver, 1x User Instructions

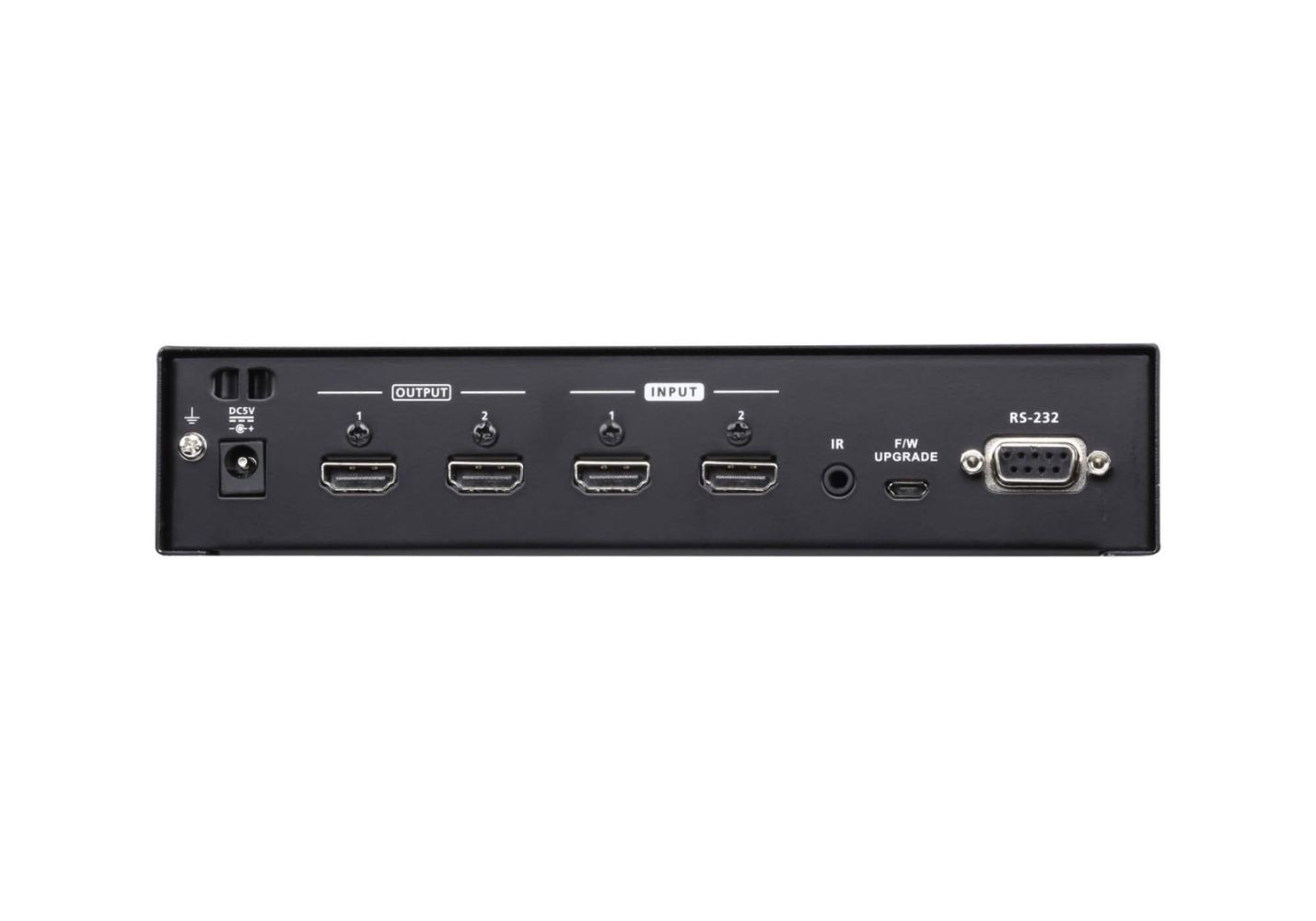

Video Input
Interfaces2 x HDMI Type A Female (Black)
Impedance100 ?
Max. Distance1.8 m
Video Output
Interfaces2 x HDMI Type A Female (Black)
Impedance100 ?
Max. Distance15 m
Video
Max. Data Rate10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock340 MHz
ComplianceHDMI (3D, 4K, Deep Color)
HDCP 1.4 Compatible
Consumer Electronics Control (CEC)
Max. ResolutionUp to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Max. DistanceUp to 15 m
Control
USB1 x Micro USB
F/W upgrade
RS-232Connector: 1 x DB-9 Female (Black)
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR1 x Mini Stereo Jack Female (Black)
EDID SettingsEDID Mode: Default / Port1 / Remix
Carton Lot5 pcs
Physical Properties
Weight0.58 kg ( 1.28 lb )
HousingMetal
Dimensions (L x W x H)20.00 x 7.60 x 4.20 cm
(7.87 x 2.99 x 1.65 in.)
Power
Connectors1 x DC Jack (Black)
Consumption5VDC ; 4.3W
Environmental
Operating Temperature0-40°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
HDMI (3D, Deep Color, 4k); HDCP 1.4 Compatible
Supports computer and video resolutions up to 4K
Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
Supports long distance transmission at a distance up to 15 meters
Multiple Control Methods- system management via front panel push buttons, IR remote and RS- 232 control
Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
EDID Expert™ — Selects optimum EDID settings for smooth power- up, high- quality display and use of the best video resolution across different screens
Supports ATEN’s Lock Pro™ HDMI cable lock for securing HDMI cable connections
All- metal casing
Firmware upgradable
Rack mountable
Package Contents: 1x VM0202H 2x2 4K HDMI Matrix Switch, 1x Rack Mount Kit, 1x Power Adapter, 1x IR Control, 1x IR Receiver, 1x User Instructions
Video Input
Interfaces2 x HDMI Type A Female (Black)
Impedance100 ?
Max. Distance1.8 m
Video Output
Interfaces2 x HDMI Type A Female (Black)
Impedance100 ?
Max. Distance15 m
Video
Max. Data Rate10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock340 MHz
ComplianceHDMI (3D, 4K, Deep Color)
HDCP 1.4 Compatible
Consumer Electronics Control (CEC)
Max. ResolutionUp to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Max. DistanceUp to 15 m
Control
USB1 x Micro USB
F/W upgrade
RS-232Connector: 1 x DB-9 Female (Black)
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR1 x Mini Stereo Jack Female (Black)
EDID SettingsEDID Mode: Default / Port1 / Remix
Carton Lot5 pcs
Physical Properties
Weight0.58 kg ( 1.28 lb )
HousingMetal
Dimensions (L x W x H)20.00 x 7.60 x 4.20 cm
(7.87 x 2.99 x 1.65 in.)
Power
Connectors1 x DC Jack (Black)
Consumption5VDC ; 4.3W
Environmental
Operating Temperature0-40°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
| Design | |
| Housing colour | Black |
| Housing material | Metal |
| Control type | Buttons |
| Rack mounting | |
| LED indicators | |
| Remote control included | |
| Display | |
| Built-in display | |
| Features | |
| Product type | AV matrix switcher |
| Data transfer rate | 10.2 Gbit/s |
| Maximum pixel clock | 340 MHz |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP version | 1.4 |
| Supported resolutions | 4096 x 2160, 3840 x 2160 |
| HDCP | |
| 3D | |
| Firmware upgradeable | |
| Extended display identification data (EDID) | |
| Logistics data | |
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case gross weight | 5.33 kg |
| Master (outer) case length | 325 mm |
| Master (outer) case width | 250 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case net weight | 4.2 kg |
| Harmonized System (HS) code | 85299097 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Rack mount kit | |
| Manual | |
| AC adapter included | |
| IR receiver included | |
| Ports & interfaces | |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 2 |
| USB connector type | Micro-USB |
| USB ports quantity | 1 |
| RS-232 ports | 1 |
| DC-in jack | |
| Power | |
| Power consumption (typical) | 4.3 W |
| Technical data | |
| Length packaging | 0.239m |
| Height packaging | 0.160m |
| Width packaging | 0.059m |
| Inputs x outputs | 2x2 |
| Weight | 0.980kg |
| Packaging volume | 0.0023m³ |
| Weight & dimensions | |
| Width | 200 mm |
| Depth | 76 mm |
| Height | 42 mm |
| Weight | 840 g |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 980 g |
