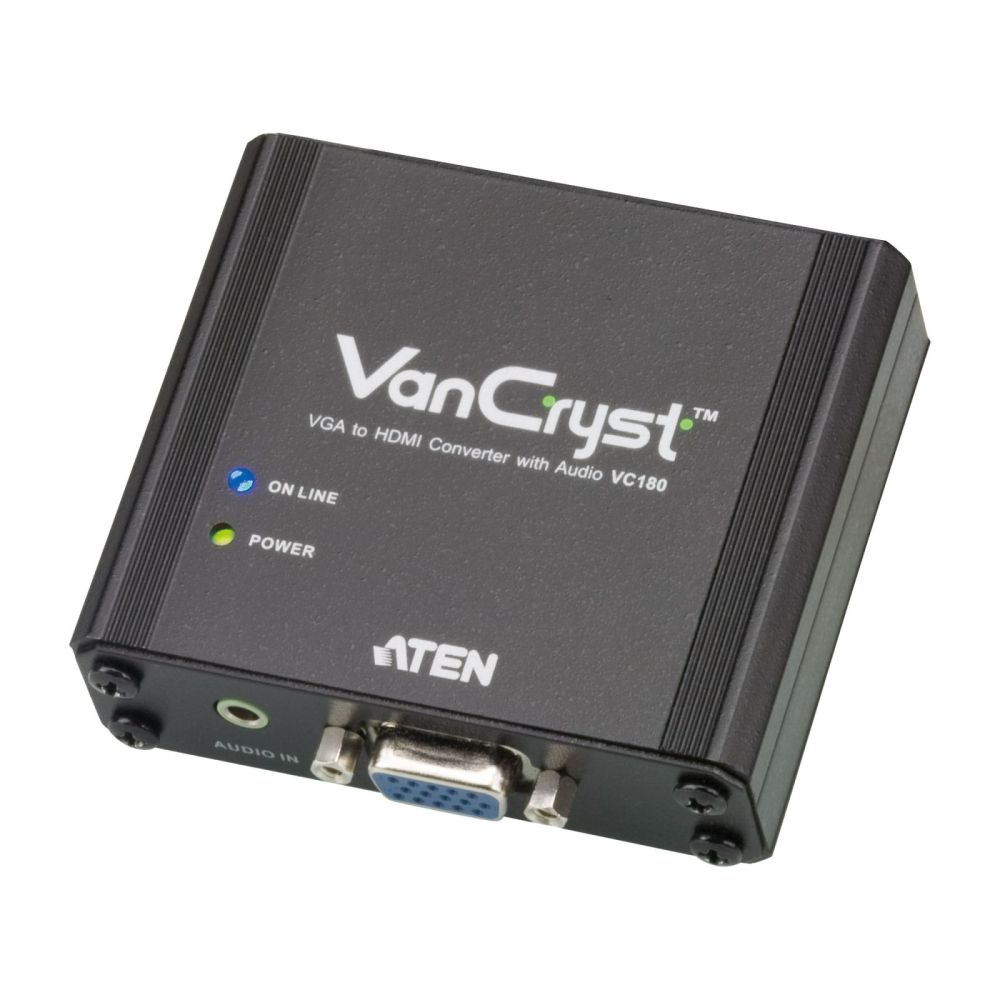

ATEN VC180 VGA to HDMI Audio/Video Converter
|
58,29 EUR |
|
|
( 69,37 EUR incl. VAT ) ≈ £49.08 | ≈ $65.46 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 922567 |
| Mfg Part No: | VC180 |
| UPC/EAN: | 4710423777606 |
| Weight: | 0.357 kg |
Further Media-Converters from AtenFurther products in category Media-Converters
All products of Aten
Product information for Aten VC180:
Device Type: Video converter Bus Type: VGA, max resolution: 1920 x 1200 at 60 Hz, interfaces: 1 x HDMI - HDMI Type A, 19-pin | 1 x VGA input - HD D-Sub (HD-15), 15 pole | 1 x audio line-in - mini-phone stereo 3.5 mm, Special features: LED display Power Consumption Operational: 3.2 Watt Included Accessories: AC adapter, labeling: RoHS, width: 29.7 cm, depth: 7.9 cm, height :: 2.43 cm, weight: 150 g, Min Operating Temperature: 0 ° C, Max. Operating temperature: 50 ° C, Humidity Range Operating: 0 - 80% (non-condensing)
| Features | |
| Product colour | Black |
| Housing material | Metal |
| Internal | |
| LED indicators | |
| Logistics data | |
| Master (outer) case net weight | 4.4 kg |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 338 mm |
| Master (outer) case gross weight | 8.37 kg |
| Products per master (outer) case | 20 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Packaging data | |
| Quantity | 1 |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 385 g |
| Quick installation guide | |
| Ports & interfaces | |

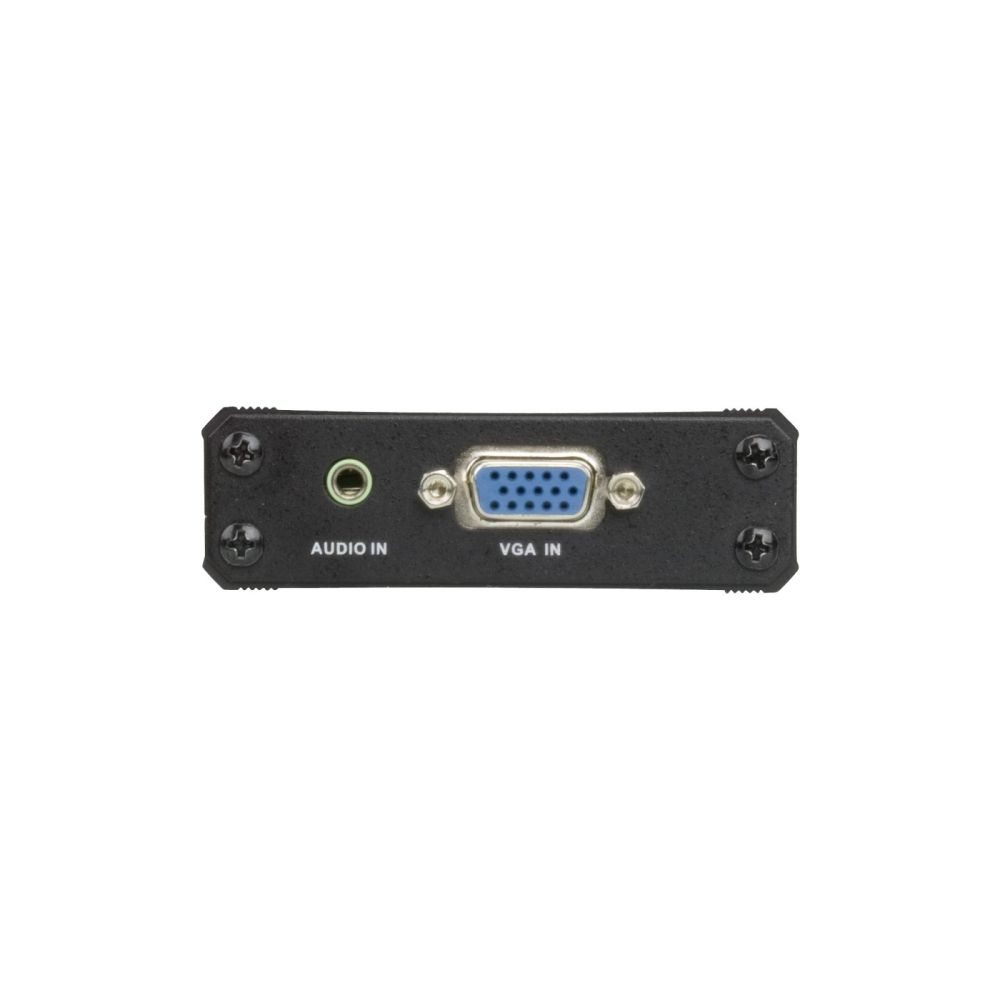

| Host interface | VGA (D-Sub) |

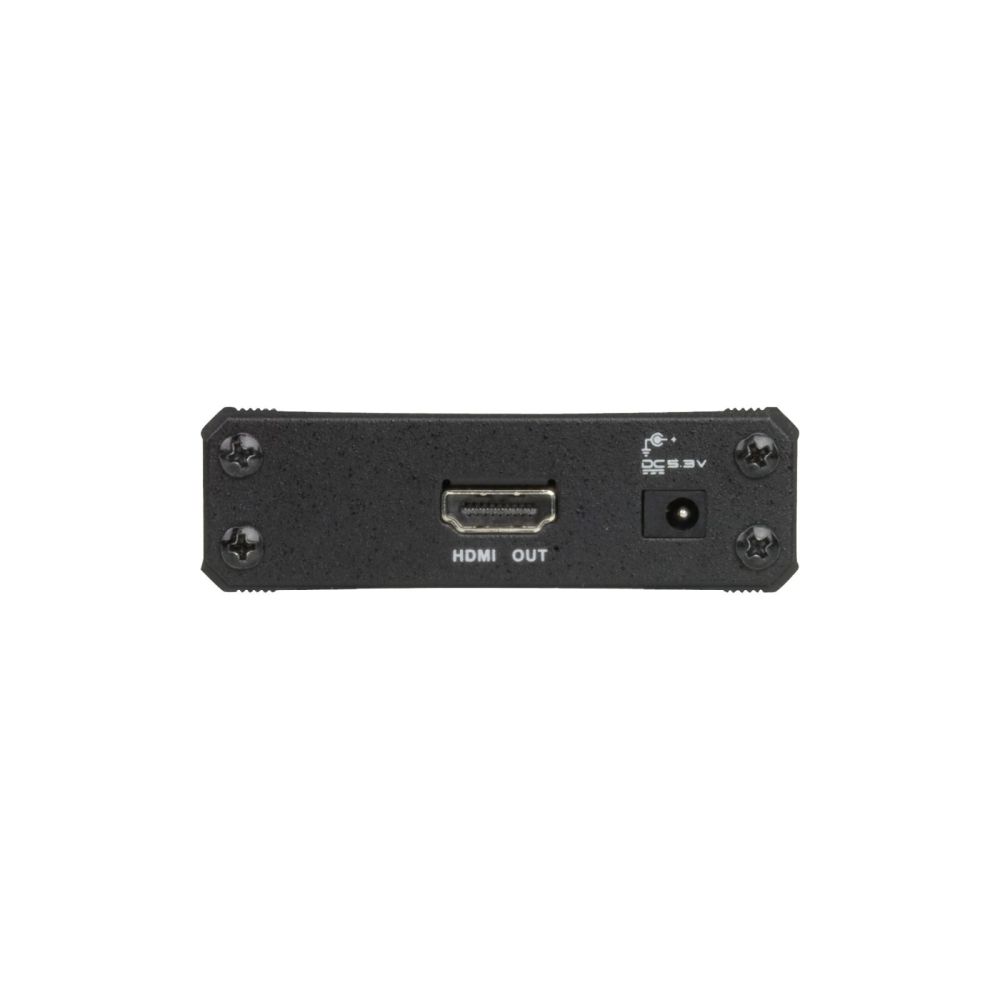

| Output interface | HDMI |
| DC-in jack | |
| Power | |
| Input voltage | 5 V |
| Power consumption (typical) | 2.62 W |
| Technical data | |
| Supported display resolution | Up to WUXGA, up to 1080p |
| Length packaging | 0.119m |
| Variant | Incl. power supply |
| Supported HDTV resolution | Up to 1080p |
| Power supply | Bus power supply (supply via power supply unit is optional) |
| Signal | Audio/Video |
| Width packaging | 0.059m |
| Side B | HDMI A female |
| Supported resolution | Up to WUXGA |
| Side A | 15-pin HD female, 3.5mm jack female |
| Weight | 0.310kg |
| Packaging volume | 0.0011m³ |
| Height packaging | 0.160m |
| Video | |
| Maximum video resolution | 1920 x 1080 pixels |
| Video resolutions | 1920 x 1080 pixels |
| Supported video modes | 1080p |
| Supported aspect ratios | 16:9 |
| Bandwidth | 165 MHz |
| Weight & dimensions | |
| Width | 79 mm |
| Depth | 78.1 mm |
| Height | 24.4 mm |
| Weight | 220 g |
