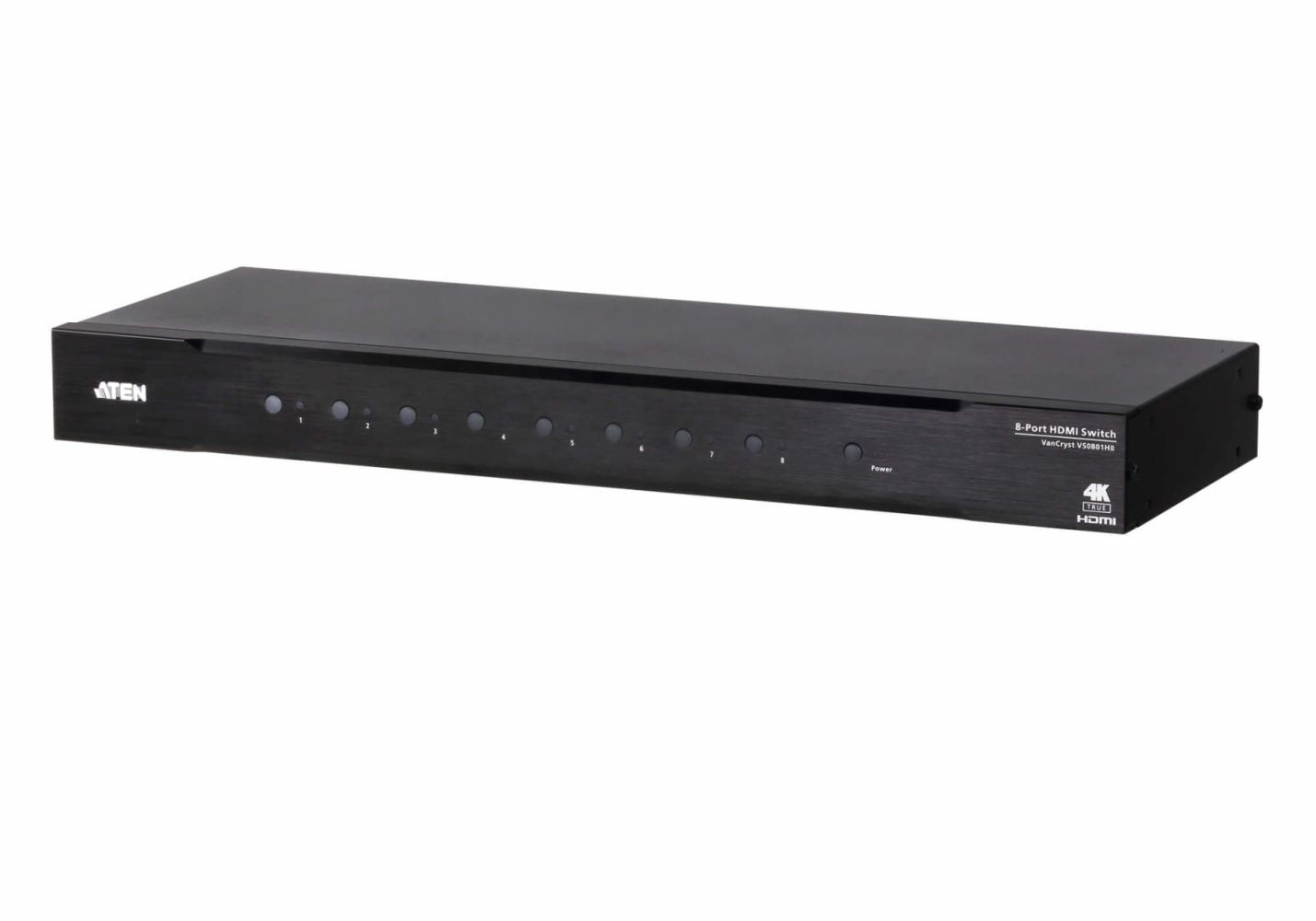

ATEN VS0801HB HDMI Switch with 8 Ports True 4K content_copy

The ATEN VS0801HB is designed for applications that require the routing of 8 sources to one compatible display device. It supports video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Color up to 12-bit, and HD lossless audio formats. The VS0801HB features Auto Switching modes for auto port selection and Instant Switching for a smooth video transition between HDMI ports. Multiple convenient control options include front panel pushbuttons, bi-directional RS-232, IR, and auto switch, allowing for easy integration.
Engineered to meet today’s demand of True 4K signal transmission and user-oriented design, the ATEN VS0801HB is a powerful solution for a wide range of settings, such as home theater, meeting rooms, trade shows, and shopping centers.Allows up to 8 HDMI sources to be connected to one HDMI display
HDMI 2.0 (3D, Deep Color, 4K); HDCP 2.2 compliant
Superior video quality - True 4K resolutions of 4K x 2K @ 60 Hz (4:4:4) and standard 1080p (1920 x 1080 @ 60 Hz)
Built-in bi-directional RS-232 serial port for high-end system control
Auto switching modes for auto port selection
Instant switching between HDMI input sources
Supports IR extension

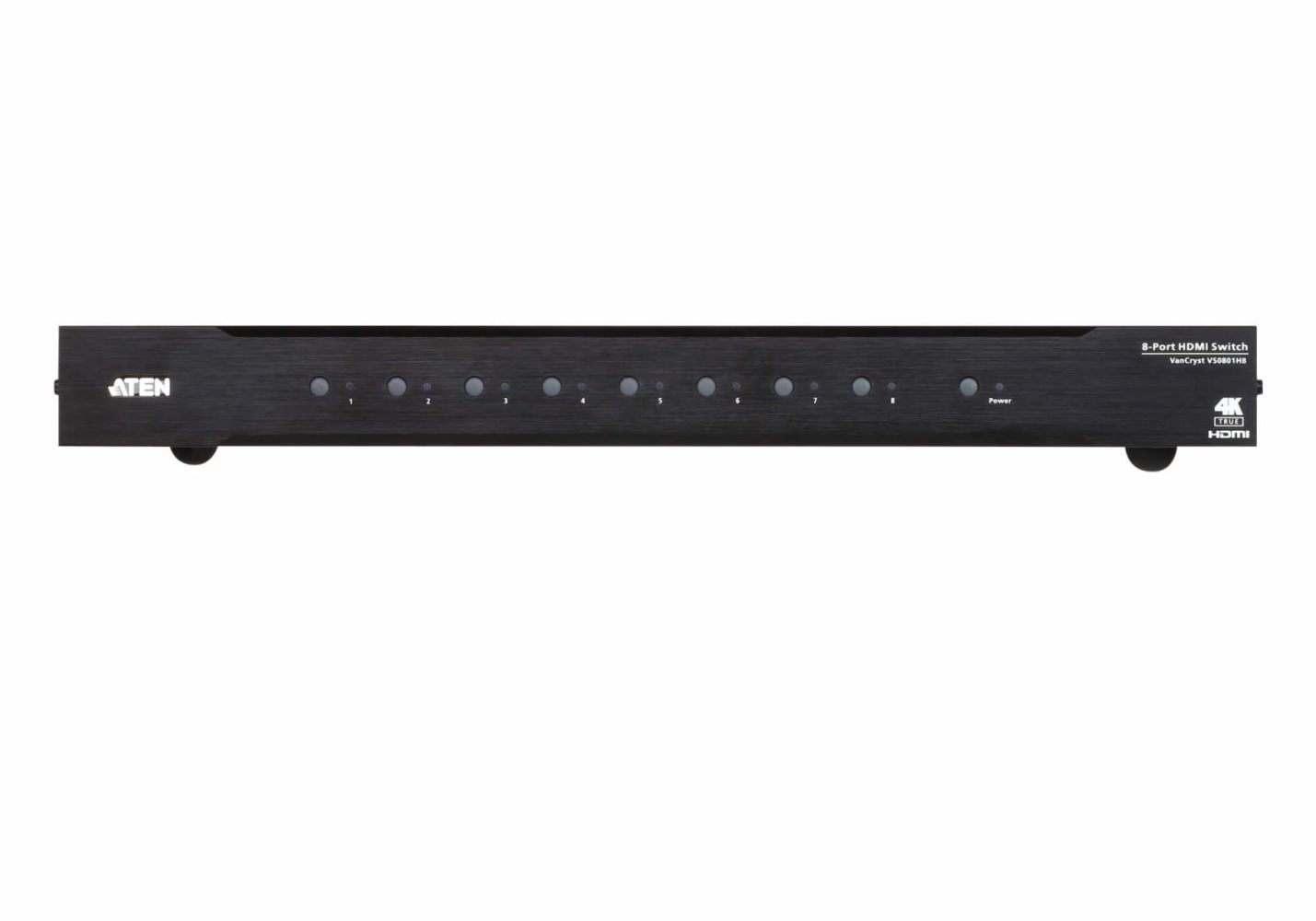

Clear LED indication of device status
Plug-and-play
Rack Mountable
Package Contents:1x VS0801HB 8-port True 4K HDMI Switch
1x IR Remote Control Unit
1x IR Receiver Cable
1x Power Adapter
1x Rack Mounting Kit
1x User Instructions
Switches
DIP1 x Auto Switch ON / OFF

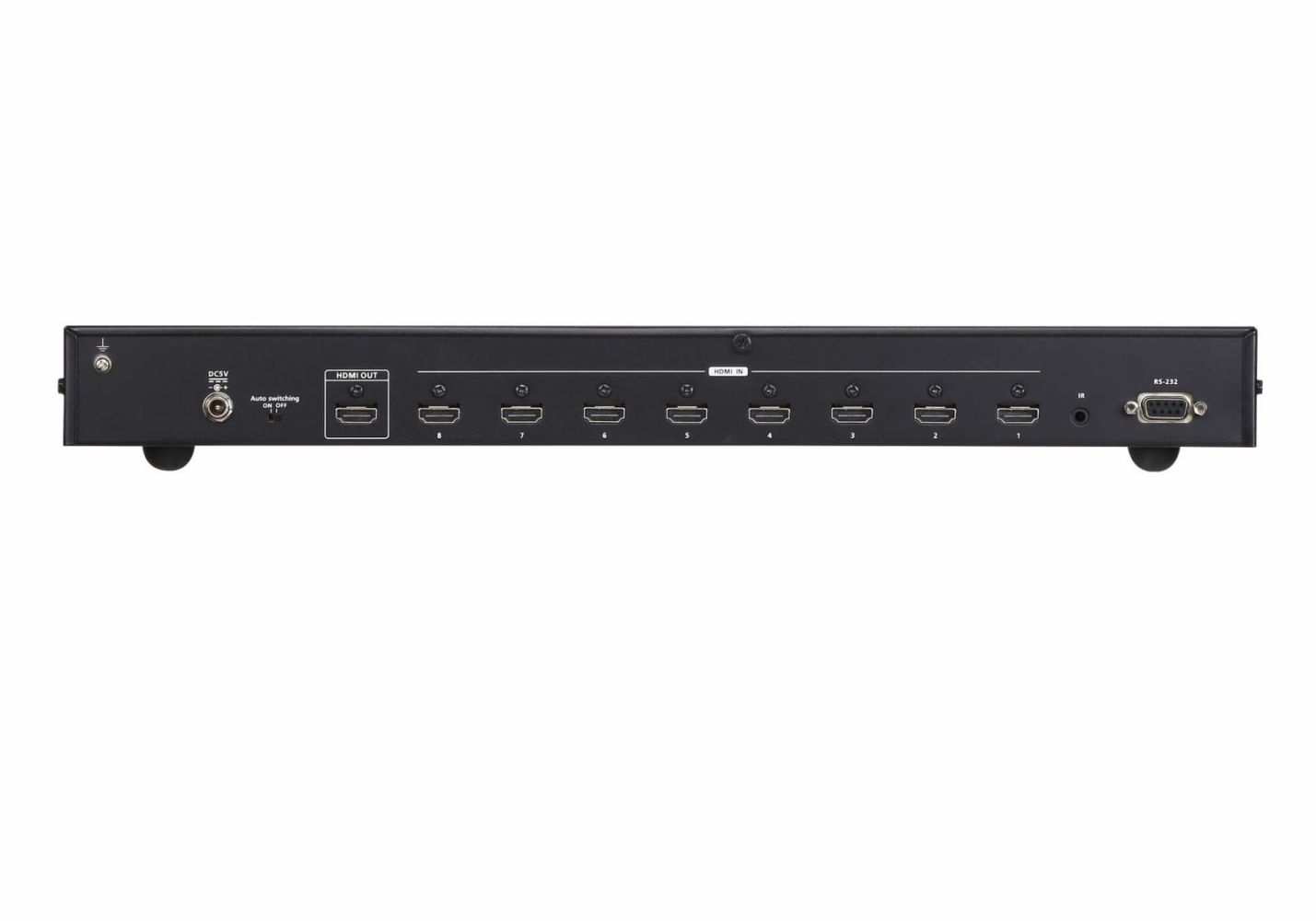

Video Input
Interfaces8 x HDMI Type A Female (Black)
Impedance100 Ohms
Max. Distance3M
Video Output
Interfaces1 x HDMI Type A Female (Black)
Impedance100 Ohms
Max. Distance3M
Video
Max. Data Rate18 Gbps (6 Gbps Per Lane)
Max. Pixel Clock600 MHz
ComplianceHDMI 2.0 (3D, Deep Color)
HDCP 2.2
Consumer Electronics Control (CEC)
Max. ResolutionUp to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Max. Distance3M
Control
RS-232Connector: 1 x DB-9 Female (Black)
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR1 x Mini Stereo Jack Female (Black)
Connectors
Power1 x DC Jack (with locking)
Power Consumption5 VDC, 14.84W
Environmental
Operating Temperature0 - 40°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight2.14 kg ( 4.71 lb )
Dimensions (L x W x H)43.72 x 15.83 x 4.40 cm
(17.21 x 6.23 x 1.73 in.)
Carton Lot3 pcs
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Features
Material	Metal
Product colour	Black
Maximum refresh rate	60 Hz
Maximum operating distance	3 m
Supported graphics resolutions	1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160
Bandwidth	18 Gbit/s
Maximum resolution	4096 x 2160 pixels
HD type	4K Ultra HD
Input impedance	100 Ω
Output impedance	100 Ω
HDCP version	2.2
Consumer Electronics Control (CEC) support
HDCP
3D
Logistics data
Harmonized System (HS) code	85176990
Master (outer) case width	375 mm
Master (outer) case length	565 mm
Master (outer) case height	258 mm
Master (outer) case gross weight	9.5 kg
Products per master (outer) case	3 pc(s)
Master (outer) case net weight	7.26 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Packaging content
Mounting kit
AC adapter included
Packaging data
Package width	116 mm
Package depth	540 mm
Package height	233 mm
Package weight	2.87 kg
Ports & interfaces
Video port type	HDMI
HDMI ports quantity	8
HDMI version	2.0
HDMI in	8
Number of HDMI outputs	1
RS-232 ports	1
DC-in jack
Power
AC adapter input voltage	5.3 V
Power consumption (typical)	3.73 W
Technical data
Length packaging	0.540m
Height packaging	0.233m
Width packaging	0.116m
Weight	2.874kg
Number of inputs	8
Packaging volume	0.0146m³
Article type	Switch
Weight & dimensions
Width	158.3 mm
Depth	437.2 mm
Height	44 mm
Weight	2.42 kg

---
