ATEN VC080 HDMI EDID Emulator
|
-23% 51,60 EUR 66,93 EUR |
|
|
( 61,40 EUR incl. VAT ) ≈ £43.45 | ≈ $57.95 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 234623 |
| Mfg Part No: | VC080 |
| UPC/EAN: | 4710423779259 |
| Weight: | 0.361 kg |
Product information for Aten VC080:

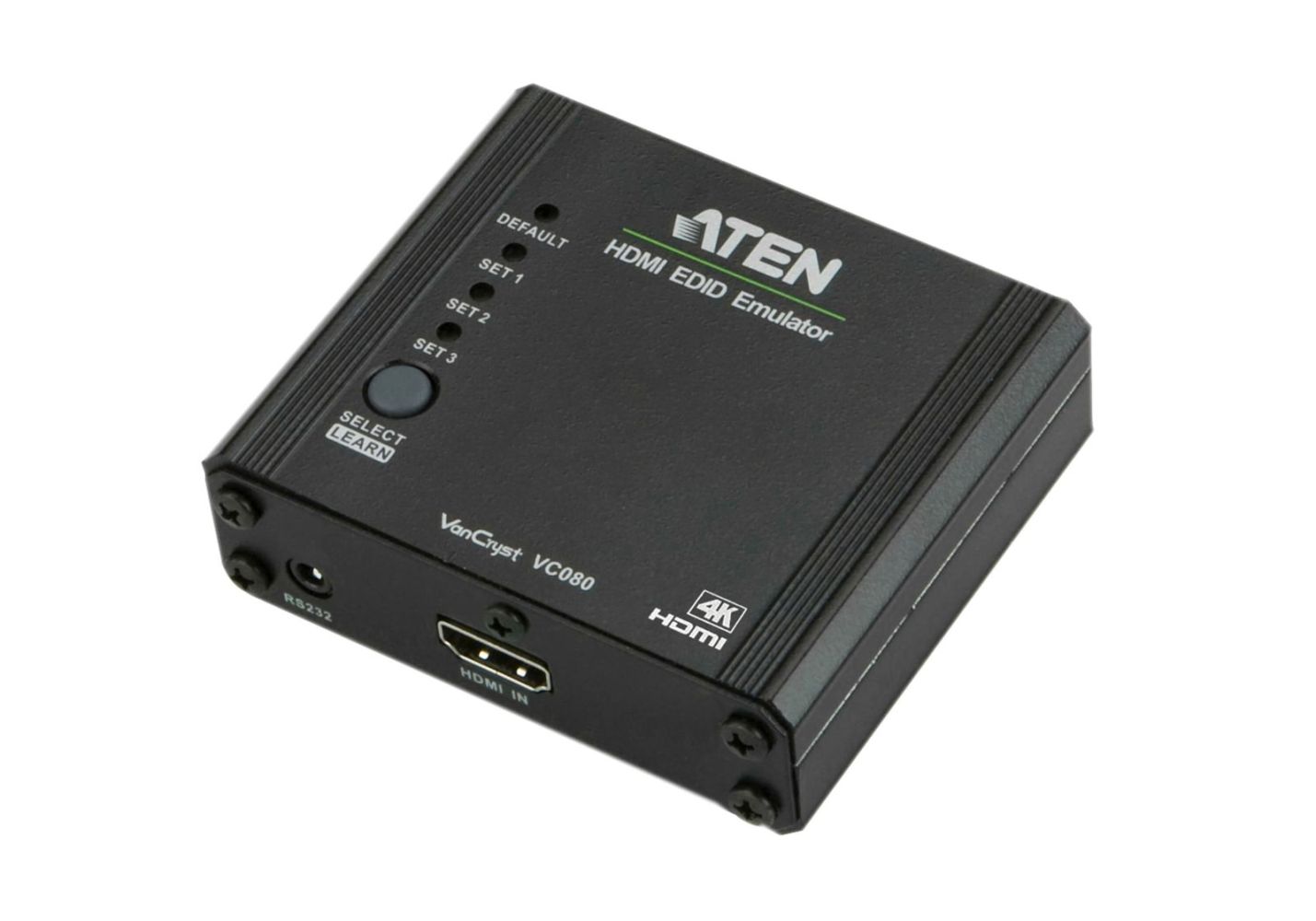

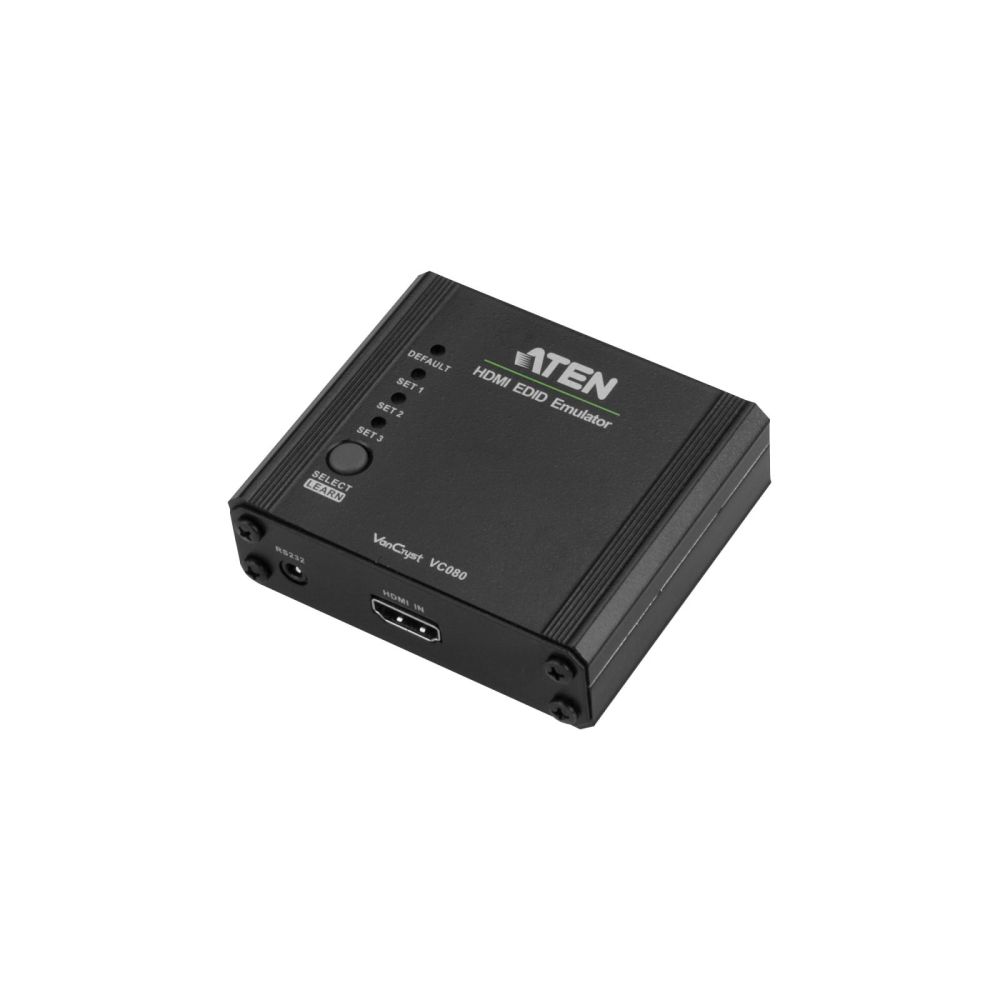

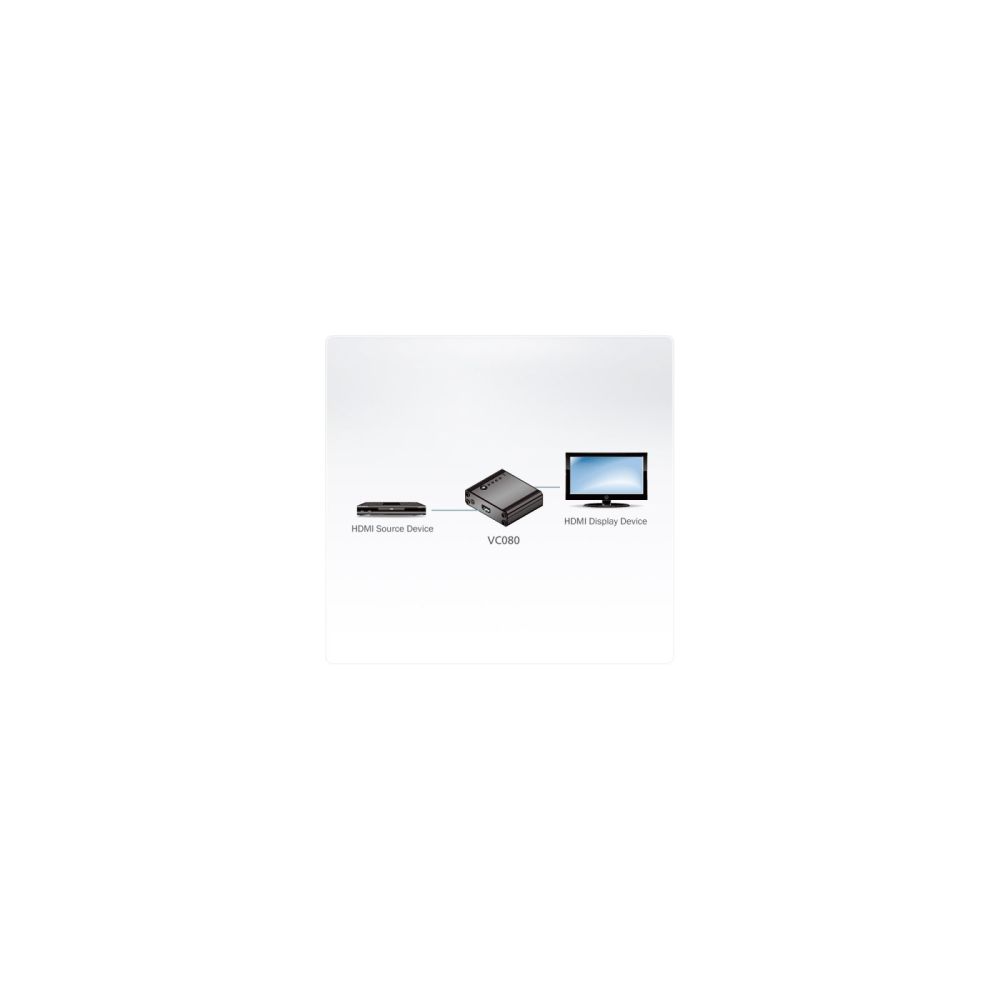

HDMI EDID Emulator. The ATEN VC080 is a HDMI EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for a HDMI source device to efficiently optimize video resolution. The ATEN HDMI EDID Emulator is a convenient tool that ensures smooth viewing experience for any video installation. The EDID Emulator provides three flexible methods for selecting and switching between EDID Modes: Default Mode, Programming Mode, and Learning Mode. It comes with an easy-to-use EDID Wizard that allows users to quickly view, store and manage EDID settings.Superior video quality - HDTV resolutions of 480i, 480p, 720i, 720p, 1080i, 1080p (1920 x 1080), VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)
EDID Wizard - allows a user an easy way to manage EDID settings
Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
EDID mode selection - Default, Learning , Programming
HDMI (3D, Deep Color), HDCP compatible
Supports Dolby True HD and DTS HD Master Audio
Automatically manages EDID communication between connected devices
Signaling rates up to 2.25 Gbits in support of 1080p display
LED indication of video source devices
Supports wide screen
Supports hot-plugging
Non-Powered * (* If the video source is not receiving enough power an external power cord should be connected.)
Specifications:

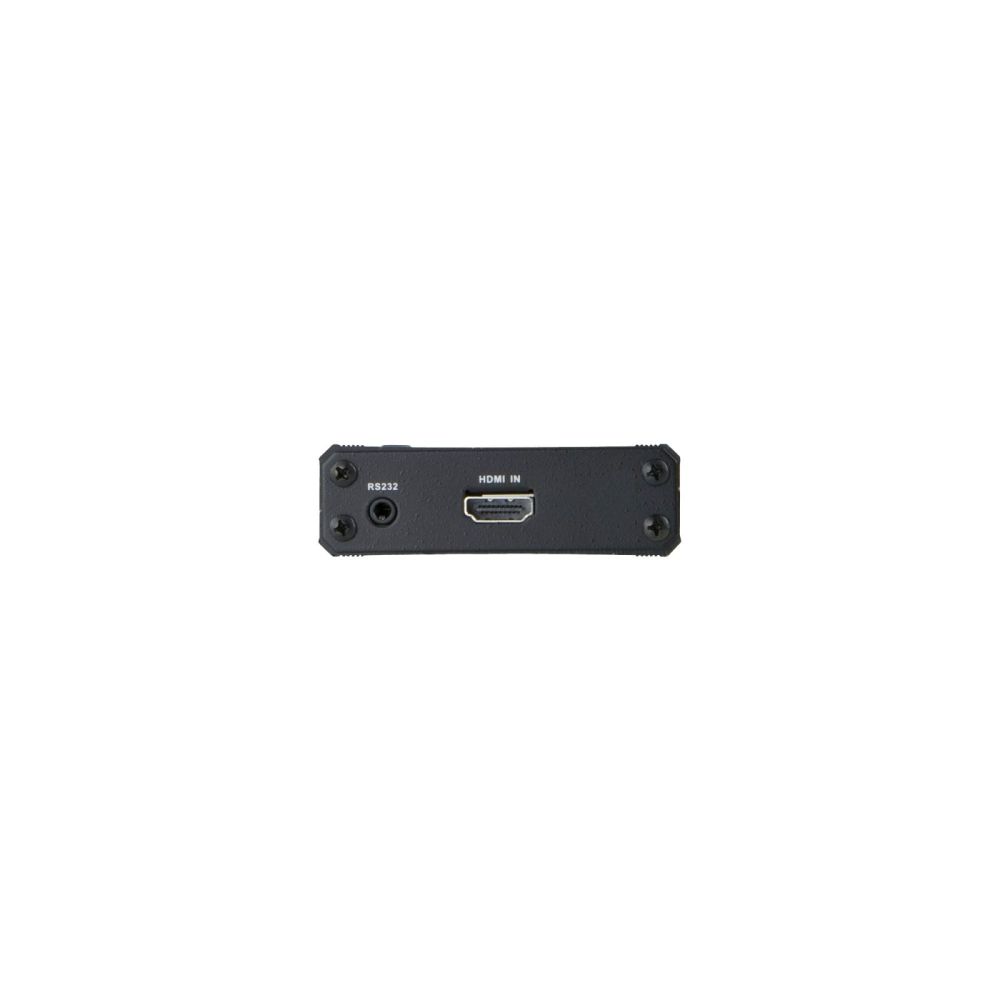

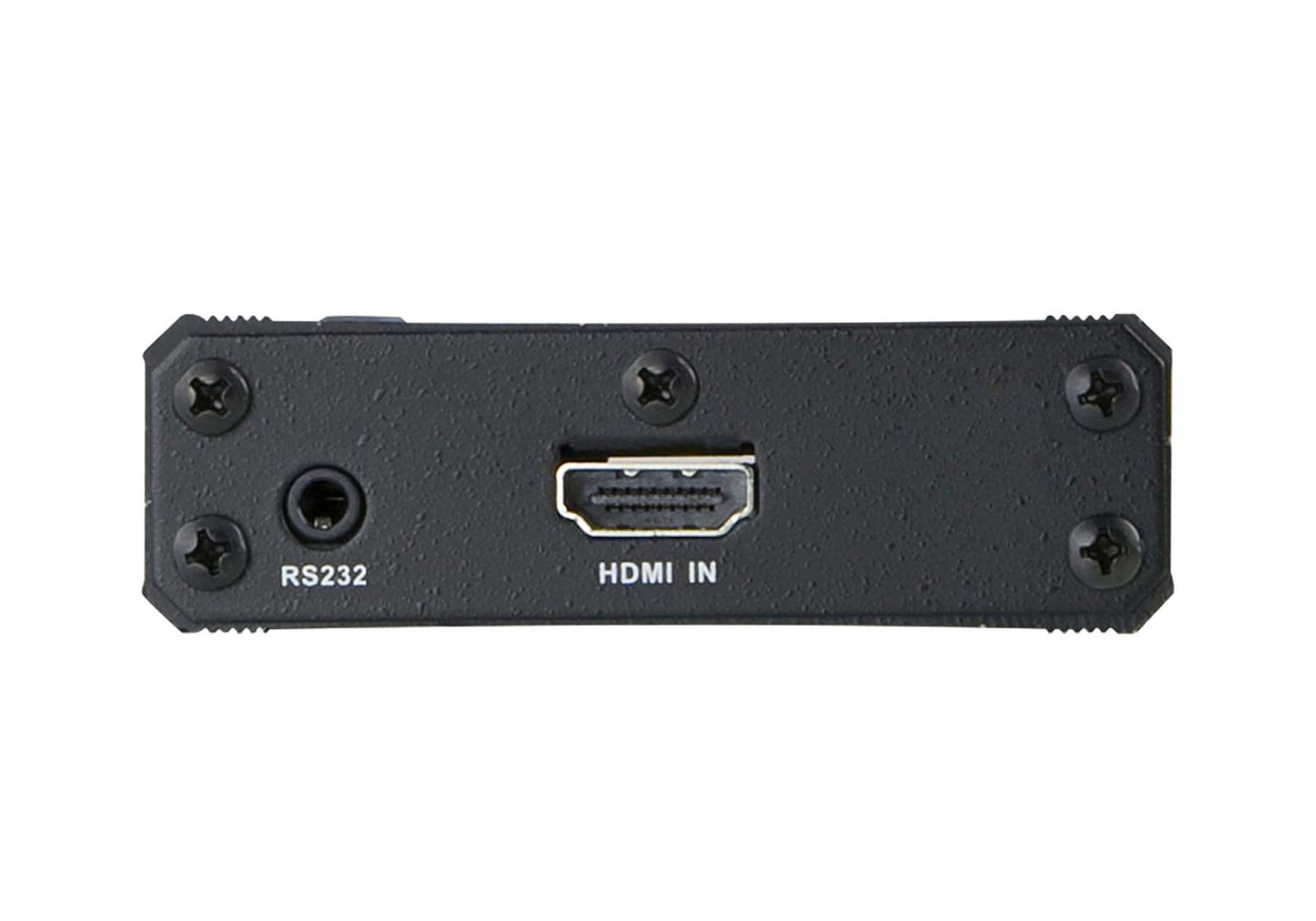

Connectors:Video In: 1 x HDMI Type A Female (Black)

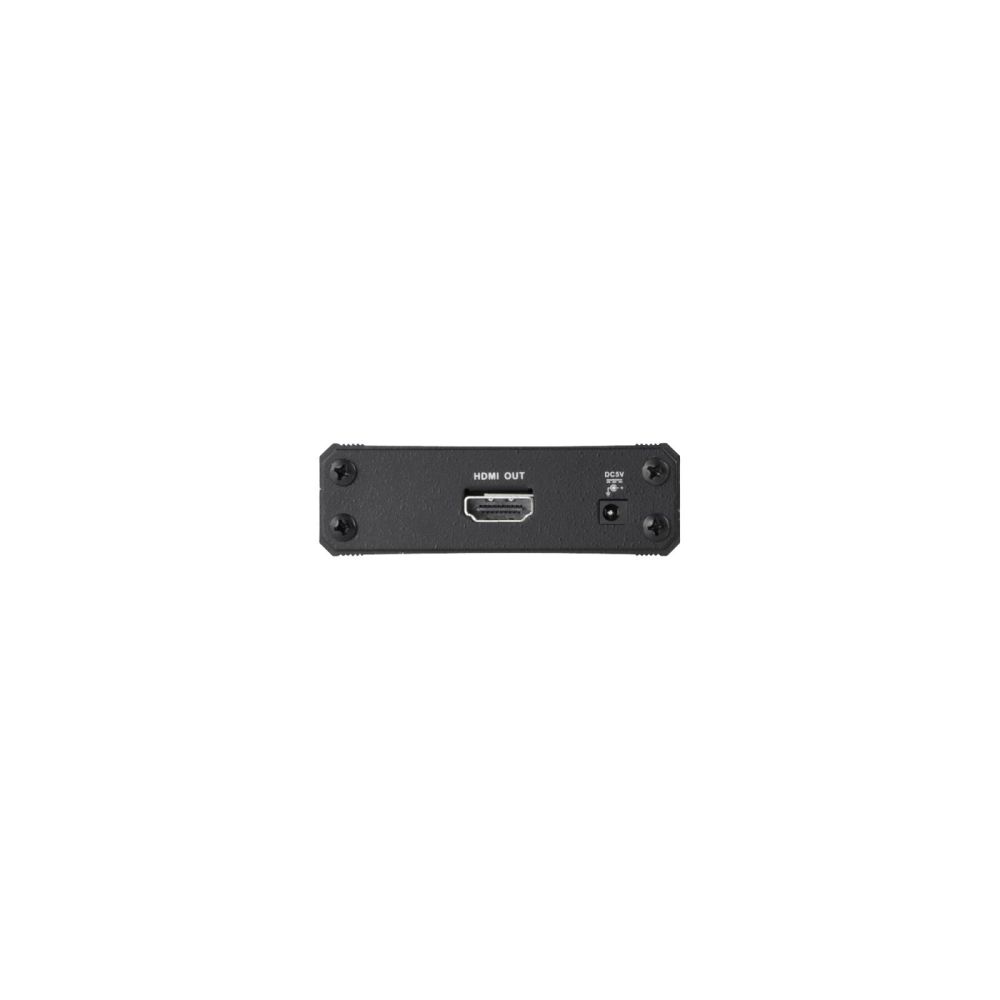

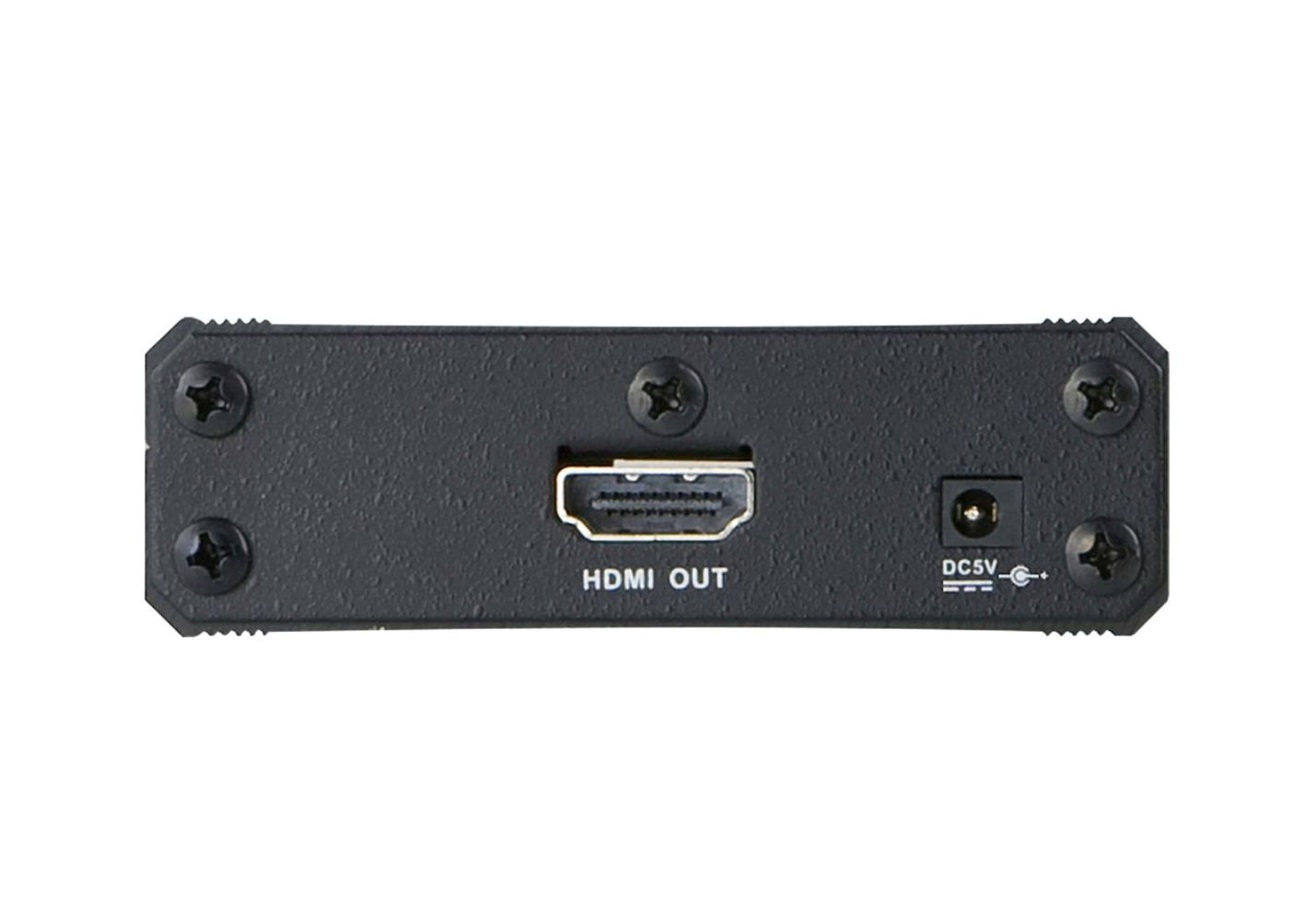

Video Out: 1 x HDMI Type A Female (Black)
RS-232 Port: 1x mini jack (Black)
Power: 1x DC Jack
SwitchesLearn / Select: 1x Pushbutton
LEDs:EDID Set: 4 (Green)
Video: 1920 x 1200, 1080p
Power Consumption: DC5V, 0,15W
EnvironmentOperating Temp.: 0-50°C
Storage Temp.: -20-60°C
Humidity: 0-80% RH, Non-condensing
Physical PropertiesHousing: Metal
Weight: 0.15 kg
Dimensions (L x W x H): 7.90 x 7.16 x 2.55 cm
Package Contents1x VC080 HDMI Emulator
1x RS-232 Configuration Cable
1x USB to DC Power Cord
1x User Instructions
EDID Wizard - allows a user an easy way to manage EDID settings
Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
EDID mode selection - Default, Learning , Programming
HDMI (3D, Deep Color), HDCP compatible
Supports Dolby True HD and DTS HD Master Audio
Automatically manages EDID communication between connected devices
Signaling rates up to 2.25 Gbits in support of 1080p display
LED indication of video source devices
Supports wide screen
Supports hot-plugging
Non-Powered * (* If the video source is not receiving enough power an external power cord should be connected.)
Specifications:
Connectors:Video In: 1 x HDMI Type A Female (Black)
Video Out: 1 x HDMI Type A Female (Black)
RS-232 Port: 1x mini jack (Black)
Power: 1x DC Jack
SwitchesLearn / Select: 1x Pushbutton
LEDs:EDID Set: 4 (Green)
Video: 1920 x 1200, 1080p
Power Consumption: DC5V, 0,15W
EnvironmentOperating Temp.: 0-50°C
Storage Temp.: -20-60°C
Humidity: 0-80% RH, Non-condensing
Physical PropertiesHousing: Metal
Weight: 0.15 kg
Dimensions (L x W x H): 7.90 x 7.16 x 2.55 cm
Package Contents1x VC080 HDMI Emulator
1x RS-232 Configuration Cable
1x USB to DC Power Cord
1x User Instructions
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | |
| Features | |
| Maximum video resolution | 4096 x 2160 pixels |
| Video resolutions | 1920 x 1200,3840 x 2160,4096 x 2160 |
| Bandwidth | 10.2 Gbit/s |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| Consumer Electronics Control (CEC) support | |
| Logistics data | |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case gross weight | 3.64 kg |
| Master (outer) case length | 325 mm |
| Master (outer) case width | 250 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case net weight | 2.3 kg |
| Packaging content | |
| Quick start guide | |
| Packaging data | |
| Package width | 59 mm |
| Package depth | 119 mm |
| Package height | 160 mm |
| Package weight | 330 g |
| Ports & interfaces | |
| Video port type | HDMI |
| Number of video inputs | 1 |
| Number of video outputs | 1 |
| HDCP | |
| DC-in jack | |
| Technical data | |
| Humidity | 0–80% relative humidity, non-condensing |
| Weight | 0.328kg |
| Type | EDID emulator |
| Supported HDTV resolution | 480i, 576i, 480p, 576p, 1080i, 1080p |
| Length packaging | 0.119m |
| Side A | HDMI A female |
| Data transmission rate | 2.25Gb/s |
| Signal | Video |
| Supported display resolution | VGA, SVGA, XGA, SXGA, UXGA, WUXGA, bis 1920x1200,480i, 576i, 480p, 576p, 1080i, 1080p |
| Power consumption | 5V, 0.15W |
| Width packaging | 0.059m |
| Housing material | Metal |
| Supported resolution | VGA, SVGA, XGA, SXGA, UXGA, WUXGA |
| Packaging volume | 0.0011m³ |
| Side B | HDMI A female |
| Height packaging | 0.160m |
| Weight & dimensions | |
| Width | 79 mm |
| Depth | 77.6 mm |
| Height | 24.5 mm |
| Weight | 230 g |
Questions & answers
What is the delivery time of ATEN VC080 HDMI EDID Emulator?
The article ATEN VC080 HDMI EDID Emulator is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten VC080 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ATEN VC080 HDMI EDID Emulator always at the best possible price. We can give you a discount of 2% on ATEN VC080 HDMI EDID Emulator if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
