Product information for Aten VC812:

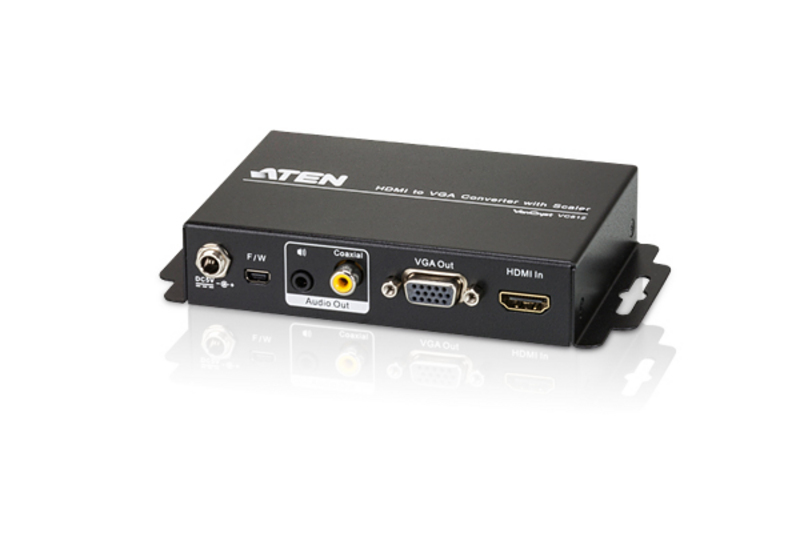

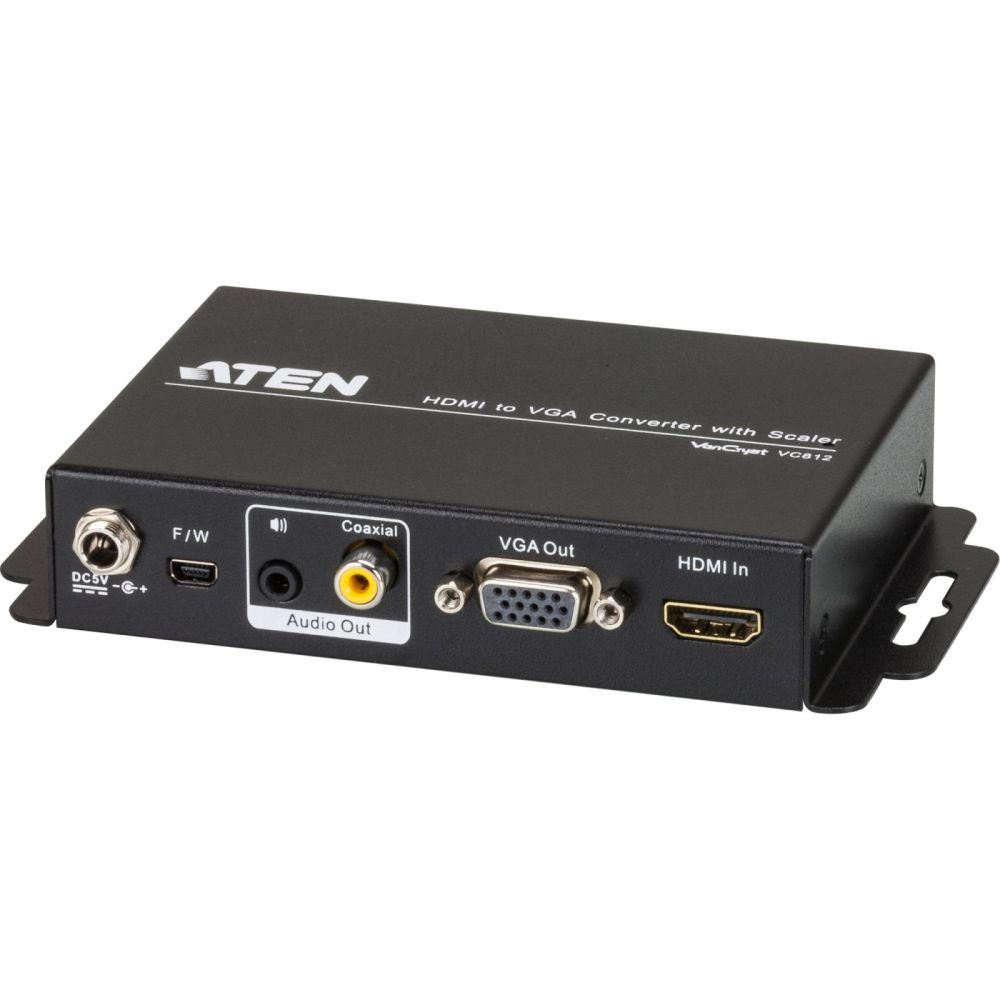

The VC812 HDMI to VGA converter with Scaler offers an easy and convenient way of converting HDMI input signals into analog video (VGA). The VC812 carries a high-performing scaling engine that converts the video resolution to give you the best image quality. You can operate the VC812 via the built-in On-Screen Display (OSD), which can be controlled through accessible front panel pushbuttons. converts HDMI signals to VGA output
supports analog/digital audio
superior video quality: up to 1080p / 1920 x 1200
features a built in high-performance scaler function for best image quality
scaler: a premium scaling engine that converts various input video resolutions into the display's native resolution, while adjusts picture ratio automatically for maximum viewing comfort
3D Deinterlacing: increases image clarity for ultimate viewing quality by processing and scanning digital video signals
features a superior de-interlacer function for smooth video playback quality
built-in OSD function for video and system settings configuration
integrated superior video noise reduction
integrated next generation color engine: automatic picture quality/color adjustment and enhancement
automatically detects video input signals
LED indication of power status and source device
no software required
Package content: 1 x VC812 HDMI to VGA converter, 1 x 2X-VC812 CD with installation program (optional), 1 x 0AD6-1F05-26EG power cable, 1 x user manual
supports analog/digital audio
superior video quality: up to 1080p / 1920 x 1200
features a built in high-performance scaler function for best image quality
scaler: a premium scaling engine that converts various input video resolutions into the display's native resolution, while adjusts picture ratio automatically for maximum viewing comfort
3D Deinterlacing: increases image clarity for ultimate viewing quality by processing and scanning digital video signals
features a superior de-interlacer function for smooth video playback quality
built-in OSD function for video and system settings configuration
integrated superior video noise reduction
integrated next generation color engine: automatic picture quality/color adjustment and enhancement
automatically detects video input signals
LED indication of power status and source device
no software required
Package content: 1 x VC812 HDMI to VGA converter, 1 x 2X-VC812 CD with installation program (optional), 1 x 0AD6-1F05-26EG power cable, 1 x user manual
| Features | |
| Converter type | Scaler video converter |
| Product colour | Black |
| Housing material | Metal |
| On Screen Display (OSD) | |
| LED indicators | |
| Logistics data | |
| Master (outer) case net weight | 2 kg |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 3.26 kg |
| Products per master (outer) case | 5 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Packaging data | |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 625 g |
| AC adapter included | |
| Manual | |
| Quick installation guide | |
| Ports & interfaces | |
| Host interface | HDMI |
| Output interface | VGA |
| VGA (D-Sub) output ports | 1 |
| 3.5 mm connector | |
| DC-in jack | |
| Power | |
| Input voltage | 5 V |
| USB powered | |
| Technical data | |
| Height packaging | 0.160m |
| Signal | Video |
| Supported HDTV resolution | Up to 1080p |
| Weight | 0.625kg |
| Width packaging | 0.059m |
| Side A | HDMI A female |
| Variant | With scaling function |
| Side B | VGA female, jack female, coax RCA (optical) |
| Length packaging | 0.239m |
| Supported display resolution | Up to 1080p, up to 1920x1200 |
| Packaging volume | 0.0023m³ |
| Audio signals | |
| Technical details | |
| Compliance certificates | RoHS |
| Video | |
| Maximum video resolution | 1920 x 1200 pixels |
| Video resolutions | 800 x 600,1024 x 768,1280 x 1024,1280 x 720,1400 x 1050,1600 x 1200,1680 x 1050,1920 x 1200 |
| Supported video modes | 480i, 480p, 576i, 576p, 1080i, 1080p |
| Weight & dimensions | |
| Width | 83 mm |
| Depth | 110 mm |
| Height | 28 mm |
| Weight | 400 g |
