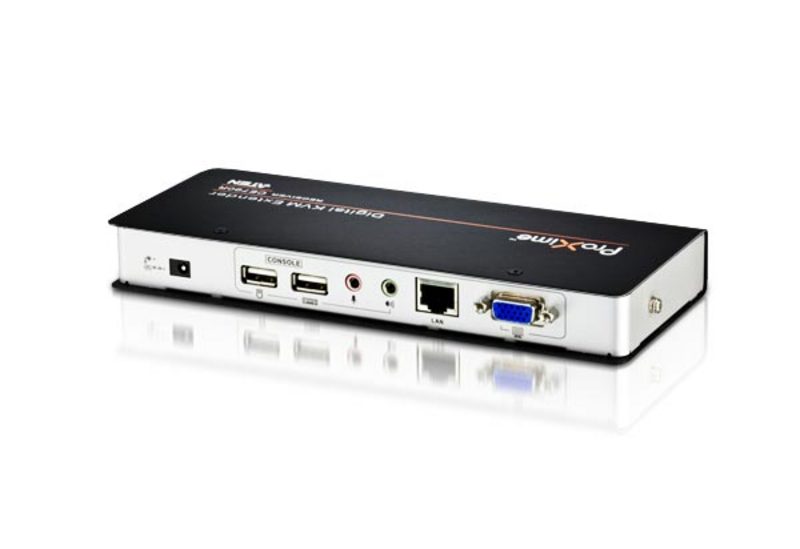

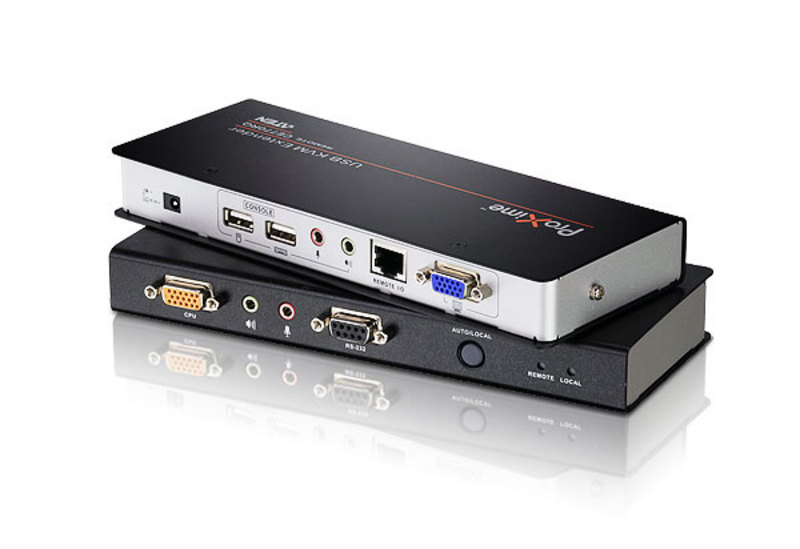

ATEN CE770 KVM Extension VGA USB Audio RS232 300m
|
297,11 EUR 300,05 EUR |
|
|
( 353,56 EUR incl. VAT ) ≈ £247.79 | ≈ $331.87 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 724941 |
| Mfg Part No: | CE770-AT-G |
| UPC/EAN: | 4710423776432 |
| Weight: | 1.85 kg |
Product information for Aten CE770-AT-G:
Device Type: KVM / audio / serial extender, Type: External, Connectivity Technology: Wired, keyboard / mouse interface: USB, Max Resolution: 1920 x 1200 @ 60 Hz Max Transfer Distance: 300 m, interfaces: 1 x Keyboard - USB - USB Type A 4-pin | 1 x display / video - VGA - HD D-Sub (HD-15), 15-pin | 1 x mouse - USB - USB Type A 4-pin | 1 x Audio - Line In - Mini-phone stereo 3.5 mm | 1 x microphone - input - mini-phone stereo 3.5 mm | 1 x serial - RS-232 - D-Sub (DB-9), 9-pin, Cables Included: 1 x keyboard / mouse / video / audio cable - 1.8 m, Rack Mounting Kit: Included, marking: DDC-2B, DDC, Power Device: Power adapter - external, Installed Qty: 2, Max. Supported Qty: 2 Min Operating Temperature: 0 ° C, Max. Operating temperature: 50 ° C, Humidity Range Operating: 0 - 80%
| Features | |
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 300 m |
| Cable types supported | Cat5 |
| Maximum digital resolution | 1920 x 1200 pixels |
| Supported resolutions | 1920 x 1200, 1280 x 1024 |
| Product colour | Black |
| Material | Aluminium, Metal |
| LED indicators | Link, Power |
| Rack mounting | |
| Logistics data | |
| Master (outer) case net weight | 9 kg |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 342 mm |
| Master (outer) case length | 512 mm |
| Master (outer) case height | 232 mm |
| Master (outer) case gross weight | 10.1 kg |
| Products per master (outer) case | 5 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Manual | |
| Quick installation guide | |
| Packaging data | |
| Package width | 98 mm |
| Package depth | 325 mm |
| Package height | 210 mm |
| Package weight | 1.85 kg |
| Power | |
| AC adapter output voltage | 5.3 V |
| Receiver | |
| Receiver local video port type | VGA |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 1 |
| Technical data | |
| Packaging volume | 0.0067m³ |
| Width packaging | 0.098m |
| Type 2 | VGA Extender Bundle |
| Max. distance | 300m |
| Type 1 | KVM Extender |
| Height packaging | 0.210m |
| Length packaging | 0.325m |
| Weight | 1.850kg |
| Technical details | |
| Weight | 1.8 kg |
| Transmitter | |
| Transmitter video port type | VGA |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Weight & dimensions | |
| Transmitter width | 20.2 cm |
| Transmitter depth | 8.64 cm |
| Transmitter height | 2.5 cm |
| Transmitter weight | 490 g |
| Receiver width | 20.2 cm |
| Receiver depth | 8.64 cm |
| Receiver height | 2.5 cm |
| Receiver weight | 490 g |
Questions & answers
What is the delivery time of ATEN CE770 KVM Extension VGA USB Audio RS232 300m?
The article ATEN CE770 KVM Extension VGA USB Audio RS232 300m is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten CE770-AT-G to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ATEN CE770 KVM Extension VGA USB Audio RS232 300m always at the best possible price. We can give you a discount of 2% on ATEN CE770 KVM Extension VGA USB Audio RS232 300m if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
