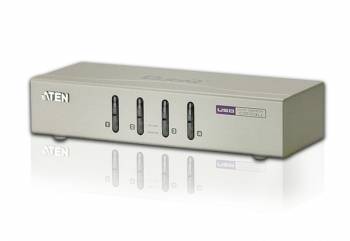

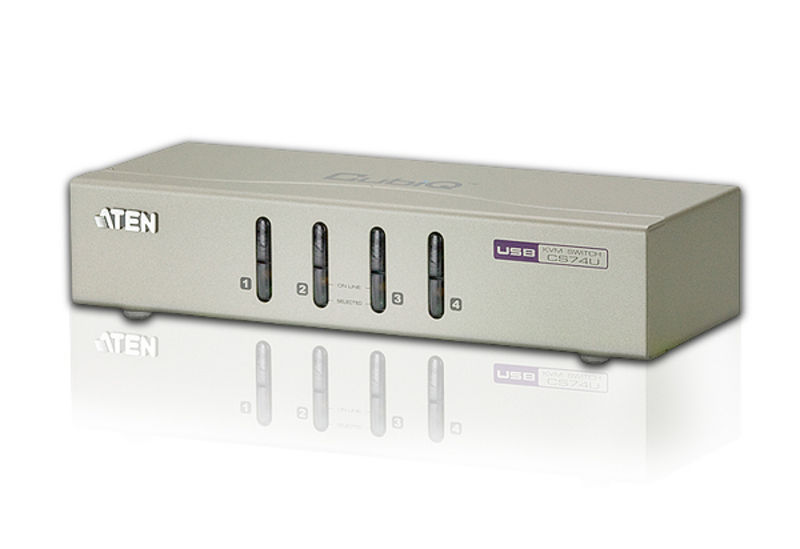

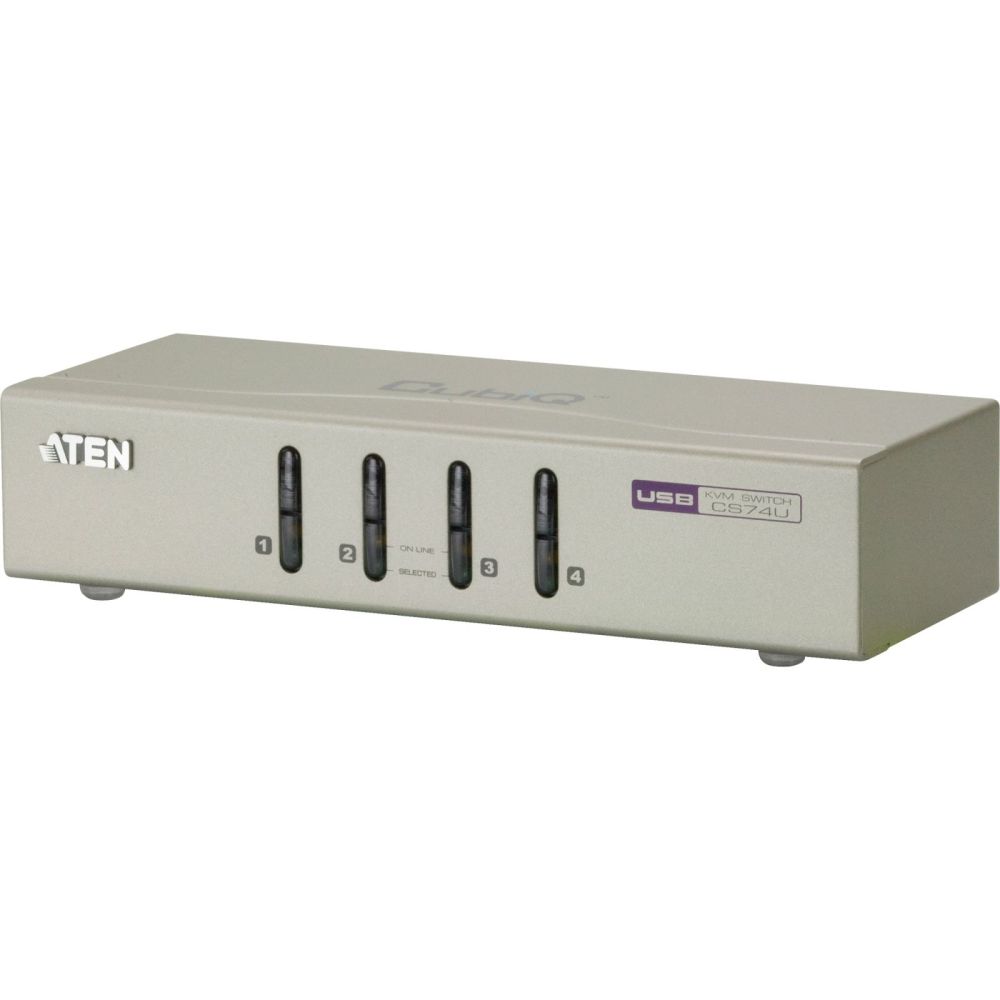

ATEN KVM Switch 4-way Audio / VGA / USB
|
92,58 EUR |
|
|
( 110,17 EUR incl. VAT ) ≈ £77.21 | ≈ $103.41 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 744696 |
| Mfg Part No: | CS74U |
| UPC/EAN: | 4710423773448 |
| Weight: | 1.683 kg |
Product information for Aten CS74U:
(Keyboard, mouse), table top model, Maus-/Tastatursimulation f NT / Novell VGA resolution: 2048x1536, DDC2B, Console 1xVGA jack, jack 2xAudio, 2xUSB BuchsePC 1-4: the (1xSPHD-18 connector), incl 4x SPHD-18 cable (SPHD-18 connectors-> 1x VGA, 1x USB, 2x audio connector)
| Design | |
| Product colour | Grey |
| Housing material | Metal |
| Rack mounting | |
| Display | |
| Built-in display | |
| Logistics data | |
| Master (outer) case net weight | 7.33 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 292 mm |
| Master (outer) case length | 517 mm |
| Master (outer) case height | 194 mm |
| Master (outer) case gross weight | 8.67 kg |
| Products per master (outer) case | 5 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Quick installation guide | |
| Manual | |
| Packaging data | |
| Package width | 100 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 1.67 kg |
| Performance | |
| HD type | QXGA |
| DDC2B support | |
| Ports & interfaces | |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 4 |

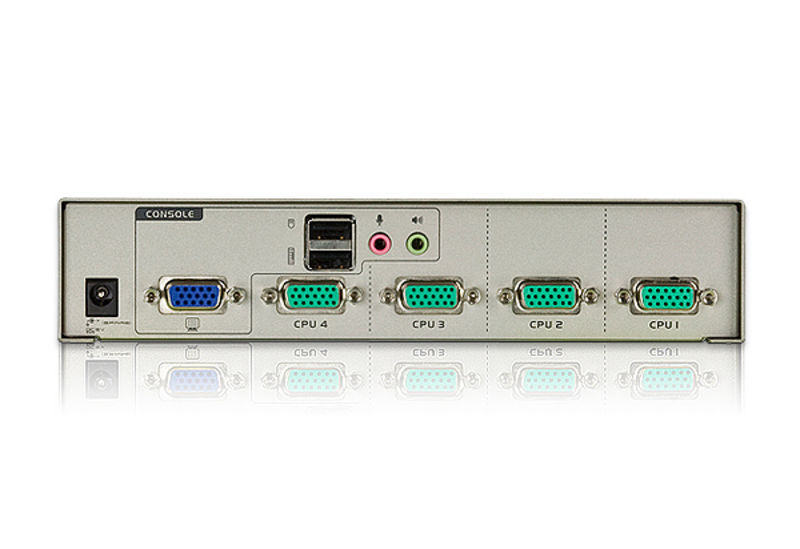

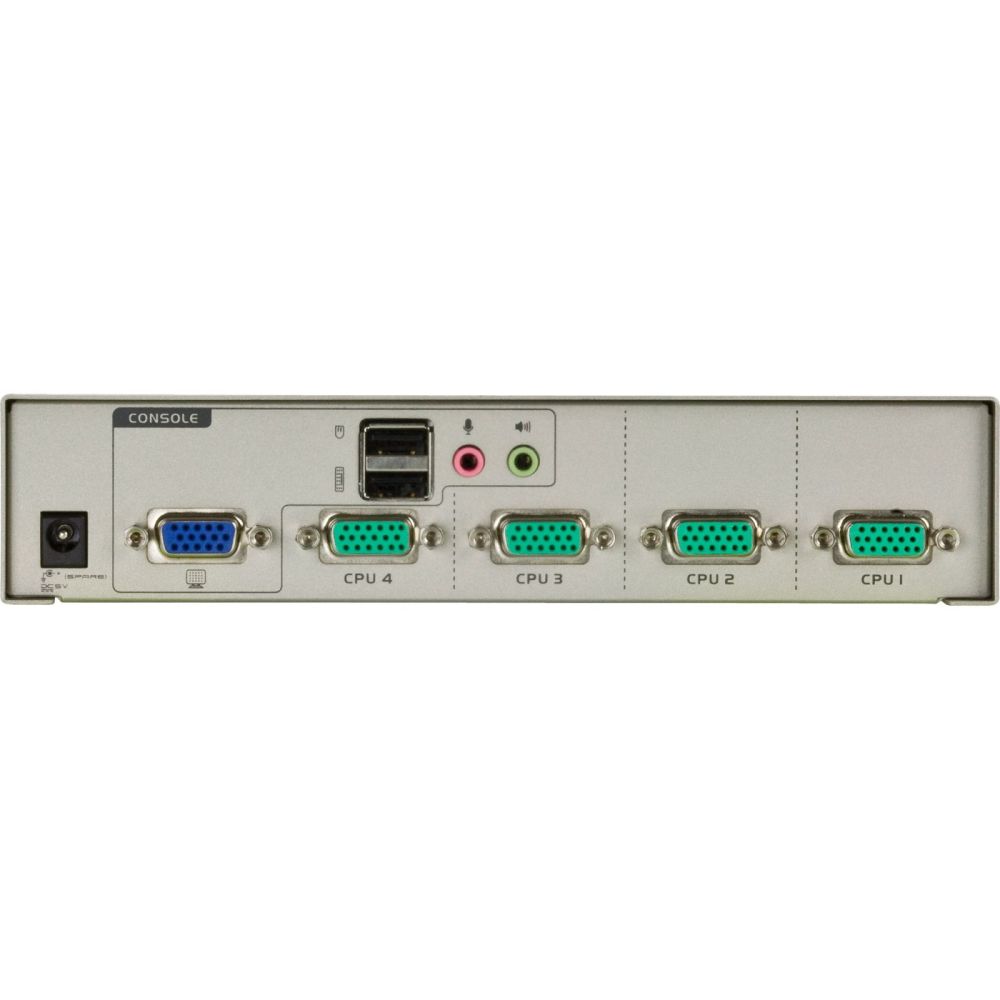

| Console ports | 3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub) |
| Console USB ports quantity | 2 |
| Headphone outputs | 1 |
| Number of microphone inputs | 1 |
| Audio connections | |
| DC-in jack | |
| Power | |
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 0.177 W |
| Technical data | |
| Height packaging | 0.173m |
| Width packaging | 0.100m |
| Type 2 | 4-fold VGA KVM |
| Max. resolution | 2048x1536 |
| Video inputs per CPU | SPHD-18 x1 (to VGA, USB, jack) |
| Number of CPU | 4 |
| Packaging volume | 0.0049m³ |
| Design | Desktop |
| Type 1 | KVM switch |
| Weight | 1.683kg |
| Length packaging | 0.283m |
| Data rate | 480Mb/s |
| USB specification | USB 2.0 |
| USB peripherals | |

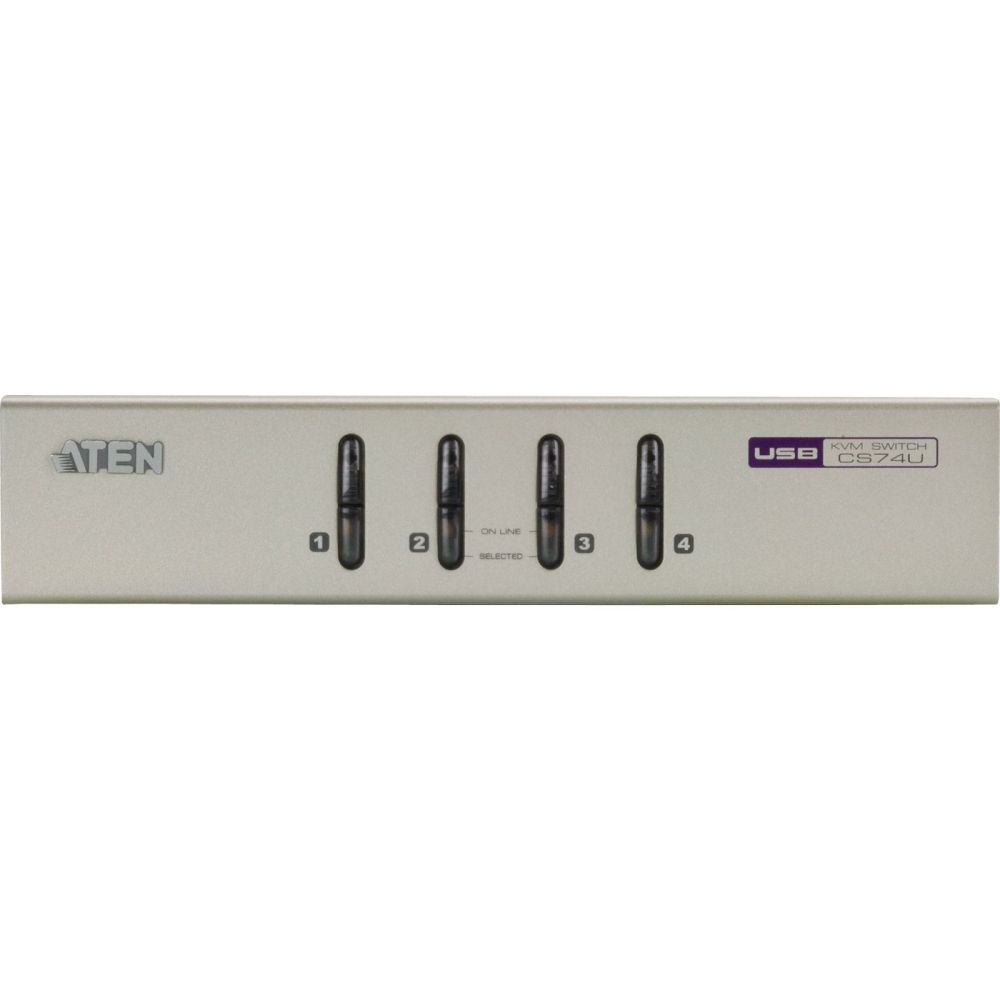

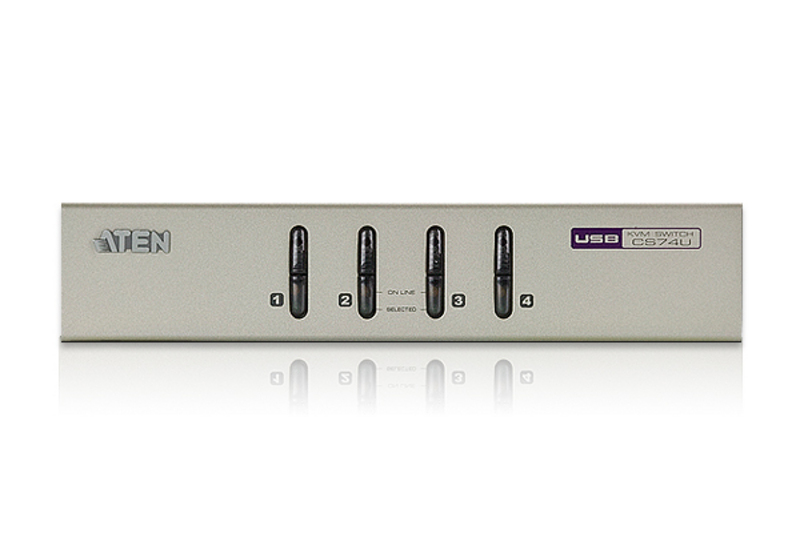

| Front panel buttons | |
| Incl. KVM cableset | |
| Weight & dimensions | |
| Width | 200 mm |
| Depth | 76.5 mm |
| Height | 44 mm |
| Weight | 1.47 kg |
Questions & answers
What is the delivery time of ATEN KVM Switch 4-way Audio / VGA / USB?
The article ATEN KVM Switch 4-way Audio / VGA / USB is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten CS74U to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ATEN KVM Switch 4-way Audio / VGA / USB always at the best possible price. We can give you a discount of 2% on ATEN KVM Switch 4-way Audio / VGA / USB if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
