ATEN CS1734B KVM Switch VGA PS/2-USB Audio USB Hub 4 Ports content_copy

2-Port USB 2.0 KVMP™ Switch with OSD. The CS1732B is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access two computers from a single keyboard, monitor, and mouse console. There are three methods to obtain instant access to any computer in your installation: Manual, Hotkey, OSD, and mouse.2-port KVM switch with USB 2.0 support and 2.1 surround sound audio
One console controls two computers and two additional USB devices
2-port USB 2.0 hub built in
USB 2.0 compliant
Dual interface - supports computers with PS/2 or USB keyboard and mouse configurations
Audio enabled - full bass response provides a rich experience for 2.1 surround sound systems
Console audio ports on front panel for easy access - ideal for IP phone users
Supports both USB and PS/2 keyboards and mice - flexible configurations available with the included USB-to-PS/2 converter: USB keyboard and mouse, PS/2 keyboard and mouse, or PS/2 keyboard and USB mouse
Independent switching of KVM, USB, and Audio focus
Superior video quality, 2048 x 1536, DDC2B
Supports widescreen resolutions

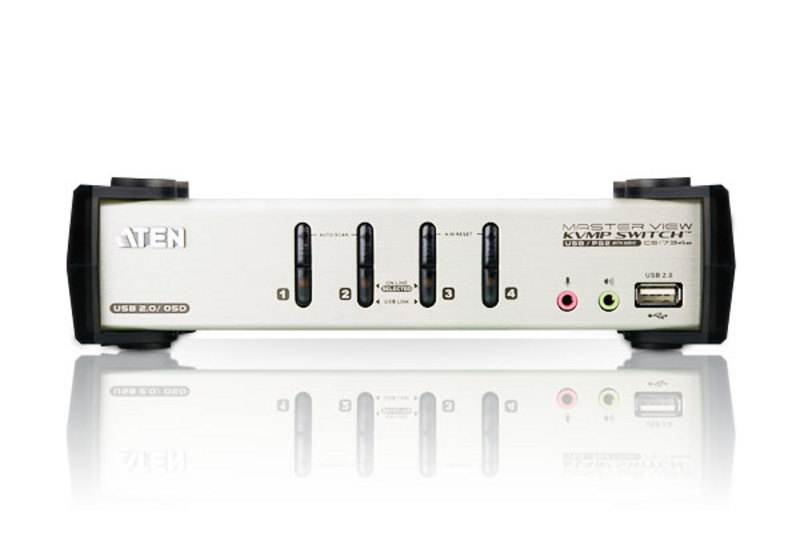

Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), and mouse
Multiplatform support - Windows , Mac, and Sun
Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice
Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
Complete keyboard emulation for error-free booting
Sun/Mac keyboard support and emulation* (* 1. PC keyboard combinations emulate Sun/Mac keyboards, 2. Sun-/Mac keyboards only work with their own computers)
Auto Scan Mode for monitoring all computers
LED Display for easy status monitoring
Easy installation - no software required
Firmware upgradeable
Package Contents1x 2-Port USB 2.0 KVMP™ Switch
2x Custom USB KVM Cable Sets
1x USB-to-PS/2 Converter
2x OSD-/Hotkey Stickers
1x Firmware Upgrade Cable
1x Power Adapter
1x User Instructions
Power Consumption: 5,3V, 3,1W
EnvironmentOperating Temp.: 0 - 50 °C
Storage Temp.: -20 - 60 °C
Humidity: 0-80% RH, Non-condensing
Physical PropertiesHousing: Metal
Weight: 0,55 kg
Dimensions(L x W x H): 14,00 x 8,70 x 5,50 cm

Design
Product colour	Black, Metallic
Housing material	Metal
Push button
Hot keys
Display
Built-in display
On Screen Display (OSD)
Logistics data
Master (outer) case net weight	9.75 kg
Harmonized System (HS) code	85176200
Master (outer) case width	292 mm
Master (outer) case length	517 mm
Master (outer) case height	194 mm
Master (outer) case gross weight	11 kg
Products per master (outer) case	5 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Packaging content
Cables included	KVM, USB
Packaging data
Package width	100 mm
Package depth	283 mm
Package height	173 mm
Package weight	2.09 kg
Performance
HD type	QXGA
Maximum resolution	2048 x 1536 pixels
Video bandwidth	60 Hz
Scan interval	1,255 s
DDC2B support
Firmware upgradeable
Ports & interfaces
Number of computers controlled	4
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
VGA (D-Sub) ports quantity	1

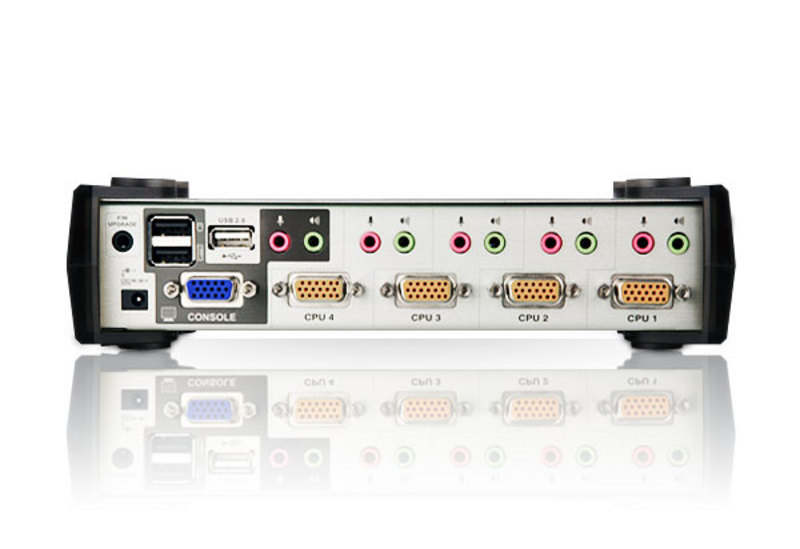

Console ports	3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
Console USB ports quantity	2
USB 2.0 Type-A hub ports quantity	2
Headphone outputs	6
Number of microphone inputs	6
USB hub
Audio connections
Power
Power source	DC
Input voltage	5 V
Power consumption (typical)	1.02 W
Technical data
Video inputs per CPU	VGA x1
USB specification	USB 2.0
Weight	2.065kg
Height packaging	0.173m
Length packaging	0.283m
Data rate	480Mb/s
Type 2	4-fold VGA KVM
Type 1	KVM switch
Width packaging	0.100m
Max. resolution	2048x1536
Packaging volume	0.0049m³
Design	Desktop
Number of CPU	4
USB peripherals
Front panel buttons
Incl. KVM cableset
Weight & dimensions
Width	88 mm
Depth	210 mm
Height	55.5 mm
Weight	1.95 kg

---
