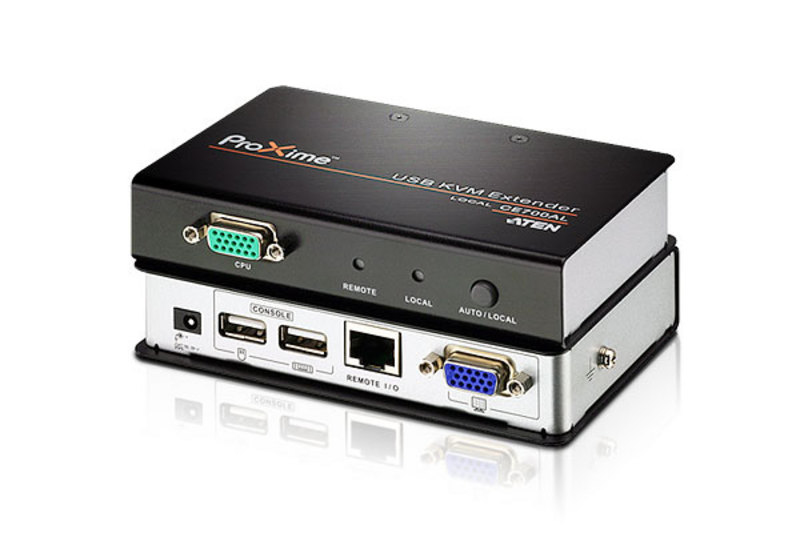

ATEN Proxime CE700A Local and Remote Units - KVM extender
|
-20% 129,79 EUR 162,20 EUR |
|
|
( 154,45 EUR incl. VAT ) ≈ £109.28 | ≈ $145.75 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 416764 |
| Mfg Part No: | CE700A |
| UPC/EAN: | 4710423776593 |
| Weight: | 1.287 kg |
Product information for Aten CE700A:
Packaged quantity: 1,Device type: KVM extender,Type: External,Width: 8.2 cm,Depth: 12.5 cm,Height: 2.5 cm,Connection technology: Wired,Keyboard/mouse interface: USB,Max resolution: 1920 x 1200 @ 60 Hz ,Maximum transmission range: 150 m,Features: Surge protection,Interfaces: 1 x Display / Video - VGA - HD D-Sub (HD-15), 15-pin ¦ 1 x Network - RJ-45 ¦ 2 x USB - USB Type A , 4-pin,Cables included: 1 x keyboard / mouse / video cable - 1.8 m,Product certifications: DDC-2B,Power supply device: External ¦ power supply,Installed quantity: 2,Min operating temperature: 0 °C,Max. Operating temperature: 50 °C, permissible humidity during operation: 0 - 80%
| Features | |
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 150 m |
| Cable types supported | Cat5e |
| Supported resolutions | 1920 x 1200, 1600 x 1200, 1280 x 1024 |
| Product colour | Black, Grey |
| Material | Metal |
| LED indicators | Link, Power |
| Rack mounting | |
| Logistics data | |
| Master (outer) case net weight | 5.67 kg |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 300 mm |
| Master (outer) case length | 336 mm |
| Master (outer) case height | 194 mm |
| Master (outer) case gross weight | 6.86 kg |
| Products per master (outer) case | 5 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Manual | |
| Quick installation guide | |
| Packaging data | |
| Package width | 100 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 1.41 kg |
| Power | |
| AC adapter output voltage | 5.3 V |
| Receiver | |
| Receiver local video port type | VGA |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 1 |
| Technical details | |
| Weight | 1.14 kg |
| Transmitter | |
| Transmitter video port type | VGA |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Weight & dimensions | |
| Transmitter width | 12.7 cm |
| Transmitter depth | 8.65 cm |
| Transmitter height | 2.5 cm |
| Transmitter weight | 330 g |
| Receiver width | 12.7 cm |
| Receiver depth | 8.14 cm |
| Receiver height | 2.5 cm |
| Receiver weight | 320 g |
