ATEN KH2516A 2-Console 16-Port Multi-Interface DisplayPort HDMI DVI VGA Cat 5 KVM Switch
|
687,66 EUR |
|
|
( 818,32 EUR incl. VAT ) ≈ £573.51 | ≈ $768.12 plus delivery charges: 100,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 241010 |
| Mfg Part No: | KH2516A |
| UPC/EAN: | 4710423776876 |
| Weight: | 7 kg |

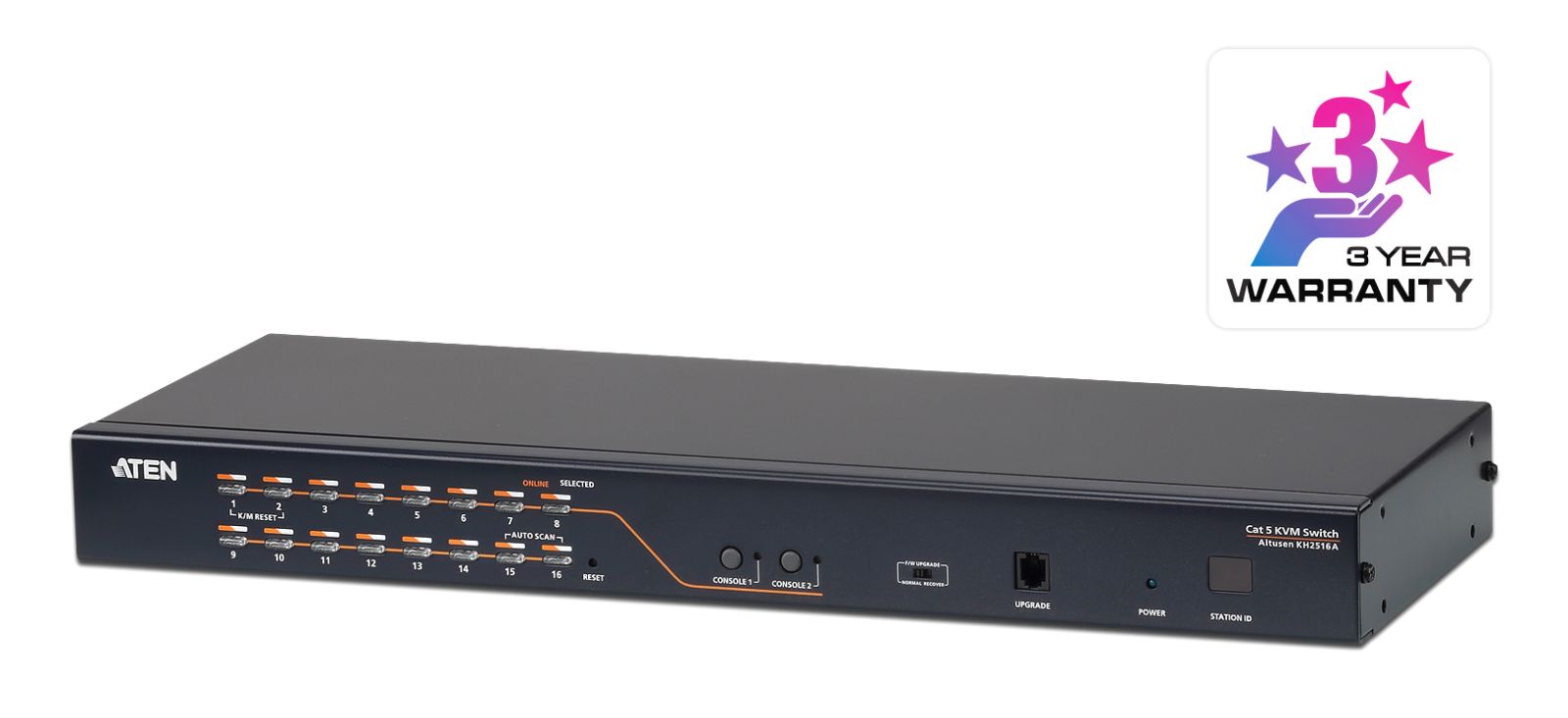

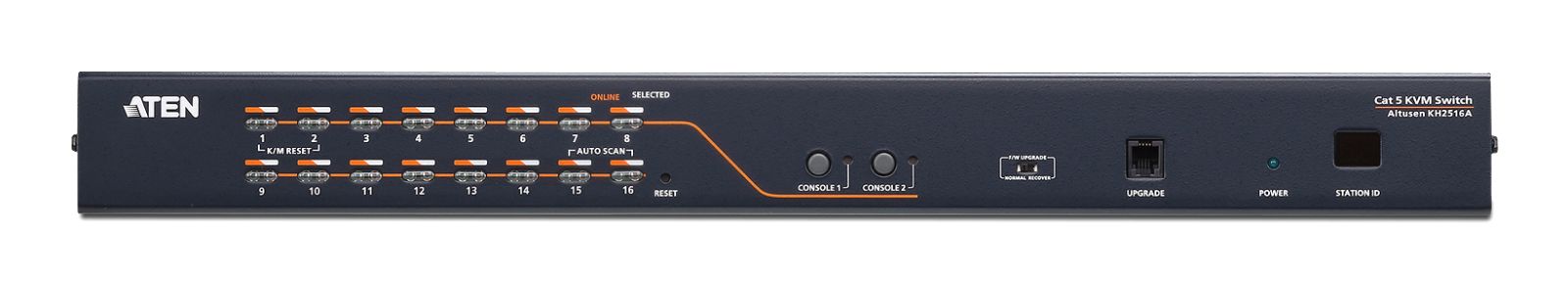

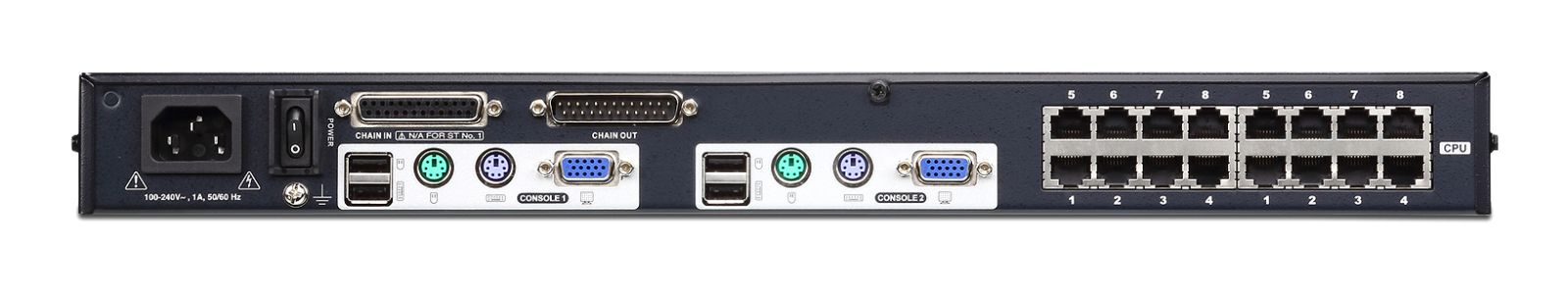

Product information for Aten KH2516A:
The KH2516A KVM switch is a control unit that allows IT administrators to access and control multiple computers from two PS/2 or USB KVM consoles. Operators working at up to two consoles can independently and simultaneously take control of up to 16 computers. By daisy chaining up to 31 switches, as many as 512 computers can be controlled from the original KVM consoles. This switch has been designed with unique and powerful features that enable administrators to manage their entire server room and data center devices easily and conveniently. A KH2516A installation provides one of the good and economical solutions ATEN offers to the SMB market. There is no better way to save time, space, and money than with a KH2516A KVM switch.
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | |
| Push button | |
| Hot keys | |
| Logistics data | |
| Master (outer) case net weight | 9.63 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 375 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case height | 258 mm |
| Master (outer) case gross weight | 12.5 kg |
| Products per master (outer) case | 3 pc(s) |
| Network | |
| Ethernet LAN (RJ-45) ports | 32 |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Quick installation guide | |
| Manual | |
| Packaging data | |
| Package width | 116 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 3.77 kg |
| Performance | |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,255 s |
| Ports & interfaces | |
| Number of computers controlled | 32 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| Console ports | PS/2, USB A, VGA (D-Sub) |
| Console USB ports quantity | 2 |
| USB connector type | USB Type-A |
| PS/2 ports quantity | 2 |
| Power | |
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Technical data | |
| USB specification | USB 2.0 |
| Weight | 3.767kg |
| Video inputs per CPU | RJ45 x1 |
| Number of CPU | 16 |
| Length packaging | 0.535m |
| Data rate | 480Mb/s |
| Design | Rack-Mount |
| Packaging volume | 0.0751m³ |
| Type 1 | KVM switch |
| Height packaging | 0.235m |
| Width packaging | 0.135m |
| Max. resolution | 1600x1200 / 60Hz |
| Type 2 | 16-fold VGA KVM |
| Front panel buttons | |
| USB peripherals | |
| Incl. KVM cableset | |
| Weight & dimensions | |
| Width | 437.2 mm |
| Depth | 163.7 mm |
| Height | 44 mm |
| Weight | 3.21 kg |
