Aten KA7570 KVM switch accessory adapter cable TPUSB+VGA content_copy

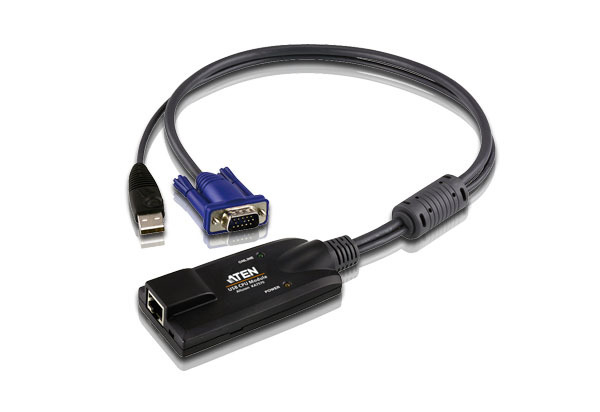

The Aten KA7570 is a KVM adapter cable, specifically designed to connect a KVM switch to the interfaces of a target computer. It serves as a CPU module, linking the computer's video, keyboard, and mouse connections to the KVM switch via a network cable. The device is designed for use in rack- or desktop servers, with its compact design and low weight making it suitable for installation in tight racks.

Applications

The KVM adapter cable is used in IT infrastructures where multiple computers are controlled via a central KVM switch. It is particularly suitable for server environments with limited space and accessibility. The connection is made via an RJ-45 cable, which transmits communication between the switch and the computer. Compatibility is specified for certain ALTUSEN models (KH1508A, KH1516A, KH2508A, KH2516A), facilitating use in existing systems.

Functions and Features in Detail

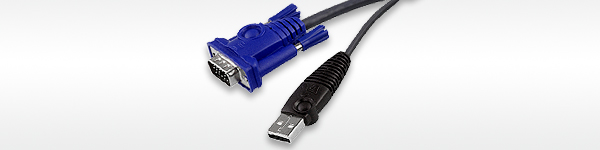

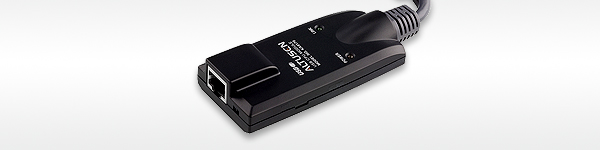

The device features an RJ-45 female connector on the side connected to the KVM switch, and on the other side, a USB Type-A plug and an HDB-15 plug (VGA), which connect directly to the corresponding ports on the computer. Keyboard and mouse emulation ensures the server continues to operate stably even when disconnected from the KVM port. This is especially important during relocations or when reorganizing servers within the network. Firmware is updated for life, ensuring long-term compatibility and security.

Technology Explained Simply

The KVM adapter cable enables transmission of video and USB signals over a network cable (Cat. 5e/6). Maximum resolution is up to 1600 x 1200 pixels, with actual resolution depending on the transmission distance. The hot-plugging function allows computers to be connected or disconnected without shutting down the KVM switch. LED indicators (green for online/connection, orange for operation) visually display the device status. The housing is made of plastic and is available in black, blue, and metallic finishes.

Compatibility and Accessories

The cable is intended for use with KVM switches from the ALTUSEN series (KH1508A, KH1516A, KH2508A, KH2516A). It can be combined with various KVM switch models available in the range, such as 8-port or 16-port switches with integrated LCD displays.

Installation and Mounting

Installation involves directly connecting the RJ-45 plug to the KVM switch and the USB and VGA plugs to the target computer. The compact design (dimensions: 9.00 x 4.30 x 2.18 cm) allows easy placement in server racks. Mounting requires no additional tools, as the device is directly attached to the connectors.

Operational Advantages

The KVM adapter cable provides a reliable and compact solution for central control of multiple computers. The hot-plugging function reduces downtime, as system changes can be made without restarting the switch. Keyboard and mouse emulation ensures stable server operation even during temporary connection interruptions. Lifetime firmware updates ensure long-term functionality and security. The low weight (100 g to 125 g) and robust plastic construction make the device suitable for use in professional IT environments.

Logistics data
Master (outer) case net weight	5 kg
Harmonized System (HS) code	84733080
Master (outer) case width	270 mm
Master (outer) case length	470 mm
Master (outer) case height	296 mm
Master (outer) case gross weight	7.58 kg
Products per master (outer) case	40 pc(s)
Other features
Dimensions (WxDxH)	43 x 90 x 21.8 mm
Packaging data
Weight	125 g
Package width	42 mm
Package depth	124 mm
Package height	129 mm
Package weight	165 g
Performance
Product colour	Black, Blue, Metallic
Keyboard port type	PS/2
Mouse port type	PS/2
Video port type	VGA
Console port	RJ-45
Connector 1	1 x RJ-45
Connector 2	1 x HDB-15, 1 x USB Type A
Connector 1 gender	Female
Connector 2 gender	Male
Material	Plastic
Technical data
Width packaging	0.059m
Fiber optic network	Without
Side A	RJ45 female x1
Type 2	KVM CPU module cable VGA
Weight	0.166kg
Side B	VGA male x1, USB-A male x1
Design	Cable
TP Network	RJ45 x1
Packaging volume	0.0011m³
Height packaging	0.160m
Length packaging	0.119m
Type 1	KVM CPU module cable

---
