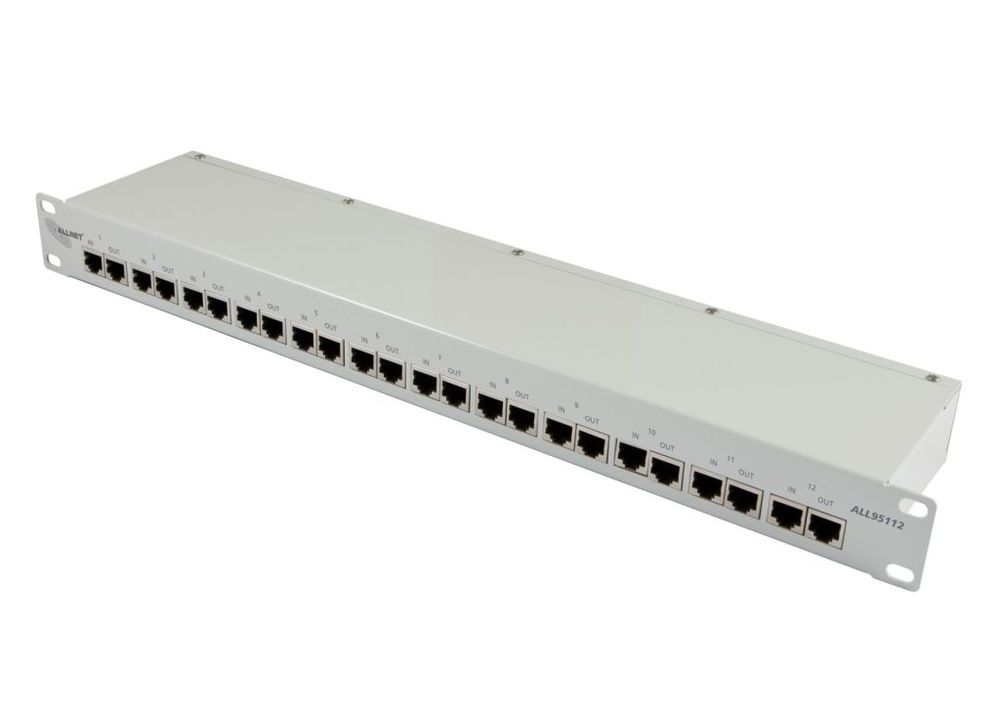

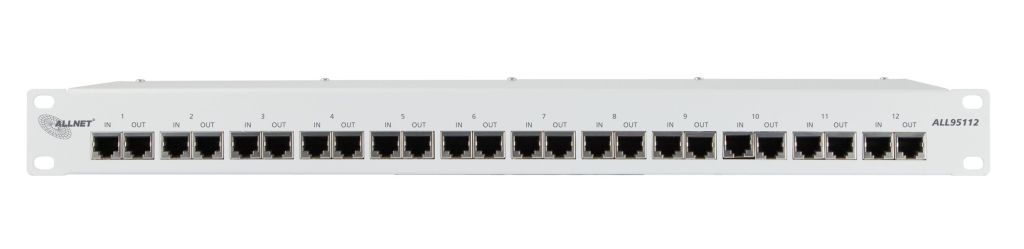

Allnet ALL95112 / 12Port overvoltage protection TP / ISDN / ADSL / VDS

Allnet ALL95112 / 12Port overvoltage protection TP / ISDN / ADSL / VDS
Highlights: 12 Port 48,3 cm ( 19 inch )1U rackmount
Reliable protection against surge voltages of all devices with network connection
Switches
Router
Firewall
NoteBook
PC / Server
Televisions
Multimedia Devices
Protect your network equipment from power surges caused by lightning strikes
ALL95112 12x surge panel has the Allnet per port over a input and output and can be safely thanks to its 19-inch metal housing to accommodate in the server enclosure. The connected via the Allnet ALL95112 Panel devices are reliably protected against power surges, as may occur, for example during lightning storms or power surges.
The great advantage of the 19-inch version is in the comfortable way several network devices neat and space-saving fitted with overvoltage protection. About the panel can all networkable ADSL, VDSL or ISDN devices are connected and are reliably protected against overvoltage damage.
Since the signals are only connected through, is also the PoE power supply to fully still possible to 90 watts over LTPoE ++. In addition, all speeds are supported up to Gigabit without sacrificing speed.
In the case of current fluctuations, the discharge capacity is up to 10kA per port, enabling effective protection of connected devices. By Allnet Protection Panel mainly via PoE connected devices such as IP cameras or access points can be protected and protect against injury.
Application examples:
Specifications: Element
Specification
Network Connection:
24x RJ45 inputs
24x RJ45 outputs PoE capability: IEEE802.3af, at, LTPoE ++ to 90W discharge capacity: 10kA (8 / 20us), 100A (10 / 1000µs) ignition voltage: 90Vdc ± 20% (Pair to Earth) <450V (at 100V / us) <600V (at 1kV / us)
Diff.Clamping:
<15V, <5ns, 30Apk (Pair Wire to Wire)
Diff. Capacity:
<4.0pF protected conductors: (pins) Displaying 1 - 8 (on 8-pin modular plug)
Labelling:
IEEE 802.3, CAT 5, 6 ESD protection: IEC 61000-4-2 Class 4 (10kV CD)
Housing:
Metal housing
Surroundings:
Operating temperature: -15 ~ 40 ° C
Ambient humidity Operating: 10% ~ 95% (non-condensing)
Labelling:
CE, RoHS
Dimensions:
xx x xx x xx mm (length x width x height)
Package Contents:

• Allnet ALL95112
-Bedienungsanleitung
