ZyXEL RGS100-5P 4 Ports Ethernet Switch - 1 x Expansion Slots - 1000Base-X, 10/100/1000Base-TX content_copy

RGS100-12P, 5 port unmanaged PoE switch, 120 watt PoE, DIN Rail, IP30, 12-58V DC

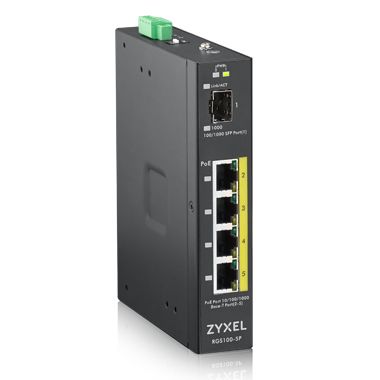

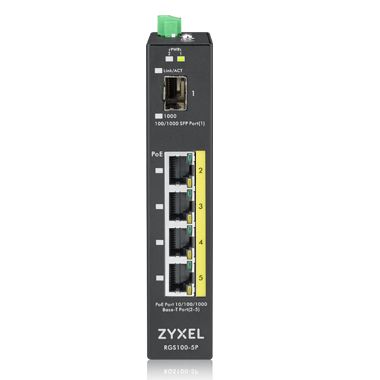

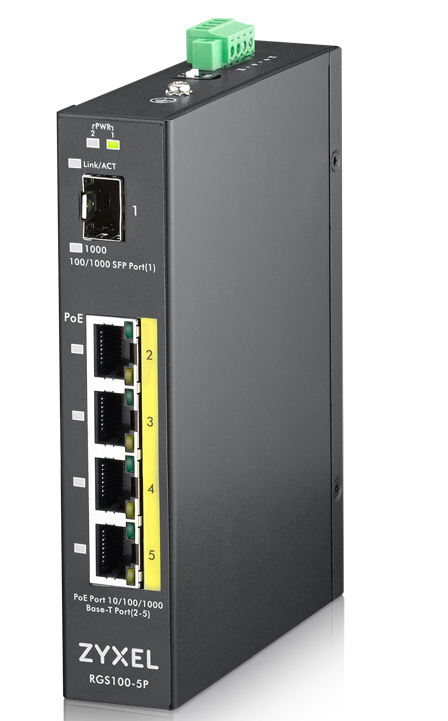

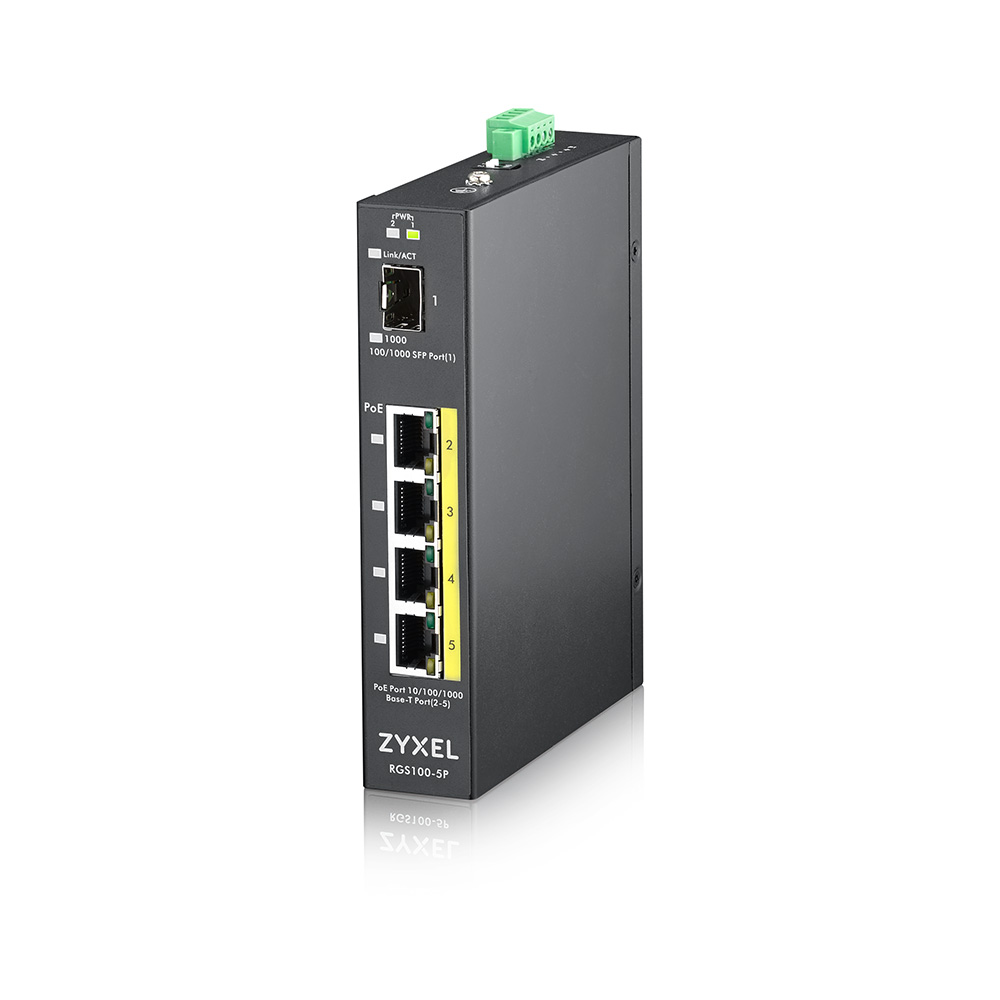

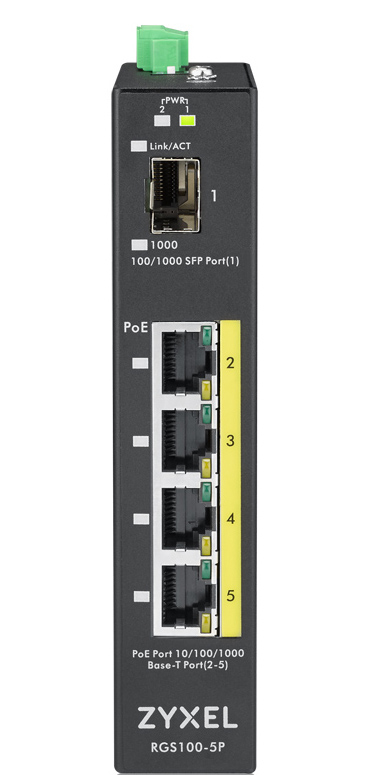

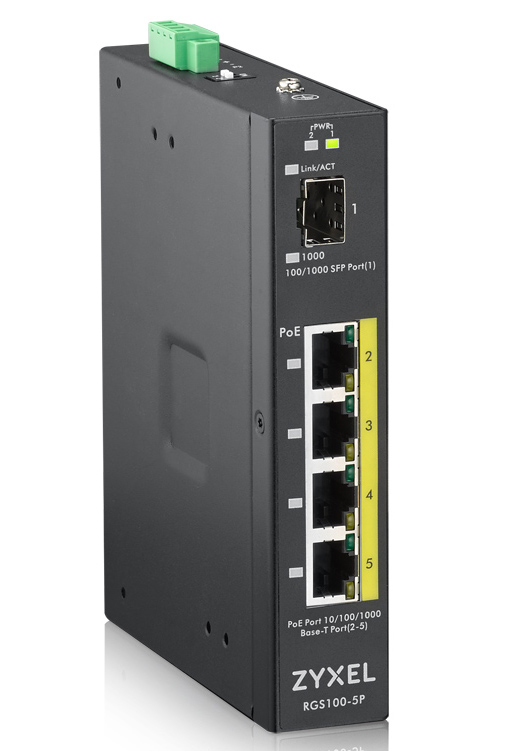

The RGS100-5P has four Gigabit PoE+ ports to easily power power-hungry devices, as well as a Gigabit SFP fiber uplink, which connects the network to nodes at distances of up to 40 km, providing further flexibility. The RGS100-5P can be mounted on either a DIN rail or wall, making the most efficient use of available space.
Reliable plug-and-play switch for harsh environmental conditions
The new RGS100-5P switch from Zyxel for use in harsh environments does not require a fan and has a housing design according to the IP30 standard. Therefore, it can control the temperature excellently and can easily cope with even the dustiest environments. The RGS100-5P is rated for temperatures between -40°C and 75°C and can be used in a variety of demanding environments.

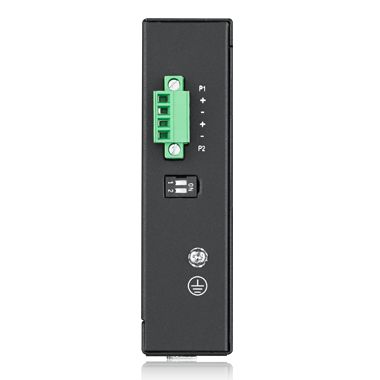

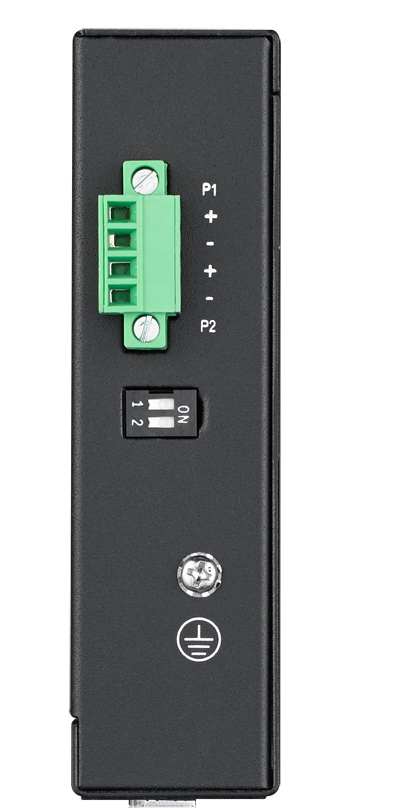

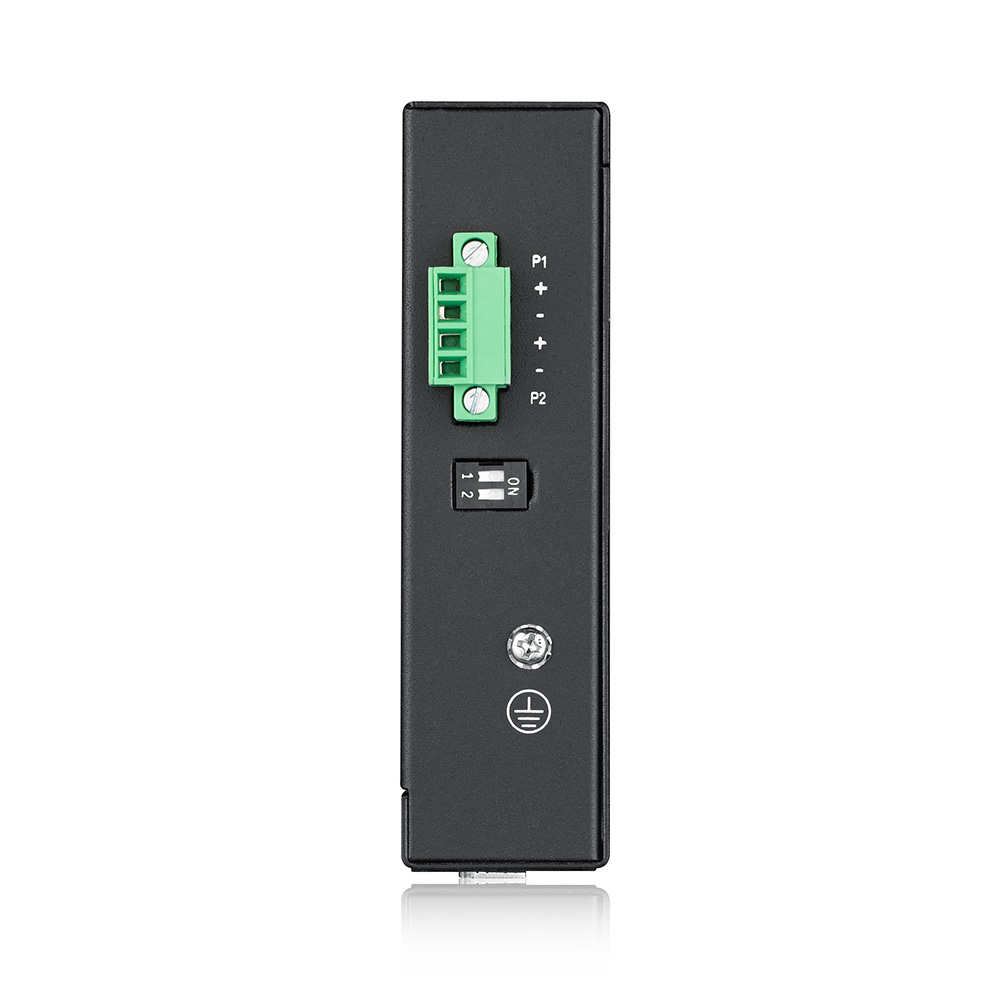

The RGS100-5P is equipped with dual input DC power supply. This makes it suitable for high-availability operation and works reliably even under the most demanding conditions. When outdoor switching occurs normally, ESD (electrostatic discharge) and DC surge protection prevent loss of sales and productivity due to damage or weakness caused by electrical interference.

Data transmission
Switching capacity	10 Gbit/s
Throughput	7.44 Mpps
MAC address table	2000 entries
Jumbo frames	9000
Packet buffer memory	0.25 MB
Store-and-forward
Jumbo frames support
Design
Product colour	Black
Housing material	Metal
International Protection (IP) code	IP30
Rack mounting
Wall mountable
DIN rail mounting
Logistics data
Harmonized System (HS) code	85176990
Management features
Switch type	Unmanaged
Switch layer	L2
Multicast features
Multicast support
Network
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
10G support
Full duplex
Flow control support
Auto MDI/MDI-X
Auto-negotiation
MAC address auto-learning supported
Operational conditions
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	42625 BTU/h
Optical fiber
Fiber ethernet cabling technology	1000BASE-X
Transmission distance (max)	40 km
Packaging content
Rack mount kit
Packaging data
Package width	70 mm
Package depth	177.8 mm
Package height	205 mm
Package weight	700 g
Wall mounting kit
Performance
Mean time between failures (MTBF)	568430 h
Plug and Play
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	1
Fiber optic connector	SFP
Power
DC input voltage	12 - 58 V
Input voltage	12 - 58 V
Power consumption (max)	125 W
Power protection features	Short circuit
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	4
Total Power over Ethernet (PoE) budget	120 W
Power over Ethernet (PoE)
Weight & dimensions
Width	29.1 mm
Depth	107.3 mm
Height	139 mm
Weight	500 g

---
