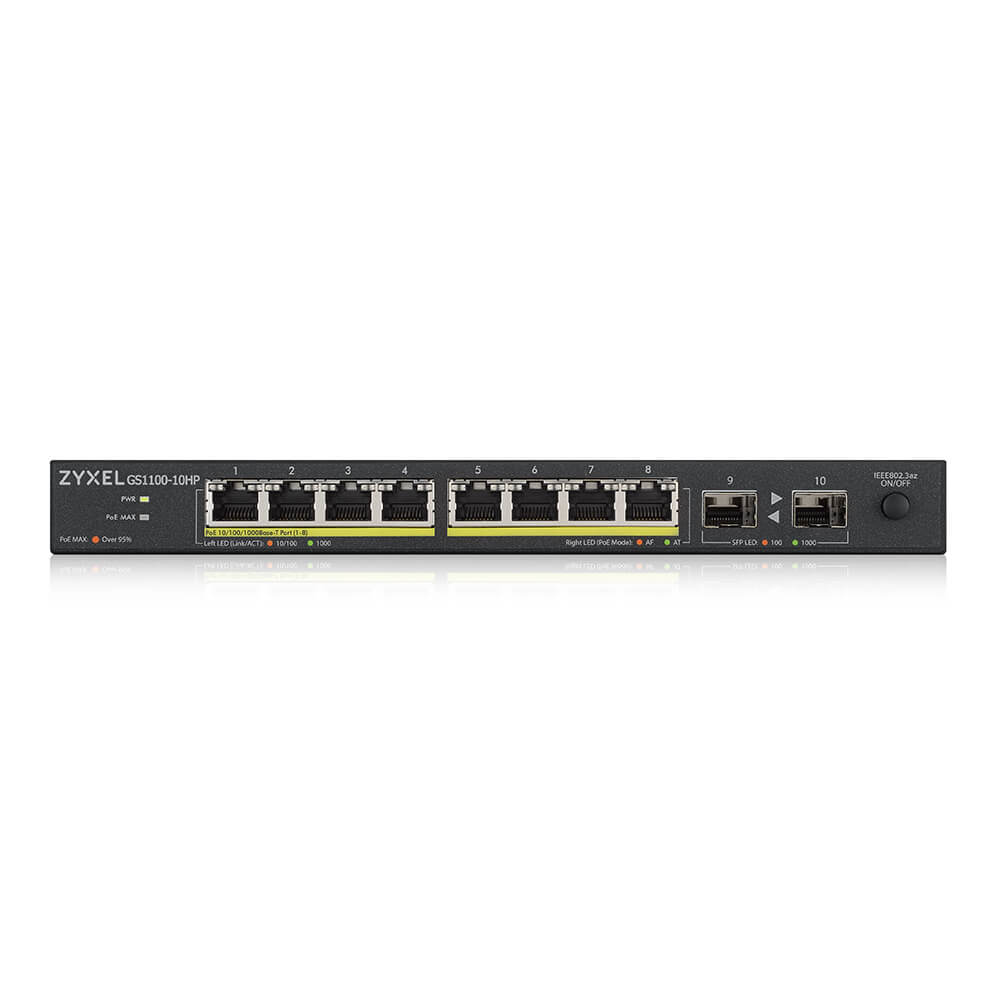

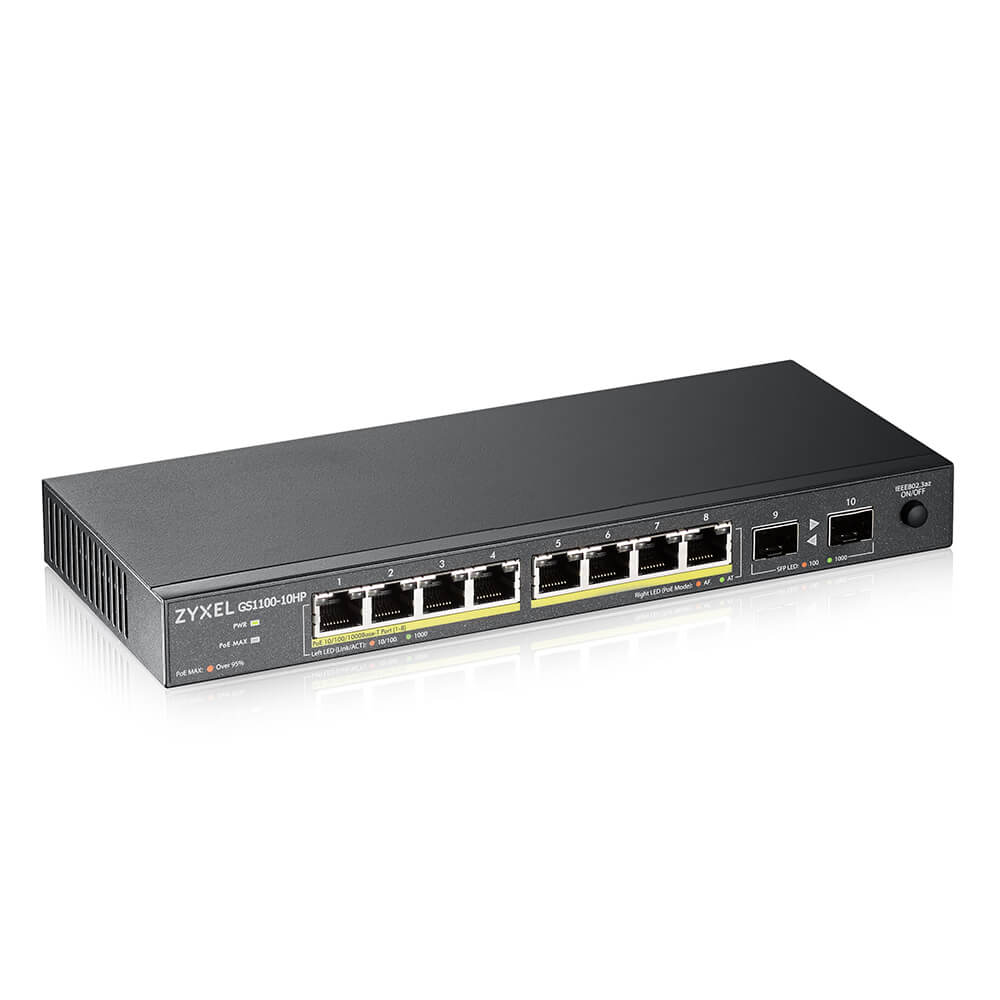

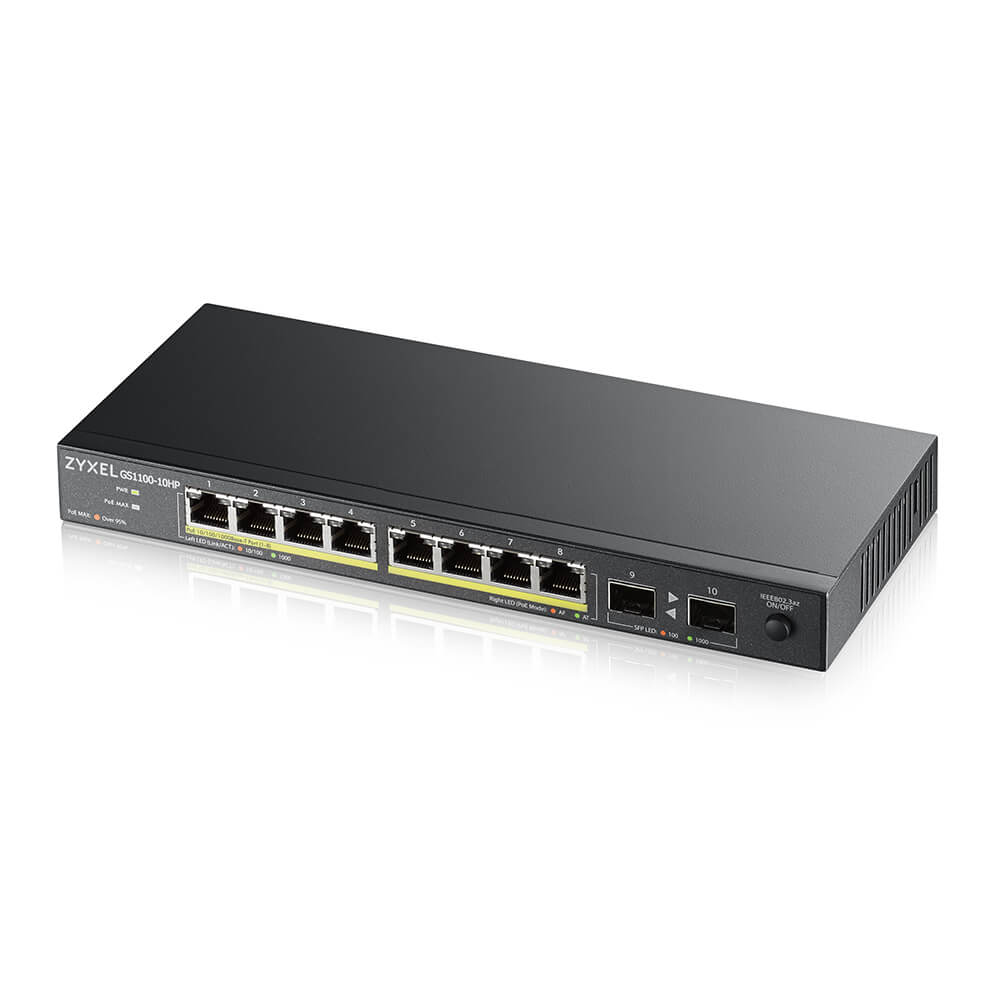

Zyxel Switch 10x GE GS1100-10HP v2 PoE+ content_copy

The GS1100 Series not only offers Gigabit Ethernet network access for next generation network applications, but also power saving features for better energy efficiency. Since the transmission strength can be dynamically adjusted depending on traffic, active connections and cable length, the GS1100 series can reduce power consumption, resulting in lower operating costs.

Highlights

• ZyXEL GS1100-10HP v2 10 port unmanaged PoE+ switch
• 8x Gigabit Ethernet RJ45 port with PoE+ (PoE budget: 130 W)
• 2x Gigabit SFP port
• IEEE 802.3az Energy Efficient Ethernet reduces power consumption in times of low connection utilization
• Fanless design
• Offers user-friendly “plug and play”

Product type

• Switch
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications devices, Small IT and telecommunications devices B2C

Specifications

• Switch type: Access
• Switching capacity: 20 GBit/s (Gbps)

Shipping

• WEEE: 40153029

Connections

• Total number of copper ports: 8
• Total number of fiber optic ports: 2
• Total number of PoE ports: 8
• Bandwidth: 10/100/1000 MBit/s
• PoE standard: PoE+ - 802.3at
• PoE budget: 130 W
• Main port type: copper
• Number of PoE+ (af/at) ports: 8
• Number of RJ45 ports (1G): 8
• Number of SFP ports (1G) : 2

Functions

• Switch manageable: No
• Mounting type: wall, desktop

Power supply

• Power supply: external

Basic features

• Color: Black
• Height: 27 mm
• Length/depth: 104 mm
• Width: 250 mm
• Weight: 0.73 kg

Scope of delivery

• ZyXEL GS1100-10HP v2 10 port unmanaged PoE+ 8x Gigabit
• power supply
• power cable
• wall mounting kit
