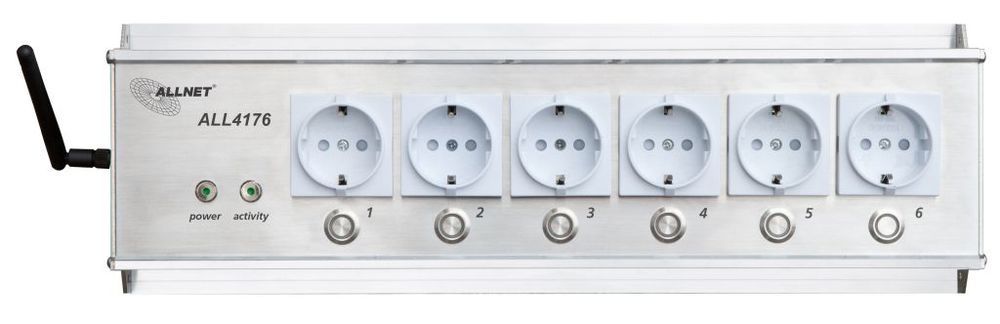

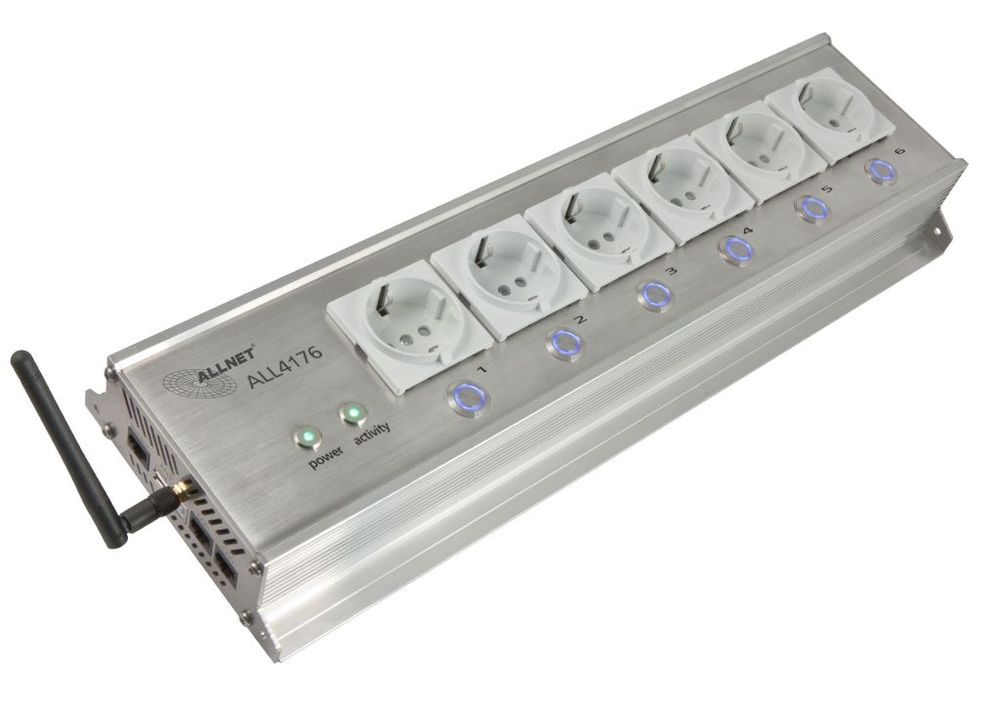

ALLNET MSR IO Central switching socket strip 6-way including measuring device for desktop & 48,3 cm ( 19 inch ) mounting, for IP building automation ALL4176v3

The ALLNET MSR IO central power strip ALL4176v3 is the ideal solution for managing and controlling electrical devices in network environments. With six German Schuko sockets, it allows multiple devices to be switched simultaneously, either manually, time-controlled, or program-controlled through an integrated web server. The power strip can be integrated into a computer network via a 10/100 Mbit RJ45 port or wirelessly through WLAN (IEEE802.11b/g/n), allowing for flexible placement in almost any environment.

Each socket can be individually controlled via a user-friendly web interface, supporting both manual switching and complex automation. Programs can be set up based on time, calendar days, or weekly schedules, making device operation more efficient and energy-saving. Pulse switching is also possible to meet more specific control requirements.

What sets the ALL4176v3 apart is ist integrated power measurement module, which not only measures consumption but also feed-in in real-time. Measurements like voltage (Volts), frequency (Hz), current (Amps), power (Watts), and the Cos.Phi factor provide detailed insights into energy flow, giving you full control over the power consumption of your devices. Combined with time control, comprehensive logging can also be performed to analyze power consumption in detail.

Thanks to ist compatibility with other ALLNET automation solutions such as the ALL369x Powermeter, ALL3419, ALL4500, and ALL5000, the power strip can be seamlessly integrated into existing building automation systems. With optional sensors for temperature and humidity measurement, the range of applications is further expanded, making the ALL4176v3 a versatile tool for various scenarios.

Whether for remote control and rebooting of servers and PCs, energy-efficient management of standby devices, or implementing complex switching scenarios in conjunction with temperature and humidity sensors, the ALLNET ALL4176v3 offers flexible solutions for IT professionals and facility managers.

Application examples include targeted remote control of PCs and servers, remote reboot of routers, time-controlled reduction of standby power consumption, as well as complex scenarios combined with other automation solutions. These capabilities make the ALL4176v3 a valuable tool for optimizing energy management and control in modern IT and automation environments.

Technical Data:

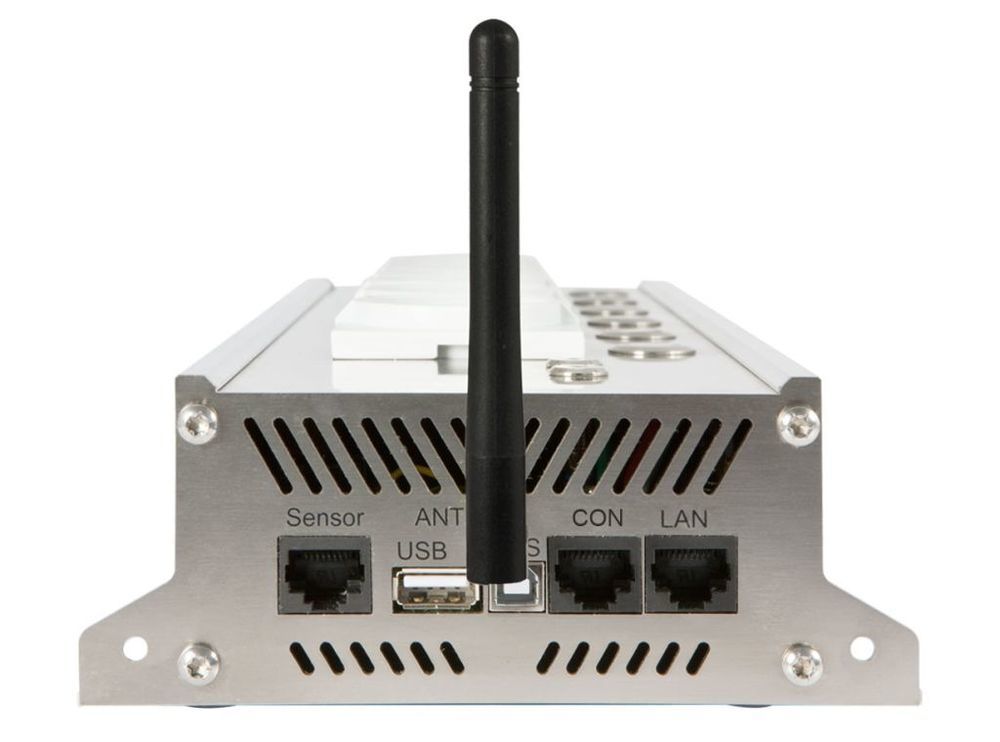

Connections:

• 6x Schuko socket
• 1x RJ45 LAN 10/100 Mbit/s
• 1x R-SMA (WLAN)
• 1x USB 2.0 Host
• 1x USB-B port (PowerON sensor)
• 1x RJ45 sensor connection (temp./humidity)

Wireless LAN:

• 2.4 GHz Wireless N, up to 150 Mbps

WLAN Security:

• WEP/WPA/WPA2

Supported Standards:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.11b/g/n

Protocols:

• HTTP/HTTPS
• TCP/IP

Management/Control:

• Via web browser, XML

Operating Systems:

• All network-capable operating systems

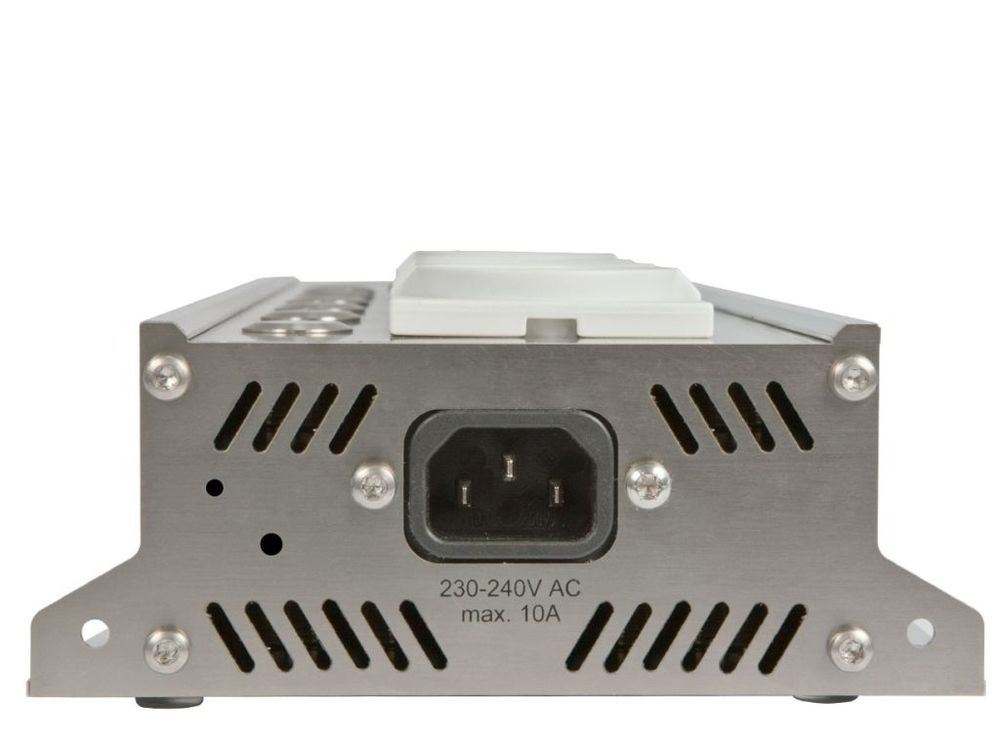

Voltage Range:

• 200 - 250 Volts

Switching Current:

• 6x 10 Amps max.

Housing:

• Aluminum profile housing

Power Measurement Module:

• Integrated measurement module for consumption or feed-in

Environment:

• Operating temperature: 0 ~ 40 °C
• Operating humidity: 10% ~ 85% (non-condensing)
• Storage temperature: -20 ~ 60 °C
• Storage humidity: 5% ~ 90% (non-condensing)

Dimensions:

• 425 x 140 x 55 (60) mm (length x width x height)

Weight:

• 2470 grams (without packaging and accessories)

Scope of Delivery:

• 1 ALL4176v3 unit
• 1 power cable / cold device
• 1 manual
• 1 WLAN antenna
