ALLNET ALL3696 / power meter ALL3696 IP with 2x induction / 1x S0 & 1x D0 including 50A phase clamp

ALLNET ALL3696 / Power meter ALL3696 IP with 2x induction / 1x S0 & 1x D0 incl. 50A phase clamp
Know what is running
can be reached via WLAN
Analyze power consumption and feed-in Record
measured values via sensors
Regulate and switch
Save electricity!
The ALLNET ALL3696 is the consistent further development of the successful ALL369x power meter series, this time for electricity meters with optical D0 input / S0. This means that concrete and calibrated measured values are always recorded.
Measuring device for recording and controlling your current power consumption at several measuring points
Can be accessed anywhere independently via the Internet (Internet connection at the location of the ALL3696 is required)
Easy to use and install thanks to the web interface and the OKK optical D0 reading head ALL3688,
alternatively ALL3689 (no intervention in the house cabling necessary)
Integrated web server
Alert via email when a set value is exceeded
4 x D0 ports enable connection to any D0 electricity meter with optical output (ALL3688/ALL3689)

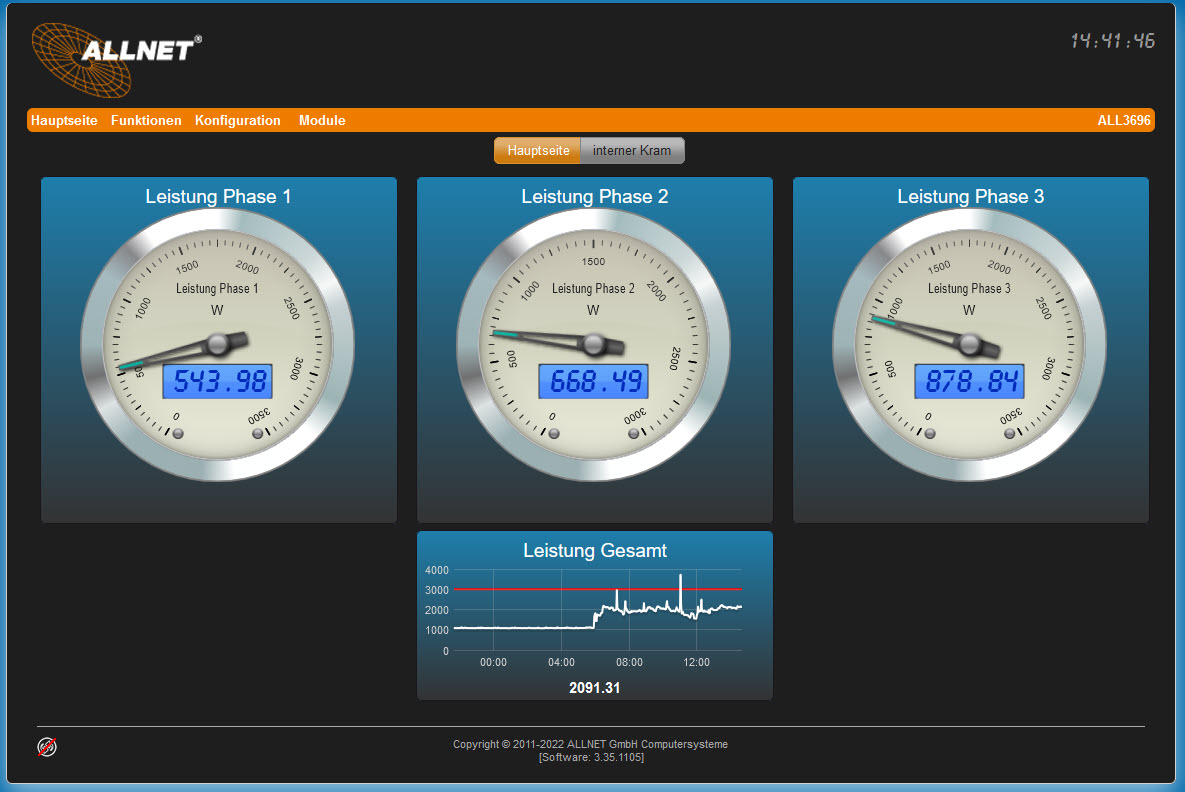

Extensive consumption display with live diagram, chart function, table display, etc.
Possibility to download the measured values in Database format, e.g. as a CSV file
Interfaces: 1x network, 1x 300Mbit WLAN, 4x D0, 2x I2C sensor/ports, 2x external USB ports
Easy installation by placing the OKK optical D0 reading head on any modern electricity meter using its magnetic ring. There is no need to calibrate the ALL3696 due to the D0 signals from the calibrated electricity meter. No intervention in the 230V house wiring is necessary.
Technical data:
Element
specification

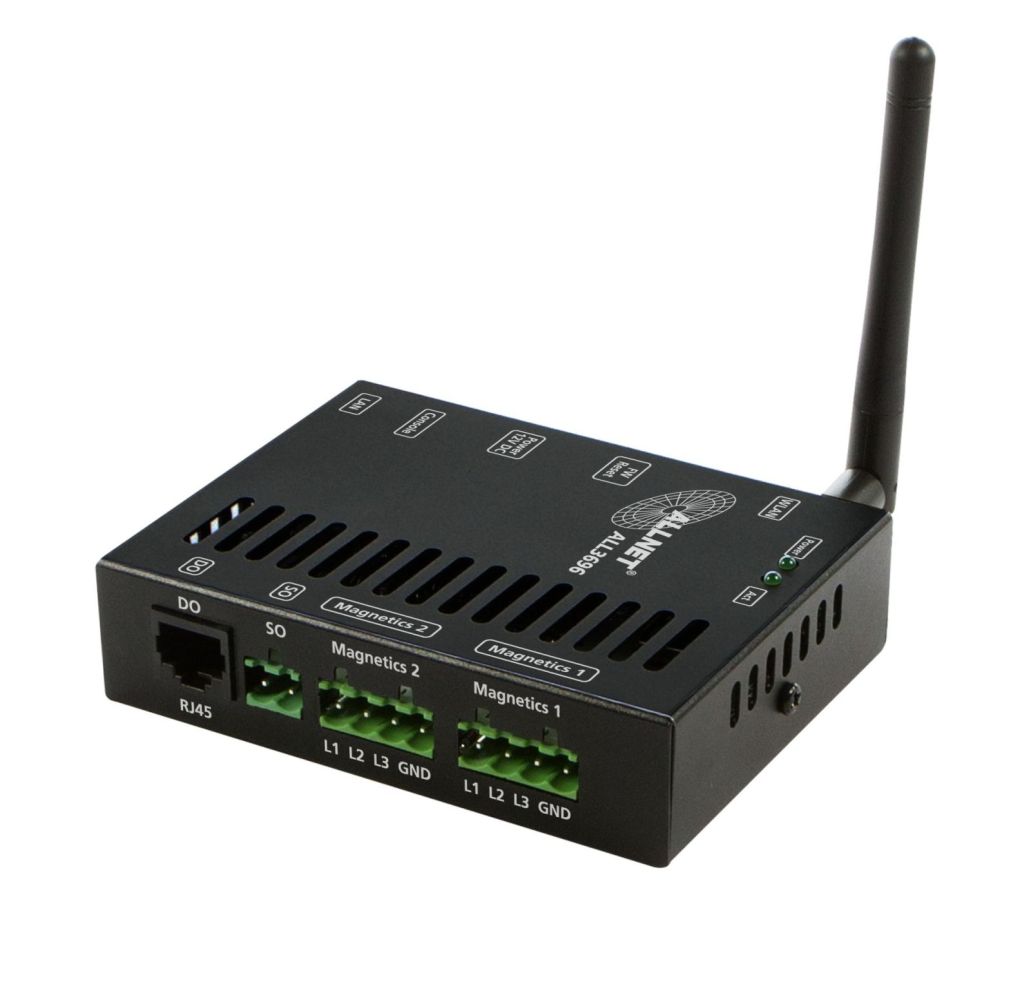

Interfaces:
2x Magnetics connections for the induction converters 1x 50A included in delivery "additional 50A / 200A and 800A optionally available\dlash1x D0 for D0-compatible electricity meter with optical output see compatibility list
1x S0 contact with pulse counting
1x console port
Internal data storage :
4GB USB Flash Memory Stick

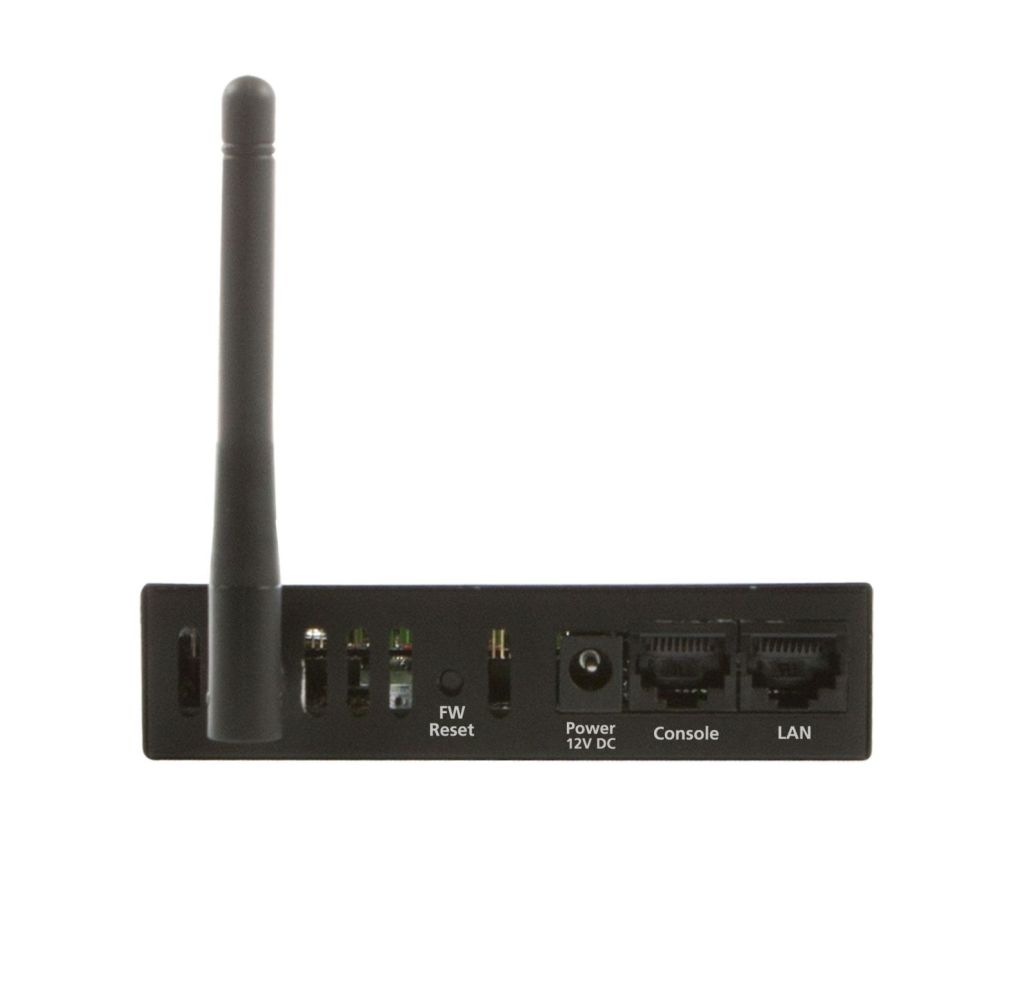

Network connection:
1x RJ45 10/100Mbps
1x 2.4 GHz Wireless N, up to 150 Mbps
Network protocols:
HTTP/HTTPS, TCP/IP, SNTP, SMTP, SSH
Operating systems:
all network-capable operating systems with browser
power supply :
100~240 VAC, 50/60 Hz, external 12V 1A power supply
Power consumption:
<3 watts maximum
Housing:
Aluminum housing with drilling groove for wall mounting
Environment:
Temperature Operating: 0 ~ 40 °C
Humidity Operating: 10% ~ 85% (non-condensing)
Temperature Storage: -20 ~ 60 °C
Humidity Storage: 5% ~ 90% (non-condensing)
Marking:
CE, RoHS
Dimensions:
155 x 28 x 26 mm (length x width x height)
Weight:
260 grams (without packaging and accessories)
Packaging contents:
1x ALL3696
1x 50A induction converter SET "L1/L2/L3\dlash1x WLAN antenna
1x Ethernet cable
1x power supply 230VAC - 12V DC 1A
2x universal mounting bracket
1x quick guide
