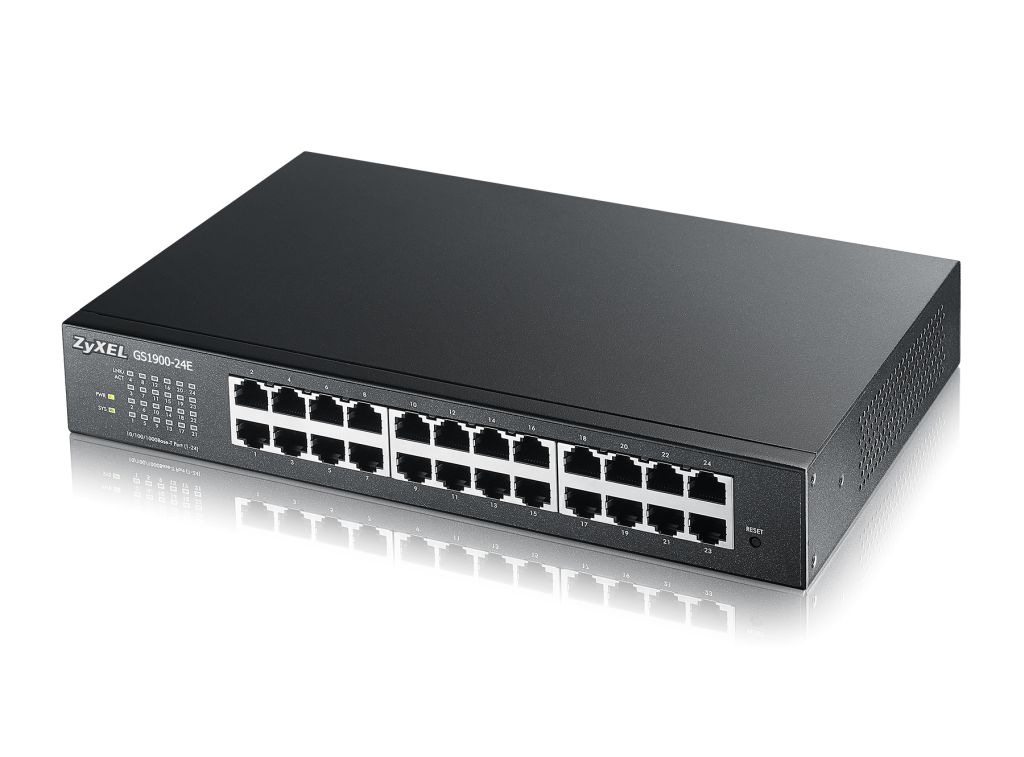

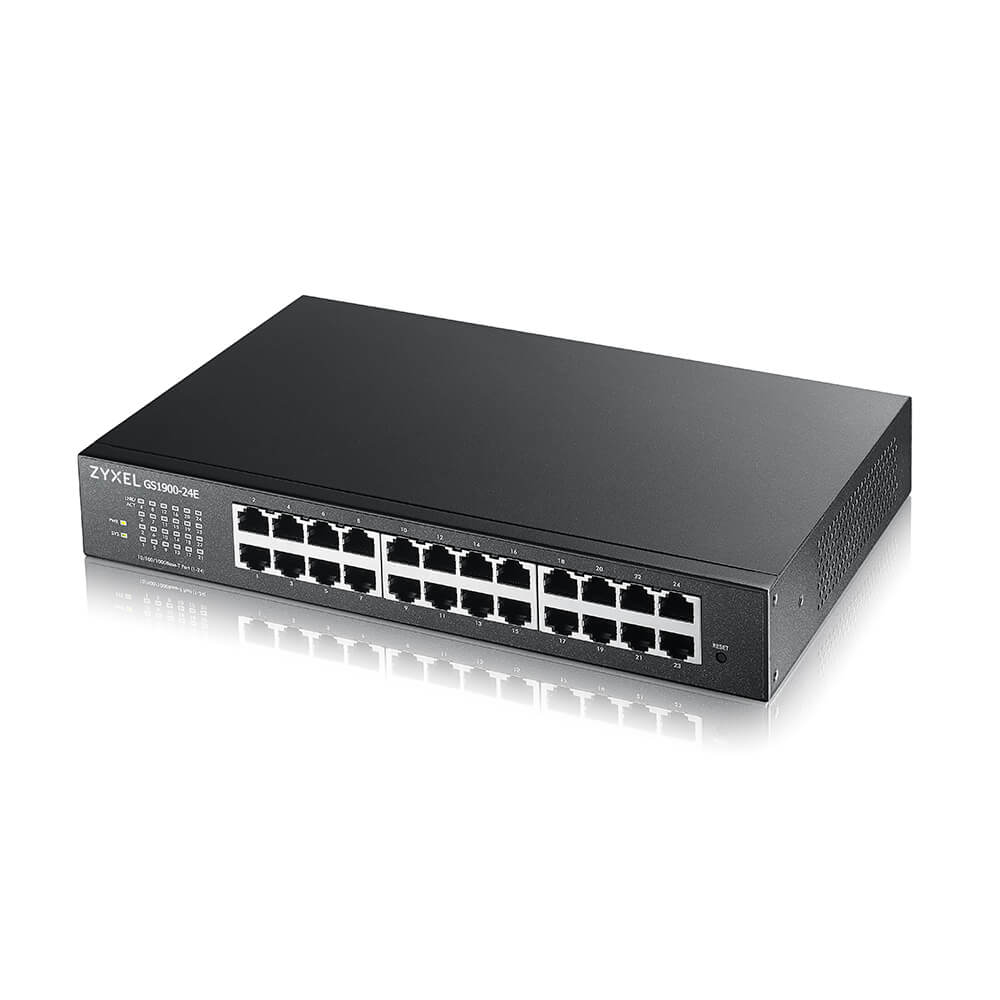

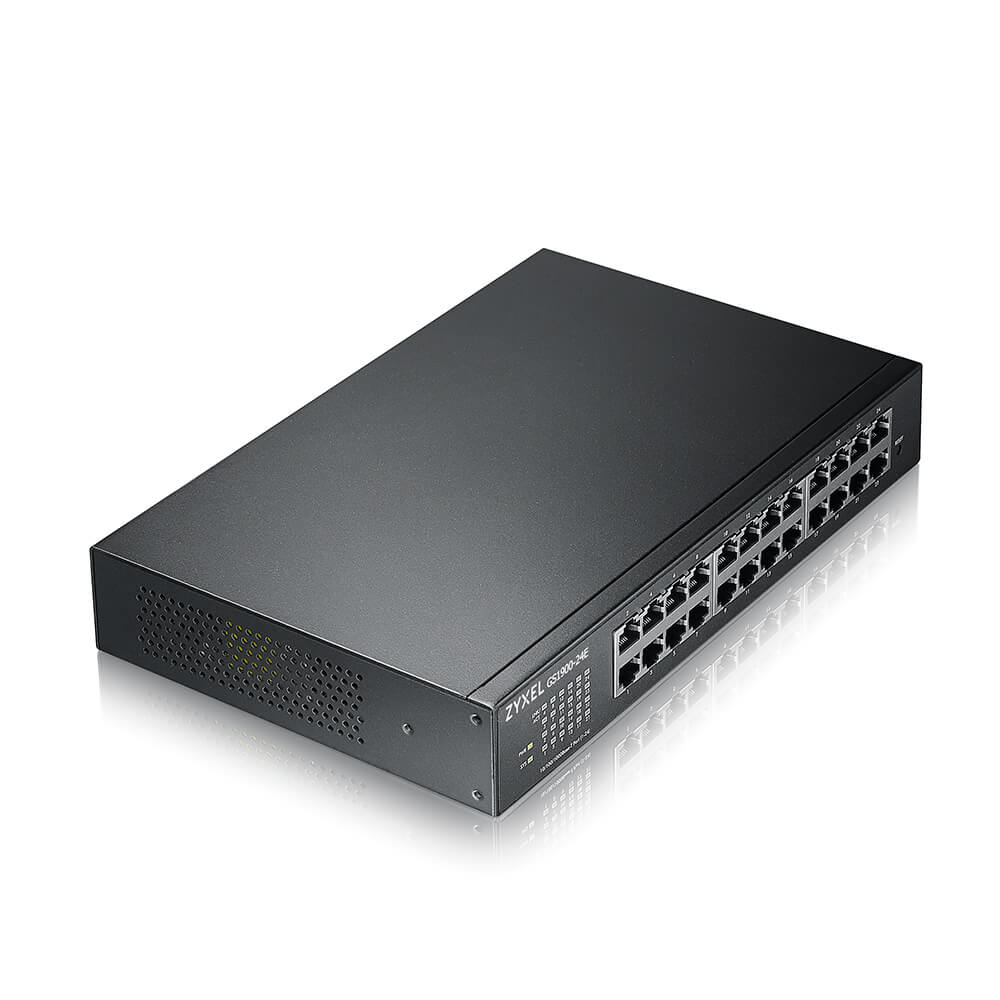

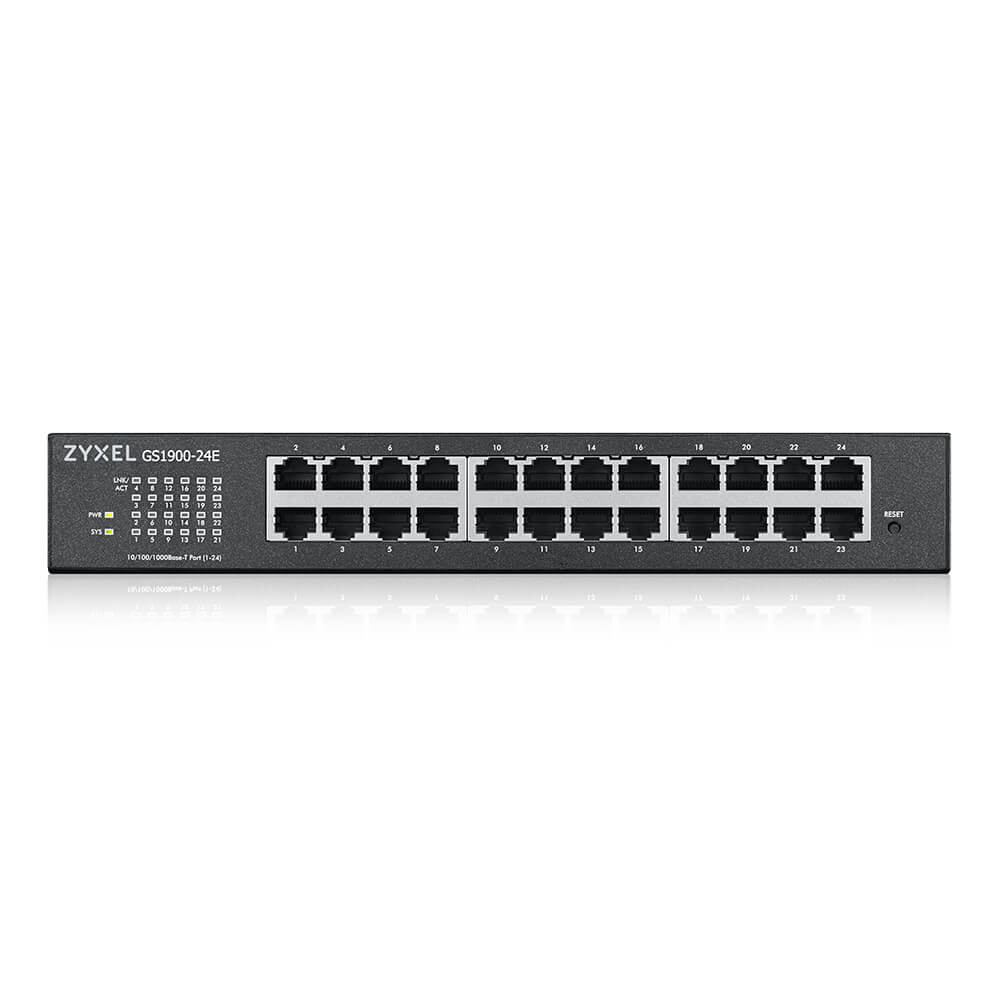

ZyXEL GS1900-24E V3 24-Port GbE L2 Smart Switch V3 content_copy

The Zyxel GS1900 Gigabit Switch Series is ideal for small businesses that want to separate traffic on their growing network but don't have a team of IT experts. These switches with their sophisticated functions offer more flexibility and control options. With built-in support for VLANs, enhanced quality of service (QoS), IGMP snooping, link aggregation (LAG), IPv6 and DoS defense, these switches conveniently separate and prioritize wired and wireless traffic while enabling guest network access and providing full control about the bandwidth between the ports. An easy-to-use setup wizard lets you complete these tasks, making setup and management a breeze.

Highlights

• Smart Managed Ethernet Switch
• 24x Gigabit Ethernet port
• Fanless design for silent operation
• Simple browser-based switch management, with quick and easy setup wizard
• Switch capacity: 48 Gbit/s
• Desktop, wall and rack mounting possible

Product type

• Switch
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications technology devices, small IT and telecommunications technology devices B2C

Specifications

• Switch type: Access
• Switching capacity: 48 GBit/s (Gbps )

Shipping

• WEEE: 40153029

Connections

• Total number of copper ports: 24
• Bandwidth: 10/100/1000 MBit/s
• Main port type: Copper
• Number of RJ45 ports (1G): 24

Functions

• Switch manageable: Yes
• Mounting type: Wall , Desktop, 48,3 cm ( 19 inch ) rack mounting
• IGMP

Power supply

• Power supply: integrated

Basic features

• Color: Black
• Height: 42 mm
• Length/depth: 162 mm
• Width: 267 mm
• Weight: 1.56 kg

Scope of delivery

• Zyxel GS1900-24E V3 24 Port GbE L2 Smart Switch
• Power Cable
• Rack Mount Kit
• Wall Mount Kit

Certificates
Certification	EMC ■ CE, FCC, C-Tick, Class A (GS1900-24/24EP/24HPv2/48/ 48HPv2) ■ CE, FCC, C-Tick, Class B (GS1900-8/8HP/10HP/16/24E) ■ BSMI CNS13438 • Safety ■ LVD EN60950-1 ■ BSMI CNS14336-1 ■ CB IEC60950-1 (GS1900-8HP/10HP/16/24E/24) • RoHS compliant
Data transmission
Switching capacity	48 Gbit/s
Forwarding rate	35.7 Mpps
MAC address table	8000 entries
Jumbo frames	9000
Packet buffer memory	0.525 MB
Store-and-forward
Jumbo frames support
Design
Form factor	1U
Product colour	Black
Rack mounting
Stackable
Reset button
LED indicators
Wall mountable
Logistics data
Harmonized System (HS) code	85176990
Management features
Switch type	Managed
Switch layer	L2
MIB support	RFC 1213 MIB II, RFC 2819 RMON (group 1, 2, 3, 9),RFC 1215 generic traps, RFC 1493 bridge, Zyxel private common MIB
Quality of Service (QoS) support
Web-based management
System event log
Network
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10,100,1000 Mbit/s
Virtual LAN features	Stacked VLAN, VLAN mapping
10G support
Port mirroring
Full duplex
Flow control support
Link aggregation
Spanning tree protocol
MAC address auto-learning supported
VLAN support
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Storage relative humidity (H-H)	10 - 95%
Heat dissipation	51.49 BTU/h
Packaging content
Cables included	AC
Rack mount kit
Packaging data
Package type	Box
Package width	325 mm
Package depth	223 mm
Package height	71 mm
Package weight	2.05 kg
Performance
Mean time between failures (MTBF)	804.714 h
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	AC-in jack
Power
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	15.1 W
Power supply included
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Security
DHCP features	DHCP client
Security algorithms	802.1x RADIUS
Authentication type	RADIUS, TACACS+
IGMP snooping
MAC address filtering
Static port security
SSH/SSL support
Password protection
Weight & dimensions
Width	267 mm
Depth	162 mm
Height	42 mm
Weight	1.56 kg

---
