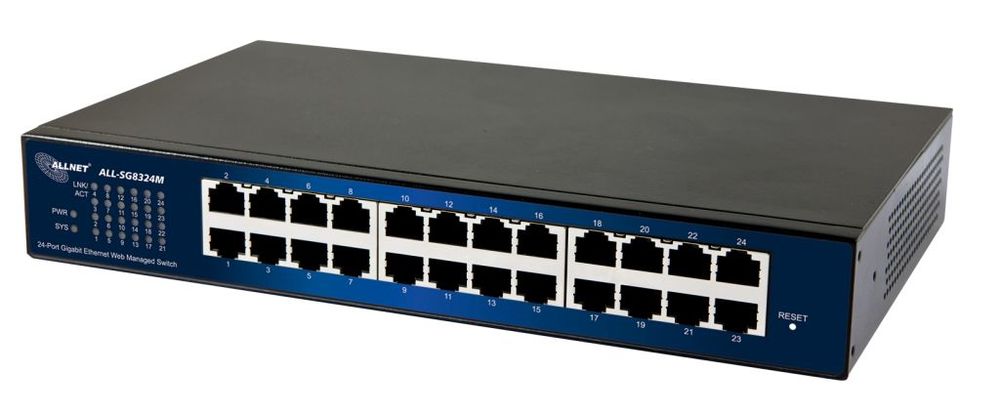

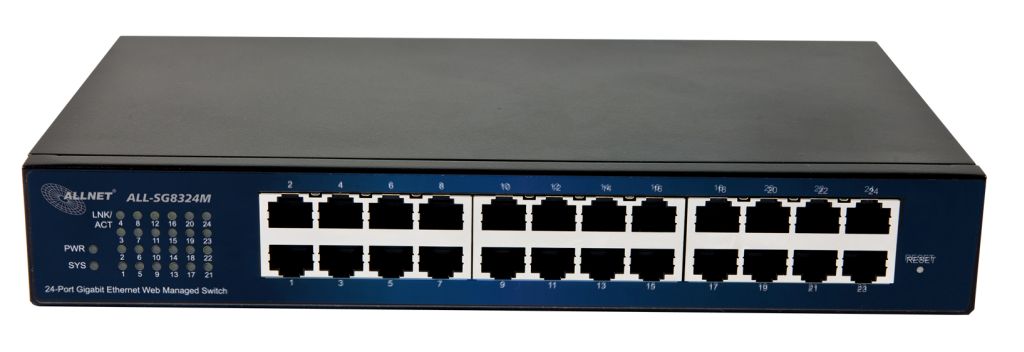

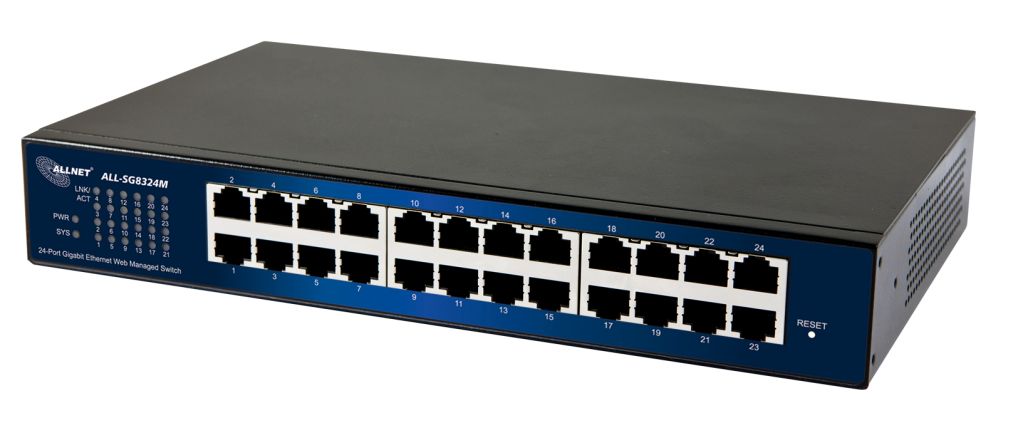

ALLNET ALL-SG8324M / 24 Port Gigabit, smart managed, fanless, SNMP

ALLNET ALL-SG8324M / 24 Port Gigabit, smart managed, fanless, SNMP
Cost-effective 24-port Managed Gigabit Layer 2 switch with no fan for desktop and 48,3 cm ( 19 inch )rack installation
Highlights: 24 Port Gigabit non-blocking switch architecture
Supports NWay protocol for speed (10/100 / 1000Mbps) and duplex mode (half / full) aut Detection
Supports back-pressure (half duplex), flow control (IEEE 802.3x and IEEE 802.3az Energy Efficient Ethernet

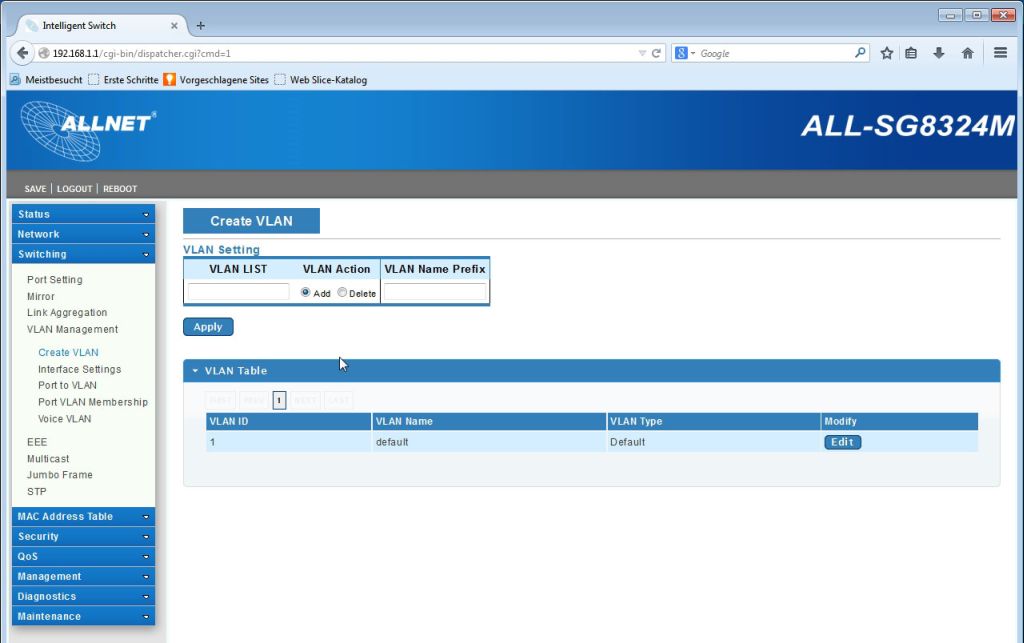

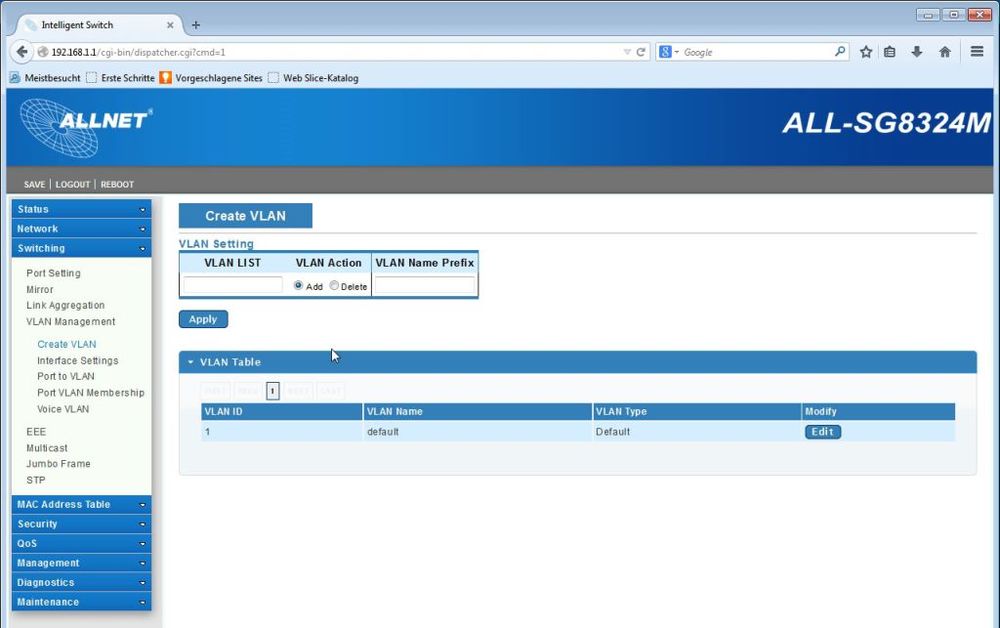

VLAN "64 Static / Port-Based / Tagged Based
Link Aggregation (LACP IEEE802.3ad & Static Trunk)
IGMP Snooping (v1 / v2 / v3)
QoS (Port Based, Flow, 802.1p, IP TOS, IP DSCP)
Storm Control (Broadcast, Multicast, Unicast)
Total fanless, no annoying sounds more ...

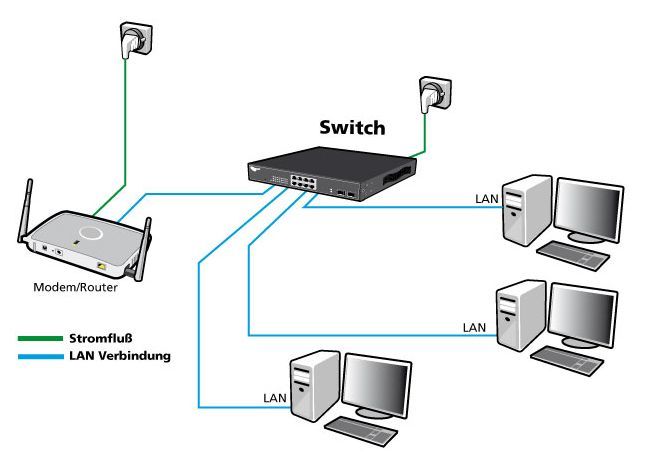

48.26cm (19 inch angle) or wall / table mountable The new" 159ALLNET2415,5 cm ( 951 inch )ALL-SG8324M switch provides an ideal basis for small and medium workgroups with high network and data traffic and enables rapid data transmission over the network. With a total of 24 backward-compatible Gigabit ports, the connected computers and servers are reliable and powerful interconnected. By the fanless design of the ALL-SG8324M is also ideal in the office environment can be used, since no disturbing noises are generated. The switch is smart manageable and therefore supports all necessary standards such as QoS, VLAN, Storm Control and IGMP Snooping. This ensures the highest performance and security in your network. The robust metal housing is suitable for mounting in a 19 cabinet, as well as for wall mounting. Technical Data Element
Specification
Switch operation:
Layer 2 switch, smart, Store and Foreward, auto-negotiation
Switch type:
stand alone
Switching ports:
24x RJ45 10/100 / 1000BaseT (X) expansion slots:
no
Uplink:
On all ports possible (auto MDI / MDI-X) Cascadable:
Uplink
Full Duplex Mode:
Yes
Data throughput:
Conduction velocity
Buffer Memory:
524,8K Bytes Jumbo Frame: 10K bytes Switch Fabric:
32Gbps
Address Management:
Self-learning address table MAC:
8000
Filtering / Forwarding:
Conduction velocity
LED indicators:
Power
Link
Activity
Power supply:
100 - 240V AC, internal power supply Power consumption: 15 watts maximum Supported standards: IEEE802.3 10Base-T IEEE802.3u 100BaseTX IEEE802.ab 1000BaseT IEEE802.3ad Link Aggregation IEEE802.1AB Link Discovery Protocol (LLDP) IEEE802.3x full-duplex operation and flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p Class of Service, Priority protocols IEEE802.1Q VLAN Tagged Based IEEE802.1d Spanning Tree (STP) IEEE802.1w Spanning Tree (RSTP) Layer2 Features: Flow Control (Full-Duplex & Half- Duplex) Spanning Tree (STP & IEEE802.1w IEEE802.1d RSTP, Auto Edge Port, Self Loop Detection) VLAN (64 Statis VLAN, Port-based, IEEE802.1q Tagged-based) voice VLAN (OUI mode) Link Aggregation (IEEE802 .3ad LACP, Static Trunk, 8x max groups, 8 ports / groups, traffic load balancing) IGMP Snooping (256 multicast groups, IGMP v1 / v2 / v3 IEEE802.1AB Link Layer Discovery Protocol (LLDP) QoS Features: 8 PriorityQueue rate Limit (Port Based Ingress / egress) queue scheduling (WRR, WFQ, Strict Priority, hybrid) Class of Service (Port-based, flow-based, 802.1p, IP TOS, IP DSCP)
Security:
Storm Control (Broadcast, Multicast Unknown, Unknown Unicast)
HTTPS and SSL 2.0
Account Manager (Multiple Account, Multi-Level Security)
Management VLAN,
port isolation
DoS Prevention
IPv6:
IPv6 Application (HTTP / HTTPS, TELNET, SNMP, TFTP, PING, PHCPv6)
IPv6 host (Static Address Length, Default Gateway, Neighbor Discovery (ND), Duplicate Address Detection, ICMPv6)
Management:

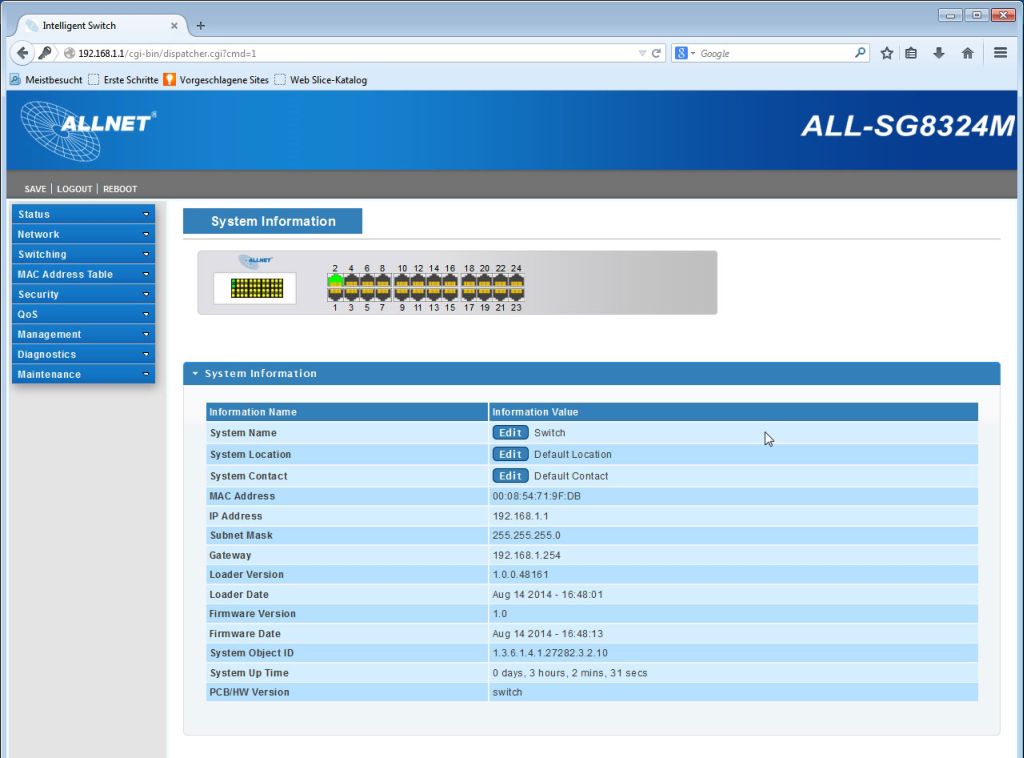

Web GUI (HTTP, HTTPS)
Command Line Interface (CLI Console, RFC854)

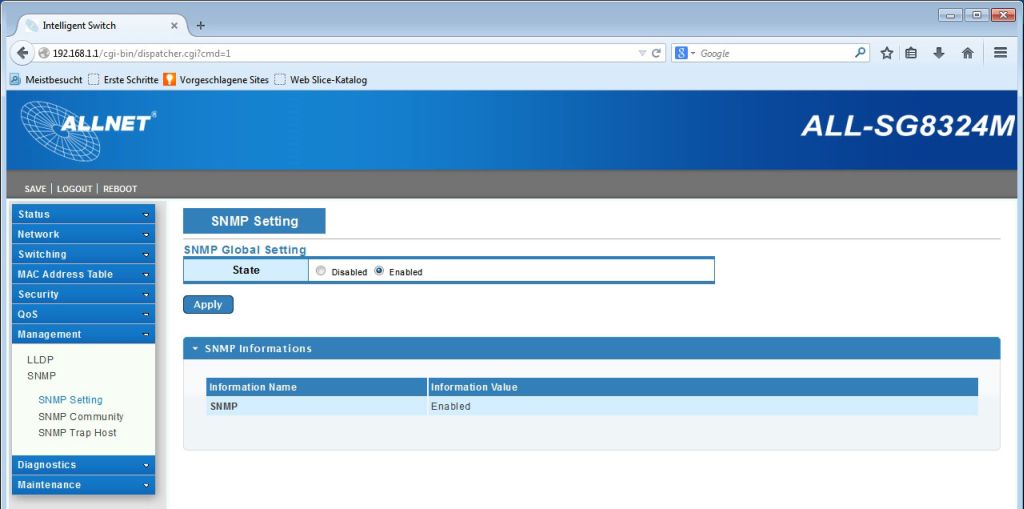

SNMP (v1 / v2)
File Management (Firmware Upgrade, Configuration Download
DHCP Client
DNS Client
Mirroring (Port-based (many to one)
Syslog (RFC3164, LocalRAM , Local Flash, remote server)
Time Setting (Local, SNTP)
Cable Diagnostics (Cable Test)
Port Utiliation
Reset Button
EEE (802.3az)
Housing:
48,3 cm ( 19 inch )metal housing, mounting angle enclosed,
Dimensions:
Width / depth / height: 267 x 162 x 42 mm
Surroundings:
Temperature Operation: 0 ~ 55 ° C
Operating Humidity: 10% ~ 90%
Temperature Storage: -20 ~ 70 ° C
Humidity Storage: 5% ~ 90%
Labelling:
EMC / FCC, CE Class B; Safety / LVD EN60950-1
