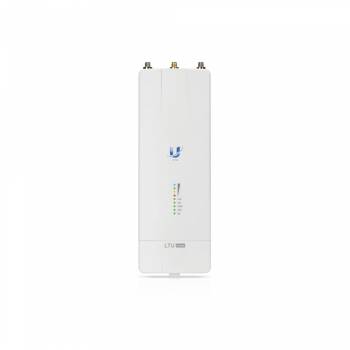

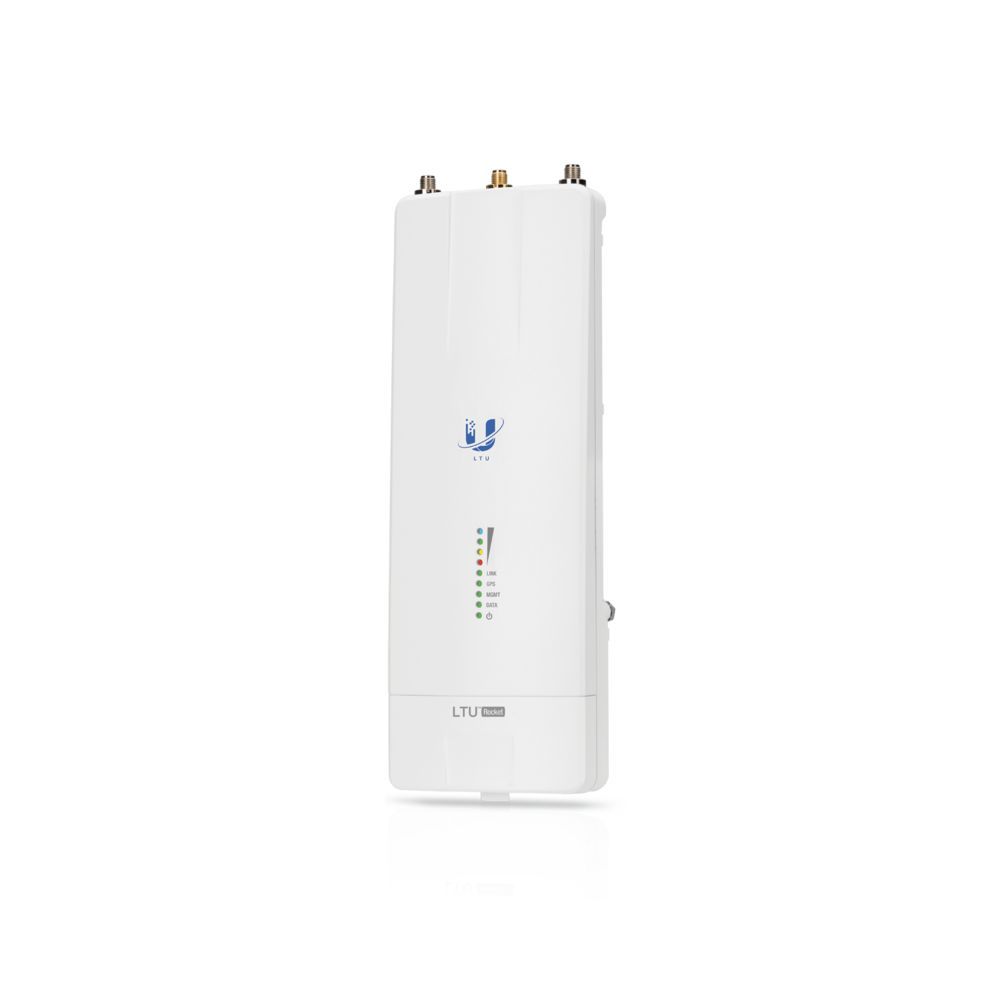

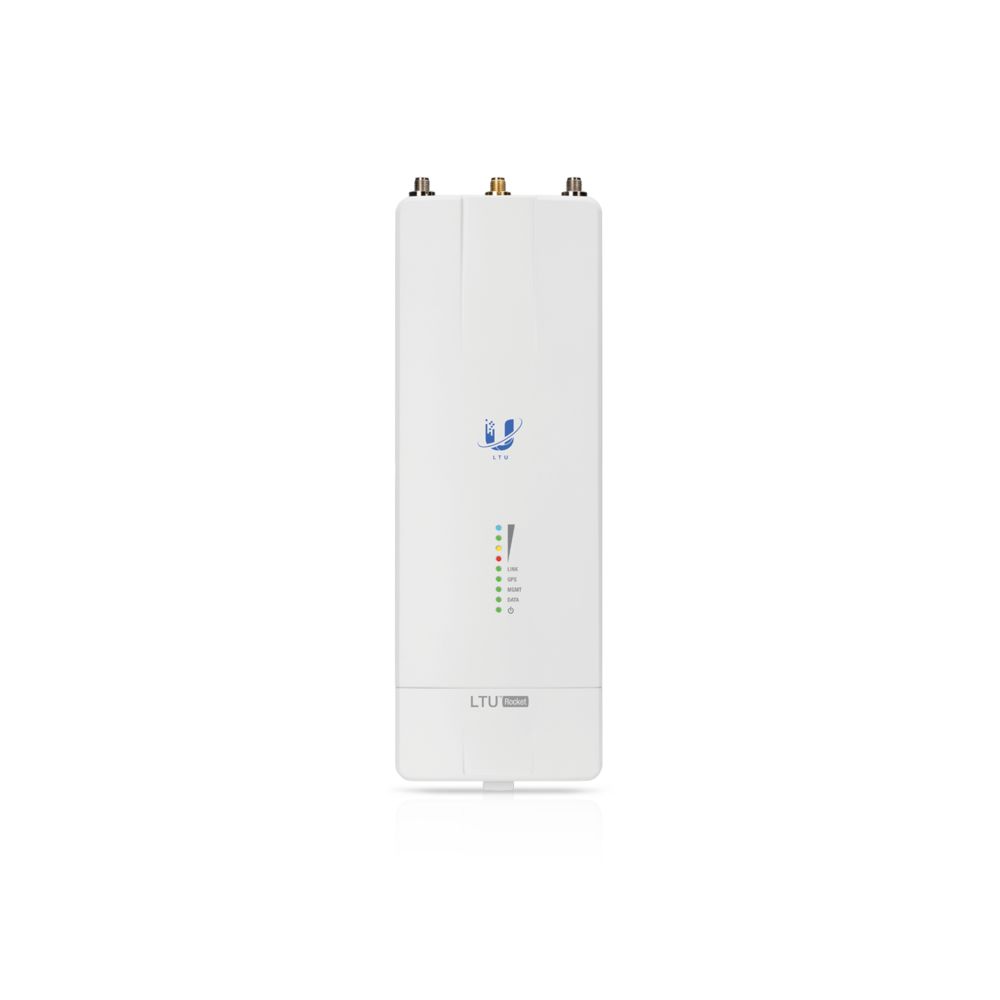

Ubiquiti LTU-Rocket
-EU P2MP 5GHz Ltu Base Radio
|
335,26 EUR 347,46 EUR |
|
|
( 398,96 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1783398 |
|---|---|
| Mfg Part No: | LTU-Rocket |
| Weight: | 1.2 kg |
Product information for Ubiquiti LTU-Rocket:
5GHz PtMP LTU base station radio, works in a PtMP environment with LTU Pro, LTU Lite or LTU LR as clients. Built-in advanced 5 GHz filtering performance
Over 900 Mbps throughput*
Capacity for over 100 customers
Dedicated spectrum analysis radio
Built-in GPS synchronization
Note. Compatible with LTU devices only.
Technical Specifications Mechanical Dimensions 224 x 82 x 48 mm (8.82 x 3.23 x 1.89 inches) Weight 468 g (1.03 pounds) Body materials Die-cast aluminum, polycarbonate Mount materials Metal, polycarbonate Mounting Integrated pole mount (kit included )
GPS Mast Mount (Kit Included)

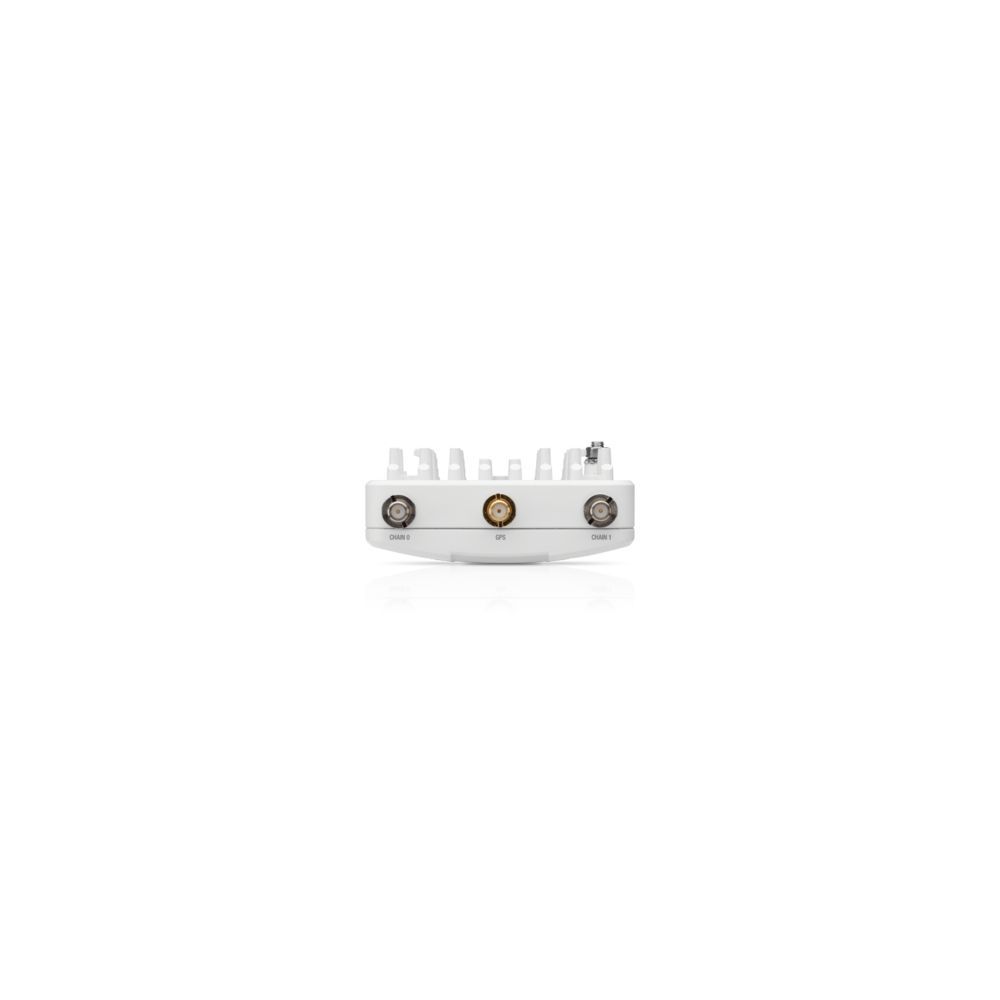

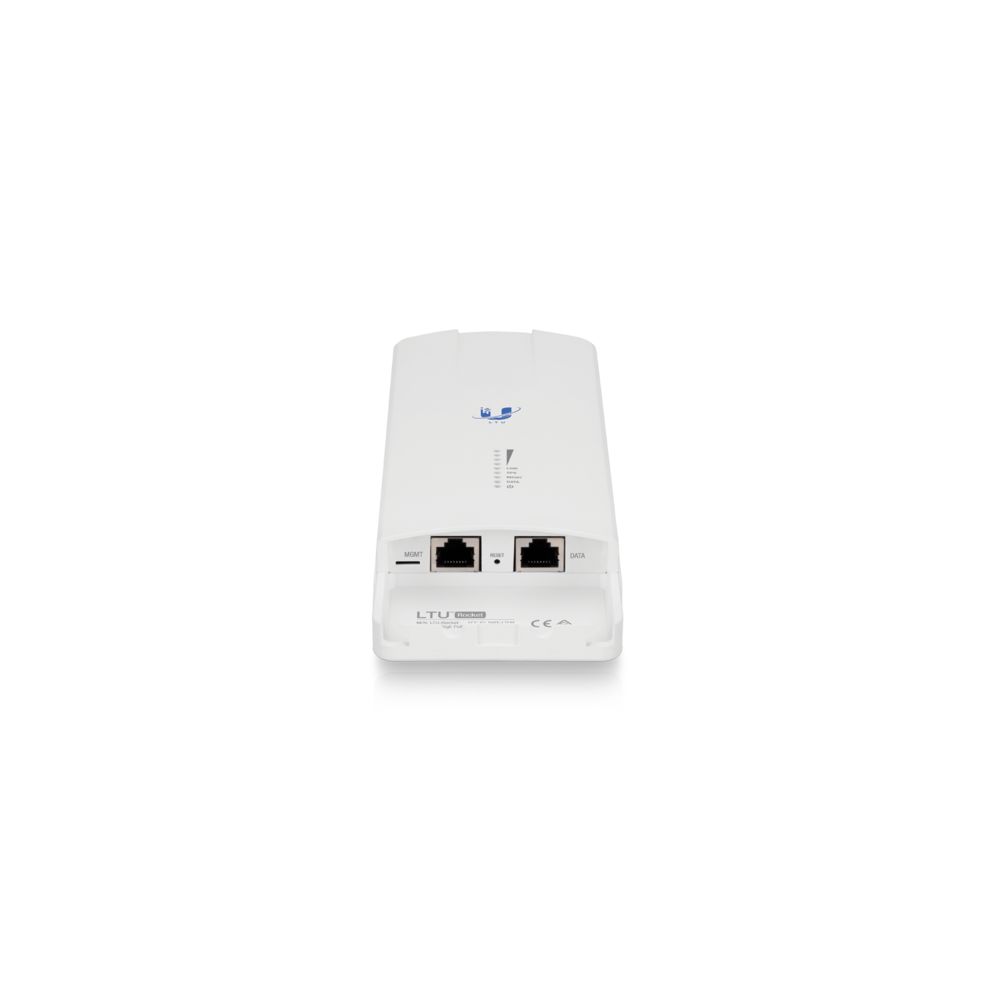

Rocket Mount Compatible Weatherproof IP67 Hardware Network Interface (2) GbE RJ45 Ports Power Method Dual Passive PoE Power Supply 24V, 1A PoE Gigabit Adapter (Included) Supported Voltage Range 18-54 V DC Max. power consumption 25W RF connections (2) RP-SMA weatherproof (CH0, CH1)
(1) SMA weatherproof (GPS) GPS Yes GPS antenna External magnetic base Button Factory reset Operating temperature -40° to 55° C (-40 ° to 131° F) Certifications FCC Software Mode PtMP Base Station Radio Services SNMP, SSH, Dynamic DNS, Web Server, Remote Protocol, Ping Watchdog Utilities airView®, Speed Test, Orientation, Discovery, Ping, Traceroute, Cable Test, Constellation Automatic Distance Adjustment Yes Automatic performance adjustment Yes Security Yes Static reporting Yes Management interface Bluetooth management for easy setup via
the WEB interface of the UISP app Minimum software requirements
Any modern iOS™ or Android™ based smartphone with a web browser System Maximum throughput 900+ Mbps*
*FW version 2.3.0 and above. Packets per second 2+ million Clients supported 100+ Maximum range 100+ km*
* Throughput and range values may vary depending on environmental conditions. Encryption WPA2-PSK (AES) Uplink/Downlink Ratio 25/75, 33/67, 50/50 RF Operating Frequency*
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
Worldwide
5150 – 5250 MHz
5250 – 5350 MHz
5470 – 5725 MHz
5725 – 5850 MHz
4800 – 6200 MHz
*Depending on regulatory region. Max. conducted transmission power 29 dBm Channel bandwidth 10/20/30/40/50/60/80/100 MHz* selectable
Programmable uplink and downlink duty cycles
Management radio 2400 - 2483.5 MHz
Over 900 Mbps throughput*
Capacity for over 100 customers
Dedicated spectrum analysis radio
Built-in GPS synchronization
Note. Compatible with LTU devices only.
Technical Specifications Mechanical Dimensions 224 x 82 x 48 mm (8.82 x 3.23 x 1.89 inches) Weight 468 g (1.03 pounds) Body materials Die-cast aluminum, polycarbonate Mount materials Metal, polycarbonate Mounting Integrated pole mount (kit included )
GPS Mast Mount (Kit Included)
Rocket Mount Compatible Weatherproof IP67 Hardware Network Interface (2) GbE RJ45 Ports Power Method Dual Passive PoE Power Supply 24V, 1A PoE Gigabit Adapter (Included) Supported Voltage Range 18-54 V DC Max. power consumption 25W RF connections (2) RP-SMA weatherproof (CH0, CH1)
(1) SMA weatherproof (GPS) GPS Yes GPS antenna External magnetic base Button Factory reset Operating temperature -40° to 55° C (-40 ° to 131° F) Certifications FCC Software Mode PtMP Base Station Radio Services SNMP, SSH, Dynamic DNS, Web Server, Remote Protocol, Ping Watchdog Utilities airView®, Speed Test, Orientation, Discovery, Ping, Traceroute, Cable Test, Constellation Automatic Distance Adjustment Yes Automatic performance adjustment Yes Security Yes Static reporting Yes Management interface Bluetooth management for easy setup via
the WEB interface of the UISP app Minimum software requirements
Any modern iOS™ or Android™ based smartphone with a web browser System Maximum throughput 900+ Mbps*
*FW version 2.3.0 and above. Packets per second 2+ million Clients supported 100+ Maximum range 100+ km*
* Throughput and range values may vary depending on environmental conditions. Encryption WPA2-PSK (AES) Uplink/Downlink Ratio 25/75, 33/67, 50/50 RF Operating Frequency*
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
Worldwide
5150 – 5250 MHz
5250 – 5350 MHz
5470 – 5725 MHz
5725 – 5850 MHz
4800 – 6200 MHz
*Depending on regulatory region. Max. conducted transmission power 29 dBm Channel bandwidth 10/20/30/40/50/60/80/100 MHz* selectable
Programmable uplink and downlink duty cycles
Management radio 2400 - 2483.5 MHz
