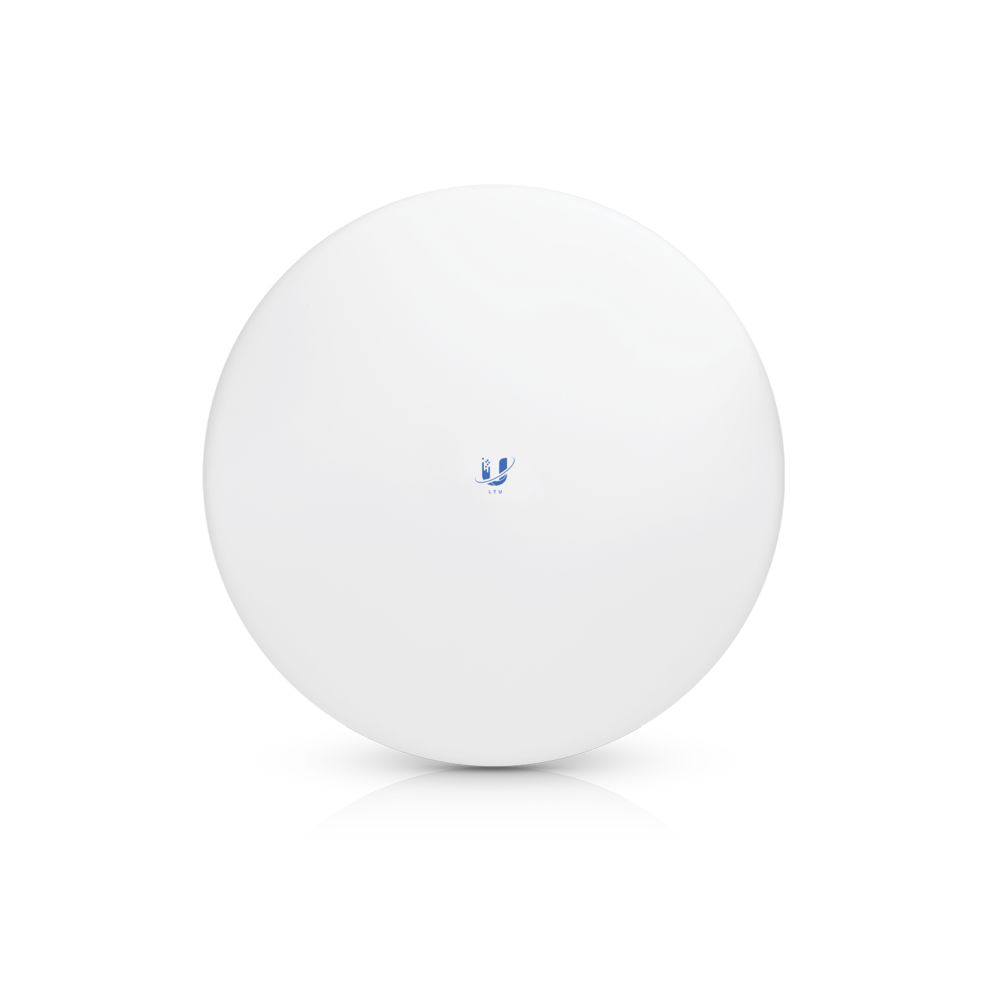

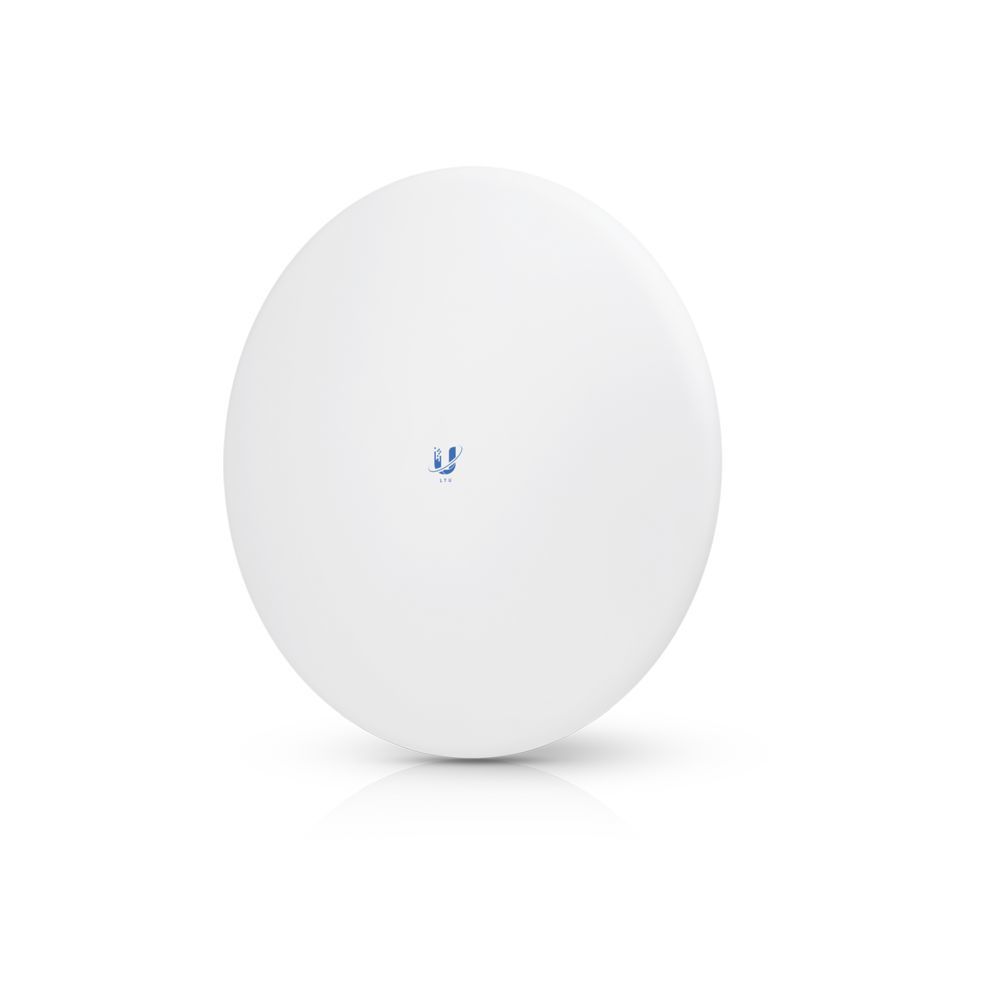

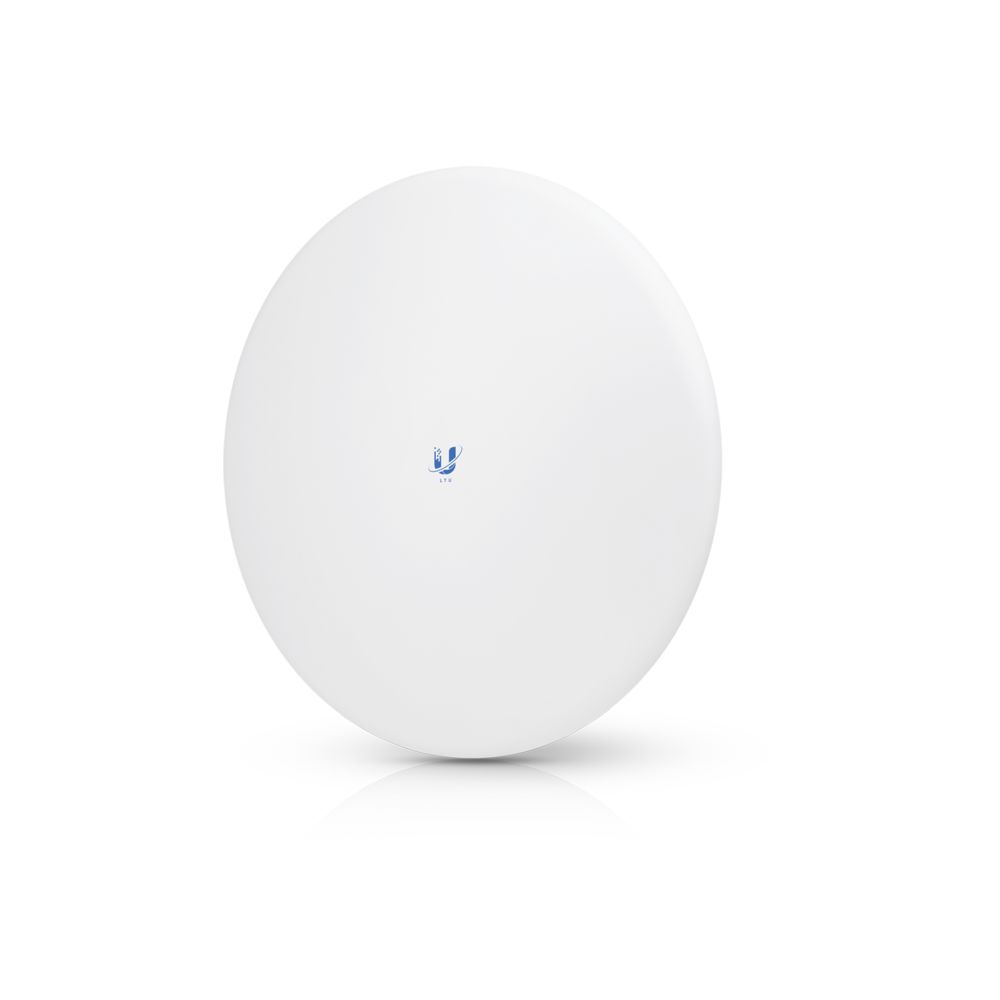

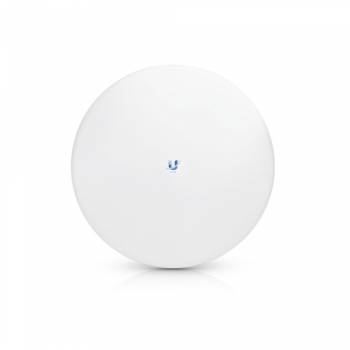

Ubiquiti LTU-PRO-EU P2MP 5GHz Ltu Client Radio
|
151,41 EUR 156,92 EUR |
|
|
( 180,18 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1783399 |
|---|---|
| Mfg Part No: | LTU-Pro |
| Weight: | 2.65 kg |
Product information for Ubiquiti LTU-Pro:
5GHz PtMP LTU client with extended RF performance, works in a PtMP environment with the LTU Rocket as a base station. 5 GHz, 25+ km connection range
Over 900 Mbps throughput*
Dedicated spectrum analysis radio
Integrated radome
Note . Compatible with LTU devices only.

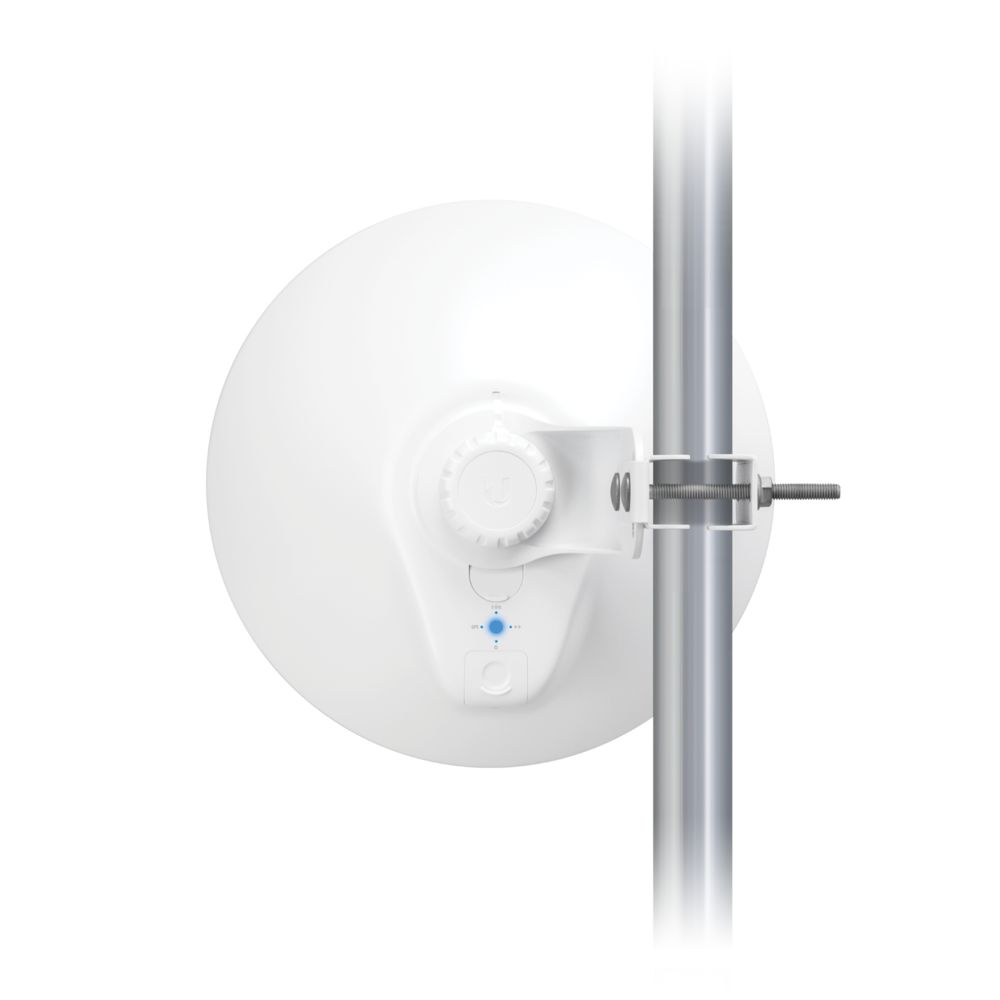

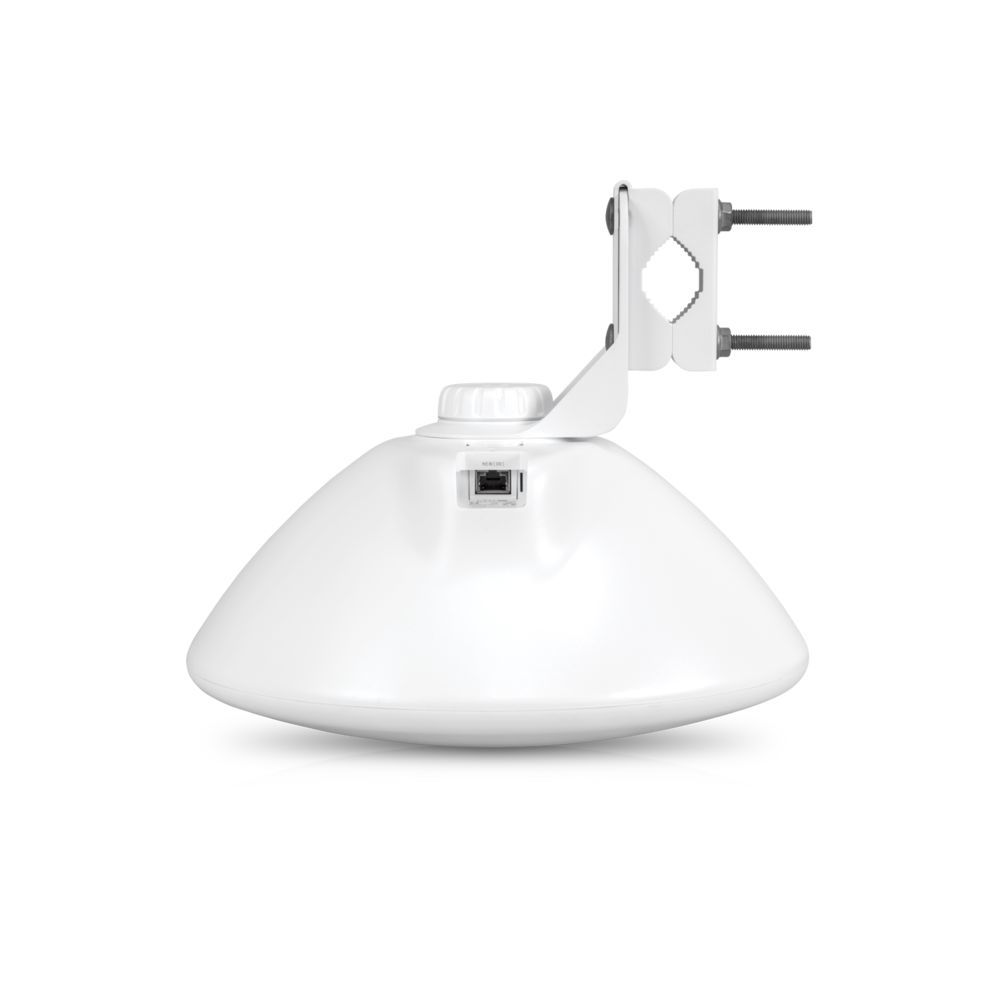

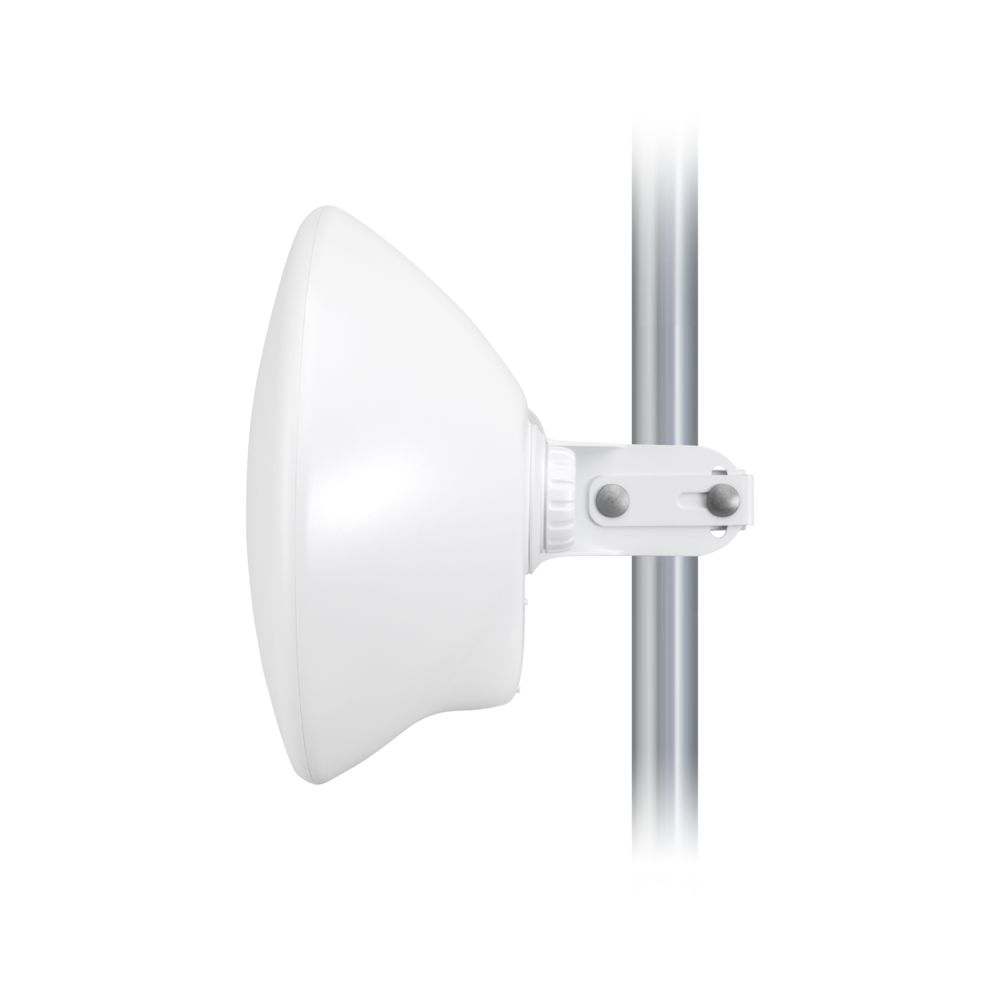

Technical Specifications Mechanical Dimensions 316.5 x 316.5 x 174.3 mm (12.46 x 12.46 x 6.86 inches) Weight 1.3 kg (2.87 pounds) Housing material UV-stabilized polycarbonate Mounting Pole mount (kit included) Wind load 150 N at 200 km/h (33.72 lbf at 125 mph) Wind survivability 200 km/h (125 mph) Hardware Network interface (1) GbE RJ45 port Power method Passive 24V PoE (pairs 4, 5+ 7, 8-) Power supply 24V, 0.5A Gigabit PoE adapter (included) Supported voltage range 22-26V DC Max power consumption 9W ESD/EMP protection Air/Contact: ± 24kV Operating Temperature -40 to 60°C (-40 to 140°F) Operating Humidity 10 to 90% non-condensing Certifications CE, FCC, IC Software Modes PtMP CPE, PtP*
*1.5.1 series firmware and later 1.5.x. Services SNMP, SSH, Dynamic DNS, Web Server, Remote Protocol, Ping Watchdog Utilities airView®, Speed Test, Orientation, Discovery, Ping, Traceroute, Cable Test, Constellation Auto Distance Adjustment Yes Auto Power Adjustment Yes Network Bridge/Router* Mode
*The Router mode is only available in PtMP CPE mode. Security Yes Static reporting Yes Management interface Bluetooth management for easy setup via
UISP app WEB interface Minimum software requirements
Any modern iOS™ or Android™ based smartphone with web browser System Maximum throughput 900+ Mbps*
*FW- Version 2.3.0 and above. Encryption WPA2-PSK (AES) Uplink/Downlink Ratio 25/75, 33/67, 50/50 RF Operating Frequency*
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
EU
Worldwide
5150 - 5250 MHz
5250
Over 900 Mbps throughput*
Dedicated spectrum analysis radio
Integrated radome
Note . Compatible with LTU devices only.
Technical Specifications Mechanical Dimensions 316.5 x 316.5 x 174.3 mm (12.46 x 12.46 x 6.86 inches) Weight 1.3 kg (2.87 pounds) Housing material UV-stabilized polycarbonate Mounting Pole mount (kit included) Wind load 150 N at 200 km/h (33.72 lbf at 125 mph) Wind survivability 200 km/h (125 mph) Hardware Network interface (1) GbE RJ45 port Power method Passive 24V PoE (pairs 4, 5+ 7, 8-) Power supply 24V, 0.5A Gigabit PoE adapter (included) Supported voltage range 22-26V DC Max power consumption 9W ESD/EMP protection Air/Contact: ± 24kV Operating Temperature -40 to 60°C (-40 to 140°F) Operating Humidity 10 to 90% non-condensing Certifications CE, FCC, IC Software Modes PtMP CPE, PtP*
*1.5.1 series firmware and later 1.5.x. Services SNMP, SSH, Dynamic DNS, Web Server, Remote Protocol, Ping Watchdog Utilities airView®, Speed Test, Orientation, Discovery, Ping, Traceroute, Cable Test, Constellation Auto Distance Adjustment Yes Auto Power Adjustment Yes Network Bridge/Router* Mode
*The Router mode is only available in PtMP CPE mode. Security Yes Static reporting Yes Management interface Bluetooth management for easy setup via
UISP app WEB interface Minimum software requirements
Any modern iOS™ or Android™ based smartphone with web browser System Maximum throughput 900+ Mbps*
*FW- Version 2.3.0 and above. Encryption WPA2-PSK (AES) Uplink/Downlink Ratio 25/75, 33/67, 50/50 RF Operating Frequency*
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
EU
Worldwide
5150 - 5250 MHz
5250
- 5350 MHz 5470
- 5725 MHz 5725 - 5850 MHz 2400 - 2483.5 MHz
5150 - 5875 MHz
2400 - 2483.5 MHz
4800 - 6200 MHz
*Depending on regulatory region. Max. conducted transmission power 22 dBm (per chain) Channel bandwidth 10/20/30/40/50/60/80/100 MHz*
*FW version 2.3.0 and higher. Antenna gain 24 dBi Beam width 14° Side lobe plane -10 dB Front to back ratio 27 dB
Questions & answers
What is the delivery time of Ubiquiti LTU-PRO-EU P2MP 5GHz Ltu Client Radio?
The article Ubiquiti LTU-PRO-EU P2MP 5GHz Ltu Client Radio is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Ubiquiti LTU-Pro to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Ubiquiti LTU-PRO-EU P2MP 5GHz Ltu Client Radio always at the best possible price. We can give you a discount of 2% on Ubiquiti LTU-PRO-EU P2MP 5GHz Ltu Client Radio if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
