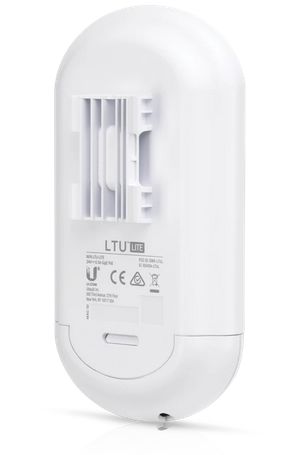

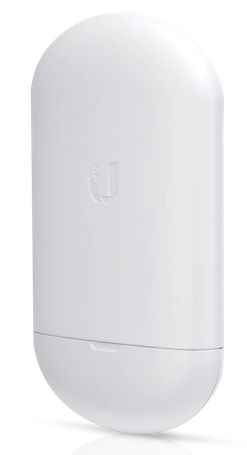

Ubiquiti LTU-Lite
-EU P2MP 5GHz Ltu Client Radio
|
84,74 EUR 87,82 EUR |
|
|
( 100,84 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1783400 |
|---|---|
| Mfg Part No: | LTU-Lite |
| Weight: | 1.24 kg |
Product information for Ubiquiti LTU-Lite:
5GHz PtMP LTU client, works in a PtMP environment with the LTU Rocket as a base station. Integrated 5 GHz antenna, range over 10 km
Over 900 Mbps throughput*
Dedicated spectrum analysis radio
Note. Compatible with LTU devices only.
Technical Specifications Mechanical Dimensions 153 x 84 x 39.5 mm (6.02 x 3.31 x 4 cm ( 1,6 inch )) Weight 250 g (8.82 ounces) Housing material UV-stabilized polycarbonate Mounting Pole mount, wall mount (kit included) Wind load 20 N at 200 km/h (4.5 lbf at 125 mph) Wind survivability 200 km/h (125 mph) Hardware Network interface (1) GbE RJ45 port Power method 24V passive PoE (pairs 4, 5+ 7, 8 -) Power supply 24V, 0.5A Gigabit PoE adapter (included) Supported voltage range 22-26V DC Max. power consumption 8.5W ESD/EMP protection Air/contact: ± 24kV Operating temperature -40 to 60°C (-40 to 140°F) Operating Humidity 5 to 95% non-condensing Certifications CE, FCC, IC Software Modes PtMP CPE, PtP*
*Firmware 1.5.1 series and above 1.5.x. Services SNMP, SSH, dynamic DNS, Web Server, Remote Protocol, Ping Watchdog Utilities airView®, Speed Test, Alignment, Discovery, Ping, Traceroute, Cable Test, Constellation Auto Distance Adjustment Yes Auto Power Adjustment Yes Network Bridge/Router* Mode
*Router mode is only in PtMP -CPE mode available. Security Yes Static reporting Yes Management interface Bluetooth management for easy setup via
UISP app WEB interface Minimum software requirements
Any modern iOS™ or Android™ based smartphone with web browser System Maximum throughput 900+ Mbps*
*FW- Version 2.3.0 and above. Encryption WPA2-PSK (AES) Uplink/Downlink Ratio 25/75, 33/67, 50/50 RF Operating Frequency*
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
EU
Worldwide
5150 - 5250 MHz
5250
Over 900 Mbps throughput*
Dedicated spectrum analysis radio
Note. Compatible with LTU devices only.
Technical Specifications Mechanical Dimensions 153 x 84 x 39.5 mm (6.02 x 3.31 x 4 cm ( 1,6 inch )) Weight 250 g (8.82 ounces) Housing material UV-stabilized polycarbonate Mounting Pole mount, wall mount (kit included) Wind load 20 N at 200 km/h (4.5 lbf at 125 mph) Wind survivability 200 km/h (125 mph) Hardware Network interface (1) GbE RJ45 port Power method 24V passive PoE (pairs 4, 5+ 7, 8 -) Power supply 24V, 0.5A Gigabit PoE adapter (included) Supported voltage range 22-26V DC Max. power consumption 8.5W ESD/EMP protection Air/contact: ± 24kV Operating temperature -40 to 60°C (-40 to 140°F) Operating Humidity 5 to 95% non-condensing Certifications CE, FCC, IC Software Modes PtMP CPE, PtP*
*Firmware 1.5.1 series and above 1.5.x. Services SNMP, SSH, dynamic DNS, Web Server, Remote Protocol, Ping Watchdog Utilities airView®, Speed Test, Alignment, Discovery, Ping, Traceroute, Cable Test, Constellation Auto Distance Adjustment Yes Auto Power Adjustment Yes Network Bridge/Router* Mode
*Router mode is only in PtMP -CPE mode available. Security Yes Static reporting Yes Management interface Bluetooth management for easy setup via
UISP app WEB interface Minimum software requirements
Any modern iOS™ or Android™ based smartphone with web browser System Maximum throughput 900+ Mbps*
*FW- Version 2.3.0 and above. Encryption WPA2-PSK (AES) Uplink/Downlink Ratio 25/75, 33/67, 50/50 RF Operating Frequency*
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
EU
Worldwide
5150 - 5250 MHz
5250
- 5350 MHz 5470
- 5725 MHz 5725 - 5850 MHz 2400 - 2483.5 MHz
5150 - 5875 MHz
2400 - 2483.5 MHz
4800 - 6200 MHz
*Depending on regulatory region. Max. conducted transmission power 22 dBm (per chain) Channel bandwidth 10/20/30/40/50/60/80/100 MHz*
*FW version 2.3.0 and higher. Antenna gain 13 dBi Cross-pole isolation 20 dB Beamwidth HPOL/VPOL/Elevation: 45° polarization dual linear
