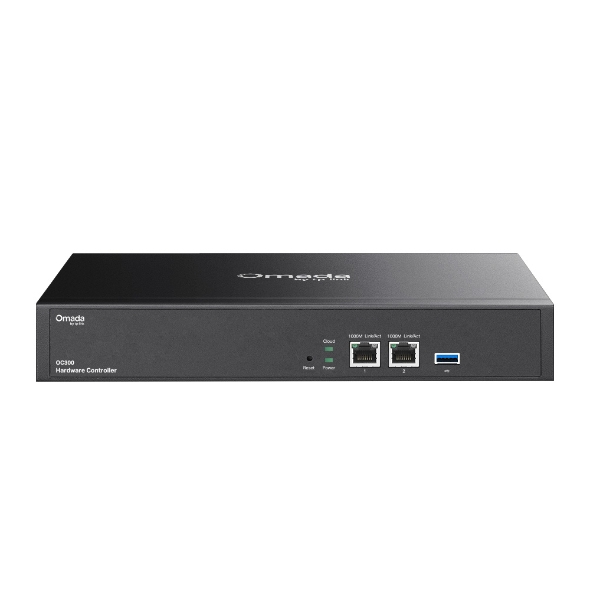

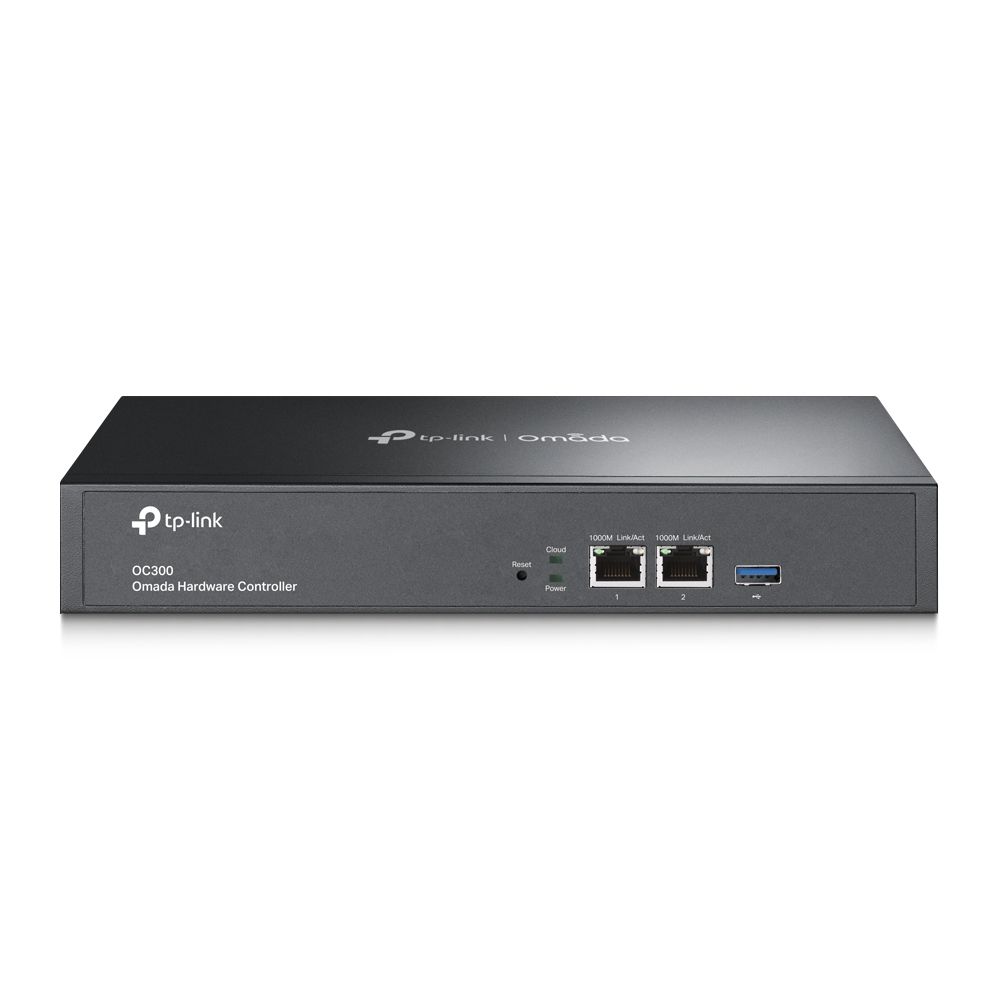

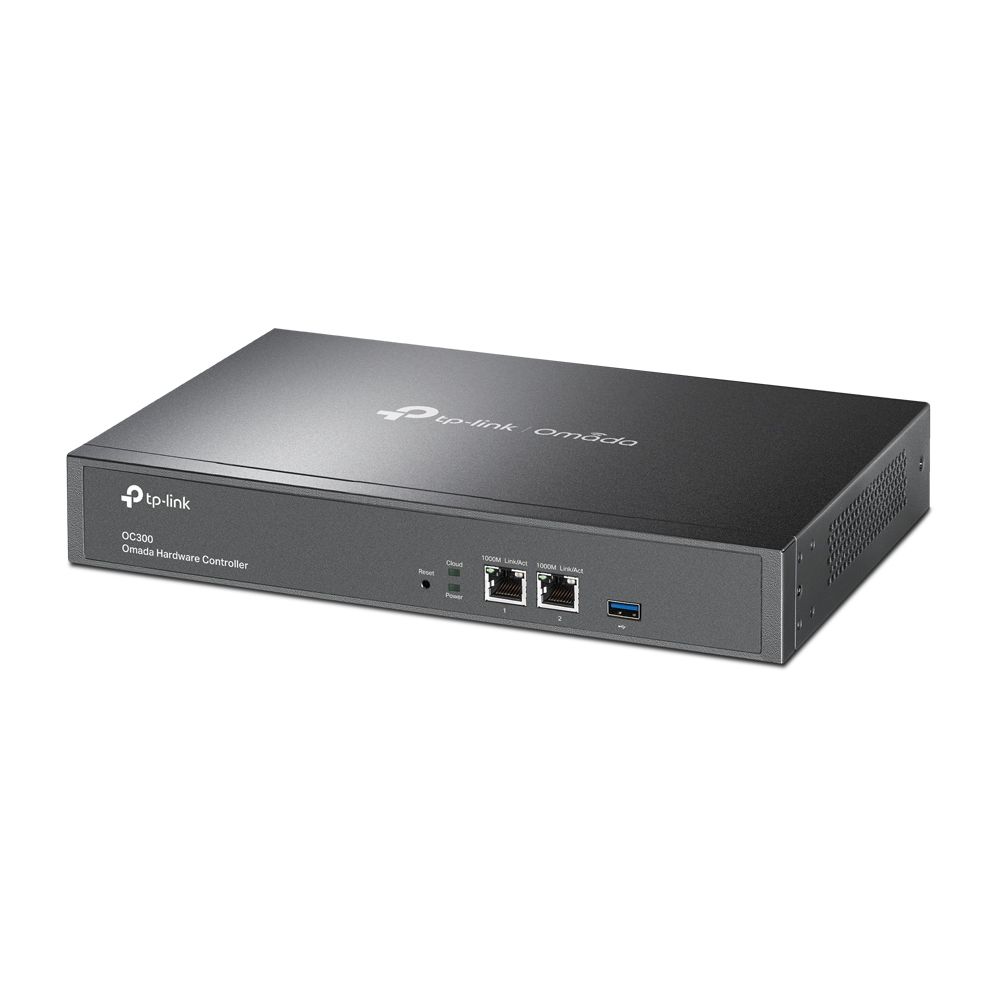

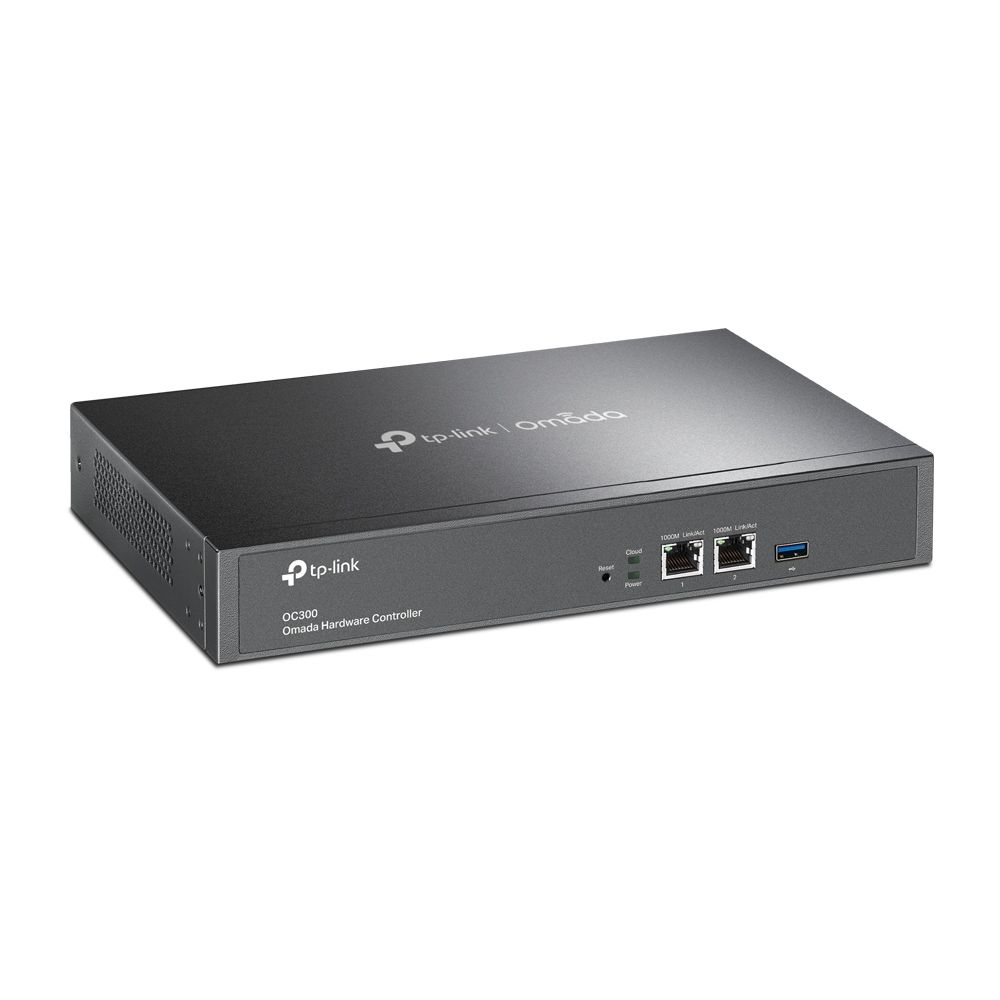

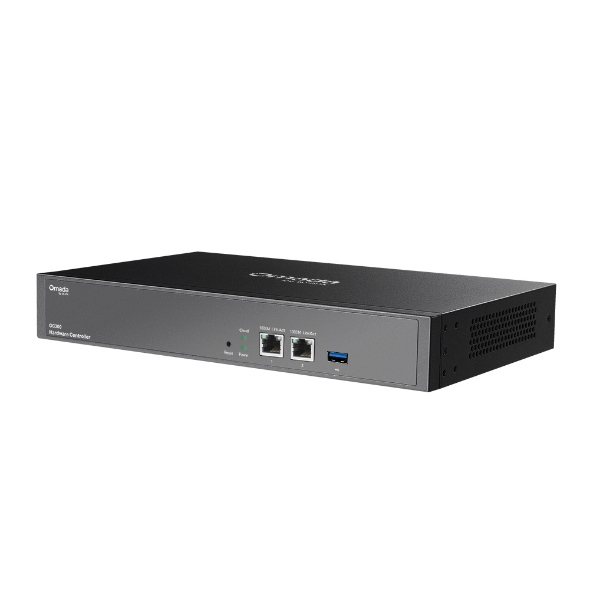

TP-LINK Omada Hardware Controller 48,3 cm ( 19 inch ) OC300 content_copy

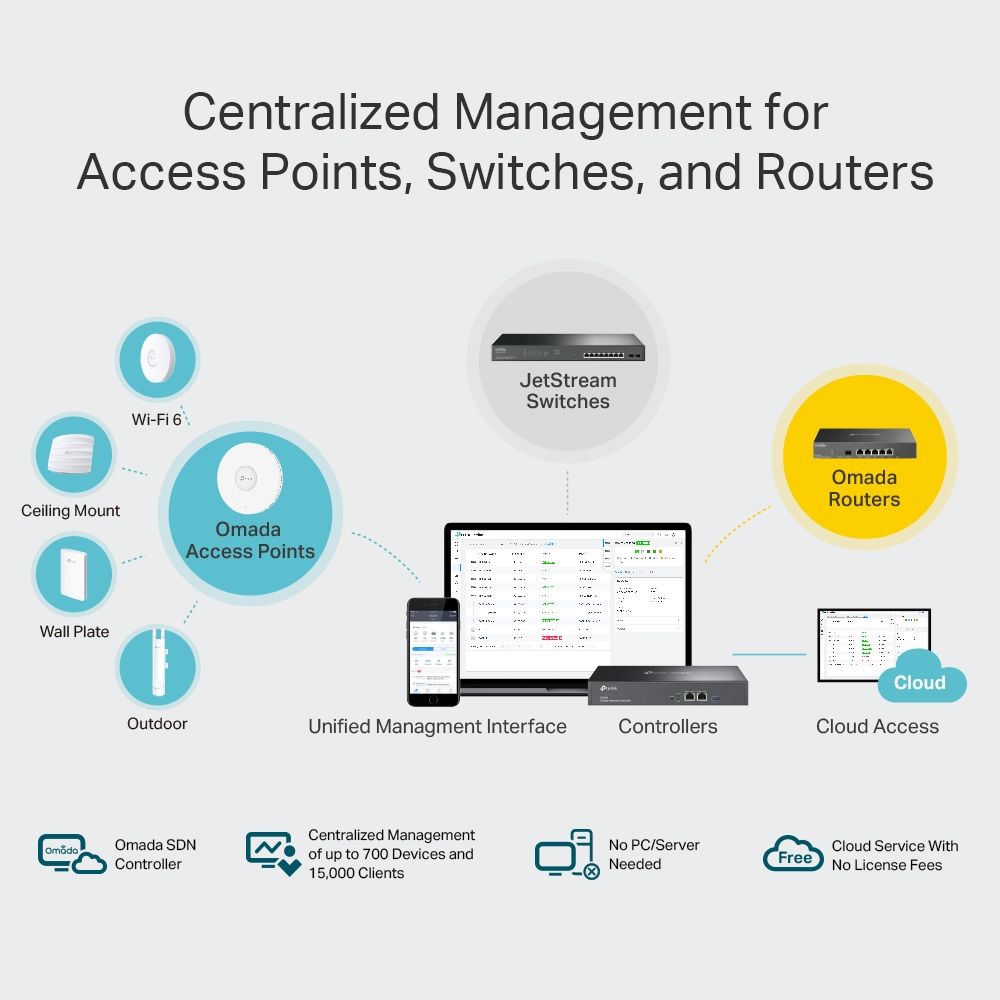

TP-Link's OC300 is an Omada SDN hardware controller and enables 100% centralized management of Omada access points, Omada switches and Omada gateways. All in a single interface.

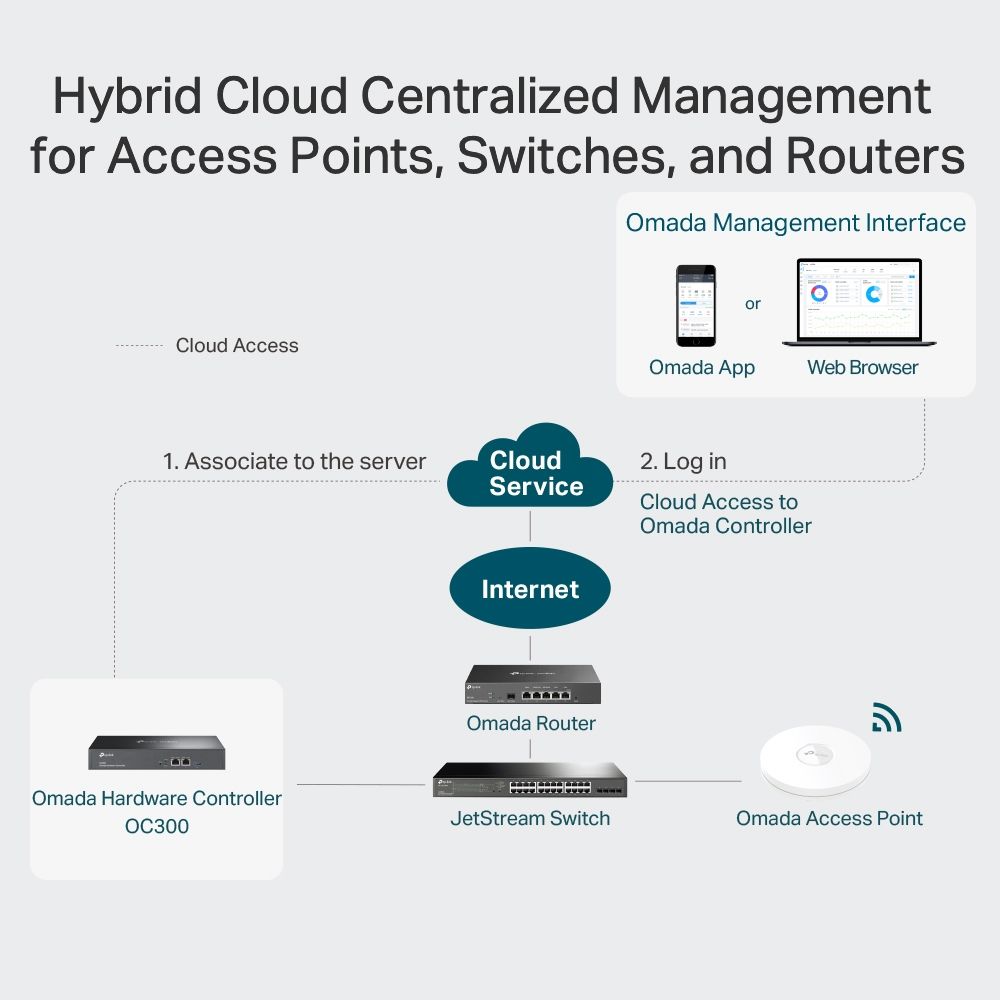

Omada's hybrid cloud enables secure remote access to the OC300 from anywhere in the world, at any time. The hybrid controller remains with all functions in the secure, local network, regardless of the Internet connection, without corresponding latency or connection disruptions for maximum stability and security.

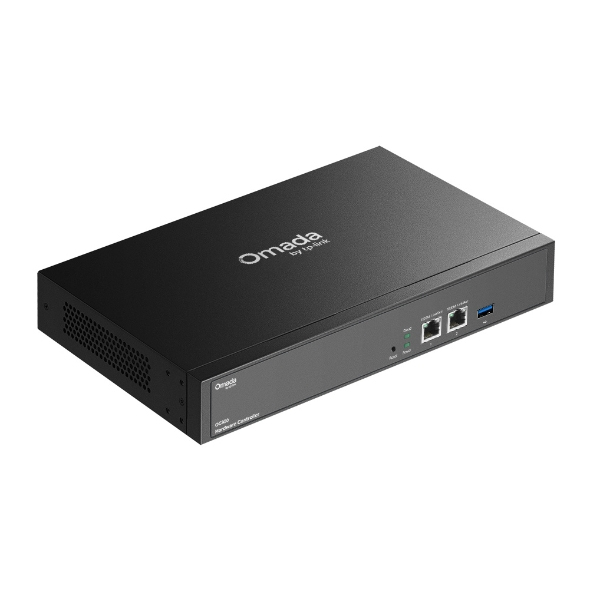

The sturdy metal housing houses a powerful chipset and offers a USB 3.0 interface for automatic backups.

Highlights

• Centralized management for up to 500 Omada access points, JetStream switches and SafeStream routers
• Management anytime and anywhere thanks to cloud management

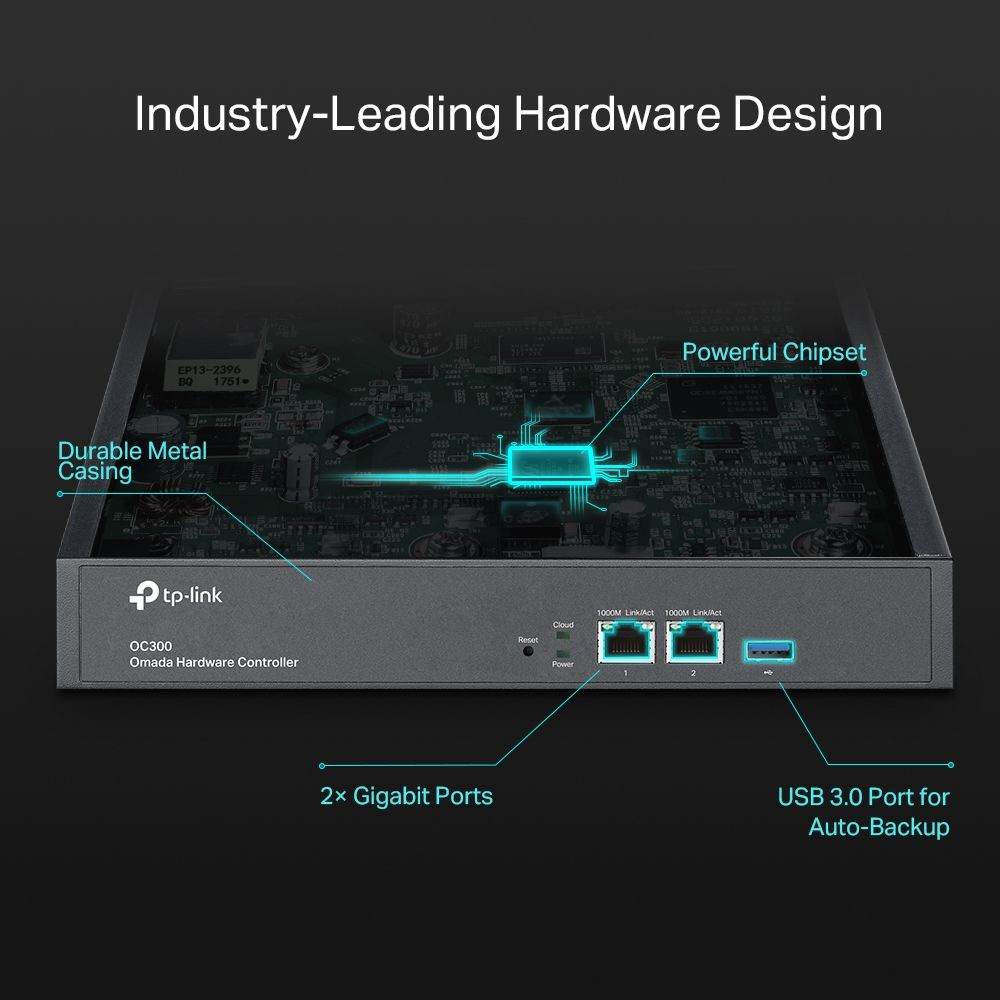

• Industry-leading hardware design with a powerful chipset, sturdy metal housing and a USB 3.0 back-up port
• Intuitive user interface Comprehensive real-time information about the network
• Omada app offers easy and mobile use

Product type

• WLAN controller
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications devices, Small IT and telecommunications devices -Technology B2C

Specifications

• Area of application: Indoor

Connections

• Total number of copper ports: 2

Functions

• Max. number of access point controllers: 500
• Max. number of clients: 15000

Power supply

• Power supply: integrated

Data transmission

• WLAN
• Bandwidth: 10/ 100/1000 MBit/s

Basic features

• Color: Black
• Height: 44 mm
• Length/Depth: 180 mm
• Width: 294 mm

Scope of delivery

• TP-Link OC300 Omada Cloud WLAN Controller
• Quick installation guide
• Network cable
• IEC cable
• Rackmount kit 48,3 cm ( 19 inch )

Certificates
Certification	CE, FCC, RoHS
Design
Product colour	Black
Rack capacity	1U
LED indicators
Management features
Web-based management
Syslog
Traffic statistics
Network
Ethernet LAN data rates	10,100,1000 Mbit/s
VPN support	VPN (IPSec/L2TP/PPTP/OpenVPN)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Packaging content
Cables included	LAN (RJ-45)
Quick installation guide
Performance
Processor manufacturer	ARM
Processor family	ARM Cortex
Number of processors installed	1
Internal memory	2000 MB
Internal memory type	DDR4
Flash memory	2 MB
Control display unit
Built-in processor
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	2
Power
Power consumption (typical)	9 W
Power consumption (max)	14.8 W
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Protocols
Supported protocols	Routing/NAT/Session Limit/Bandwidth Control VPN (IPSec/L2TP/PPTP/OpenVPN) RADIUS (Authentication/MAC Auth/Accounting) 802.1x
Security
Security algorithms	SNMP, SSH
Access Control List (ACL)
MAC address filtering
Network address translation (NAT)
Weight & dimensions
Width	294 mm
Depth	180 mm
Height	44 mm

---
