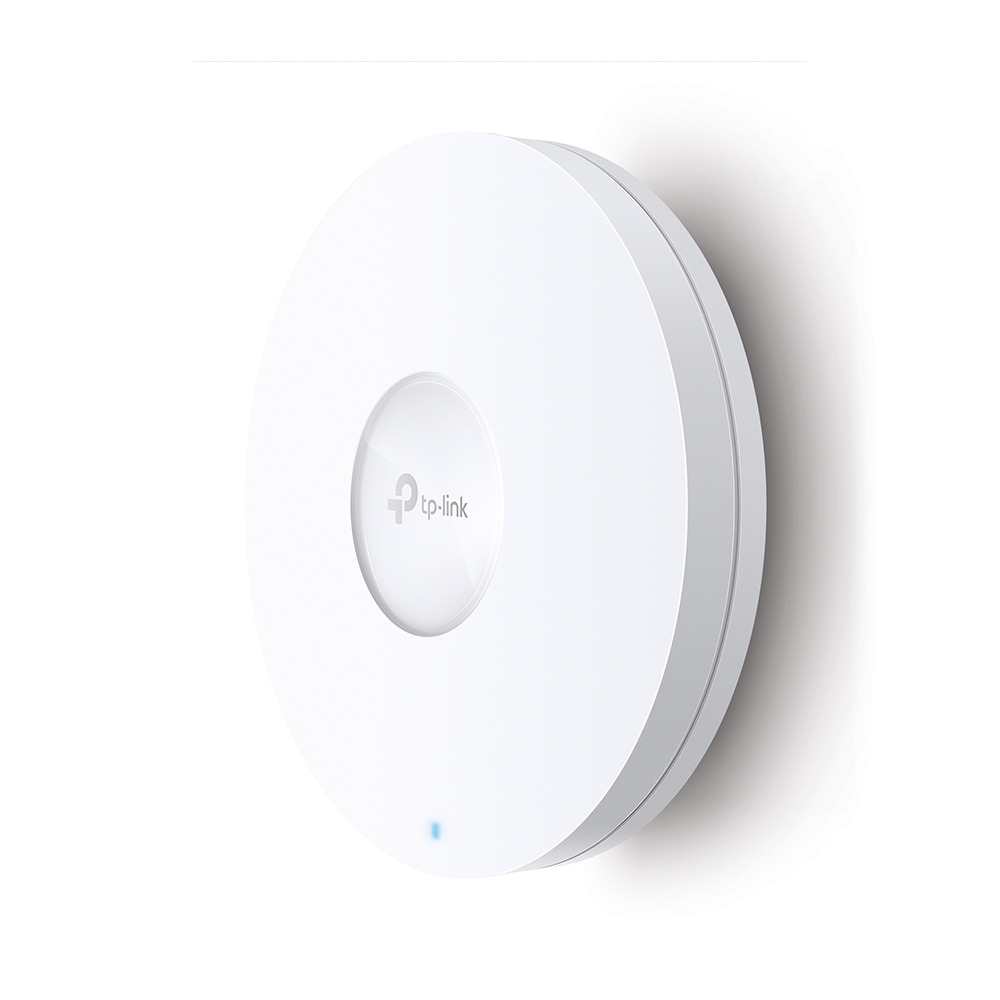

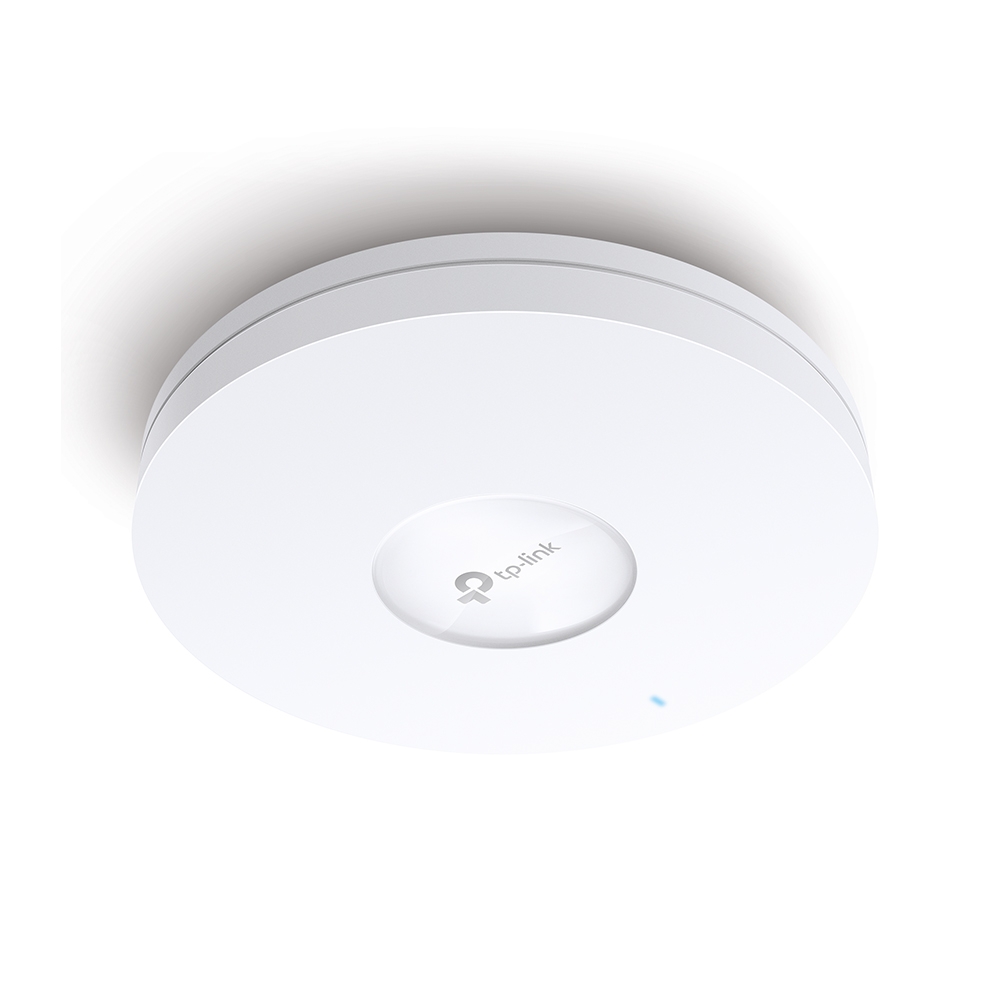

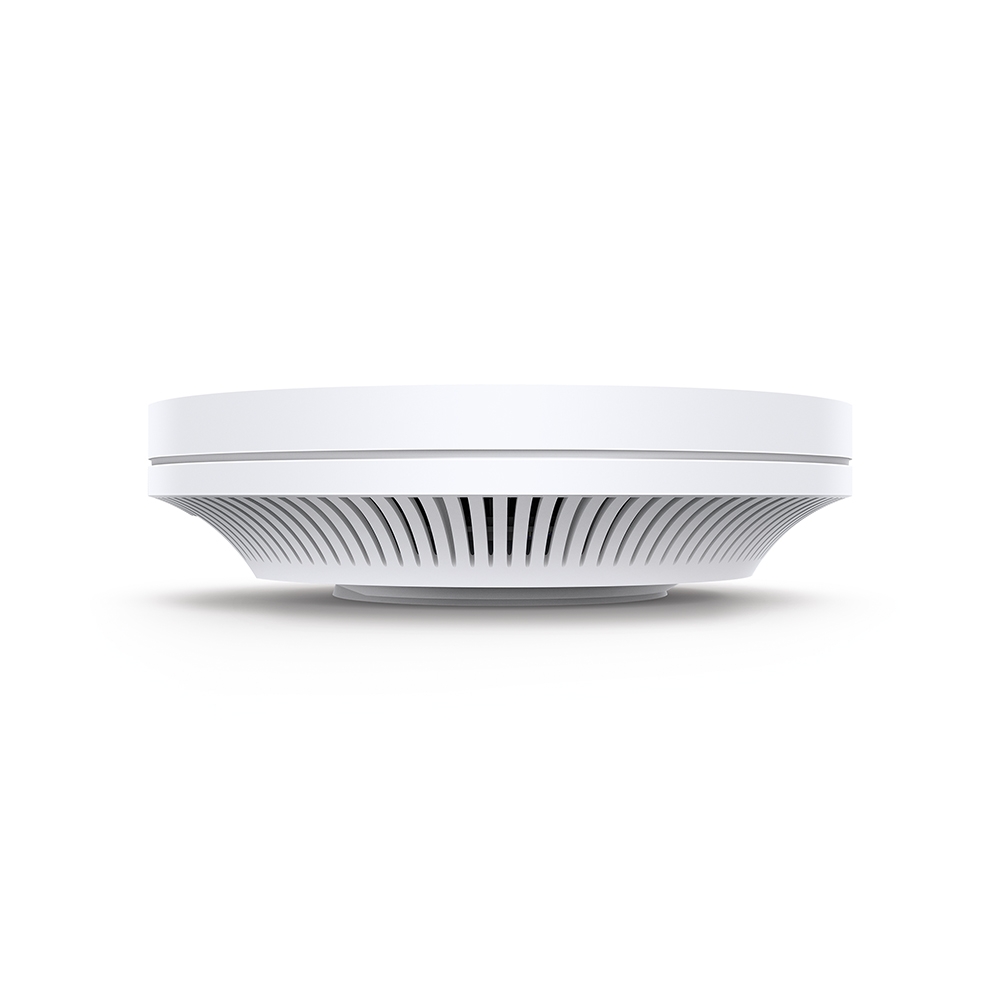

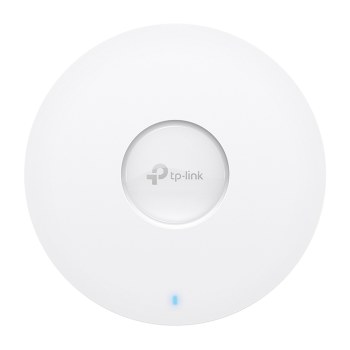

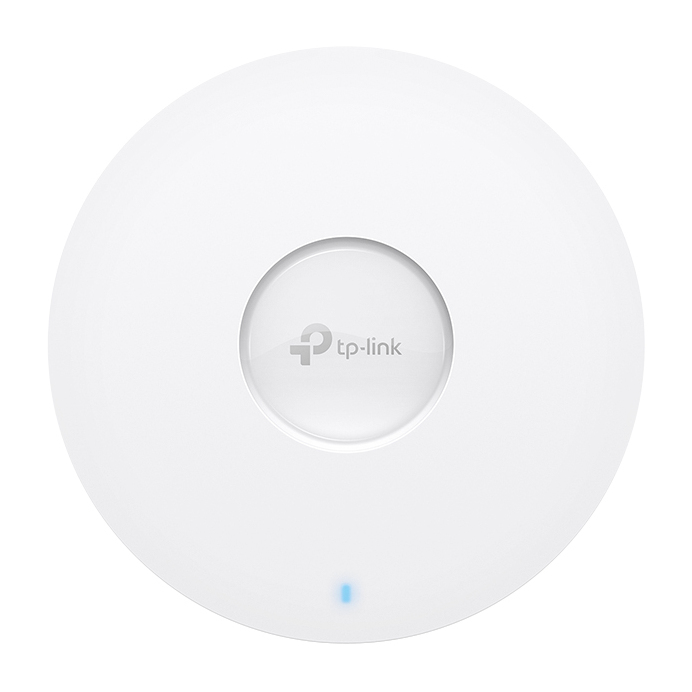

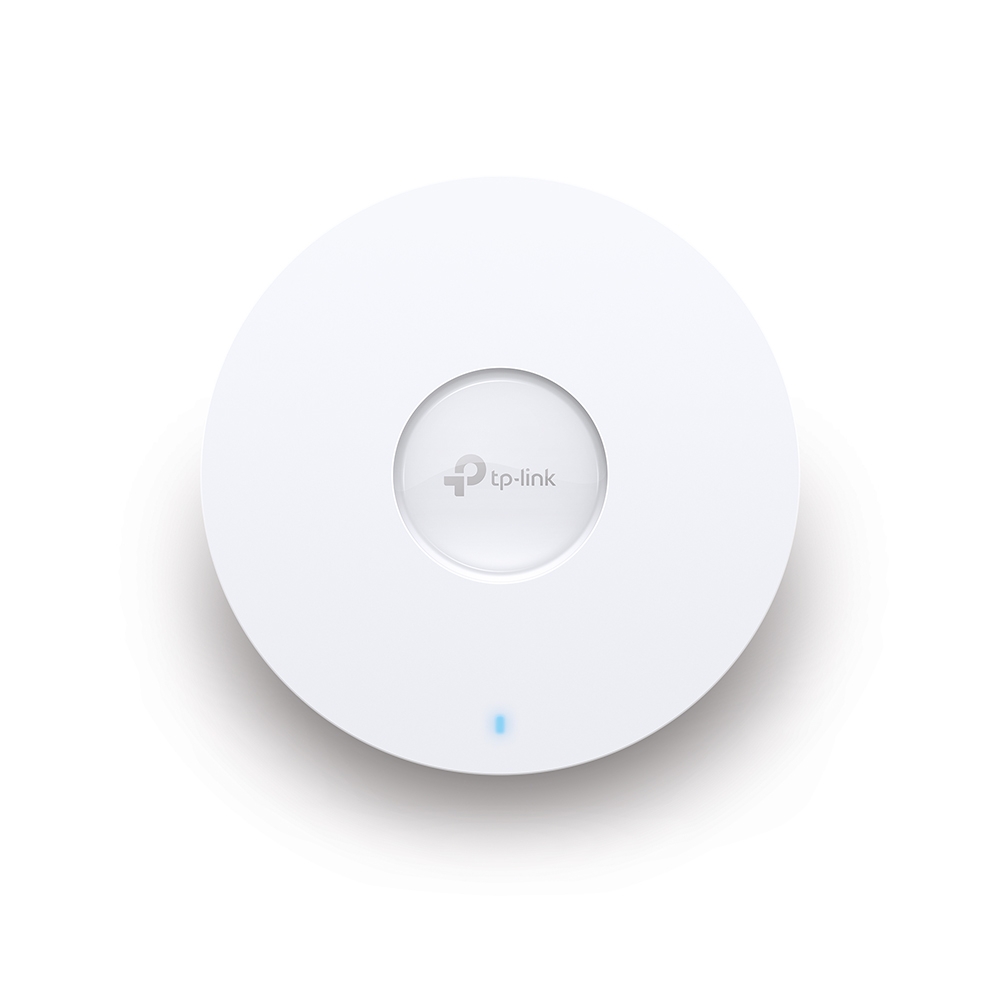

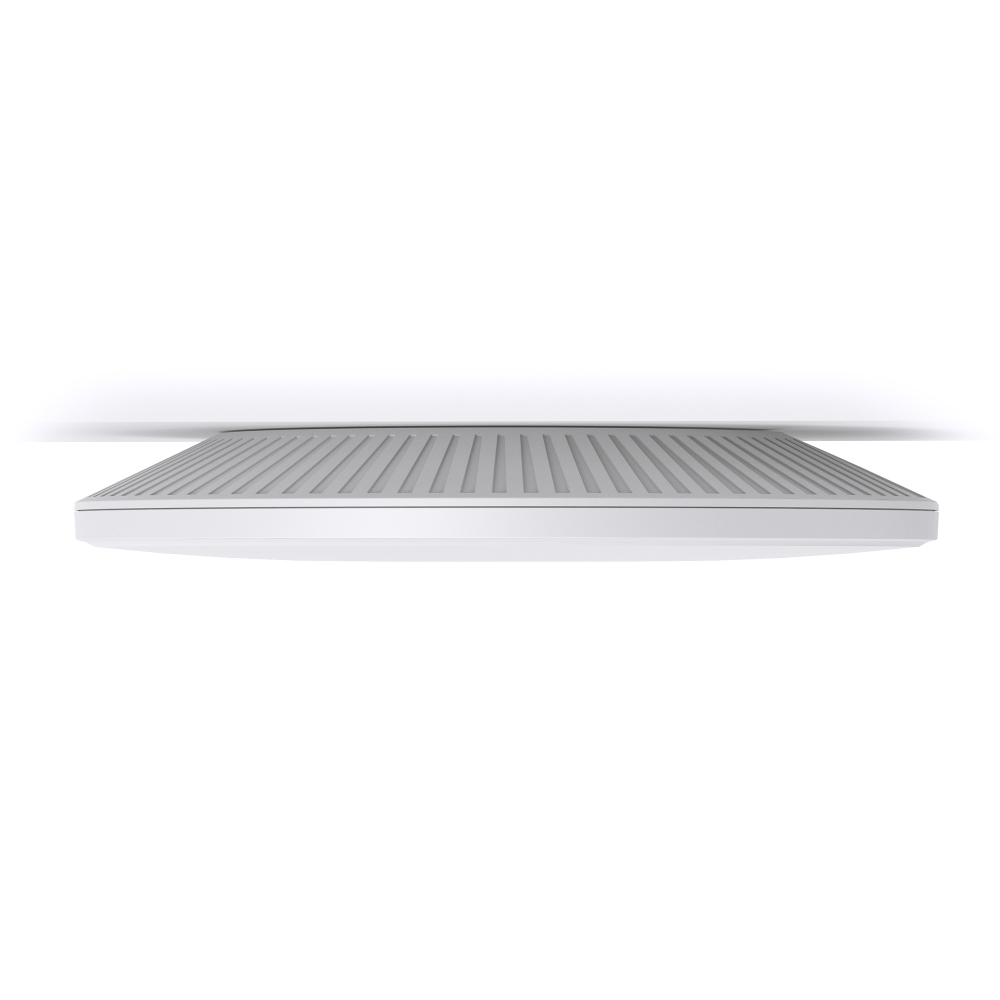

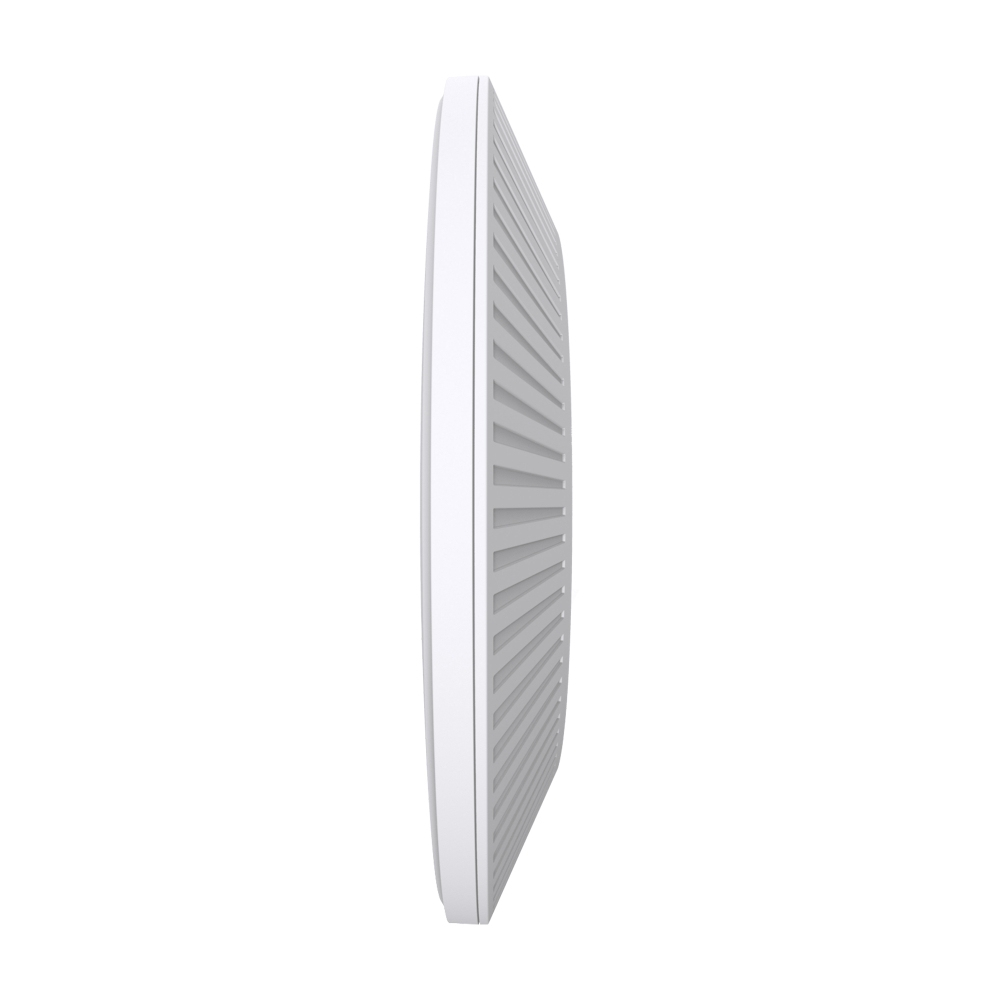

TP-LINK Access Point EAP673 WLAN AX5400 4800 Mbit Dualband Wi-Fi 6 1x 2,5 GB Port, w/o PoE adapter, Omada content_copy

Experience the ultimate performance for your business with the high-end business WiFi 6 access point. The AX5400 ceiling mount access point offers unmatched speeds and efficiency for your business needs. With WiFi 6 speeds of up to 4804 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, this access point offers powerful connectivity for multiple devices. The highly efficient WiFi 6 technology allows more devices to enjoy faster speeds at the same time. Manage your entire network locally or from the cloud with centralized cloud management. The 2.5 Gbps Ethernet port increases overall throughput, while the 160 MHz channel doubles data transfer for peak performance. The access point features automatic channel selection and power adjustment to reduce WiFi interference and optimize overall performance. With Omada Mesh technology and seamless roaming, it offers more flexible and convenient wireless deployment options. The access point can be powered by both PoE+ and 12 V DC, offering flexible installation options. Designed for business environments that require high-performance WiFi, the TP-Link EAP673 access point offers the reliability and performance your business needs.

Highlights

• AX5400 WiFi 6 ceiling access point
• Extremely fast WiFi 6 speeds (574 Mbps at 2.4 GHz + 4804 Mbps at 5 GHz)
• Integrated with Omada SDN, supports central cloud management, ZTP and more
• 160 MHz channel doubles data transfer at peak times on a single channel
• Advanced features: Supports seamless roaming, Omada Mesh and more
• Supports both 802.3at PoE+ and DC (adapter not included) power supply for flexible installations

Product type

• Access point
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications equipment, Small IT and telecommunications equipment B2C

Specifications

• Operating temperature max: 40 °C
• Operating temperature min: 0 °C
• Area of application: Indoor

Shipping

• WEEE: 85565951

Connections

• Connection: RJ45

Power supply

• PoE standard: PoE+ - 802.3at
• Power supply: optional
• Network

Antenna

• Antenna technology: internal
• Reception standard: WLAN
• Gain: 5 dbi
• Mounting type: ceiling, wall

data transmission

• WLAN standard: IEEE 802.11a - WiFi 2, IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4, IEEE 802.11ac - WiFi 5, IEEE 802.11ax - WiFi 6

Basic features

• Color: White
• Height: 32.5 mm
• Length/Depth: 220 mm
• Width: 220 mm
• Weight: 670 g
• icecat Import: 2024/02/08

Scope of delivery

• TP-Link EAP673 AX5400 ceiling access point dual-band Wi-Fi 6

Antenna
Antenna type	Internal
Design
Placement	Ceiling, Wall
Product colour	White
Reset button
LED indicators
Features
Maximum data transfer rate	5400 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	4804 Mbit/s
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Number of users	250 user(s)
MIMO type	Multi User MIMO
Virtual LAN features	VLAN mapping
2.4 GHz
5 GHz
6 GHz
Automatic channel selection
Automatic channel scanning
MIMO
VLAN support
Rate limiting
Flow control support
Band steering
Airtime Fairness (ATF)
Quality of Service (QoS) support
BeamForming
Management features
Web-based management
Syslog
Firmware upgradeable
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Packaging content
Quantity per pack	1 pc(s)
Mounting kit
Quick start guide

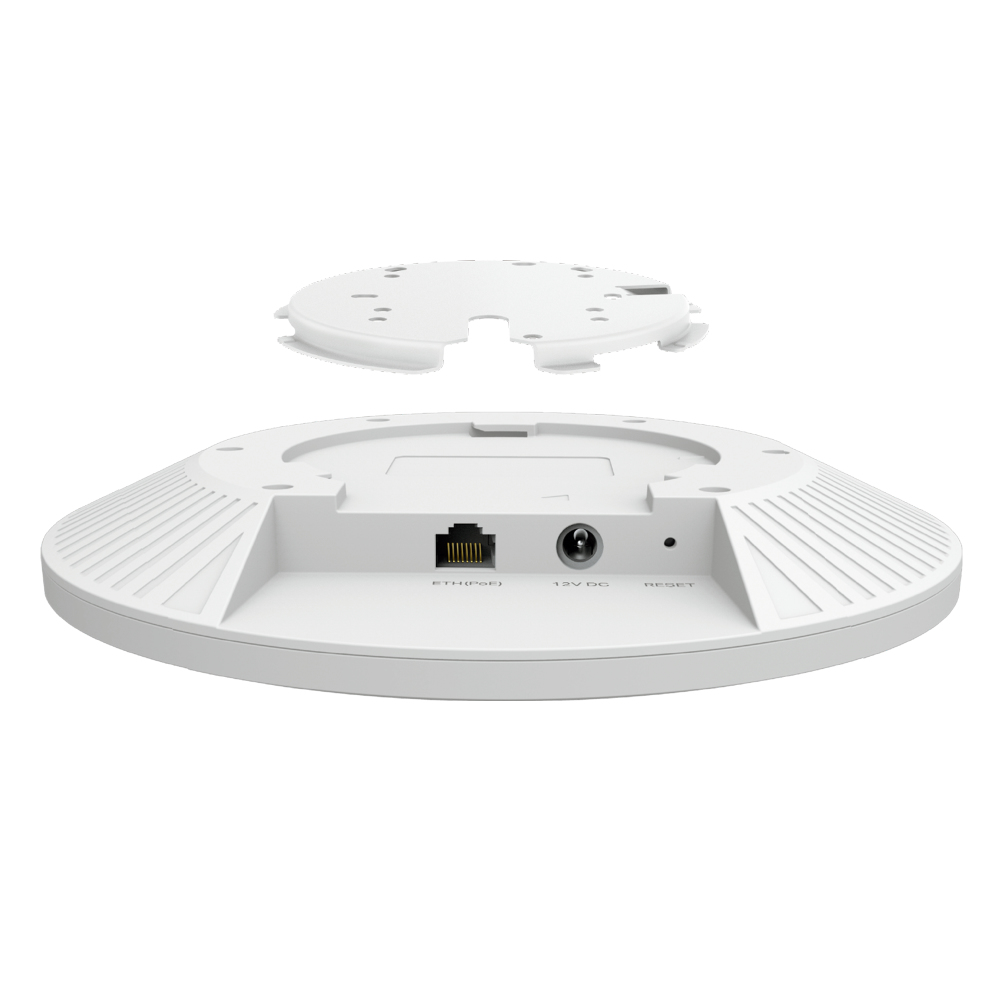

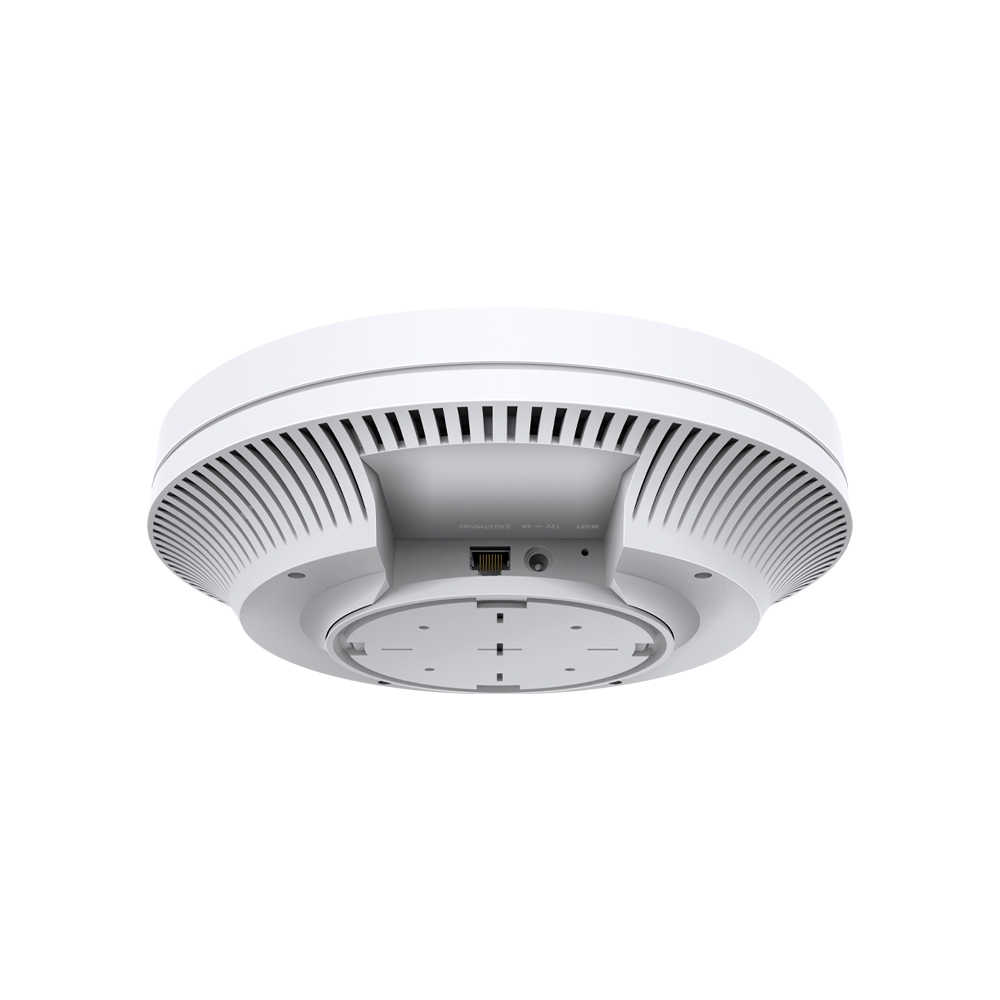

Ports & interfaces
Ethernet LAN (RJ-45) ports	1
DC-in jack
Power
DC voltage range	12 V
Power over Ethernet (PoE)
Security
Security algorithms	SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise
Weight & dimensions
Width	220 mm
Depth	220 mm
Height	32.5 mm

---
