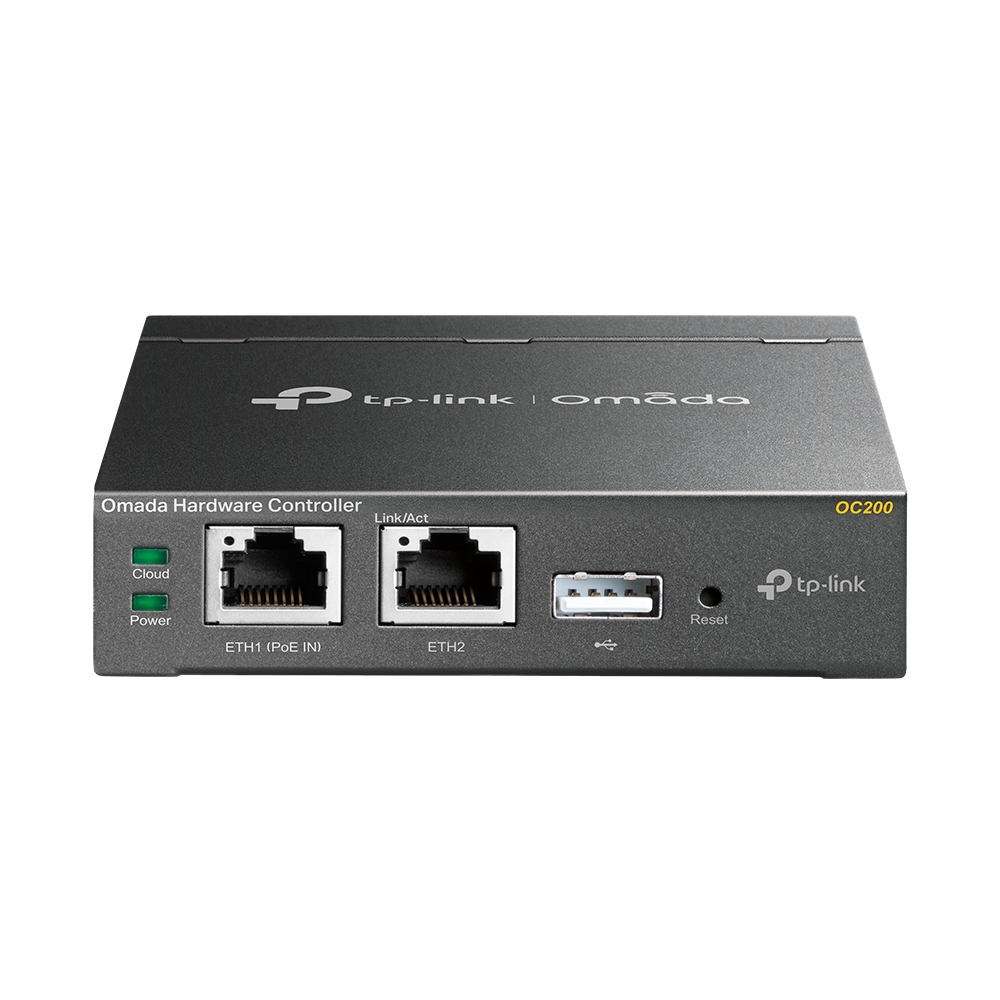

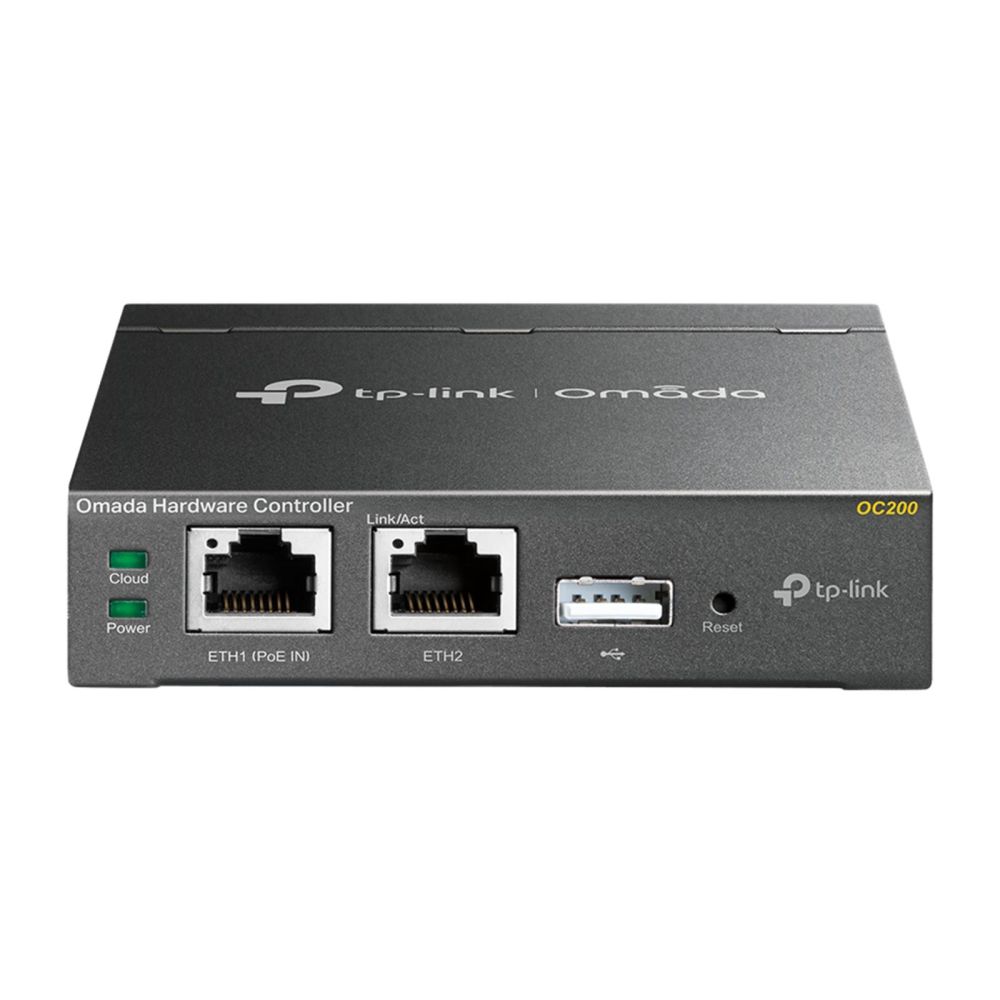

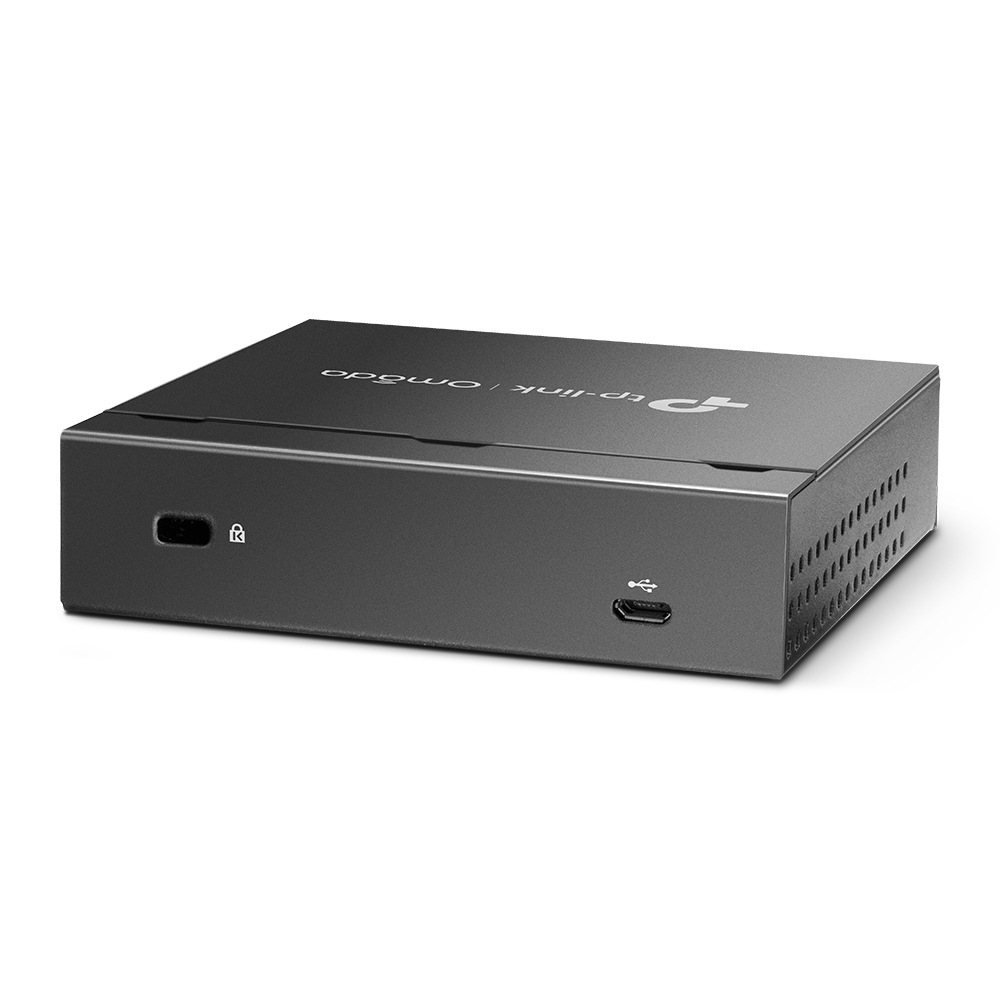

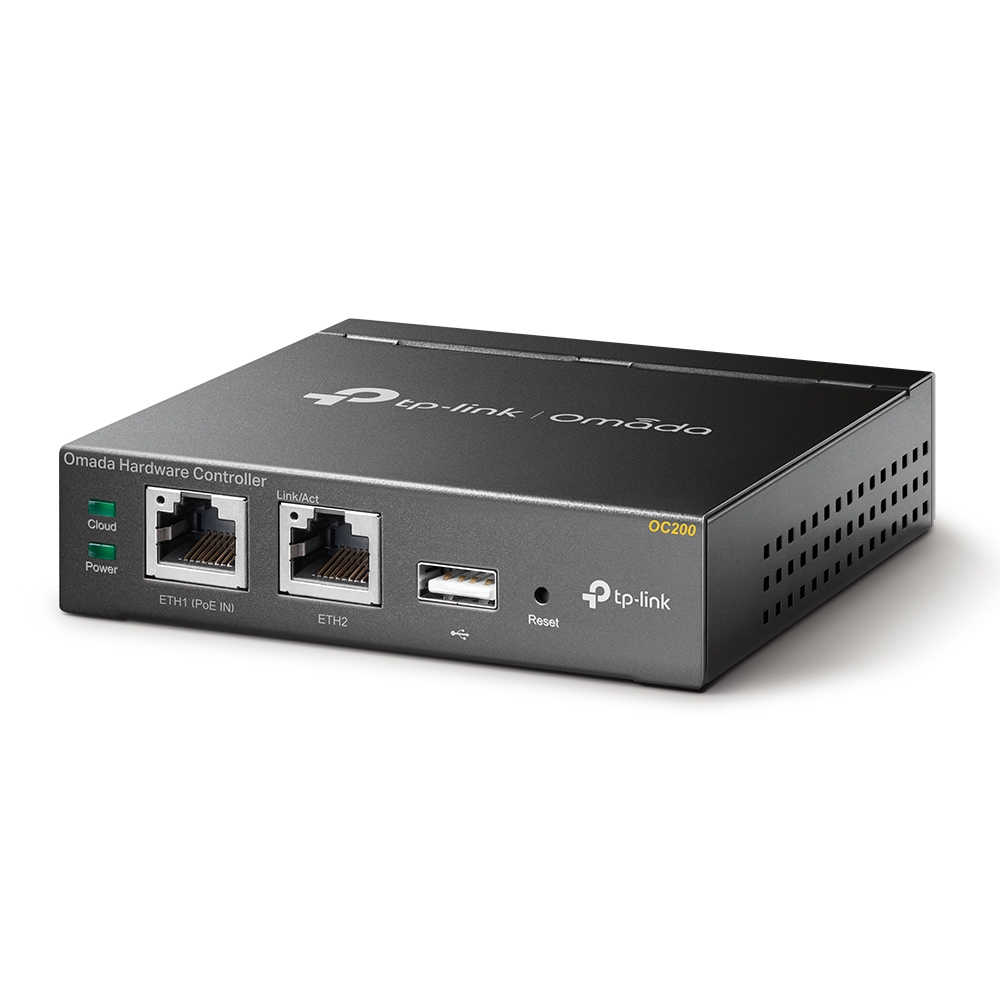

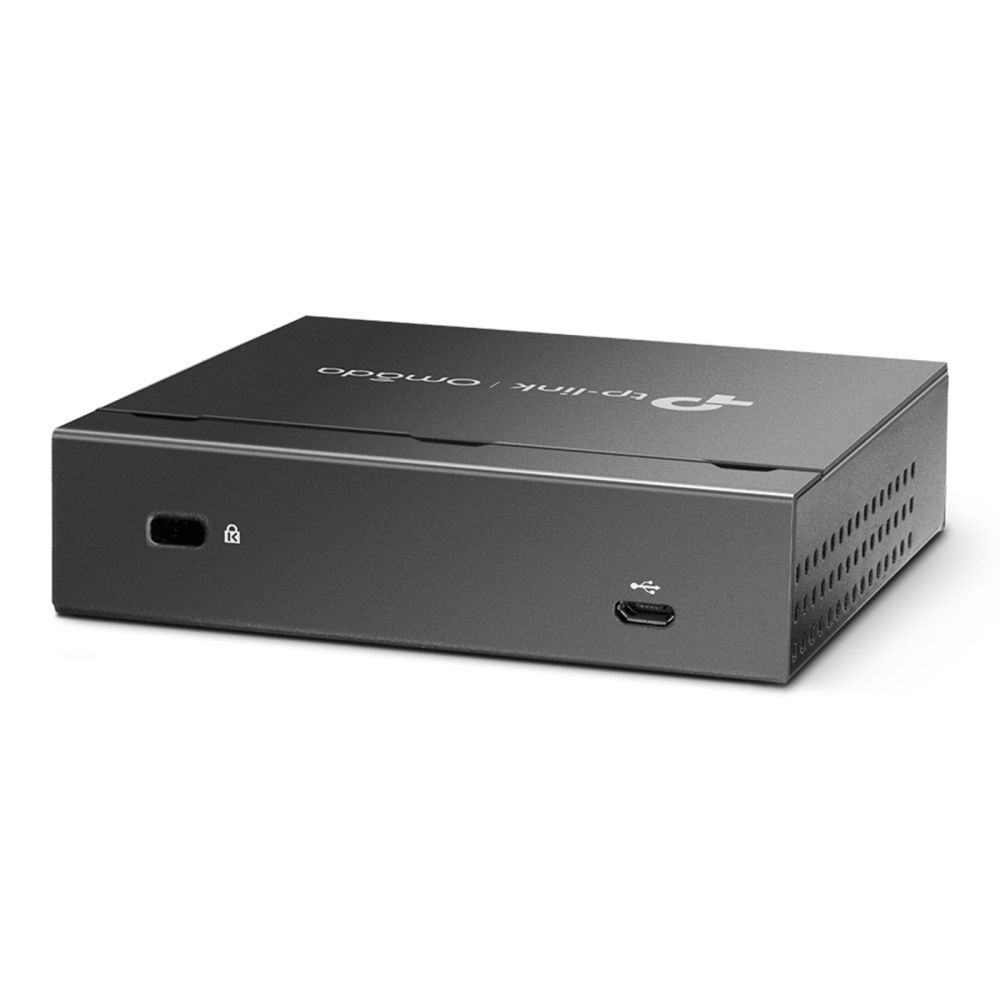

TP-Link OC200 Omada Hardware Controller

Your rating:
Average rating
product review for TP-Link OC200 Omada Hardware Controller
( 4.4 / 5 ) 27 ratings
TP-Link OC200
This image may differ from the desired article.
TP-Link OC200TP-Link OC200TP-Link OC200TP-Link OC200TP-Link OC200TP-Link OC200TP-Link OC200TP-Link OC200
101,73 EUR 104,09 EUR
( 121,06 EUR incl. VAT )
≈ £85.15  |  ≈ $111.80
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >500 pieces
1x TP-Link OC200 Omada Hardware Controller
Datasheet:file_download Download
Lieske Part No.:1481958
Mfg Part No: OC200
UPC/EAN: 6935364084233
Weight:2 kg
Type:CPNT

Product information for TP-Link OC200:

The TP-Link OC200 is a WLAN controller of the Omada series, developed for central management of network devices in enterprise environments. It serves as a hardware controller for Omada access points, JetStream switches, and SafeStream routers, enabling scalable network control. The device is designed for indoor use and provides a stable platform for managing up to 100 Omada devices and up to 1000 clients. Management is performed via a cloud-based platform, allowing network administrators to access real-time statistics, network topologies, and device configurations from anywhere at any time.

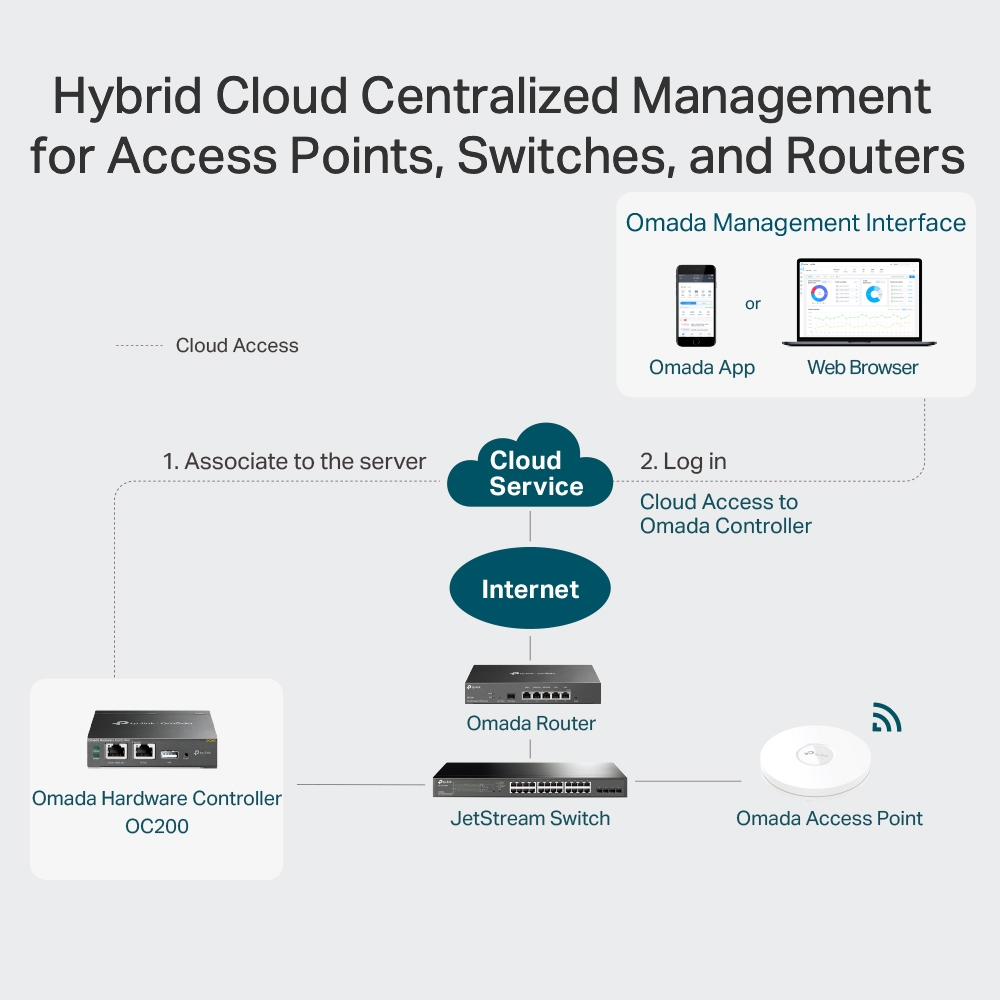

Central Management and Network Monitoring
The OC200 enables central control of the entire Omada network. Through the integrated web interface and the Omada cloud platform, administrators can monitor network utilization, data traffic, device topology, and client connections in real time. The platform supports the creation of captive portals, enabling secure guest networks with various login options such as Facebook Wi-Fi, SMS login, or voucher systems. The intuitive user interface also allows individual control of end devices, device groups, or locations, making network administration more efficient.

Technology Explained Simply
The controller features an integrated processor with a clock speed of 1200 MHz, responsible for processing network data and control tasks. The internal memory consists of 1024 MB DDR3 RAM and 4000 MB flash memory, providing sufficient capacity for storing configurations, firmware updates, and log data. The Ethernet LAN ports support data transfer rates of 10 and 100 Mbit/s, ensuring a stable connection to the local network. Power supply is provided via Power over Ethernet (PoE) in accordance with IEEE 802.3af and IEEE 802.3at standards, enabling simple installation without an additional power adapter. Alternatively, the device can be powered by an external power supply.

Compatibility and Accessories
The OC200 is compatible with a wide range of Omada network devices, including access points, switches, and gateways. It supports management of up to 100 Omada devices, with the exact number varying depending on the device type. Suitable accessory packages include combinations with models such as the ER605, ER706, or SG2008[P], enabling an integrated network architecture. Connection to these devices is made via the RJ-45 ports, with the PoE function supplying power to connected devices through the network cable.

Mounting and Installation
The device can be mounted either on a desk or in a rack. For desktop mounting, the package includes rubber feet that stabilize the device on a flat surface. Installation is performed via the Ethernet ports, with power supply either through PoE or an external power adapter. The quick installation guide, included in the package, supports the setup process.

Operational Advantages
The OC200 offers centralized network management with both local and cloud-based control, making network administration flexible and efficient. Support for Quality of Service (QoS) allows prioritization of network traffic to ensure critical applications such as VoIP or video streaming. VLAN support enables logical separation of network segments, improving network security and management. The integrated USB interface allows automatic backup of configurations, which is beneficial for recovery or migration purposes. The stable metal housing ensures good heat dissipation and reliable operation under industrial conditions. The operating temperature ranges from 0 to 40 °C, ensuring safe operation in typical office and business environments.

Security Features
The controller supports various security algorithms, including SSID, WEP, WPA, WPA-PSK, WPA2, and WPA2-PSK, to protect the network connection. Additionally, it offers an access control list (ACL) and the ability to filter MAC addresses to prevent unauthorized access to the network. Web-based management enables secure configuration and monitoring via HTTPS. The reset function allows resetting to factory defaults if needed.

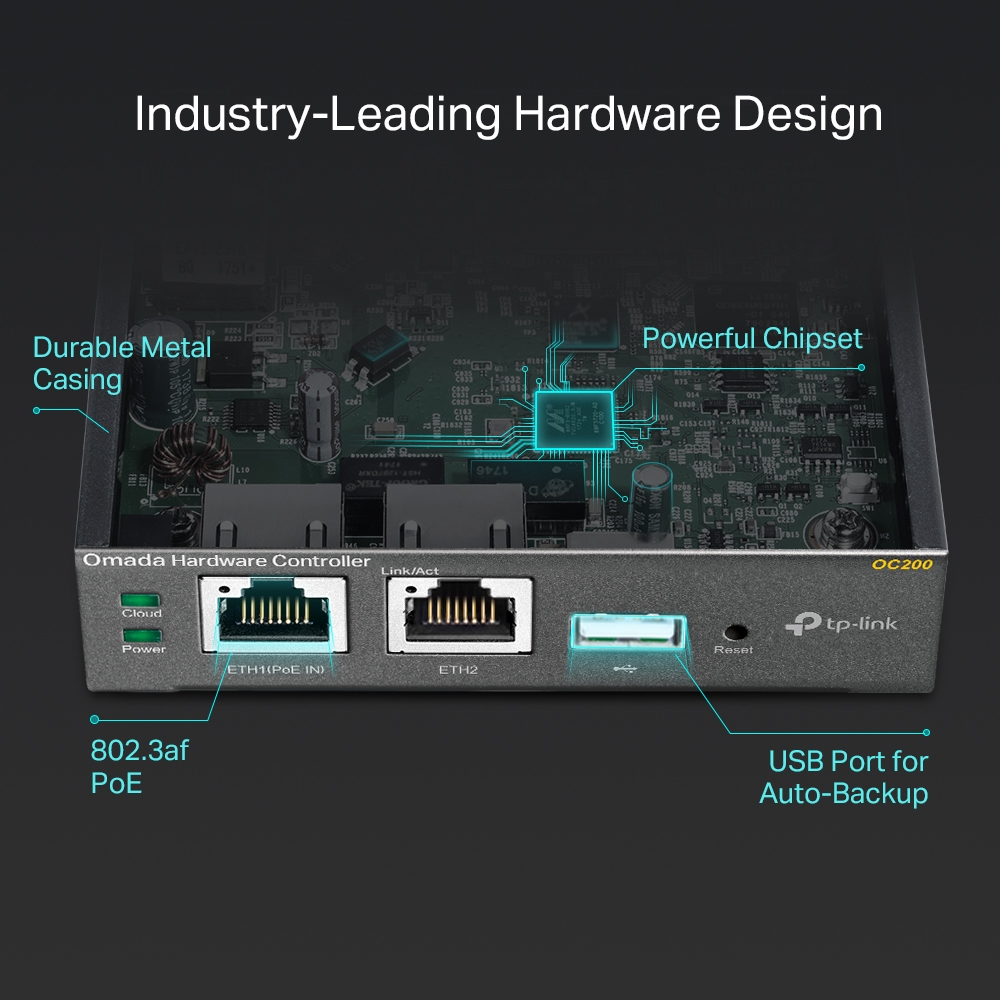

Design and Connections
The device has a compact design with dimensions of 100 mm (width) × 98 mm (depth) × 25 mm (height) and is black in color. It features two RJ-45 Ethernet ports, one USB 2.0 port, and one Micro-USB port. LED indicators display the device’s operational status. A Kensington slot allows physical securing of the device against theft. Power supply is via PoE or an external power adapter, with a maximum power consumption of 11.3 W.

Certification and Environment
The OC200 complies with CE, FCC, and RoHS certifications, confirming adherence to European and American safety and environmental standards. The device falls under category 6 of the ElektroG, which includes small devices for information and telecommunication technology. The delivery includes the device itself, a quick installation guide, and an Ethernet cable (RJ-45). Use of the Omada cloud is free of charge and does not require additional subscriptions.

Certificates
CertificationCE, FCC, RoHS
Design
Product colourBlack
Cable lock slot typeKensington
LED indicatorsYes
Features
Antenna typeInternal
Logistics data
Harmonized System (HS) code85176990
Management features
Web-based managementYes
Quality of Service (QoS) supportYes
Reset buttonYes
Network
Ethernet LAN data rates10,100 Mbit/s
Networking standardsIEEE 802.3af, IEEE 802.3at
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Packaging content
Cables includedLAN (RJ-45)
Quick installation guideYes
Performance
Processor frequency1200 MHz
Number of processors installed1
Internal memory1024 MB
Internal memory typeDDR3
Flash memory4000 MB
Control display unitNo
Built-in processorYes
Ports & interfaces
USB 2.0 ports quantity1
Ethernet LAN (RJ-45) ports2
Power
Power consumption (max)11.3 W
Power over Ethernet (PoE)Yes
Security
Security algorithmsSSID, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Access Control List (ACL)Yes
MAC address filteringYes
VLAN supportYes
Weight & dimensions
Width100 mm
Depth98 mm
Height25 mm


Product data sheet
Datasheet for TP-Link OC200, EAN: 6935364084233
