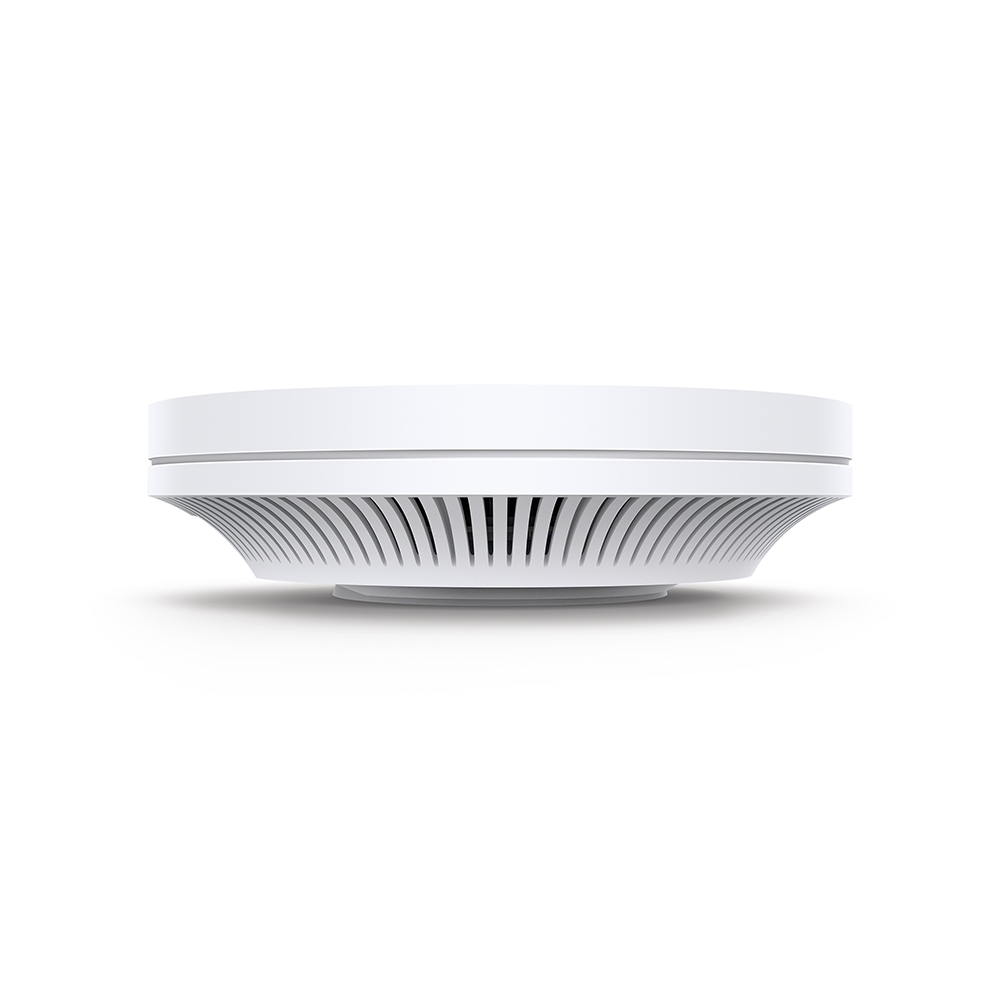

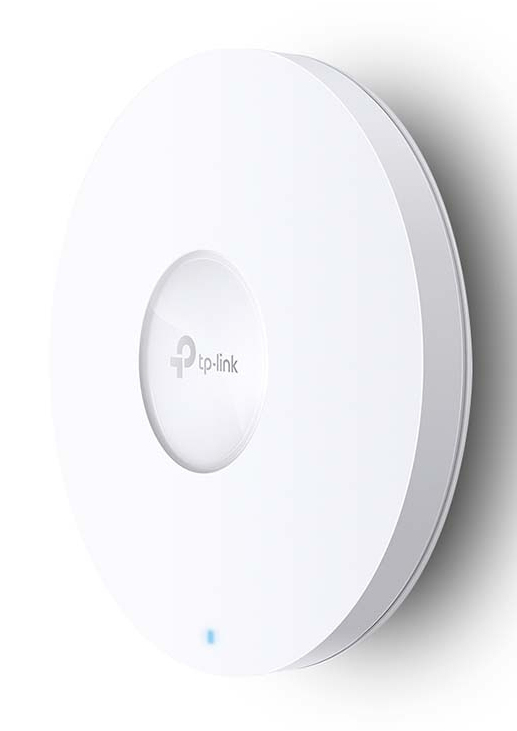

TP-LINK WLAN AX1800 PoE+ Access Point Dualband EAP613 Omada Mesh, 574Mbps 2.4 GHz +1201 Mbps 5 GHz
|
139,54 EUR |
|
|
( 166,05 EUR incl. VAT ) ≈ £118.33 | ≈ $156.42 plus delivery charges: 53,00 € |
|
| On order · Expected to be available from 06.11.2026info_outline | |
| Lieske Part No.: | 2028283 |
|---|---|
| Mfg Part No: | EAP613 |
| UPC/EAN: | 4895252500516 |
| Weight: | 0.82 kg |
| Type: | WRLS |
Further Wireless DSL Router from TP-LinkFurther products in category Wireless DSL Router
All products of TP-Link

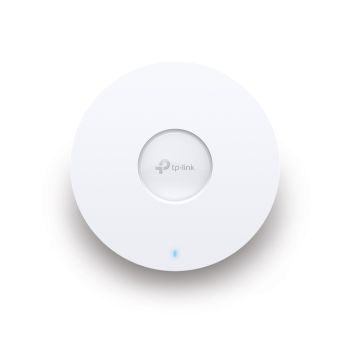

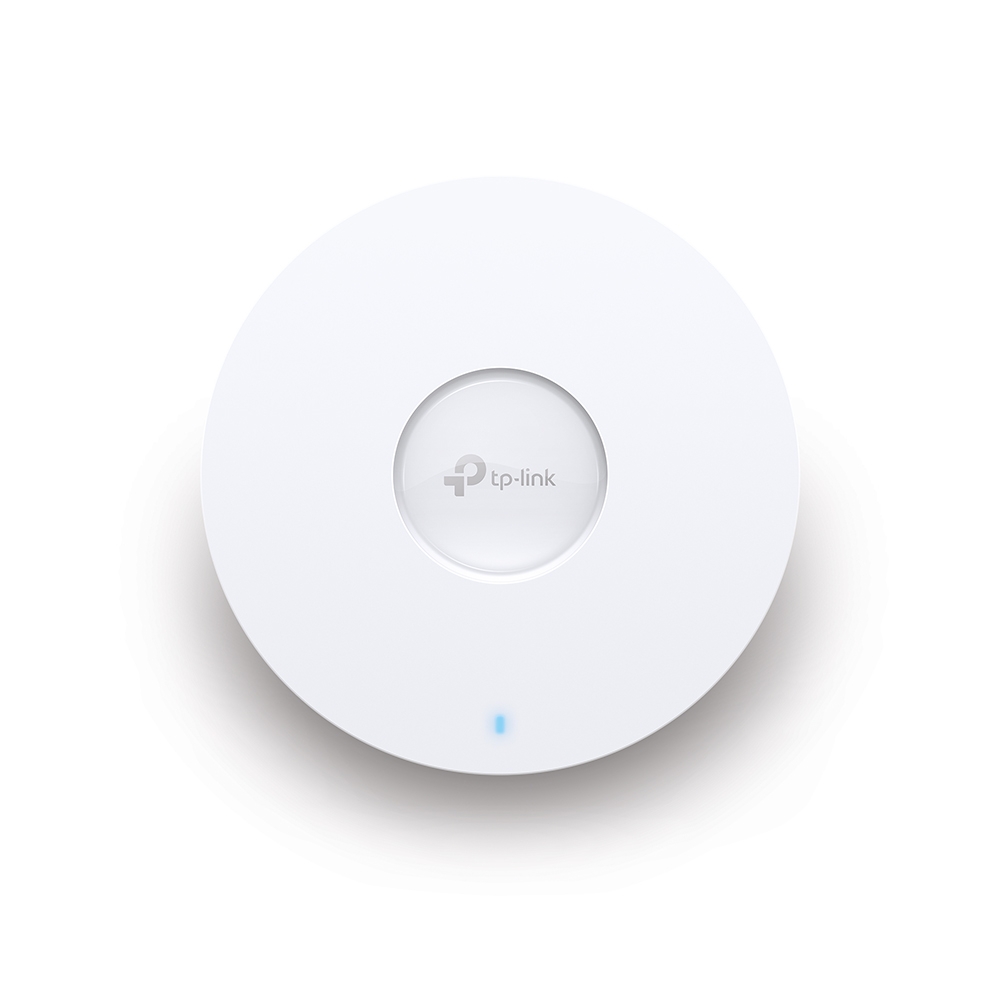

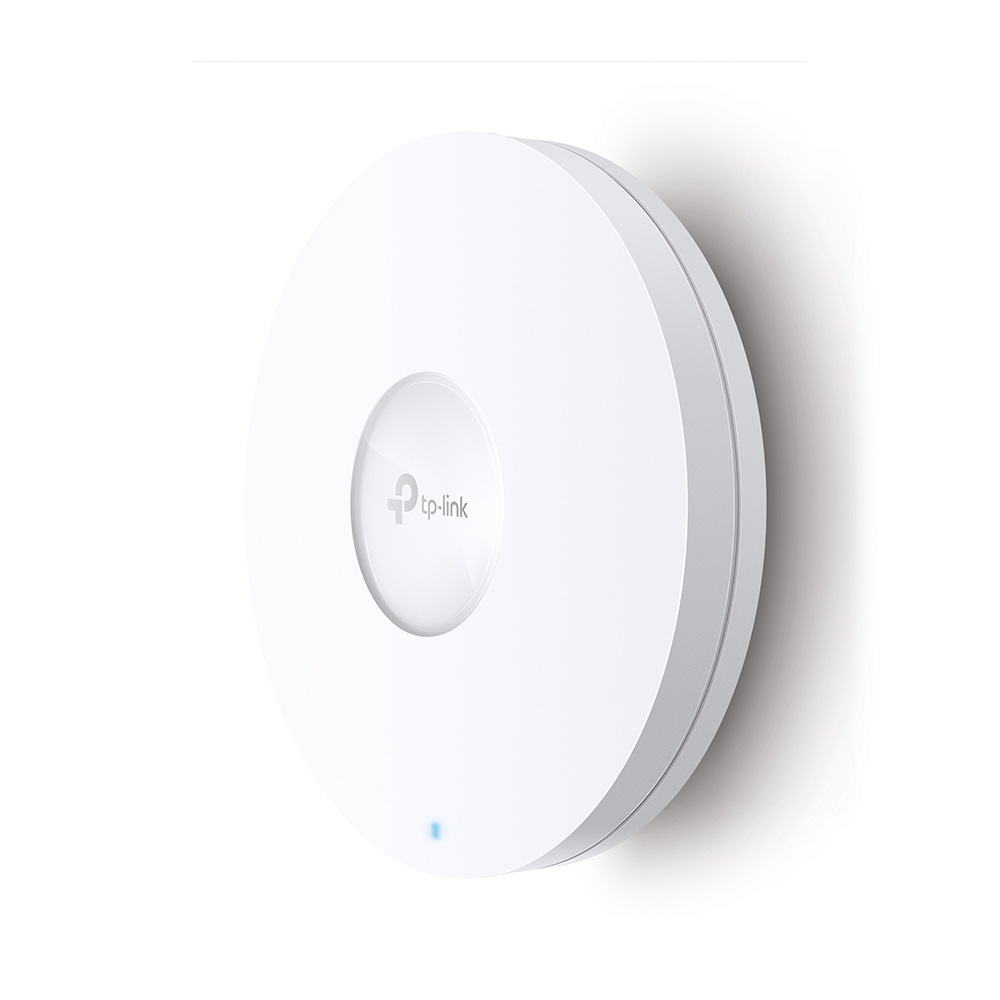

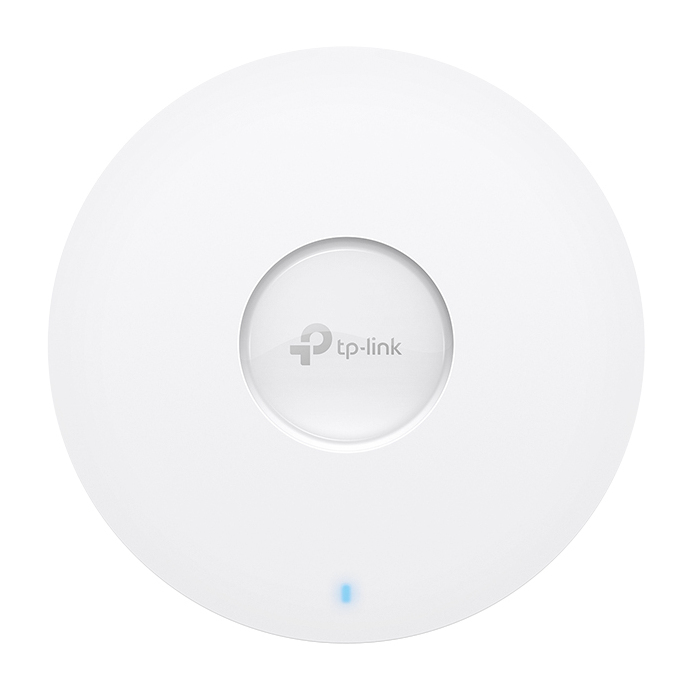

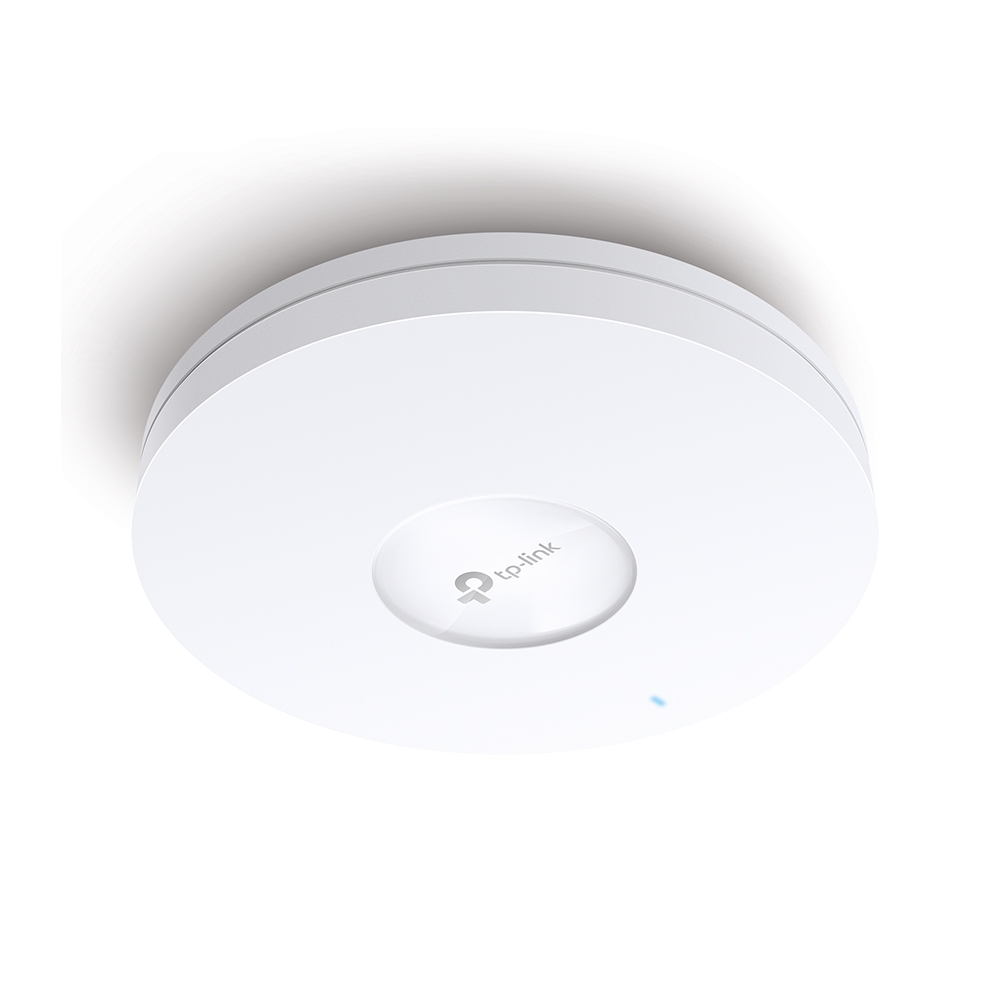

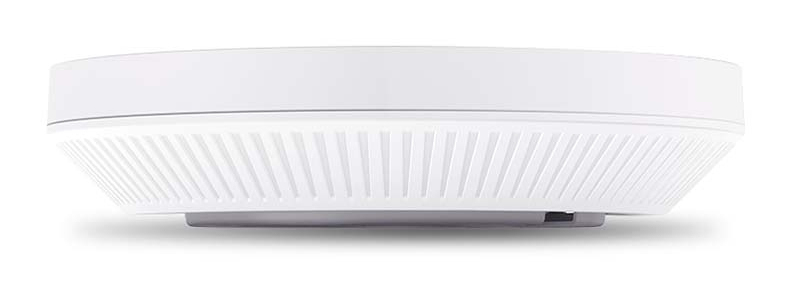

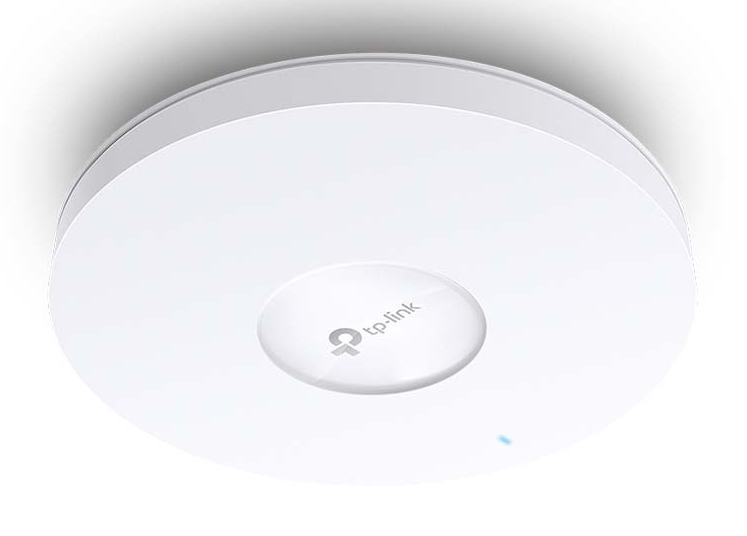

Product information for TP-Link EAP613:
The AX1800 WiFi 6 Access Point delivers dual-band speeds of up to 1775 Mbps with the latest WiFi 6 technology. Enjoy faster speeds on more devices with less lag.
Highlights

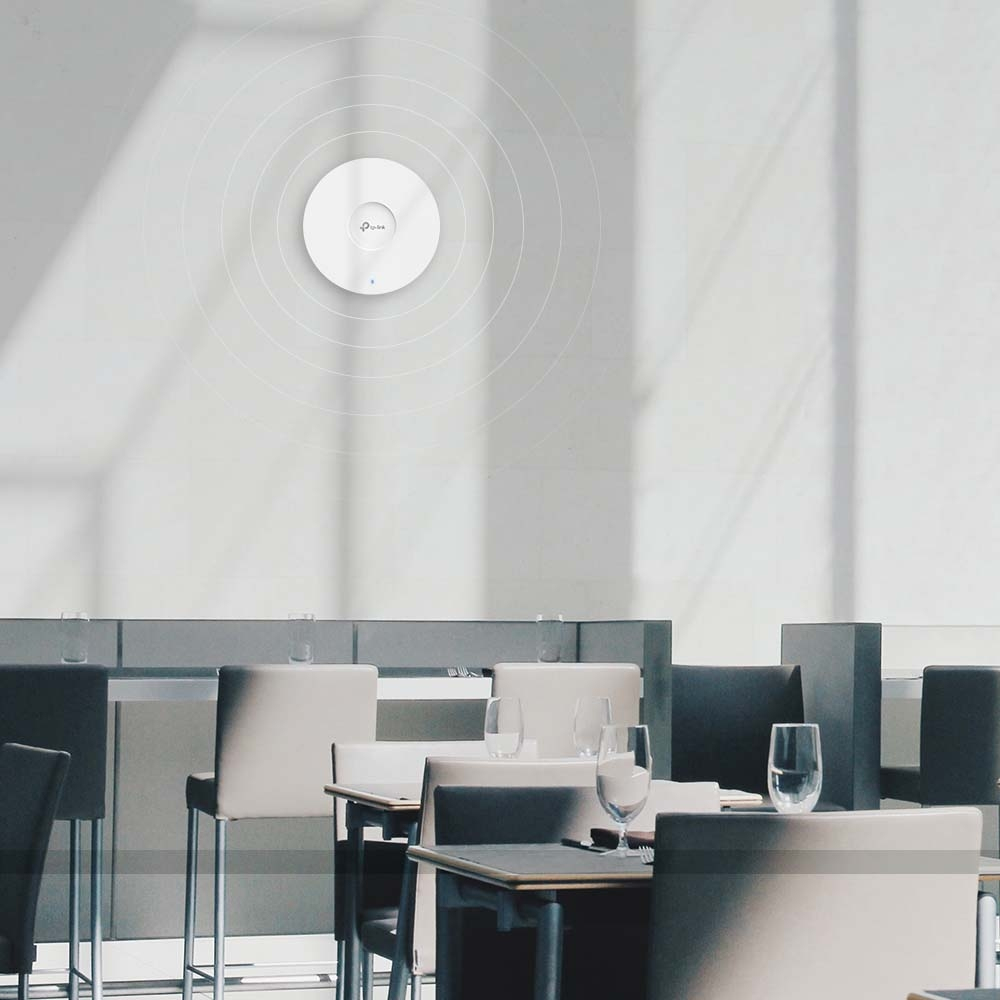

- AX1800 Wi-Fi 6 ceiling access point
- Ultra-fast WiFi 6 speeds - up to 1775 Mbps (simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz)
- High-Efficiency WiFi 6 - More connected devices can enjoy faster speeds
- Centralized cloud management - Manage the entire network locally or from the cloud via the web UI or the Omada app
- Supports seamless roaming
- Omada Mesh enables wireless connectivity between access points for greater coverage and flexible deployment
- Powered via PoE+ - Supports direct current (adapter not included), 802.3at PoE+ and passive PoE for flexible installations
- Ultra-slim design
- Access point
- ear category (ElektroG): relevant, Category 6: small devices of the IT and telecommunications technology, small devices for IT and telecommunications technology B2C
- Operating temperature max: 40 °C
- Operating temperature min: 0 °C
- Area of application: Indoor
- Connection: RJ45
- PoE standard: PoE+ - 802.3at
- Power supply: optional
- Power consumption operation: 10.6 W
- Antenna technology: internal
- Reception standard: WLAN
- Gain: 5 dbi
- Mounting type: ceiling, wall
- WLAN standard: IEEE 802.11a - WiFi 2, IEEE 802.11 b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4, IEEE 802.11ac - WiFi 5, IEEE 802.11ax - WiFi 6
- Color: White
- Height: 33.6 mm
- Length/Depth: 160 mm
- Width: 160 mm
- icecat Import: 2022/12/01
- TP-Link EAP613 AX1800 Wi-Fi 6 ceiling access point
Product type
Specifications
Connections
Power supply
Antenna
Data transmission
Basic features
Scope of delivery
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Antenna gain level (max) | 5 dBi |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | |
| LED indicators | |
| Features | |
| Maximum data transfer rate | 1775 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| Transmitting power (CE) | <20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz band1/2, EIRP); <25 dBm (5 GHz band3) |
| Transmitting power (FCC) | <25 dBm (2.4 GHz); <25 dBm (5 GHz) |
| 2.4 GHz | |
| 5 GHz | |
| 6 GHz | |
| Automatic channel selection | |
| Automatic channel scanning | |
| MIMO | |
| Wi-Fi Multimedia (WMM)/(WME) | |
| VLAN support | |
| Rate limiting | |
| Wireless isolation | |
| Band steering | |
| Airtime Fairness (ATF) | |
| BeamForming | |
| Management features | |
| Management platform | Omada |
| Web-based management | |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 40% |
| Operating temperature (T-T) | 10 - 90 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Mounting kit | |
| Quick start guide | |
| Performance | |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |

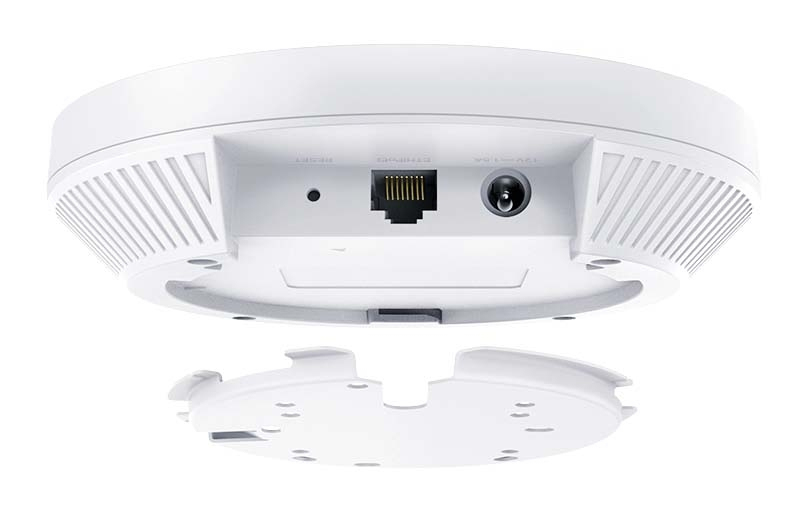

| Ports & interfaces | |

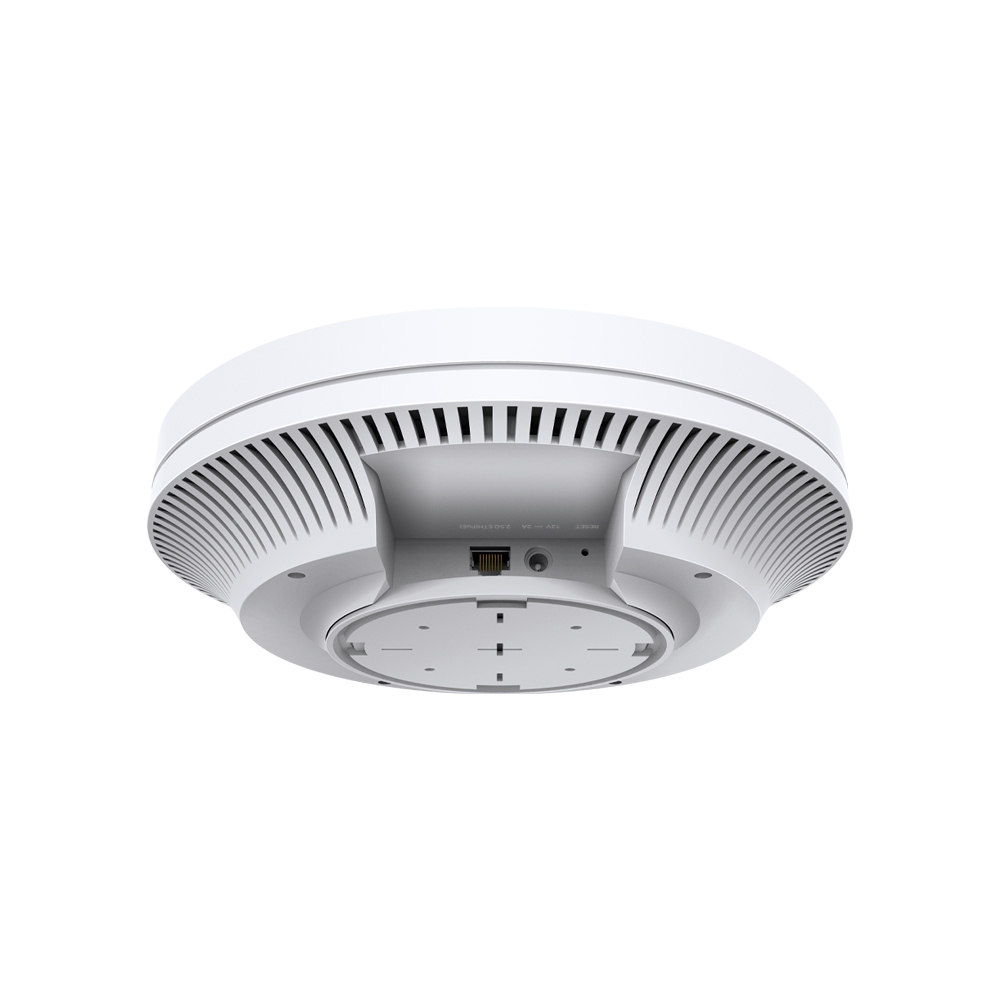

| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | |
| Power | |
| Power over Ethernet (PoE) type supported | Passive PoE |
| DC voltage range | 12 V |
| Input current | 1 A |
| Power consumption (typical) | 9.6 W |
| Power consumption (max) | 10.6 W |
| Power over Ethernet (PoE) | |
| Security | |
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3 |
| Number of SSID supported | 16 |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 160 mm |
| Height | 33.6 mm |
