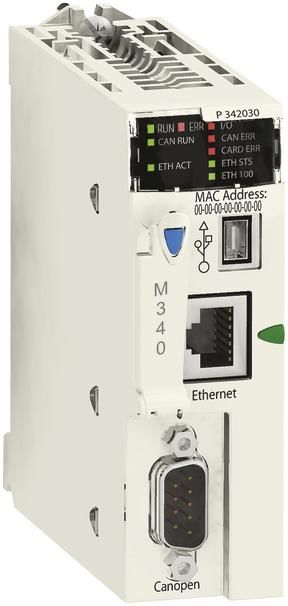

Schneider Electric BMXP3420302H
Schneider processor module M340 704 digital + 66 analog I/O CANopen

This processor module is part of the Modicon M340 range, a range of programmable logic controllers (PLCs). It offers a maximum configuration of 4 module racks, 36 application-specific channels, 63 CANopen slaves and 11 slots. It is a processor module with a current consumption of 135mA at 24V DC, works with internal power supply. This robust product can be used in harsher environments and operate in an extended temperature range of -25°C to +70°C. The interfaces of the communication processor module are 2 Ethernet modules and 4 AS-Interface modules. It is supplied with a memory card for backing up programs, constants, symbols and data. It is an IP20 protection product. The module has a discrete I/O processor capacity of 1024 multi-rack, 704 single-rack configurations and an analog I/O processor capacity of 256 multi-rack, 66 single-rack configurations. It supports a transmission rate of up to 800kbps 0m to 40m, 0m to 6m. It is suitable for applications in process industries, renewable energy, water, cement, manufacturing, infrastructure and machinery. This product is certified by CE. It meets the standards EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201. It comes with a memory card (BMXRMS008MP) to back up programs, constants, symbols and data, internal RAM 4096kB, internal RAM 256kB data, internal RAM 3584kB program constants and symbols. The compact Modicon M340 offers flexibility and integrated features in a small housing. At the core of the process, it offers you plug-and-work solutions with both Schneider Electric and third-party devices.
Type: BMXP3420302H
