Schneider Electric BMEXBP0602H
Schneider module carrier M580 6 slots Ethernet DUAL PS CC content_copy

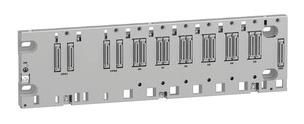

This module rack is part of the Modicon X80 range, a range of common inputs and outputs for Modicon M340 and Modicon M580. Equipped with an Ethernet and an X-Bus, it is an accessory for programmable automation controllers. This Ethernet and X-Bus module rack offers 6 slots with 6 Ethernet and X-Bus connections for mixed modules. It is an Ethernet module rack with a current of 152 mA at 24 V DC and 58 mA at 3.3 V DC. It is equipped with 1 extension module (XBE) for electrical connection. It offers an MTBF of 201,000 hours. It is an IP20 certified product. Modicon X80 modules provide a unified environment for the deployment of I/O modules in automation architectures by reducing the costs of spare parts inventory, maintenance and training. The design is very robust and provides a uniform environment for the use of Modicon X80 I/O modules in automation architectures by reducing the costs of spare parts, maintenance and training. It complies with the standards EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201. This module carrier is compatible with the redundant power supply BMXCPS40xx, the processor BMXP58 or BMEH58 and the Modicon X80 modules.
