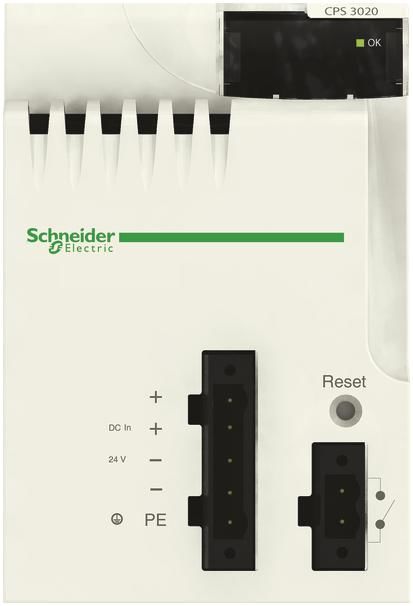

Schneider Electric BMXCPS3020H
M340 power supply, 24 ... 48VDC Hp Cc content_copy

This harsh environment power supply is part of the Modicon X80 range, a range of common inputs and outputs for Modicon M340 and Modicon M580. It has an isolated primary voltage of 24 V to 48 V DC. It is a power supply module with a secondary power of 31.2 W at 24 V DC, a secondary voltage current of 4.5 A at 3.3 V DC and a maximum power dissipation of 8.5 W. This robust product can be used in harsher environments and operate in an extended temperature range of -25°C to +70°C. It is equipped with a 2-pin connector for the alarm relay, a 5-pin connector for the mains supply and a protective conductor for the electrical connection. It is an IP20 certified product. The product must be installed in the module carrier and secured with 2 screws. This product is certified by ATEX, IEC-Ex, CE, RCM, Merchant Navy, CSA, EAC and UL. It complies with EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This power supply is compatible with all X80 module carriers. Modicon X80 modules provide a uniform environment for the use of I/O modules in automation architectures by reducing the costs of spare parts inventory, maintenance and training.
