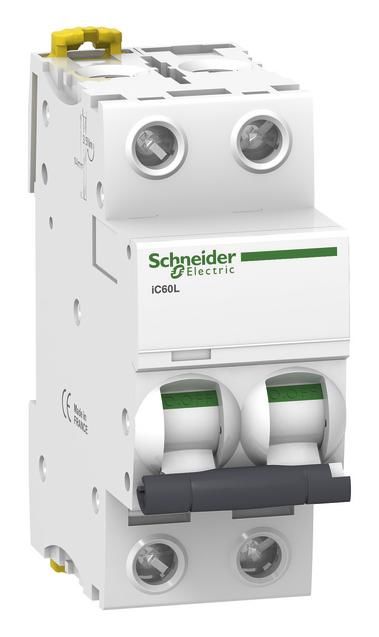

Schneider Electric A9F92206 Schneider LS switch iC60L 2p Z 6A

Circuit breaker Acti 9 iC60L, 15kA (IEC/EN 60898-1), 25kA (IEC/EN 60947-2). 2-pole, nominal current 6A, Z characteristic, operating voltage (Ue) 380-415V AC, insulation voltage (Ui) 500V AC. Double connection terminal for cable and pin comb bar on the top and bottom of the device. Snap action for low-wear switching of the contacts. Moving insulation cover. Operation of the top hat rail fastening element on the front of the device for tool-free installation and easy access for the user. With mechanical front-side fault indication display (VisiTrip) to indicate tripping due to overload or short circuit. Safe contact display (VisiSafe) of the circuit breaker, green display ensures that there is no voltage on the output side. Terminals IP20, moving insulation cover. Single connection terminal from above or below. Easy removal of the individual device when the phase rail is installed, thanks to the fastening element accessible from the front. Can be combined with the residual current circuit breakers from the Acti 9 iID series, as well as the FI Block Vigi iC60. Additional auxiliary modules that can be connected in series (optional) - display of switch position, fault tripping, shunt release, undervoltage release, overvoltage release. Color RAL 9003. The iC60L circuit breaker meets the following standards - IEC/EN 60898-1 (up to 40A) and IEC/EN 60947-2. This series is also VDE certified!
Type: A9F92206
