Schneider Electric A9MEM1560
Schneider Power Tag Flex 1P+N

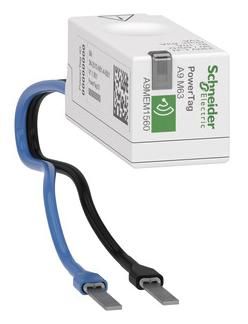

The PowerTag Energy F63 1P+N is a wirelessly communicating energy meter. With its flexible design, it is suitable for 1P+N measuring points with a nominal power of 63A or less. The energy meter must be connected to a concentrator or a gateway. It is specifically designed for energy management, load monitoring and availability applications. It includes accurate real-time measurements of active energy, active power, current, voltage and power factor. With 2 quadrant energy measurement. In the event of a power failure, it sends a voltage loss alarm and the value of the current per phase before being switched off. PowerTag Energy 63A complies with the IEC 61557-12 standard. It is a PMD-I/DD/K55/1. The accuracy class is Class 1. The Imax maximum current is 63A. The Ib base current is 10A. The saturation current is 130A and the actual inrush current is 40mA. The Un rated voltage is phase-neutral 200VAC to 240VAC +/- 20%. The maximum consumption is less than or equal to 1VA. It can be installed either on the top or bottom of the protective device. The product color is white (RAL9003). The weight is 16 g. The protection class is IP20 and IK05. The operating temperature is between -25°C and +60°C. The storage temperature is between -40°C and +85°C.
Type: A9MEM1560
