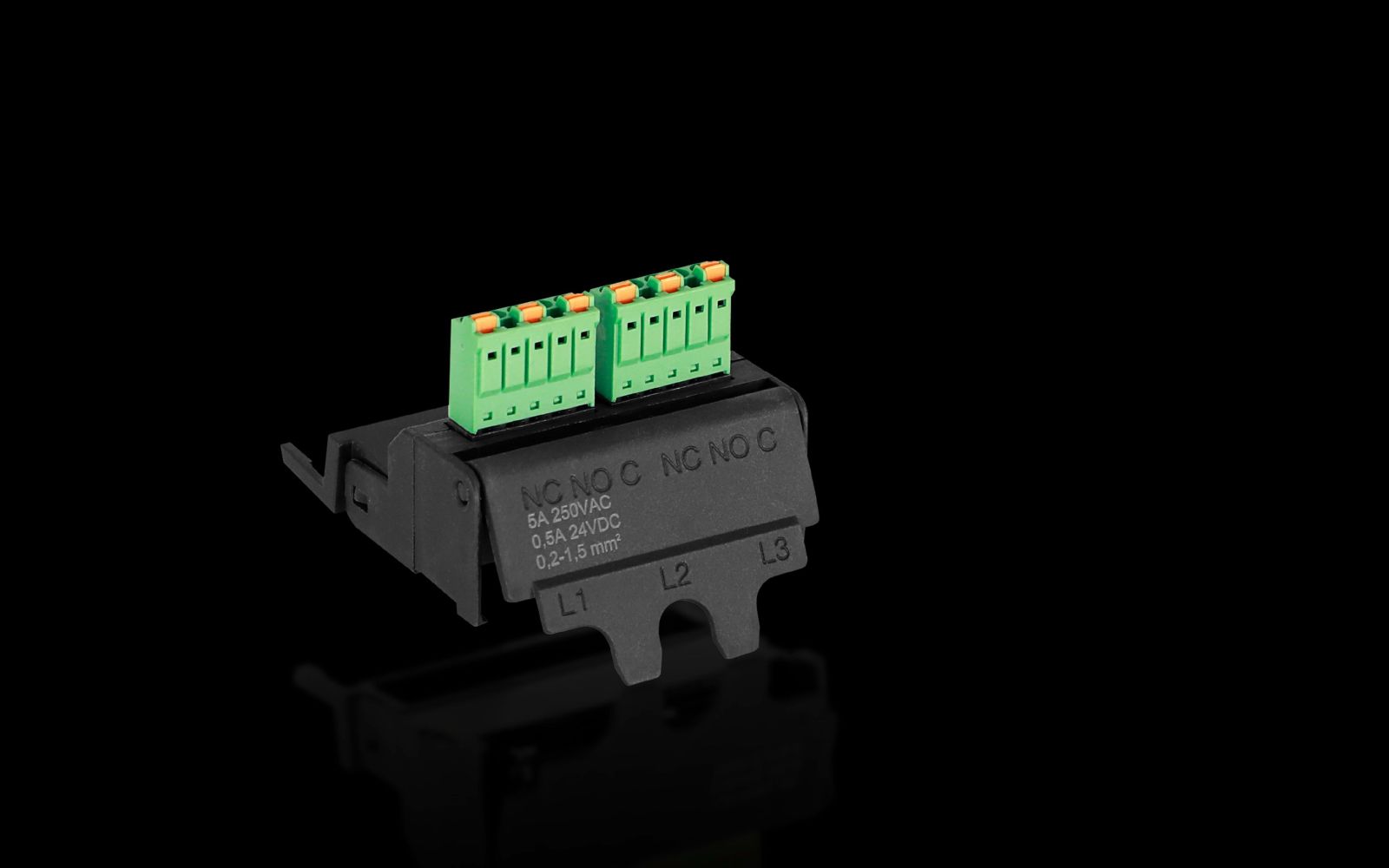

Rittal 9365500 RX microswitch 1=5 for NH disconnector size 000

Your rating:
Average rating
product review for Rittal 9365500 RX microswitch 1=5 for NH disconnector size 000
( 5 / 5 ) 1 ratings
Rittal 9365500
This image may differ from the desired article.
-7% 20,13 EUR 21,53 EUR
( 23,95 EUR incl. VAT )
≈ £16.83  |  ≈ $22.24
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 2 pieces
1x Rittal 9365500 RX microswitch 1=5 for NH disconnector size 000
Datasheet:file_download Download
Lieske Part No.:612143
Mfg Part No: 9365500
UPC/EAN: 4069196007305
Weight:0.089 kg
Type:RX 9365500

Product information for Rittal 9365500:

The Rittal RX 9365500 is a RiLineX microswitch set specifically designed for NH fuse switch disconnectors of size 000. It serves the signalling of the switching position and thus enables visual or electrical monitoring of whether the disconnector is switched on (On) or off (Off). This is particularly important in industrial installations to ensure safe and reliable recognition of the operating state of switching devices. The product is part of the RiLineX system, which is based on modular and standardised components for enclosures and distributors.

Applications
The microswitch is used in electrical distributions and enclosures where NH fuse switch disconnectors of size 000 are installed. It is particularly suitable for applications in industrial electrical engineering, where state indication of switching devices is necessary for operational safety and maintenance. Signalling is achieved through mechanical connection with the disconnector, whereby the switch is activated when the lever moves.

Functions and Equipment in Detail
The microswitch set is designed for size 000 and specifically fits article numbers 9362421, 9362422, 9362423, 9362424, 9363420 and 9363425. Signalling is achieved through mechanical actuation, whereby the switch indicates the state of the disconnector (On/Off). The packaging unit includes 2 pcs, which facilitates installation on two disconnectors or stock holding. The exact function is the transmission of the switching state, enabling an external indicator (e.g. LED, relay or control system) to be activated.

Technology Explained Simply
The microswitch operates mechanically: when the disconnector lever moves, the switch is actuated via a connection (e.g. pin or lever). This triggers an electrical contact, which is either open or closed depending on the switching position. Use in the RiLineX system ensures standardised mounting and compatibility with other components of the system.

Compatibility and Accessories
The microswitch is exclusively designed for NH fuse switch disconnectors of size 000 and fits the mentioned article numbers. It is not universal accessory, but specifically matched to the components of the RiLineX system. Use with other disconnectors or sizes is not intended.

Mounting and Installation
Mounting is done directly on the NH fuse switch disconnector of size 000. The mechanical connection between disconnector and microswitch is achieved via designated connection points designed for signalling.

Advantages in Operation
Signalling of the switching position increases operational safety, as the state of the disconnector is always visible. This is particularly important during maintenance work, where a safe starting state (switched off) must be confirmed. Use in the RiLineX system ensures modular and maintenance-friendly integration into existing enclosure configurations. Delivery in a pack of 2 pcs supports efficient installation on multiple devices or stock holding.

General
For size000
Suitable for part no.9362421, 9362422, 9362423, 9362424, 9363420, 9363425
PCF/VE (Cradle-to-Gate)0,34


Product data sheet
Datasheet for Rittal 9365500, EAN: 4069196007305

Questions & answers

What is the delivery time of Rittal 9365500 RX microswitch 1=5 for NH disconnector size 000?

The article Rittal 9365500 RX microswitch 1=5 for NH disconnector size 000 is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9365500 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9365500 RX microswitch 1=5 for NH disconnector size 000 always at the best possible price. We can give you a discount of 2% on Rittal 9365500 RX microswitch 1=5 for NH disconnector size 000 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
