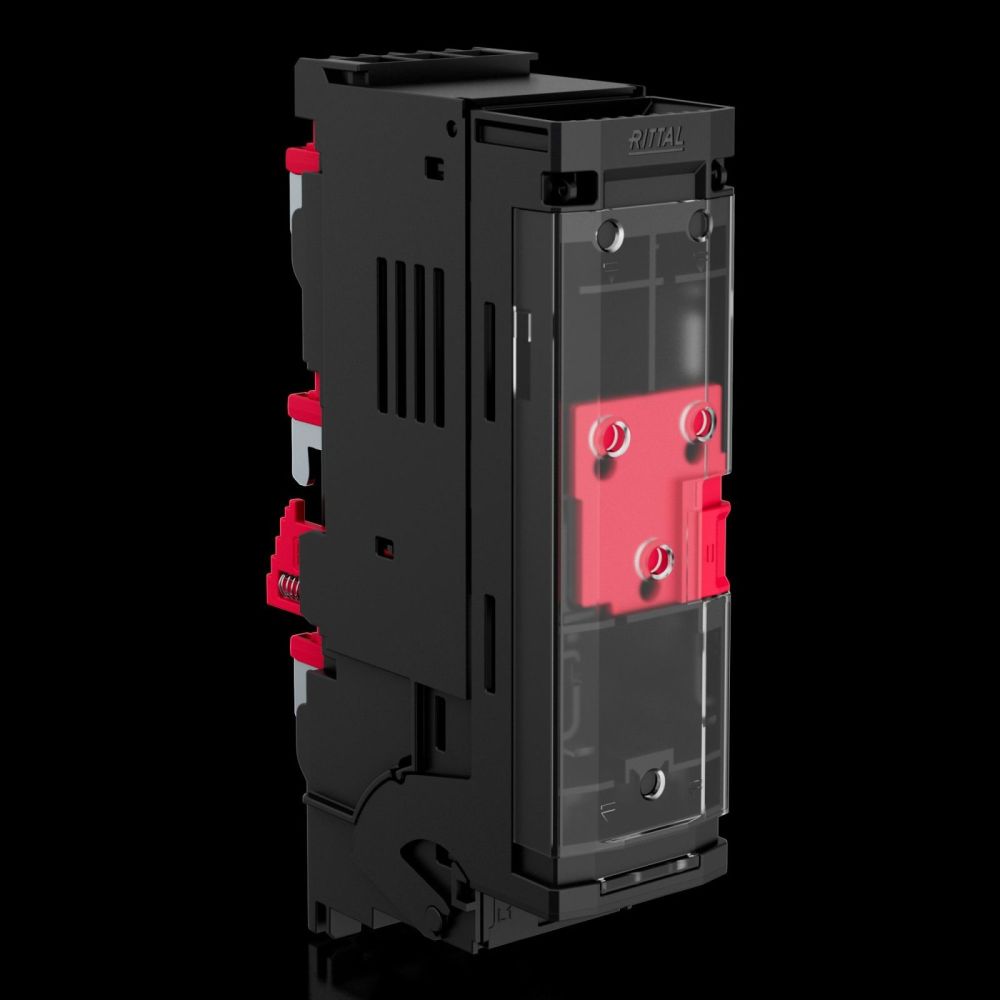

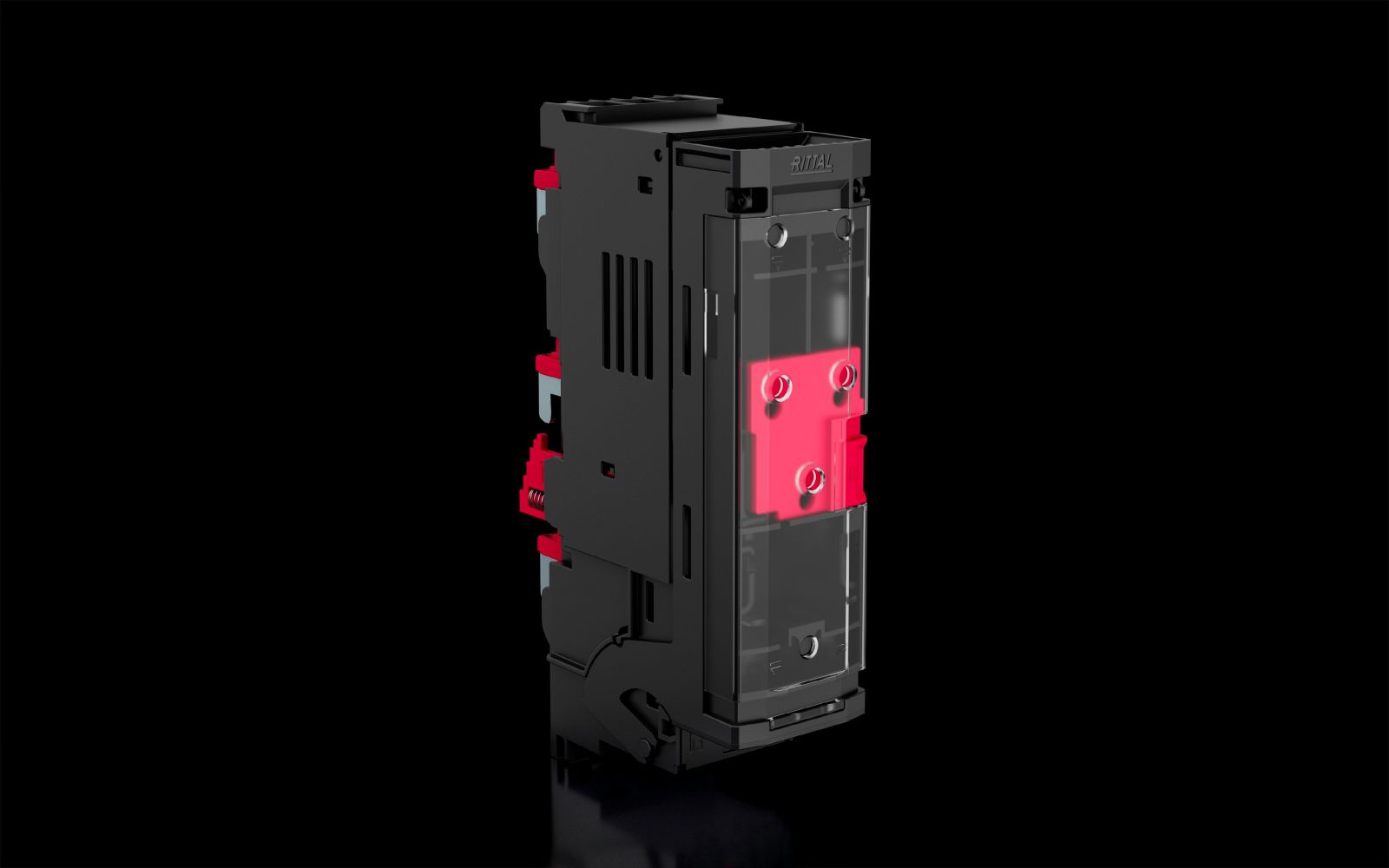

Rittal 9362421 RX NH fuse switch disconnector size 000 125 A 3-pole outgoing bottom, terminal

Your rating:
Average rating
product review for Rittal 9362421 RX NH fuse switch disconnector size 000 125 A 3-pole outgoing bottom, terminal
( 5 / 5 ) 1 ratings
Rittal 9362421
This image may differ from the desired article.
Rittal 9362421Rittal 9362421Rittal 9362421Rittal 9362421Rittal 9362421Rittal 9362421Rittal 9362421Rittal 9362421
43,70 EUR 45,71 EUR
( 52,00 EUR incl. VAT )
≈ £36.53  |  ≈ $48.29
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 9362421 RX NH fuse switch disconnector size 000 125 A 3-pole outgoing bottom, terminal
Datasheet:file_download Download
Lieske Part No.:1571903
Mfg Part No: 9362421
UPC/EAN: 4069196001662
Weight:0.722 kg
Type:RX 9362421

Product information for Rittal 9362421:

The Rittal RX 9362421 is an NH fuse switch disconnector in size 000, specifically designed for 60 mm busbar systems. It serves as a switch disconnector with integrated fuse inserts and enables safe disconnection of power supply in industrial installations. The device is intended for use in enclosures and distributions where reliable power interruption and monitoring are required. The design is for busbar systems with a center-to-center spacing of 60 mm, supporting busbar thicknesses of 5 mm and 10 mm in widths of 15 mm, 20 mm, and 30 mm. Mounting is done via push-on mounting, with tool-free adjustment to the busbar thickness.

Applications

The switch disconnector is intended for industrial applications in the field of power distribution and protection. It is used in enclosures, distributions, and machine controls where safe disconnection of power supply is required for maintenance work or in case of faults. The rated operational voltage is 690 V AC, and the rated insulation voltage Ui is 1,000 V, making it suitable for installations with high voltages. The maximum rated current is 125 A, with usage categories AC-23B, AC-22B, AC-21B, and DC-22B defining the operating conditions for alternating and direct current.

Functions and Equipment in Detail

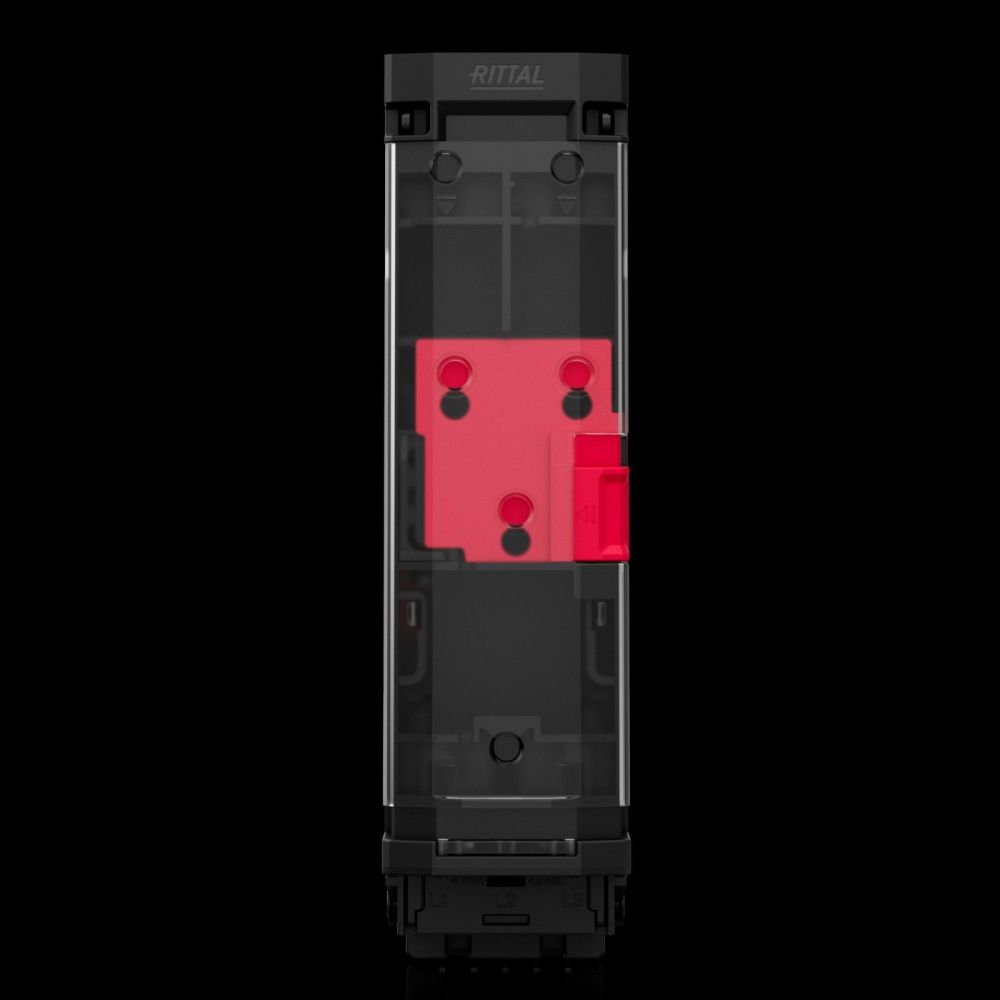

The cover of the switch disconnector is lockable and sealable, preventing unauthorized manipulation. The visual fuse monitoring allows direct inspection of the installed NH fuse inserts (size 000). The safe voltage testing is performed via integrated test points on the cover, accessible through a separate opening. This ensures safe voltage testing without fully opening the cover. A parking position for the cover facilitates maintenance work, as the cover can be held in a stable, half-open position.

Technology Explained Simply

The electrical connection is made via a frame terminal, designed for connecting round conductors with a cross-section of at least 1.5 mm² up to a maximum of 50 mm². The conductor exit is at the bottom, enabling flexible cabling. The contact strips are made of electrolytic copper, silver-plated, ensuring high electrical conductivity and corrosion resistance. The housing is made of polyamide (PA 6), which meets specific flammability requirements according to UL 94. The protection class IP 2XB according to IEC 60 529 protects against finger contact and vertical dripping water, but not against splashing water or dust. The operating temperature range is between -5 °C and 35 °C, and the storage temperature range is between -25 °C and 70 °C.

Compatibility and Accessories

The switch disconnector is compatible with the busbar systems RiLineX and RiLine60. Suitable accessories are available, including the enclosure protection profile RX 9365025 (length 1200 mm), mounting clips RX 9365027, the microswitch RX 9365500, and the anti-shift clip RX 9365501, which enhance safety functions and mechanical stability.

Mounting and Installation

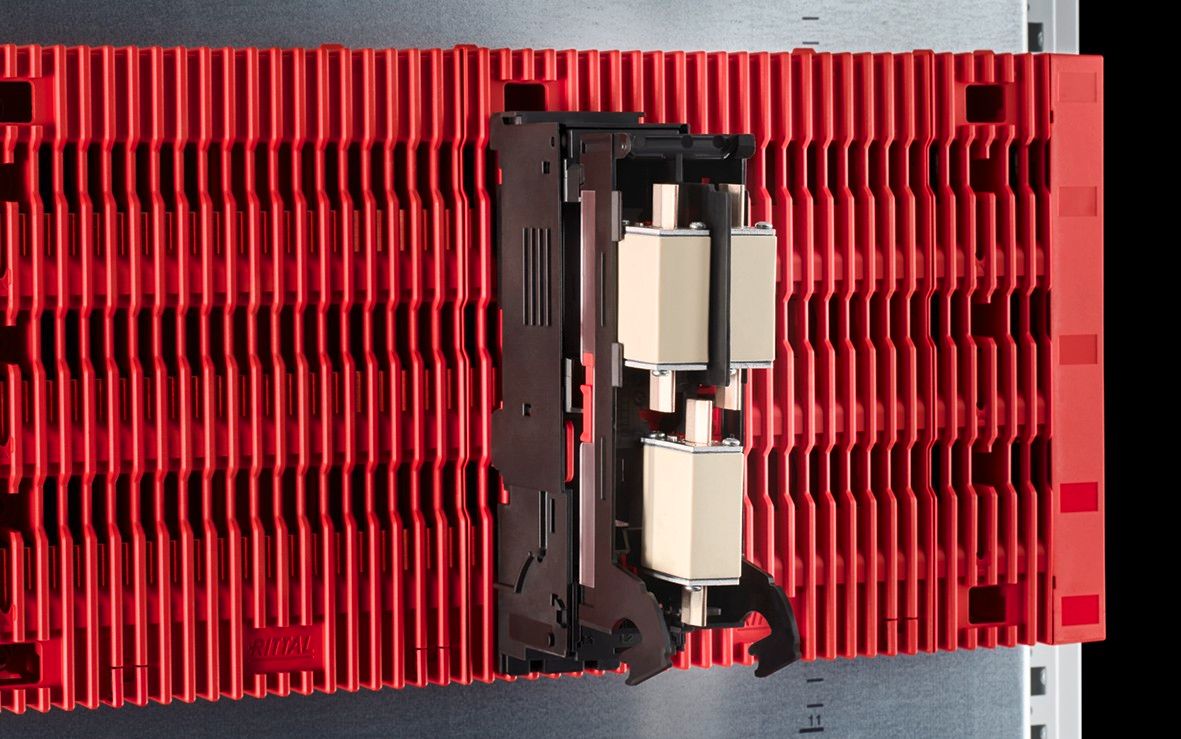

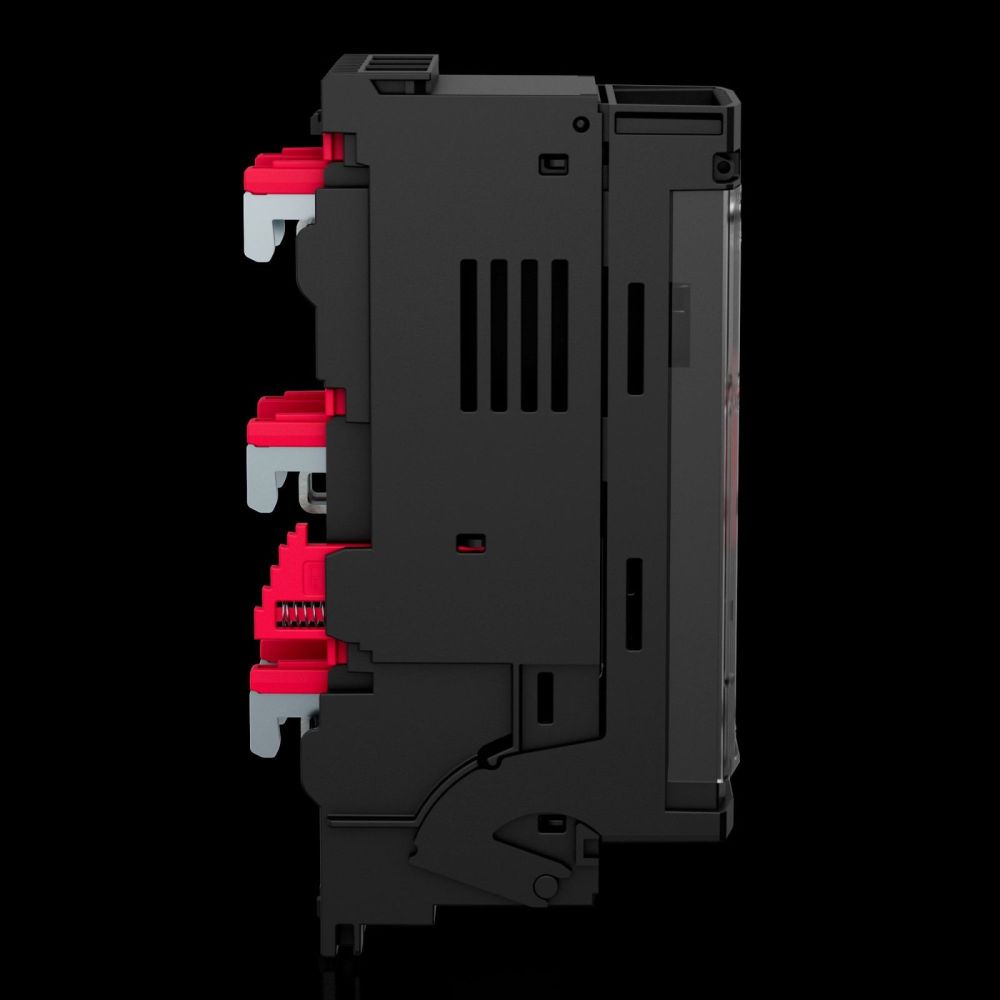

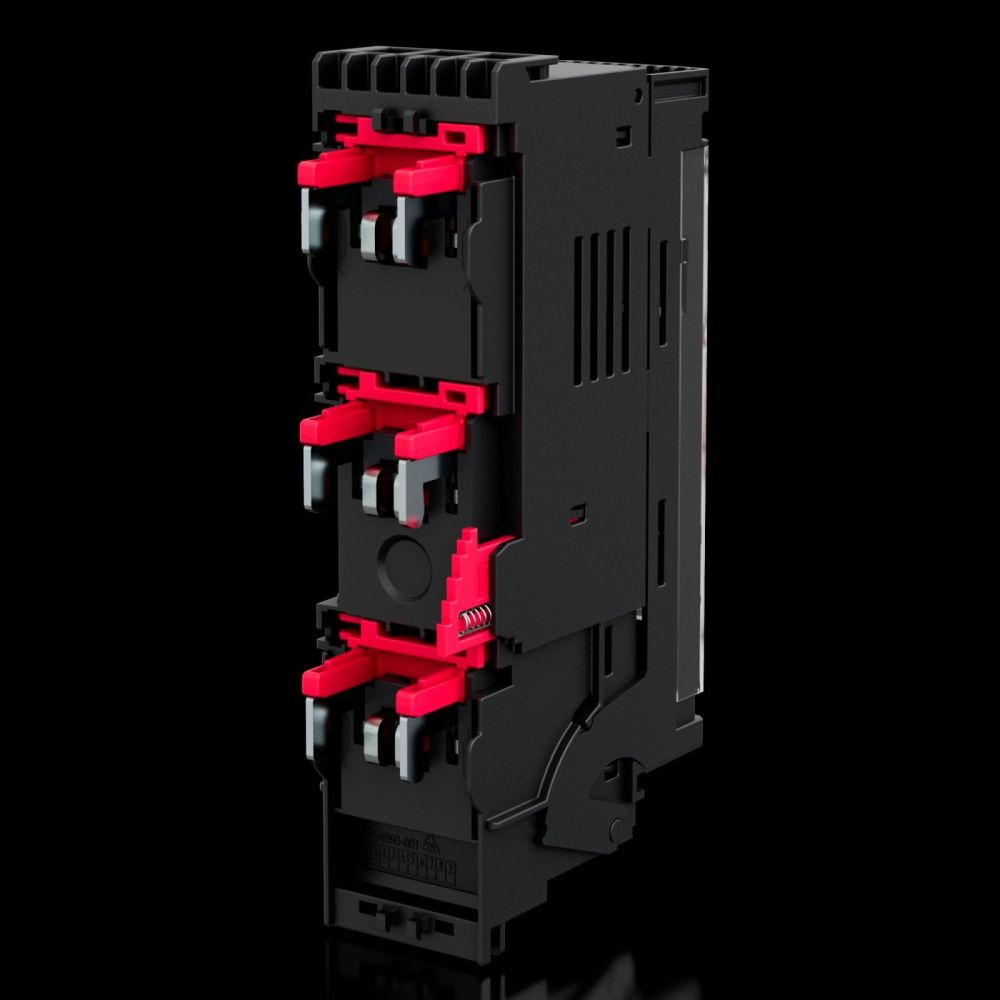

Mounting is done via push-on mounting onto the busbars, with tool-free adjustment to the busbar thickness. The frame terminal enables secure and easy connection of conductors. The bottom cable exit provides flexibility in cabling. Dimensions are 53 mm (width) × 212 mm (height) × 103 mm (depth), enabling compact integration into enclosures.

Advantages in Operation

The switch disconnector offers high safety through lockable and sealable cover, as well as visual and electrical monitoring of fuse inserts. The parking position and integrated test points for voltage testing reduce maintenance time and increase work safety. The tool-free adjustment to various busbar thicknesses and the compact design simplify installation and replacement. The power loss is a maximum of 36 W, with up to 9 W per fuse insert. The fire load is 10.84 MJ/m², meeting fire protection requirements in industrial installations. The testing basis is according to IEC/DIN EN 60 947-3 and DIN EN 60 269-2 for the fuse inserts.

General
ModelFor 60 mm busbar systems
MaterialPolyamide (PA 6), flammability rating according to UL 94, contact strips: electrolytic copper, silver-plated
ColourRAL 9005, RAL 35745
For rail systems with centre spacing60 mm
Cable exitBelow
Electrical connection typeFrame clamp
Fuse linksNH 000
Rated insulation voltage Ui1.000 V
Rated current max.125 A
Rated operating voltage690 V AC
For NH size000
Test basisIEC/DIN EN 60 947-3, DIN EN 60 269-2 (fuse inserts)
Width53 mm
Height212 mm
Depth103 mm
Operating temperature range-5 °C...35 °C
Storage temperature range-25 °C...70 °C
Suitable for busbars15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Suitable for busbar systemRiLineX, RiLine60
Number of poles3-pole
Utility categoryAC-23B (400 V/100 A), AC-22B (500 V/100 A), AC-21B (690 V/100 A), DC-22B (250 V/100 A)
Pollution degree3
Degree of protection IP according to IEC 60 529IP 2XB
Fire load10,84 MJ/m²
Maximum power dissipation36 W
Power loss per fuse element (max.)9 W
Copper content (kg/piece)0,404
PCF/VE (Cradle-to-Gate)4,82


Product data sheet
Datasheet for Rittal 9362421, EAN: 4069196001662
