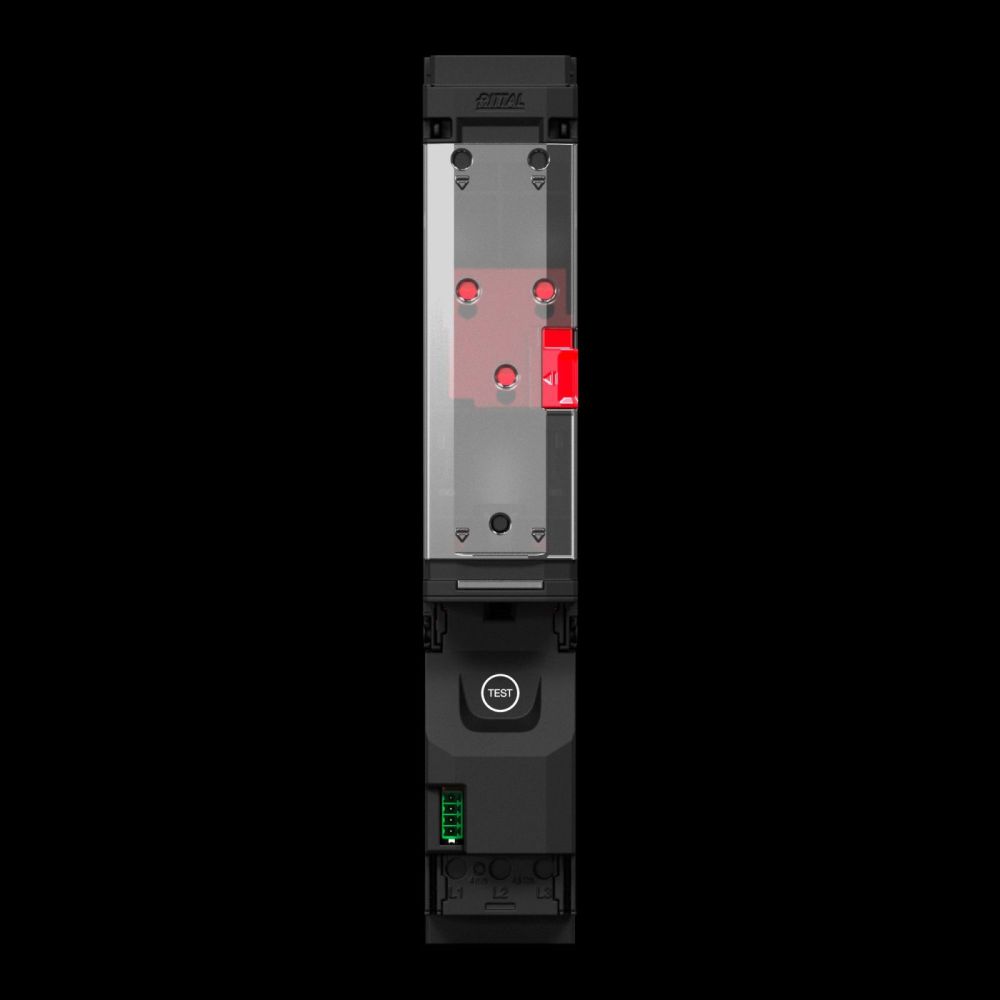

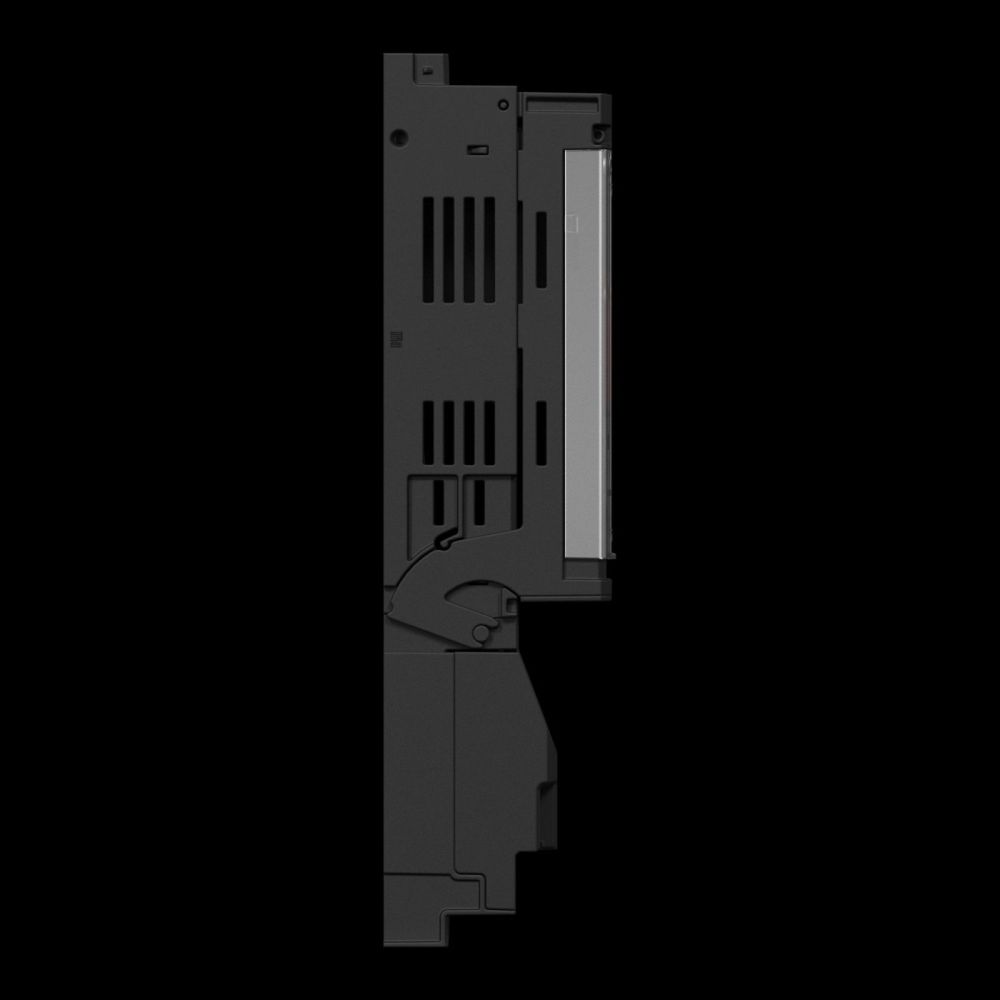

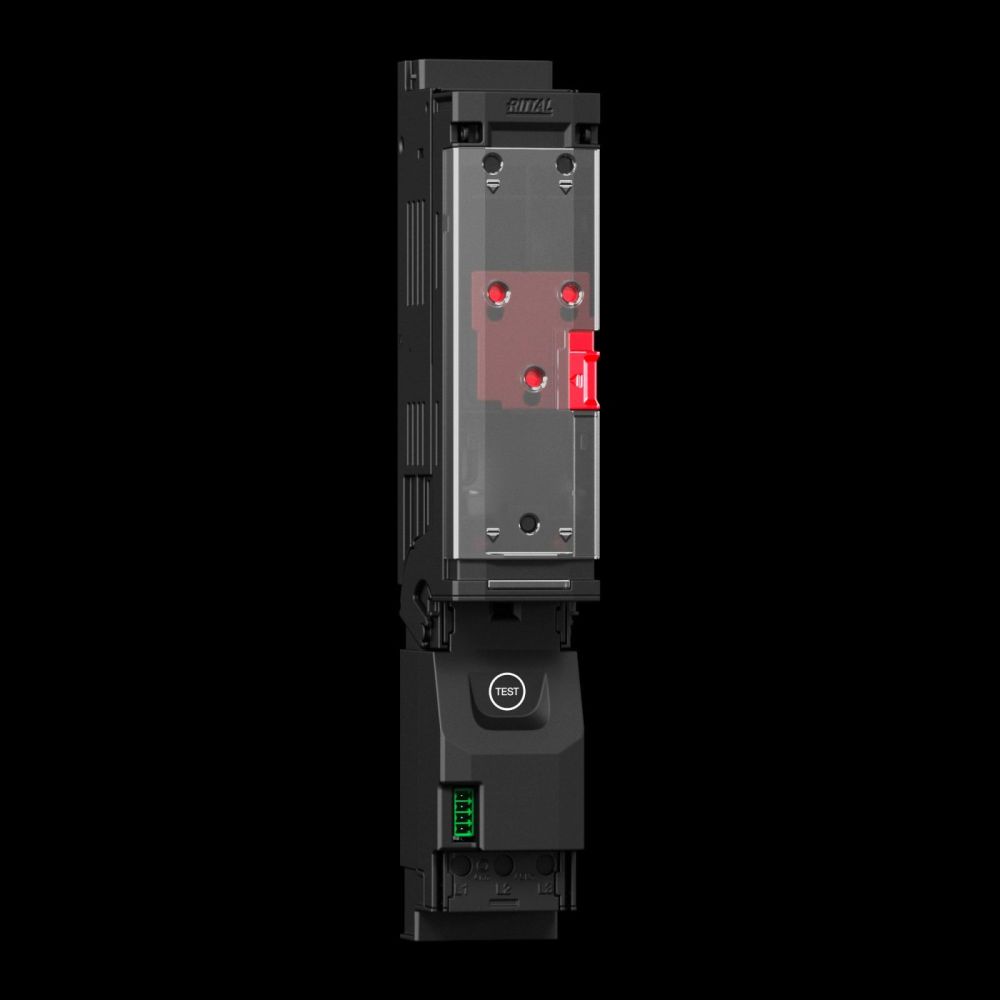

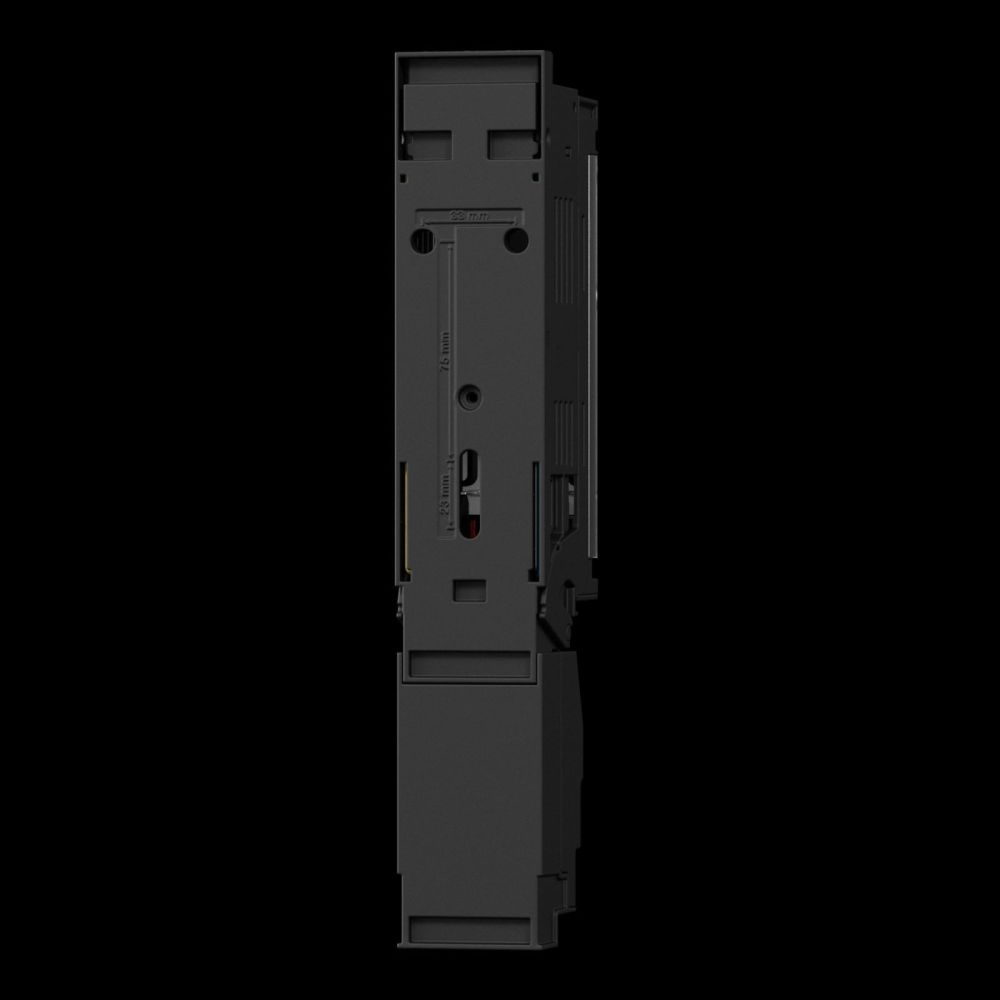

Rittal 9363425 RX NH fuse switch disconnector size 000 125 A 3-pole

Your rating:
Average rating
product review for Rittal 9363425 RX NH fuse switch disconnector size 000 125 A 3-pole
( 4.5 / 5 ) 2 ratings
Rittal 9363425
This image may differ from the desired article.
Rittal 9363425Rittal 9363425Rittal 9363425Rittal 9363425Rittal 9363425Rittal 9363425
-6% 132,25 EUR 141,39 EUR
( 157,38 EUR incl. VAT )
≈ £110.56  |  ≈ $146.14
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9363425 RX NH fuse switch disconnector size 000 125 A 3-pole
Datasheet:file_download Download
Lieske Part No.:612133
Mfg Part No: 9363425
UPC/EAN: 4069196001860
Weight:0.779 kg
Type:RX 9363425

Product information for Rittal 9363425:

The Rittal RX 9363425 is an NH fuse switch disconnector in size 000, specifically designed for mounting plate installation. It serves as a power disconnector in industrial electrical installations and enables the safe disconnection of circuits using NH fuse inserts. The version with electronic fuse monitoring (ESÜ) allows continuous monitoring of the fuse status, thus enhancing operational safety and maintenance efficiency. The disconnector is designed for a rated operational voltage of 690 V AC and complies with standards IEC/DIN EN 60 947-3 as well as DIN EN 60 269-2 for fuse inserts.

Applications
This disconnector is intended for use in industrial plants where safe and monitorable power disconnection is required. It is particularly suitable for applications with high safety requirements, such as in manufacturing, energy supply, or process automation. The 3-pole configuration enables disconnection of three-phase AC circuits. The usage categories include AC-23B (400 V/100 A), AC-21B (500 V/100 A), AC-21B (690 V/100 A), and DC-22B (250 V/100 A), covering a wide range of application scenarios.

Functions and Equipment in Detail
The disconnector's cover is lockable and sealable, preventing unauthorized manipulation and increasing operational safety. Visual fuse monitoring allows direct status checking of the fuse. Secure voltage testing is performed via integrated test points on the cover, accessible through a separate opening. This ensures risk-free testing without fully opening the cover. A parking position for the cover facilitates maintenance work, as the cover can be held in a stable, half-open position.

Technology Explained Simply
The disconnector features a frame terminal as the connection type, designed for connecting round conductors. The permissible cross-sections range from 1.5 to 16 mm² for round conductors without wire end ferrules, and up to 50 mm² when using wire end ferrules. The rated insulation voltage Ui is 1,000 kV, ensuring high insulation strength. The protection rating IP 2XB according to IEC 60 529 protects against finger contact and vertical dripping water, making the disconnector suitable for use in slightly damp environments. The material consists of polyamide (PA 6) with flammability rating according to UL 94; the contact strips are made of electrolytic copper, silver-plated, ensuring high conductivity and corrosion resistance.

Compatibility and Accessories
The disconnector is designed for NH size 000 and requires corresponding fuse inserts. As suitable accessories, the microswitch RX 9365500 is offered, which is suitable for NH disconnectors of size 000. The connection plugs for electronic fuse monitoring are included in the delivery scope.

Mounting and Installation
The disconnector is intended for mounting plate installation and can be secured to mounting plates without tools. The cable exit is at the top and bottom, enabling flexible installation in enclosures. The operating temperature range is between -5 °C and 35 °C, while the storage temperature range extends from -25 °C to 70 °C. Dimensions are 53 mm (width) × 307.3 mm (height) × 80.1 mm (depth).

Advantages in Operation
The integrated electronic fuse monitoring (ESÜ) enables continuous monitoring of the fuse status, allowing early detection of failures. The parking position and sealable closure option enhance safety during maintenance work. The frame terminal provides a robust and reliable connection for round conductors within the specified cross-section range. The power loss is a maximum of 26 W, with up to 9 W per fuse insert. Pollution degree 3 is suitable for environments with increased pollution risk, such as industrial plants with dust or dirt exposure.

General
Modelwith electronic fuse monitoring (ESÜ), for panel mounting
MaterialPolyamide (PA 6), flammability rating according to UL 94, contact strips: electrolytic copper, silver-plated
ColourRAL 9005, RAL 35745
Scope of deliveryIncluding connection plug for electrical fuse monitoring
Cable exitAbove/under
Electrical connection typeFrame clamp
Fuse linksNH 000
Rated insulation voltage Ui1.000 kV
Rated operating voltage690 V AC
For NH size000
Test basisIEC/DIN EN 60 947-3, DIN EN 60 269-2 (fuse inserts)
Width53 mm
Height307,3 mm
Depth80,1 mm
Connection of ring conductors1,5 ‐ 16 mm²
Operating temperature range-5 °C...35 °C
Storage temperature range-25 °C...70 °C
Number of poles3-pole
Utility categoryAC-23B (400 V/100 A), AC-21B (500 V/100 A), AC-21B (690 V/100 A), DC-22B (250 V/100 A)
Pollution degree3
Degree of protection IP according to IEC 60 529IP 2XB
Fire load9,69 MJ/m²
Connection of round conductors, fine-stranded without ferrule1,5 ‐ 16 mm²
Connection of stranded wires, fine-stranded with ferrule1,5 ‐ 50 mm²
Cross-section round conductor1,5 ‐ 16 mm²
Maximum power dissipation26 W
Power loss per fuse element (max.)9 W
Copper content (kg/piece)0,26
PCF/VE (Cradle-to-Gate)5,49
For panel mountingJa
With electronic fuse monitoring (ESÜ)Ja


Product data sheet
Datasheet for Rittal 9363425, EAN: 4069196001860

Questions & answers

What is the delivery time of Rittal 9363425 RX NH fuse switch disconnector size 000 125 A 3-pole?

The article Rittal 9363425 RX NH fuse switch disconnector size 000 125 A 3-pole is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9363425 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9363425 RX NH fuse switch disconnector size 000 125 A 3-pole always at the best possible price. We can give you a discount of 2% on Rittal 9363425 RX NH fuse switch disconnector size 000 125 A 3-pole if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Rittal 9363425 RX NH fuse switch disconnector size 000 125 A 3-pole

Rittal 9365500 RX microswitch 1=5 for NH disconnector size 000 Rittal LogoRittal 9365500 RX microswitch 1=5 for NH disconnector size 000 The Rittal RX 9365500 is a RiLineX microswitch set specifically designed for NH fuse switch disconnectors of size 000. It serves the signalling of the switching position and thus enables visual or ...

Lieske Part No.: 612143
Mfg Part No: 9365500
Type: RX 9365500
-7% 20,13 EUR 21,53 EUR
Rittal 9365500 plus VAT
≈ £16.83  |  ≈ $22.24
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
