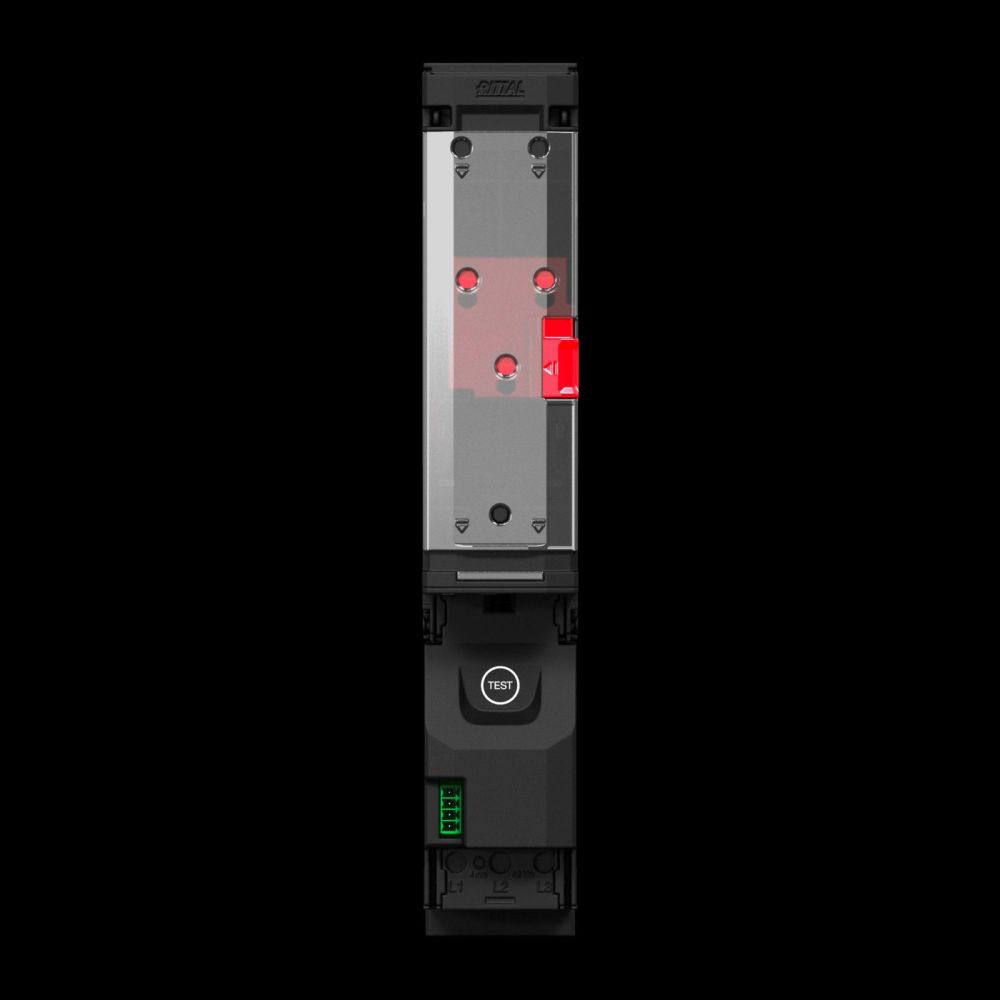

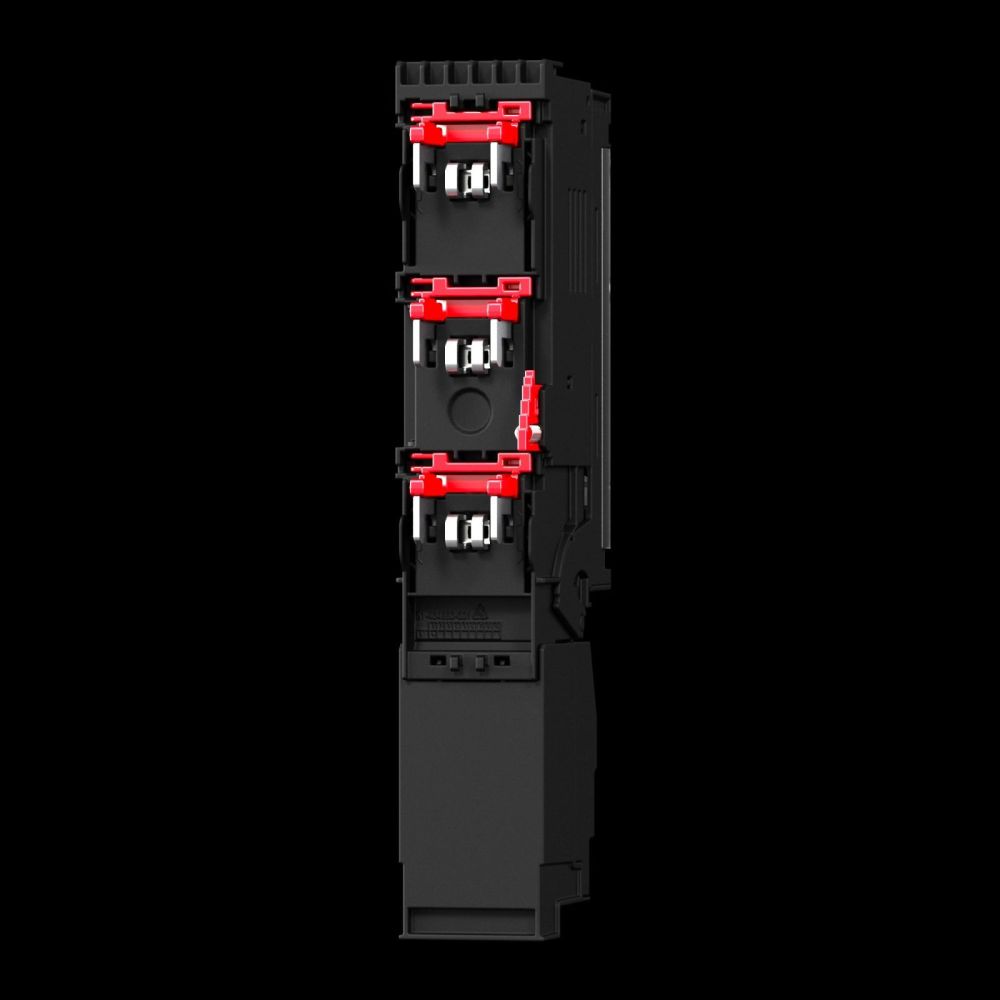

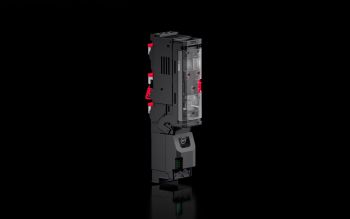

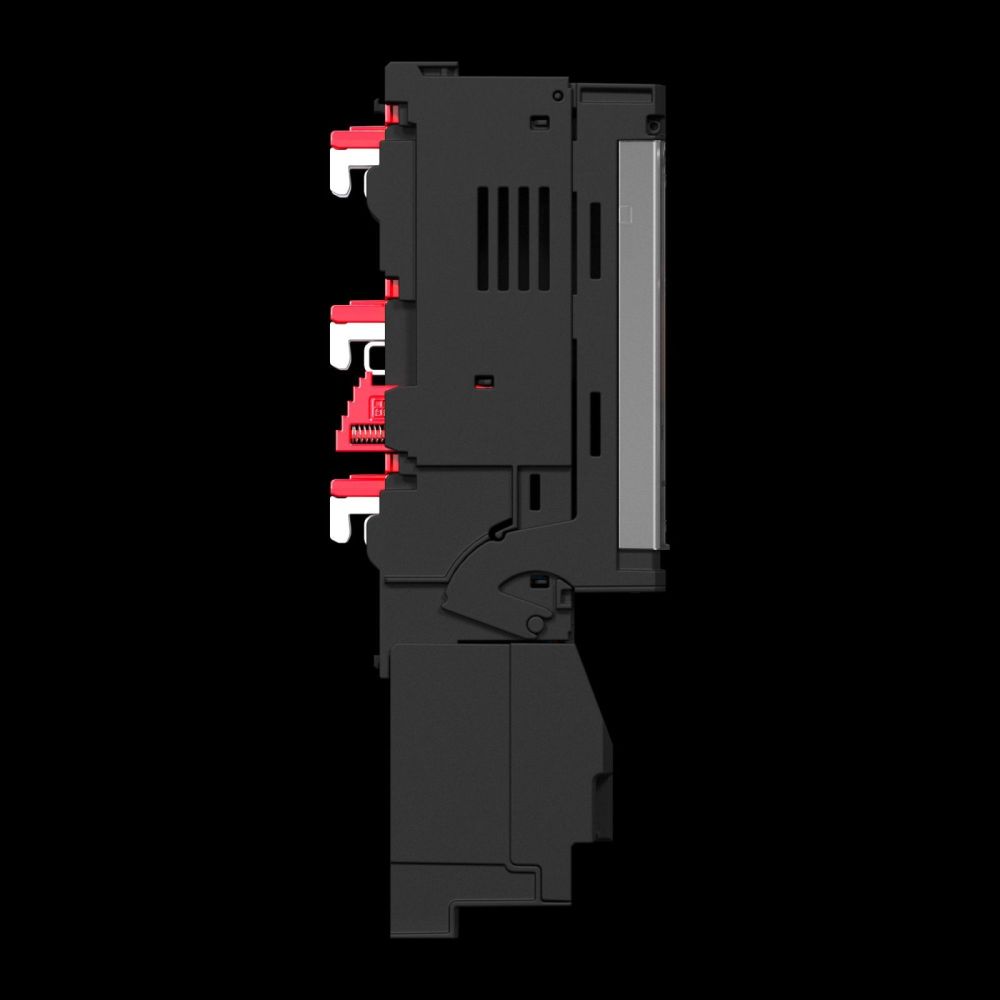

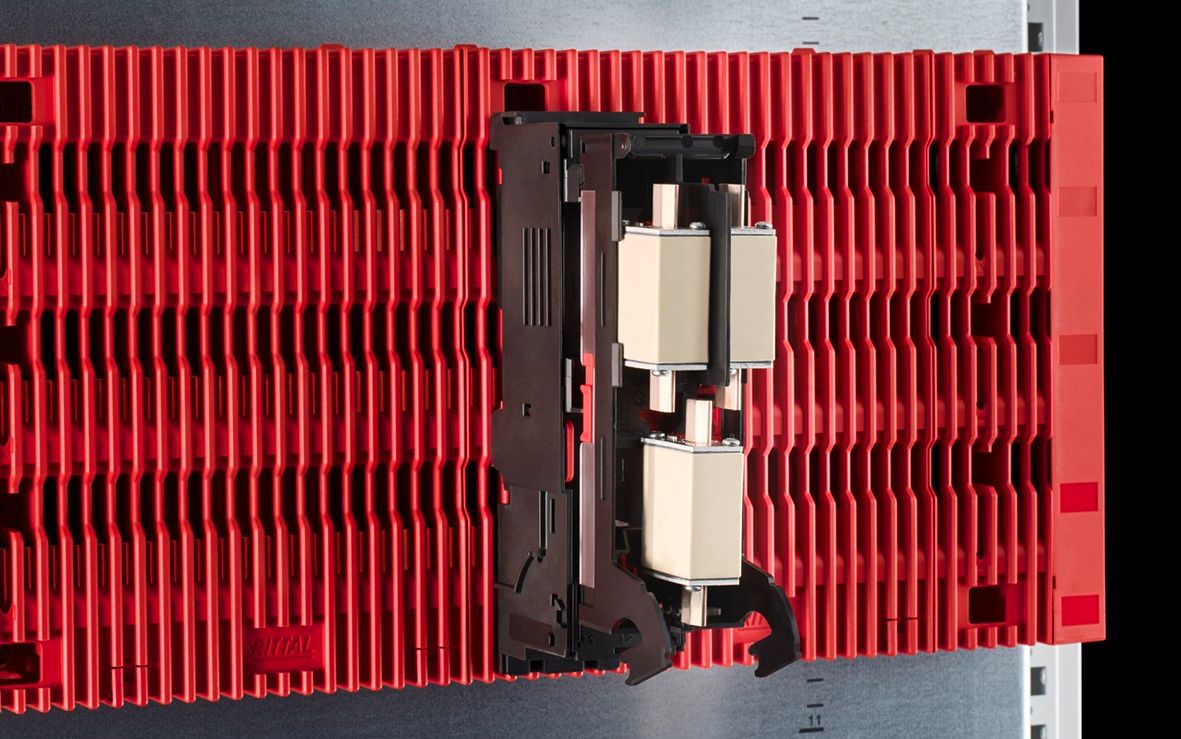

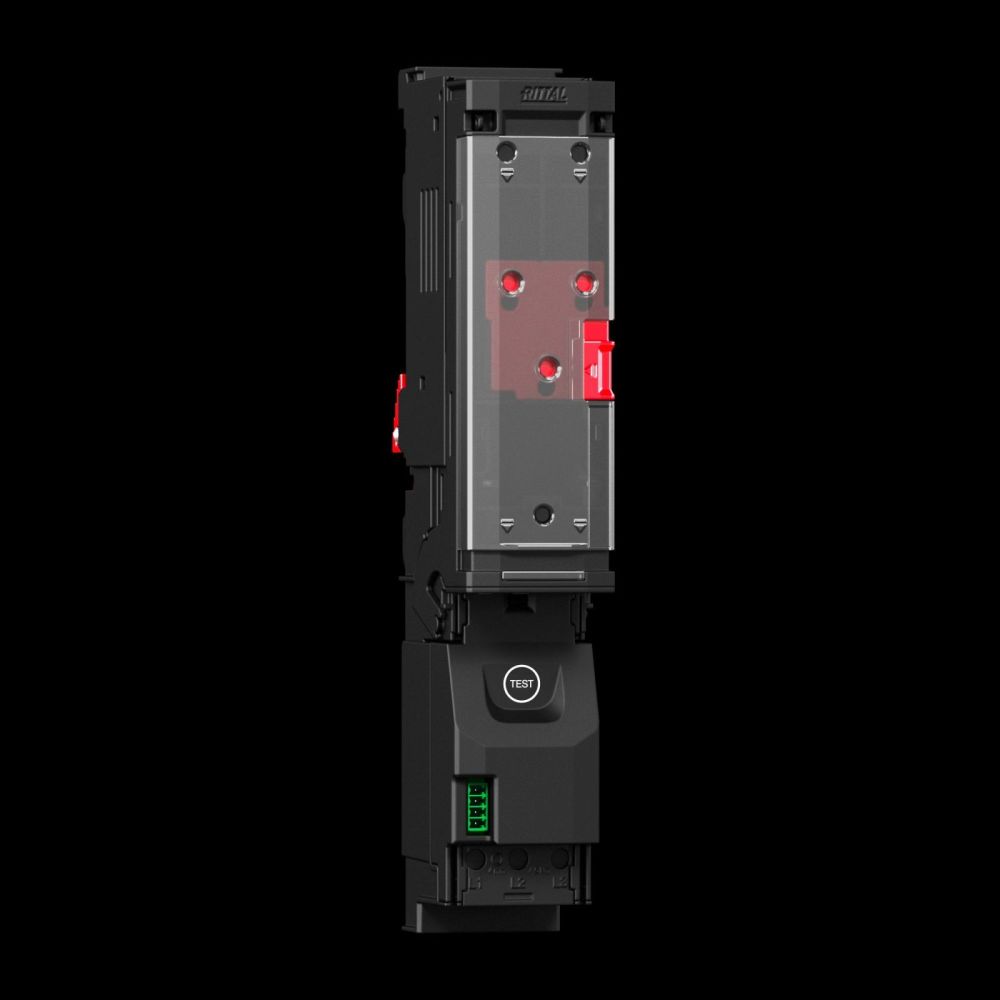

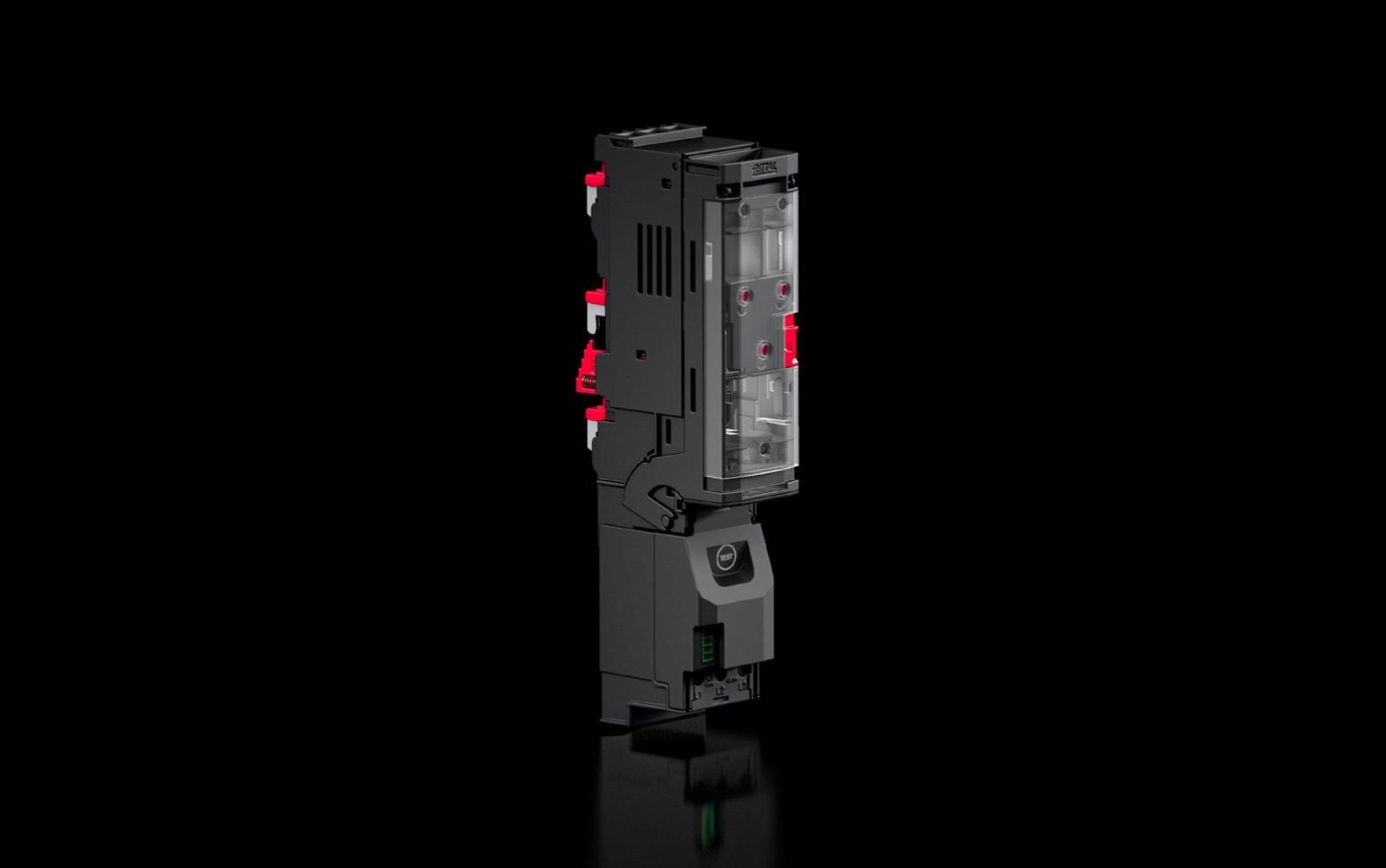

Rittal 9362423 RX NH fuse switch disconnector size 000 125 A 3-pole outgoing bottom, terminal, fuse monitoring

Your rating:
Average rating
product review for Rittal 9362423 RX NH fuse switch disconnector size 000 125 A 3-pole outgoing bottom, terminal, fuse monitoring
( 4 / 5 ) 2 ratings
Rittal 9362423
This image may differ from the desired article.
Rittal 9362423Rittal 9362423Rittal 9362423Rittal 9362423Rittal 9362423Rittal 9362423Rittal 9362423Rittal 9362423
166,75 EUR 173,42 EUR
( 198,43 EUR incl. VAT )
≈ £139.40  |  ≈ $184.26
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 3 pieces
1x Rittal 9362423 RX NH fuse switch disconnector size 000 125 A 3-pole outgoing bottom, terminal, fuse monitoring
Datasheet:file_download Download
Lieske Part No.:1571919
Mfg Part No: 9362423
UPC/EAN: 4069196001686
Weight:0.985 kg
Type:RX 9362423

Product information for Rittal 9362423:

The Rittal RX 9362423 is an NH fuse switch disconnector in size 000, specifically designed for 60 mm busbar systems such as RiLineX and RiLine60. The device serves as a switch disconnector with integrated fuse function and enables safe disconnection of power supply in industrial installations. It is designed for use in electrical distributions where reliable protection and mechanical disconnection are required. The configuration includes electronic fuse monitoring (ESÜ), which monitors the status of the installed fuse and signals in case of defect or failure.

Applications

The switch disconnector is suitable for applications in industrial electrical engineering, particularly in distributions with high safety requirements. It is mounted in enclosures and distribution boxes where clear disconnection of power supply is necessary for maintenance work or in case of faults. Compatibility with 60 mm busbar systems makes it especially suitable for modern, modular enclosure constructions. The park position of the cover facilitates maintenance work, as the cover can be fixed in a stable, half-open position without needing to be completely removed.

Functions and Equipment in Detail

The cover of the disconnector is lockable and sealable, preventing unauthorized manipulation and ensuring compliance with safety regulations. The visual fuse monitoring allows for a quick overview of the fuse status. Additionally, integrated test points are located on the cover, enabling safe voltage testing without direct contact with live parts. The electronic fuse monitoring (ESÜ) is activated via a supplied connection plug, which is directly connected to the device.

Technology Explained Simply

The device is designed for a rated operational voltage of 690 V AC and features a rated insulation voltage of 1,000 V, ensuring high electrical safety. The usage category includes AC-23B (400 V/100 A), AC-22B (500 V/100 A), AC-21B (690 V/100 A), as well as DC-22B (250 V/100 A), enabling use in various applications. The protection rating IP 2XB according to IEC 60 529 protects against finger contact and vertical dripping water, but not against splashing water or dust. The pollution degree 3 accounts for environments with increased contamination, as found in industrial facilities. The operating temperature range is between -5 °C and 35 °C, while the storage temperature range extends from -25 °C to 70 °C.

Compatibility and Accessories

The disconnector is suitable for busbars with dimensions 15 x 5/10 mm, 20 x 5/10 mm, and 30 x 5/10 mm and can be adjusted tool-free to the respective busbar thickness. The connection type is via frame terminals, designed for round conductors with a cross-section of 1.5 to 50 mm², where for fine-stranded conductors, a wire end ferrule is required for cross-sections up to 50 mm². As accessories, compatible grip protection profiles (e.g. RX 9365025), mounting clips (e.g. RX 9365027), microswitches (e.g. RX 9365500), and anti-shift clips (e.g. RX 9365501) are available, further improving installation and safety.

Mounting and Installation

Mounting is done via push-fit mounting directly onto the 60 mm busbar system. Adjustment to different busbar thicknesses (5/10 mm) is possible without tools. The cable exit is at the bottom, enabling flexible cabling. The dimensions are 53 mm (width), 301.1 mm (height), and 103 mm (depth). The materials consist of polyamide (PA 6) for the housing body, which is flame-retardant according to UL 94, and silver-plated electrolytic copper contact strips for high conductivity and corrosion resistance.

Operational Advantages

The use of the Rittal RX 9362423 provides high operational safety through the combination of mechanical disconnection, visual and electronic fuse monitoring. The park position and sealable cover increase safety during maintenance work. The tool-free adjustment to different busbar thicknesses and easy connection of round conductors reduce installation time. The integrated test points enable safe voltage testing, supporting workplace safety during operation. The power loss is maximally 36 W, with up to 9 W per fuse insert, ensuring efficient heat dissipation.

General
Modelwith electronic fuse monitoring (ESÜ), for 60 mm busbar system
MaterialPolyamide (PA 6), flammability rating according to UL 94, contact strips: electrolytic copper, silver-plated
ColourRAL 9005, RAL 35745
Scope of deliveryIncluding connection plug for electrical fuse monitoring
For rail systems with centre spacing60 mm
Cable exitBelow
Electrical connection typeFrame clamp
Fuse linksNH 000
Rated insulation voltage Ui1.000 V
Rated operating voltage690 V AC
For NH size000
Test basisIEC/DIN EN 60 947-3, DIN EN 60 269-2 (fuse inserts)
Width53 mm
Height301,1 mm
Depth103 mm
Operating temperature range-5 °C...35 °C
Storage temperature range-25 °C...70 °C
Suitable for busbars15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Suitable for busbar systemRiLineX, RiLine60
Number of poles3-pole
Utility categoryAC-23B (400 V/100 A), AC-22B (500 V/100 A), AC-21B (690 V/100 A), DC-22B (250 V/100 A)
Pollution degree3
Degree of protection IP according to IEC 60 529IP 2XB
Fire load13,62 MJ/m²
Connection of round conductors, fine-stranded without ferrule1,5 ‐ 16 mm²
Connection of stranded wires, fine-stranded with ferrule1,5 ‐ 50 mm²
Maximum power dissipation36 W
Power loss per fuse element (max.)9 W
Copper content (kg/piece)0,404
PCF/VE (Cradle-to-Gate)6,54
With electronic fuse monitoring (ESÜ)Ja


Product data sheet
Datasheet for Rittal 9362423, EAN: 4069196001686
