Rittal 9363420 RX NH fuse switch disconnector size 000 125 A 3-pole terminal

Your rating:
Average rating
product review for Rittal 9363420 RX NH fuse switch disconnector size 000 125 A 3-pole terminal
( 4 / 5 ) 2 ratings

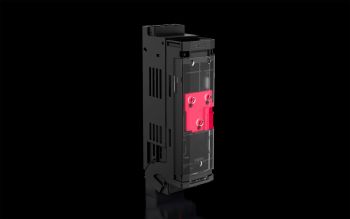

Rittal 9363420
This image may differ from the desired article.
Rittal 9363420Rittal 9363420Rittal 9363420Rittal 9363420Rittal 9363420Rittal 9363420Rittal 9363420
34,50 EUR 35,88 EUR
( 41,06 EUR incl. VAT )
≈ £28.84  |  ≈ $38.12
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 9363420 RX NH fuse switch disconnector size 000 125 A 3-pole terminal
Datasheet:file_download Download
Lieske Part No.:157195
Mfg Part No: 9363420
UPC/EAN: 4069196001853
Weight:0.543 kg
Type:RX 9363420

Product information for Rittal 9363420:

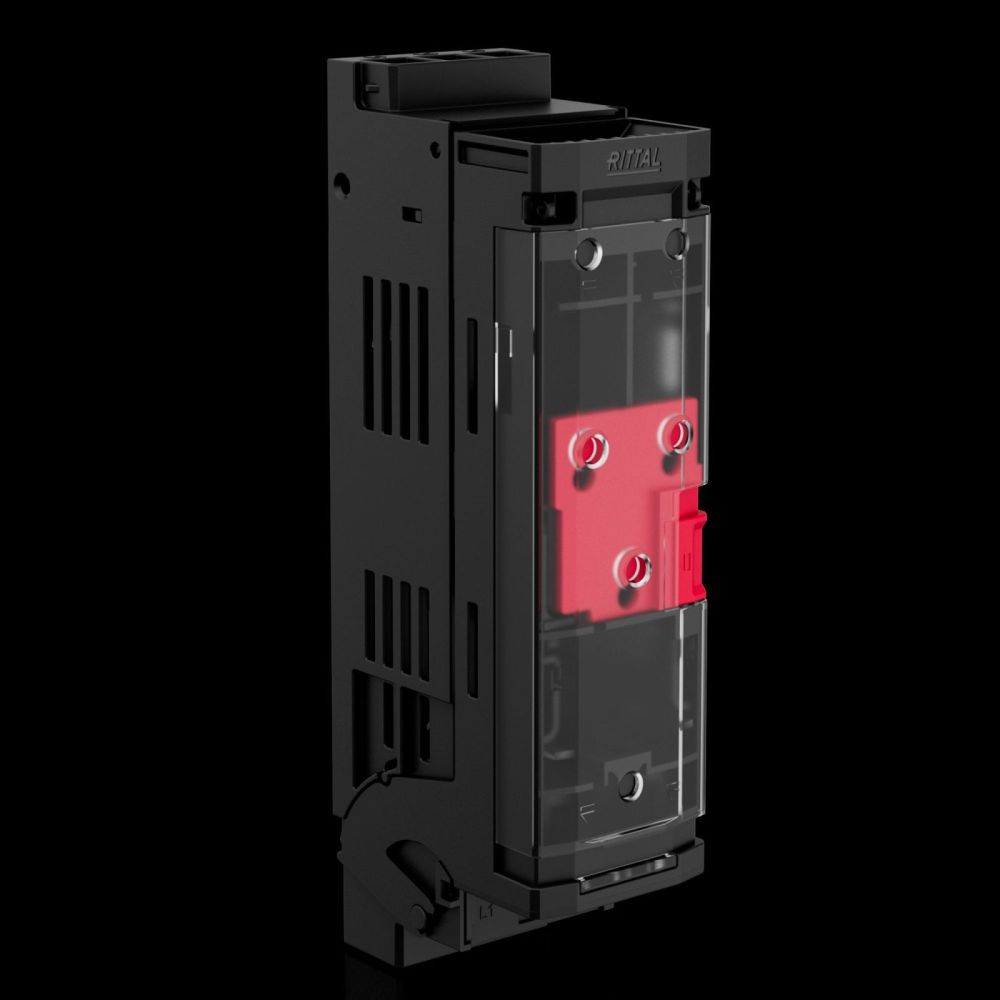

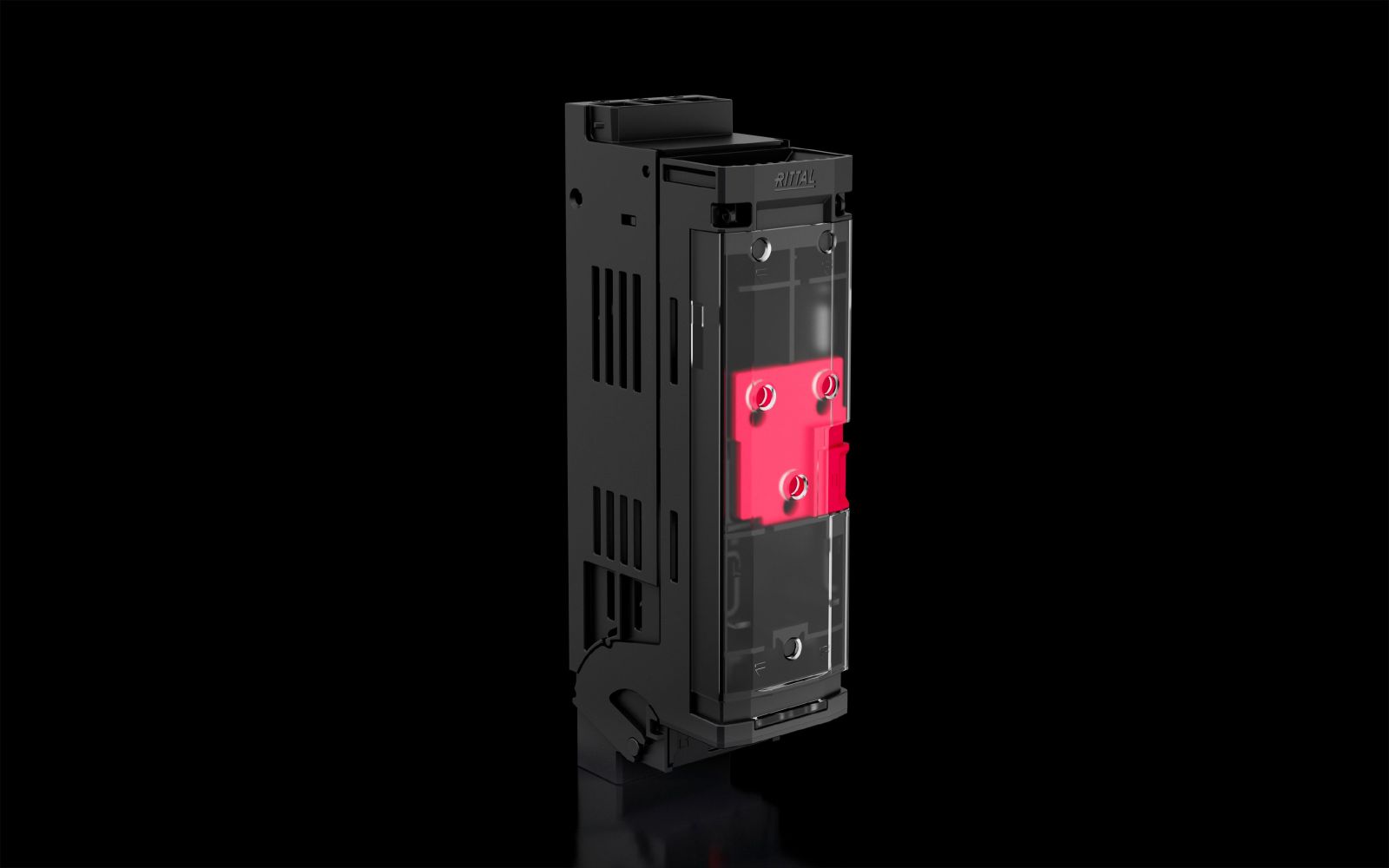

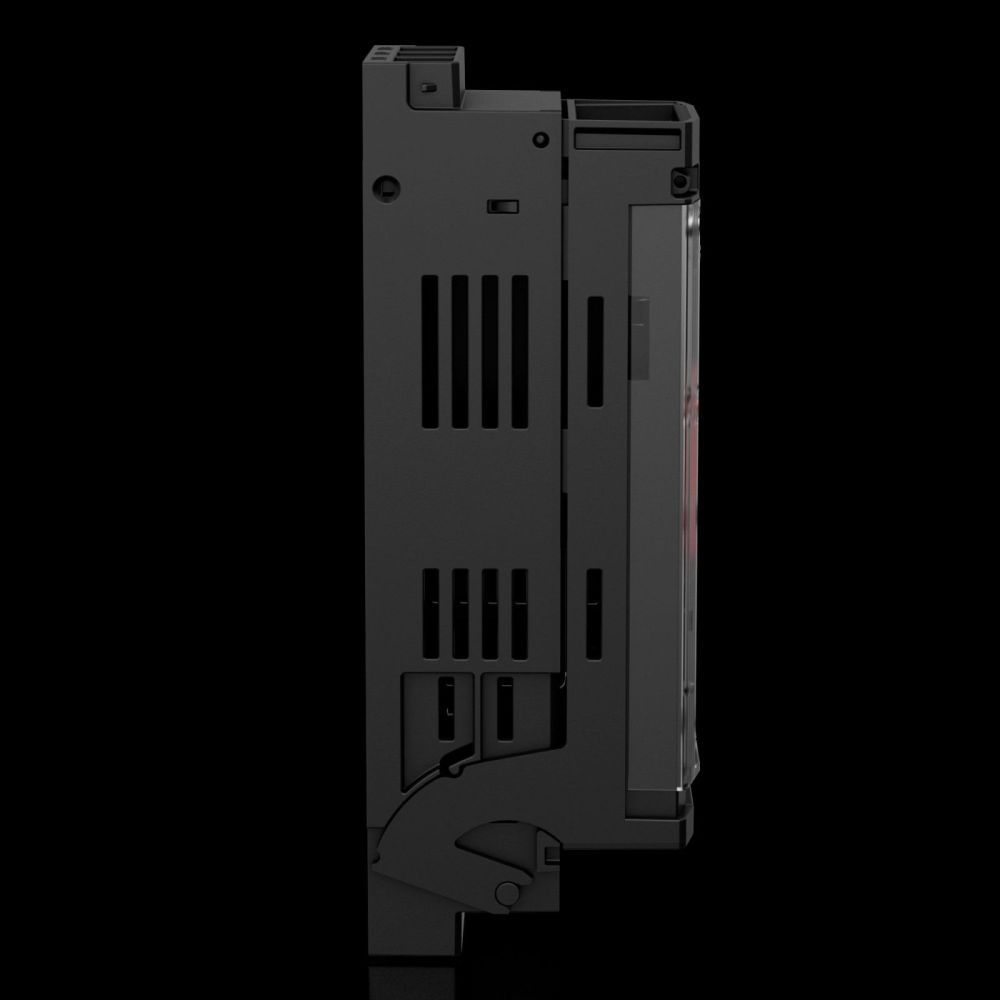

The Rittal RX 9363420 is an NH fuse switch disconnector in size 000, specifically designed for mounting plate installation. It serves as a power disconnector in industrial electrical installations and enables the safe disconnection of circuits using NH fuse inserts. The device is designed for use in enclosures and distributions where reliable and visible protection as well as easy maintenance are required.

Applications
This disconnector is suitable for applications in industrial electrical engineering, particularly in systems with a rated operational voltage of 690 V AC. It is used in switchgear where 3-pole disconnection is required, for example in drive technology, lighting systems, or machine controls. The usage category includes AC-23B (400 V/100 A), AC-21B (500 V/100 A), AC-21B (690 V/100 A), and DC-22B (250 V/100 A), enabling use in various operating conditions.

Functions and Equipment in Detail

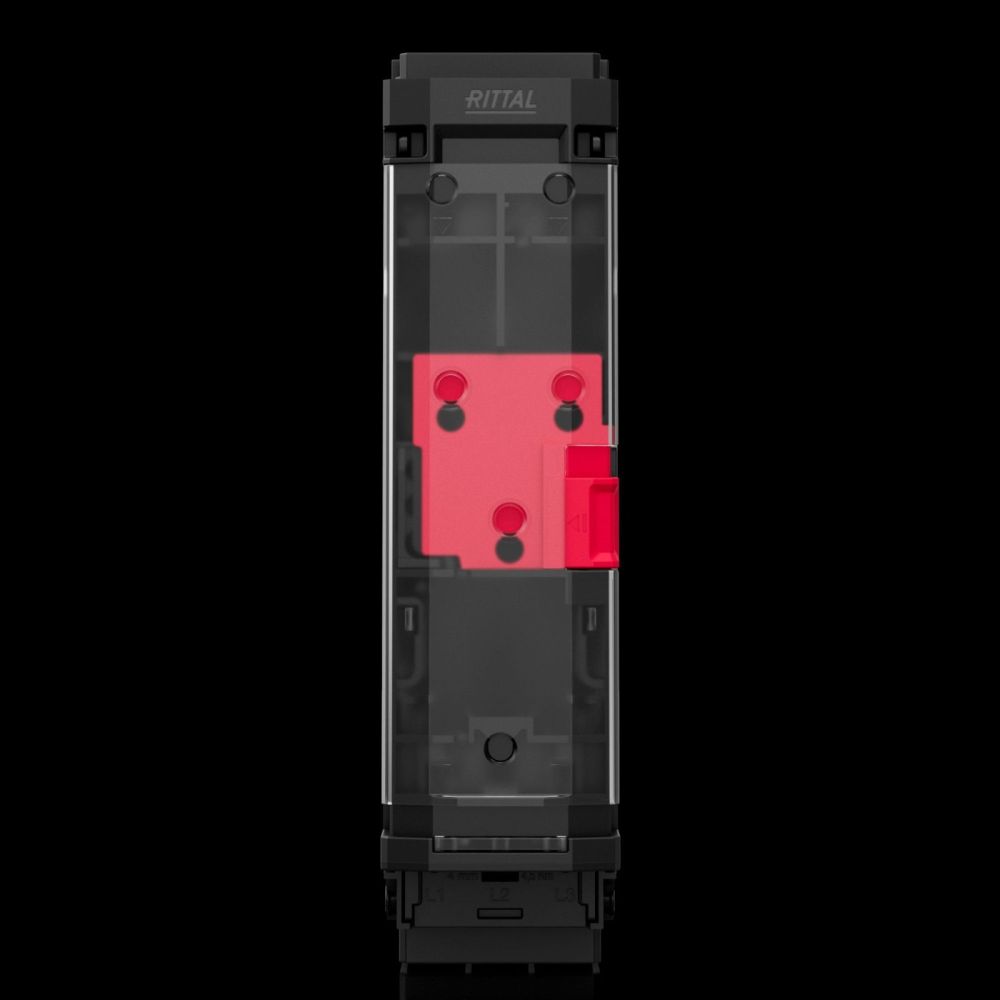

The disconnector’s cover is lockable and sealable, preventing unauthorized manipulation and ensuring compliance with safety regulations. A visual fuse monitoring feature allows direct inspection of the installed NH fuse inserts. Safe voltage testing is performed via integrated test points on the cover, enabling testing without direct contact with live parts. A parking position for the cover facilitates maintenance work, as the cover can be held securely in an open position.

Technology Explained Simply
The device is made of polyamide (PA 6), which meets UL 94 flammability standards, enhancing fire safety. The contact strips are made of electrolytic copper, silver-plated, ensuring high electrical conductivity and corrosion resistance. The connection type is via frame terminals, designed for connecting round conductors. Maximum cross-sections are 16 mm² for round conductors without wire end ferrules and 50 mm² for fine-stranded conductors with wire end ferrules. The rated insulation voltage Ui is 1.000 kV, ensuring high electrical insulation. The protection rating IP 2XB protects against finger contact and vertical dripping water, but not against splashing water or dust — thus, the device is suitable for indoor use.

Compatibility and Accessories
The disconnector is designed for NH size 000 and is compatible with corresponding fuse inserts. As suitable accessories, the microswitch RX 9365500 is offered, intended for use with NH disconnectors of size 000. This can be used for signaling the switch position or integration into control systems.

Mounting and Installation

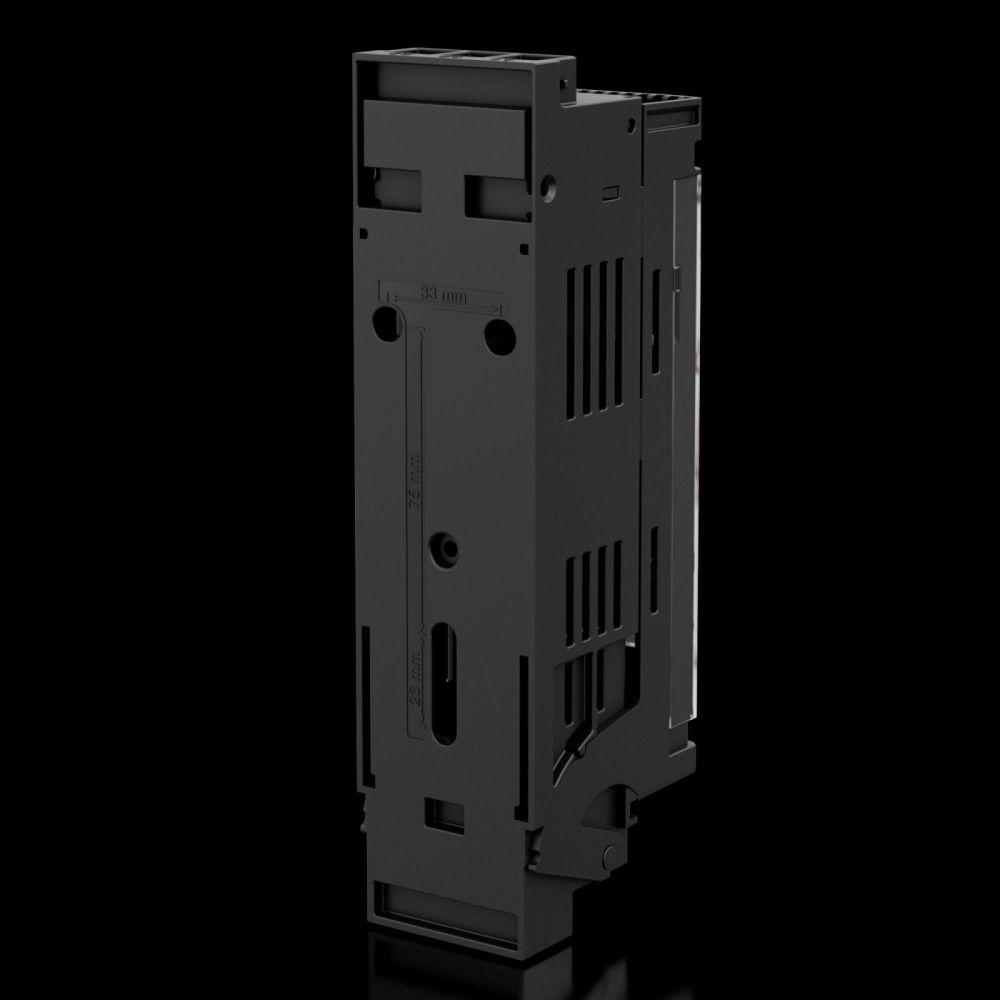

The disconnector is mounted on mounting plates, with wiring exit possible at the top or bottom. A tool-free reconfiguration of the wiring exit is possible, simplifying installation and maintenance. Mounting is done on rails with widths of 15, 20, or 30 mm and thicknesses of 5 or 10 mm.

Operational Advantages
The combination of visual fuse monitoring, safe voltage testing, and parking position reduces maintenance time and increases safety during servicing. The frame terminals enable secure and stable connection of conductors. The rated operational voltage of 690 V AC and the usage categories make the device suitable for a wide range of industrial applications. The operating temperature range of -5 °C to 35 °C and the storage temperature range of -25 °C to 70 °C ensure reliable performance under various environmental conditions.

General
Modelfor panel mounting
MaterialPolyamide (PA 6), flammability rating according to UL 94, contact strips: electrolytic copper, silver-plated
ColourRAL 9005, RAL 35745
Cable exitAbove/under
Electrical connection typeFrame clamp
Fuse linksNH 000
Rated insulation voltage Ui1.000 kV
Rated operating voltage690 V AC
For NH size000
Test basisIEC/DIN EN 60 947-3, DIN EN 60 269-2 (fuse inserts)
Width53 mm
Height216 mm
Depth80,1 mm
Connection of ring conductors1,5 ‐ 16 mm²
Operating temperature range-5 °C...35 °C
Storage temperature range-25 °C...70 °C
Number of poles3-pole
Utility categoryAC-23B (400 V/100 A), AC-21B (500 V/100 A), AC-21B (690 V/100 A), DC-22B (250 V/100 A)
Pollution degree3
Degree of protection IP according to IEC 60 529IP 2XB
Fire load7,29 MJ/m²
Connection of round conductors, fine-stranded without ferrule1,5 ‐ 16 mm²
Connection of stranded wires, fine-stranded with ferrule1,5 ‐ 50 mm²
Cross-section round conductor1,5 ‐ 16 mm²
Maximum power dissipation26 W
Power loss per fuse element (max.)9 W
Copper content (kg/piece)0,26
PCF/VE (Cradle-to-Gate)3,57
For panel mountingJa


Product data sheet
Datasheet for Rittal 9363420, EAN: 4069196001853
