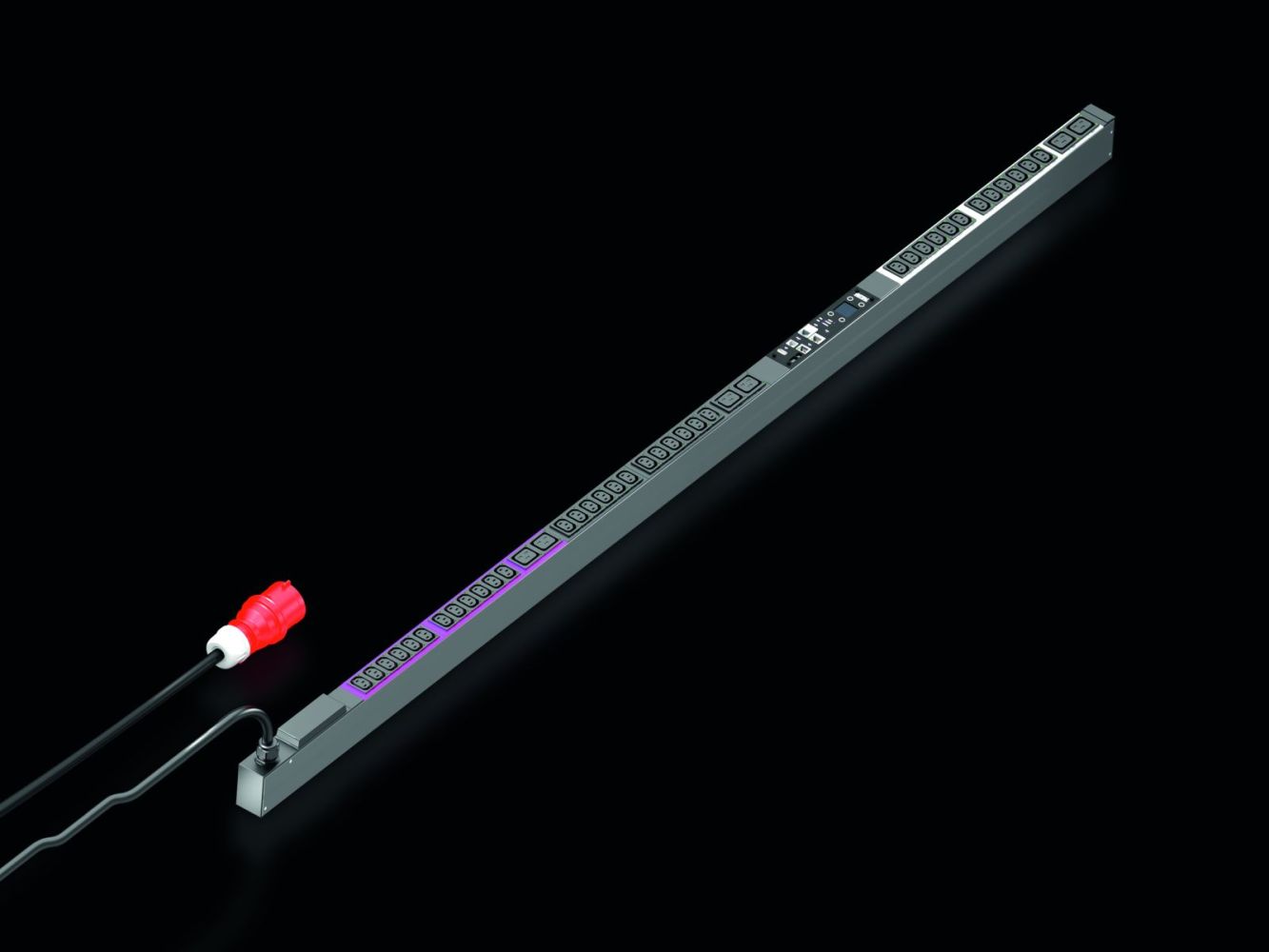

Rittal 7979440 PDU managed 16A/3P CEE 36xC13+6xC19
|
-10% 2.059,65 EUR 2.278,15 EUR |
|
|
( 2.450,98 EUR incl. VAT ) ≈ £1,723.93 | ≈ $2,263.56 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1101076 |
| Mfg Part No: | 7979440 |
| UPC/EAN: | 4028177948242 |
| Weight: | 6.82 kg |
| Type: | DK 7979440 |
Product information for Rittal 7979440:
Applications
The PDU is specifically designed for use in IT infrastructures, particularly in Rittal VX IT or TS IT racks. When mounted vertically, it can be installed tool-free in the Zero-U-Space, enabling flexible positioning within the rack. The phase colour coding (L1=pink, L2=black, L3=white) supports assignment and maintenance. The PDU is suitable for enclosure types with a cabinet frame ≥ 2,000 mm or 19-inch profile rails ≥ 2,200 mm.
Functions and Equipment in Detail
The DK 7979440 features an integrated control and display unit with a bright TFT display (128x128 pixels, RGB, with backlight) for displaying power data and basic configuration. The display is rotatable by 180° and replaceable. Multicoloured LEDs (green/yellow/red) indicate the switching status and limit values for each outlet socket. An integrated electromagnetic buzzer enables acoustic alarm signalling. The PDU is self-powered, requires no external power supply, and features an integrated, fully redundant power supply unit fed from all phases. Measurement accuracy is ±1 % (kWh) according to EN 62053-21.
Technology Explained Simply
The PDU allows individual setting of limit values for voltage, current, and power for each outlet socket. Switching functions are programmable, for example, for sequential power-on after voltage recovery to avoid overloading peaks. Relay states are retained even during power failure. The PDU features bistable relays, enabling low power consumption and high switching capacity, even for inrush currents up to 300 A. The integrated real-time clock with battery backup (up to 10 years, replaceable) ensures accurate timing for measurements and logs.
Compatibility and Accessories
The PDU is equipped with a variety of interfaces: a USB 2.0 interface (USB-A) for mass configuration, firmware updates, and data logging; a CAN-Bus interface (RJ45) for connecting up to 16 CMC III environmental sensors; and a serial RS232 interface (RJ12) for LTE unit, scripting, and CLI. The network interface is fully redundant and supports 10/100/1000 Mbit/s. Supported protocols include HTTP/HTTPS, SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into DCIM software, and FTP/SFTP for file transfers. The PDU can be optionally expanded with surge protection modules Type 3 (with replaceable discharge elements during operation) and differential current measurement (Type B) per input/phase/fuse. Integrated monitoring of the optional surge protection is provided. Additionally, CMC III CAN-Bus sensors can be connected to monitor environmental parameters such as temperature or humidity.
Mounting and Installation
Mounting is tool-free in the Zero-U-Space of Rittal VX IT or TS IT racks. The delivery includes mounting hardware. The supply cable has a length of 3 m and is fitted with a CEE plug. The PDU is designed for use in environments with an operating temperature of 5 °C to 50 °C and relative humidity of 10 % to 95 % (non-condensing). Storage temperature is -20 °C to 70 °C.
Operational Advantages
The DK 7979440 offers high operational reliability through redundant power supply and fault-tolerant architecture. Detailed energy measurement per outlet socket enables precise load monitoring and optimization of energy efficiency. The integrated user management with rights management, LDAP(S)/Radius/Active Directory integration, and Syslog server connection (up to 2 servers) supports integration into existing IT management systems. E-mail alerts (SMTP) and support for TLS 1.2 for secure communication enhance operational safety. The PDU is designed for use in professional IT environments where reliable power distribution and monitoring are required.
| General | |
| Model | PDU, managed |
| Material | Aluminium profile, black anodised, mounting slots: plastic |
| Scope of delivery | Including mounting hardware |
| Options | Overvoltage protection Type 3 with replaceable diverters during operation, with status monitoring, integrable in PDU housing, differential current measurement (Type B) per input/phase/fuse, monitoring of optional overvoltage protection, CMC III CAN-Bus sensors for environment monitoring connectable, max. 16 sensors, other housing colours available |
| Width | 44 mm |
| Depth | 70 mm |
| Length | 1.895 mm |
| Number of sockets and type | 36 x C13 / 6 x C19 |
| Socket outlets | 36 x C 13, 6 x C 19 |
| Rated operating voltage | 400 V (AC) |
| Rated current (max.) | 16 A |
| Nominal power | 11 kW |
| Power supplies | Number: 1, phases per input: 3~ |
| Connection cable length | 3 m |
| Electrical connection type | CEE |
| Interfaces | USB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s |
| Policies | EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU |
| Standards | EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21 |
| Protocols | Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer) |
| Operating temperature range | 5 °C...50 °C |
| Humidity (non-condensing) | 10...95 % |
| Storage temperature range | -20 °C...70 °C |
| Suitable for | Cabinet type: VX IT cabinet frame: ≥ 2,000 mm, cabinet type: VX IT 19"-profile rails: ≥ 2,200 mm |
Questions & answers
What is the delivery time of Rittal 7979440 PDU managed 16A/3P CEE 36xC13+6xC19?
The article Rittal 7979440 PDU managed 16A/3P CEE 36xC13+6xC19 is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7979440 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 7979440 PDU managed 16A/3P CEE 36xC13+6xC19 always at the best possible price. We can give you a discount of 2% on Rittal 7979440 PDU managed 16A/3P CEE 36xC13+6xC19 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
