Rittal 7979435 DK PDU managed 16A/3P CEE 18xC13+3xC19

Your rating:
Average rating
product review for Rittal 7979435 DK PDU managed 16A/3P CEE 18xC13+3xC19
( 4 / 5 ) 1 ratings
Rittal 7979435
This image may differ from the desired article.
Rittal 7979435Rittal 7979435Rittal 7979435Rittal 7979435Rittal 7979435Rittal 7979435Rittal 7979435Rittal 7979435
8.496,43 EUR 8.859,99 EUR
( 10.110,75 EUR incl. VAT )
≈ £7,111.51  |  ≈ $9,337.58
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
Sales unit: 5 pieces
1x Rittal 7979435 DK PDU managed 16A/3P CEE 18xC13+3xC19
Datasheet:file_download Download
Lieske Part No.:1910666
Mfg Part No: 7979435
UPC/EAN: 4028177948198
Weight:5 kg
Type:DK 7979435

Product information for Rittal 7979435:

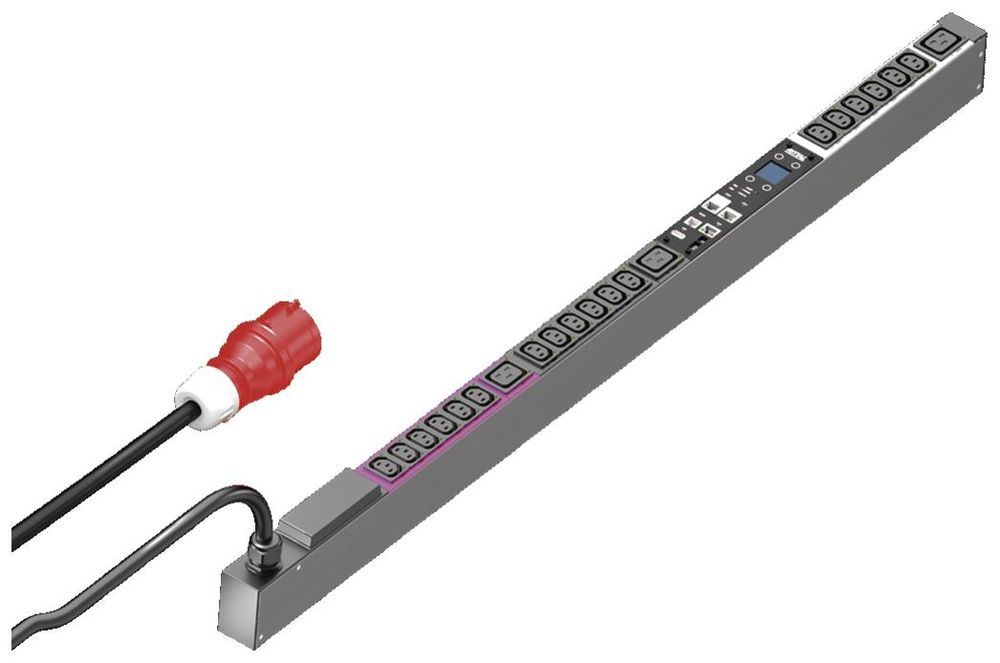

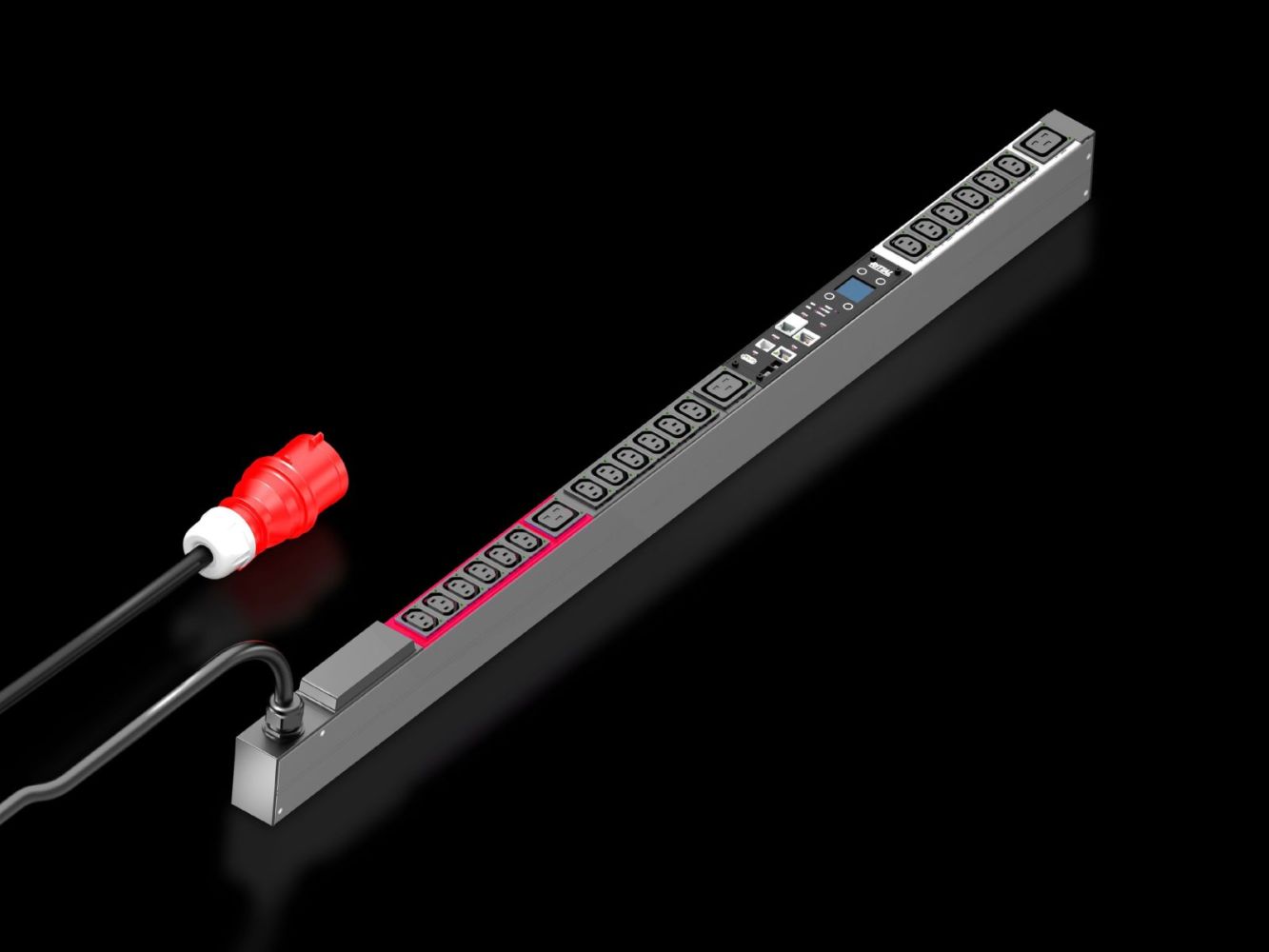

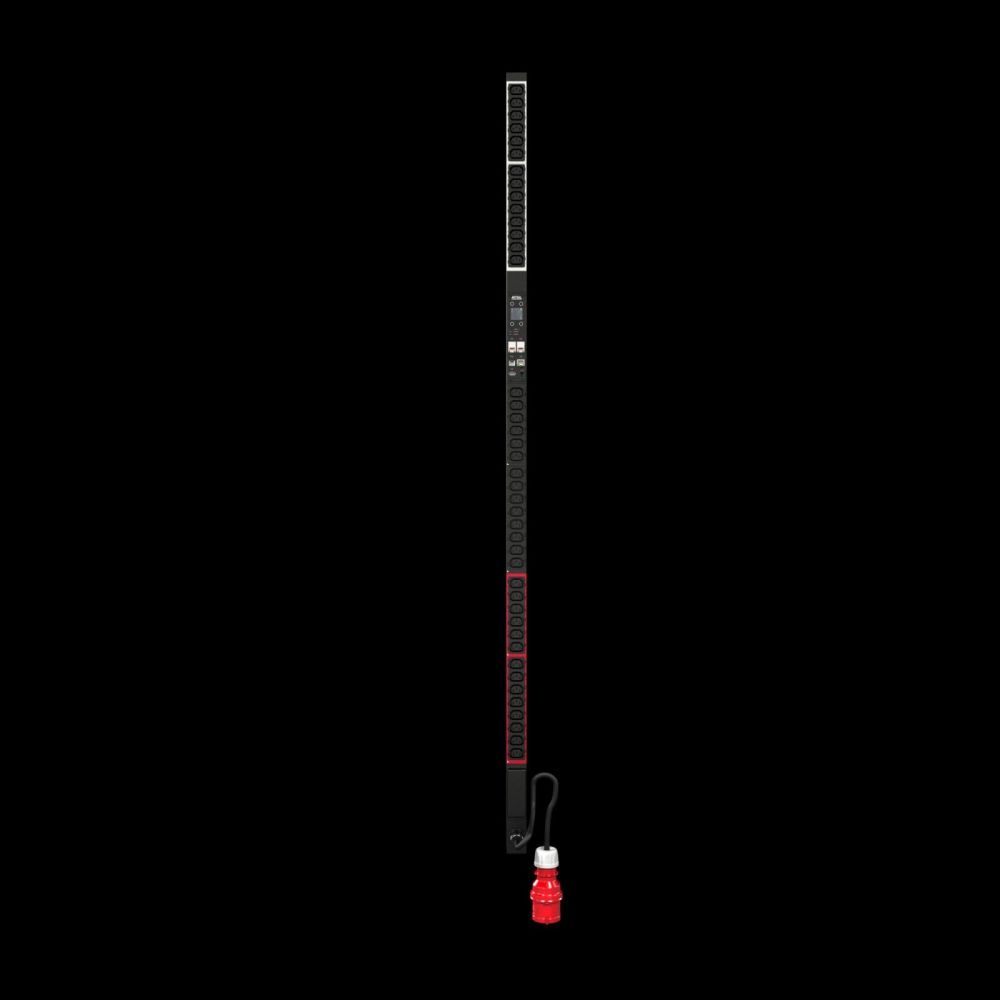

The Rittal DK 7979435 is a managed PDU (Power Distribution Unit) for use in IT network and server racks. It serves as a high-end power distribution unit with integrated energy measurement and monitoring functions, available for each output socket. The device is designed for use in 19-inch technology and offers a compact form factor with a width of 44 mm, depth of 70 mm, and length of 1,095 mm. The PDU is rated for an operating voltage of 400 V (AC) and features a nominal current of 16 A and a nominal power of 11 kW. Power supply is via a CEE plug with a 3 m long supply cable.

Applications

The PDU is specifically designed for use in IT infrastructures, particularly in racks of the Rittal VX IT or TS IT type. When mounted vertically, it can be installed tool-free in Zero-U-Space, minimizing rack space requirements. The installation solution is suitable for enclosure frames with a minimum length of 1,200 mm and for 48,3 cm ( 19 inch ) profile rails with a minimum length of 1,800 mm. The phase color coding (L1=pink, L2=black, L3=white) supports assignment and maintenance.

Functions and Equipment in Detail

The PDU features 18 C13 and 3 C19 sockets made of plastic. The sockets are equipped with multicolored LEDs (green/yellow/red) that visually indicate the switching status and limits for each output. A bright TFT display with 128x128 pixels (RGB) and backlighting shows power data and basic configuration. The display is rotatable by 180° and replaceable, ensuring optimal visibility in various mounting positions. The PDU is self-powered, so no external power supply is required.

Technology Explained Simply

The PDU is equipped with an integrated, fully redundant power supply unit that can be powered from all phases. This ensures fault-tolerant power supply. Measurement accuracy is ±1 % (kWh) according to EN 62053-21. Energy measurement is performed per phase, per input, and per output socket. Additionally, voltage, current, frequency, active power, apparent power, power factor (cosPhi), phase angle, and neutral conductor current are measured. Fuse monitoring is available for PDUs with integrated fuses. The PDU includes an integrated real-time clock with battery backup (up to 10 years, replaceable), which retains time information even during power failure.

Compatibility and Accessories

The PDU supports connection to CMC III CAN-Bus sensors for environmental monitoring, with up to 16 sensors connectable. Optionally, a Type 3 surge protection device with replaceable discharge elements during operation and status monitoring can be integrated. Differential current measurement (Type B) is available per input, phase, and fuse. Accessories include CAN-Bus cables in various lengths (0.5 m, 1.0 m, 1.5 m), covers for C13 and C19 sockets, mounting adapters, and a numeric code lock for CMC III. The PDU is equipped with an integrated electromagnetic buzzer that triggers acoustic alarms.

Mounting and Installation

Mounting is tool-free in Rittal VX IT or TS IT racks. The delivery includes mounting hardware. The PDU can be mounted vertically in Zero-U-Space, minimizing rack space requirements. Installation is performed via the CEE plug at the input.

Operational Advantages

The PDU offers programmable power-on behavior after voltage recovery (on/off/last status) and programmable switching behavior (time/programmable logic). Relay states are retained even during power failure. The bistable relays have low power consumption and high switching capacity, enabling coverage of higher inrush currents up to max. 300 A. Grouping allows simultaneous switching of multiple outputs. Emergency power supply for the web server is provided via PoE, ensuring sequential shutdown of outputs during power failure. The PDU has low self-consumption and is therefore designed to be energy-efficient.

Interfaces and Protocols

The PDU features a fully redundant Ethernet interface (10/100/1000 Mbit/s), a USB 2.0 port (USB-A) for mass configuration, firmware updates, and data logging, a CAN-Bus interface (RJ45) for environmental sensors, and a serial interface RS232 (RJ12) for LTE unit, scripting, and CLI. Communication occurs via protocols such as HTTP, HTTPS, SSL, SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, and FTP/SFTP. Integration into 3rd-party DCIM software is possible via MIB. User management includes rights management, LDAP(S)/Radius/Active Directory integration, and Syslog server integration (up to 2 servers). Email notification on alarm (SMTP) is also supported. The operating temperature ranges from 5 °C to 50 °C, and relative humidity (non-condensing) from 10 % to 95 %. Storage temperature is from -20 °C to 70 °C. The PDU complies with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. Standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21 are met.

The item price shown refers to 5 pieces Rittal 7979435
General
ModelPDU, managed
MaterialAluminium profile, black anodised, mounting slots: plastic
Scope of deliveryIncluding mounting hardware
OptionsOvervoltage protection Type 3 with replaceable diverters during operation, with status monitoring, integrable in PDU housing, differential current measurement (Type B) per input/phase/fuse, monitoring of optional overvoltage protection, CMC III CAN-Bus sensors for environment monitoring connectable, max. 16 sensors, other housing colours available
Width44 mm
Depth70 mm
Length1.095 mm
Number of sockets and type18 x C13 / 3 x C19
Socket outlets18 x C 13, 3 x C 19
Rated operating voltage400 V (AC)
Rated current (max.)16 A
Nominal power11 kW
Power suppliesNumber: 1, phases per input: 3~
Connection cable length3 m
Electrical connection typeCEE
InterfacesUSB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s
PoliciesEMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
StandardsEN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21
ProtocolsWeb server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer)
Operating temperature range5 °C...50 °C
Humidity (non-condensing)10...95 %
Storage temperature range-20 °C...70 °C
Suitable forHousing type: VX IT cabinet frame: ≥ 1,200 mm, housing type: VX IT 19"-profile rails: ≥ 1,800 mm


Product data sheet
Datasheet for Rittal 7979435, EAN: 4028177948198

Questions & answers

What is the delivery time of Rittal 7979435 DK PDU managed 16A/3P CEE 18xC13+3xC19?

The article Rittal 7979435 DK PDU managed 16A/3P CEE 18xC13+3xC19 is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7979435 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 7979435 DK PDU managed 16A/3P CEE 18xC13+3xC19 always at the best possible price. We can give you a discount of 2% on Rittal 7979435 DK PDU managed 16A/3P CEE 18xC13+3xC19 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Rittal 7979435 DK PDU managed 16A/3P CEE 18xC13+3xC19 is offered by us in a sales unit of 5 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
