Rittal 7979336 PDU switched 16A/3P CEE 24xC13 6xC19

Your rating:
Average rating
product review for Rittal 7979336 PDU switched 16A/3P CEE 24xC13 6xC19
( 5 / 5 ) 1 ratings

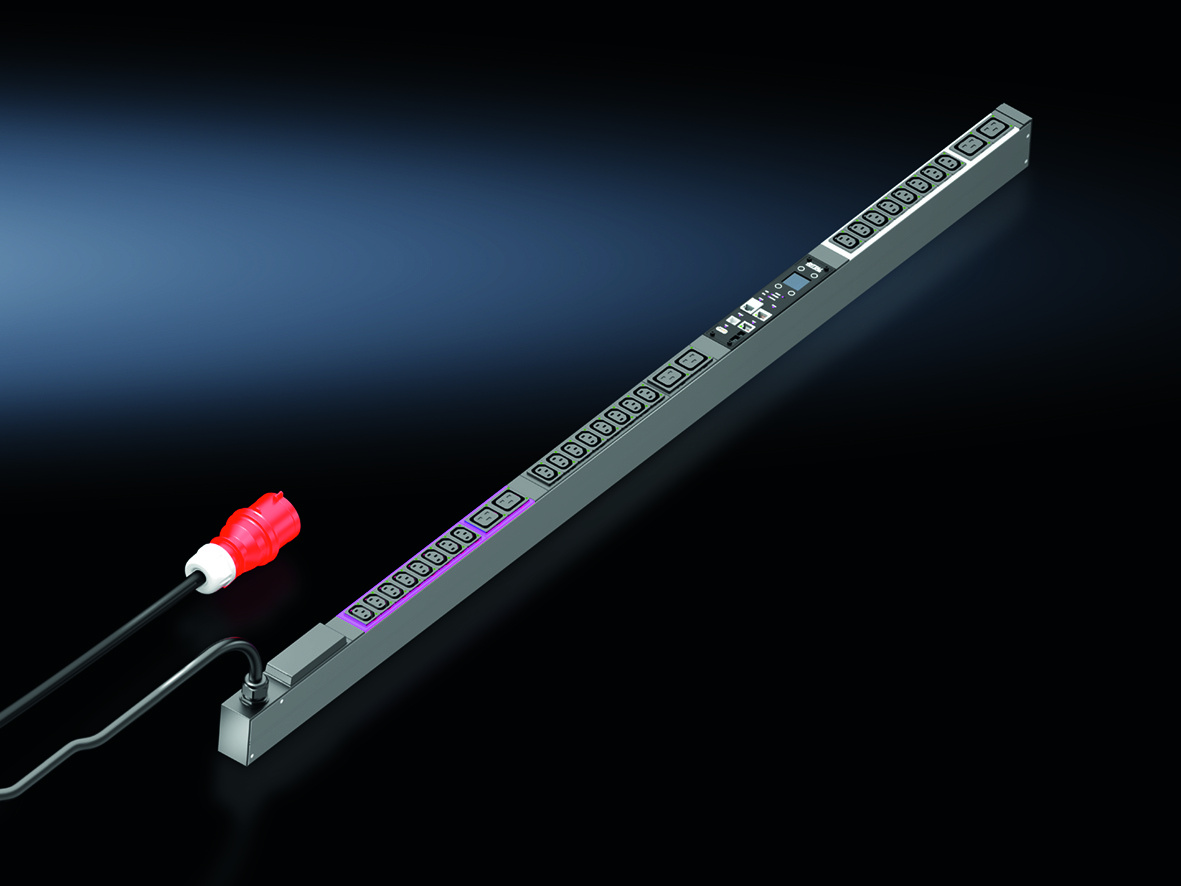

Rittal 7979336
This image may differ from the desired article.
Rittal 7979336Rittal 7979336Rittal 7979336Rittal 7979336Rittal 7979336Rittal 7979336Rittal 7979336Rittal 7979336
1.313,99 EUR
( 1.563,65 EUR incl. VAT )
≈ £1,099.81  |  ≈ $1,444.08
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 7979336 PDU switched 16A/3P CEE 24xC13 6xC19
Datasheet:file_download Download
Lieske Part No.:1910661
Mfg Part No: 7979336
UPC/EAN: 4028177947986
Weight:4.2 kg
Type:DK 7979336

Product information for Rittal 7979336:

The Rittal DK 7979336 is a switched PDU (Power Distribution Unit) for use in IT network and server racks. It serves intelligent power distribution and monitoring in 19-inch systems and enables individual control and measurement of connected devices. The unit is housed in a compact aluminium profile with a black anodised surface and provides a total power of 11 kW at a rated operating voltage of 400 V (AC) and a nominal current of 16 A. Power supply is via a 3-phase input with CEE connector and a supply cable of 3 m length.

Applications
This PDU is specifically designed for use in Rittal VX IT and TS IT racks, where installation in the Zero-U-Space can be done tool-free. It is suitable for IT infrastructures requiring precise energy measurement, load distribution, and remote control. Integrated energy measurement is performed per phase and complies with standard EN 62053-21 with a measurement accuracy of ±1 % (kWh). The phase colour coding (L1=pink, L2=black, L3=white) simplifies assignment and maintenance.

Functions and Equipment in Detail
The PDU features 24 C13 outlets and 6 C19 outlets, each individually switchable. The switching function is implemented using bistable relays, which ensure low power consumption and high switching capacity even at high inrush currents (up to max. 300 A). Relay states are retained even during power failure. The PDU offers programmable switching behaviour, such as sequential power-on after voltage restoration, to avoid overloading peaks. The power-on behaviour after voltage restoration can be programmed to on", "off", or "last status.

Technology Explained Simply
The PDU is equipped with an integrated, fully redundant power supply unit fed from all phases, ensuring fault-tolerant power supply. The display/controller unit is rotatable 180° within the housing and is replaceable. The bright TFT display (128x128 pixels, RGB) with backlighting shows power data and basic configuration. Multicoloured LEDs (green/yellow/red) indicate switching states and warning or alarm thresholds per phase. An integrated electromagnetic buzzer enables acoustic alarm. The real-time clock is equipped with battery backup (max. 10 years, replaceable).

Compatibility and Accessories
The PDU supports a wide range of protocols, including Web server (HTTP, HTTPS, SSL), SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, and FTP/SFTP. Interfaces include a USB 2.0 port (USB-A) for mass configuration, firmware update, and data logging, a CAN-Bus interface (RJ45) for up to 16 environmental sensors (CMC III), and a serial interface RS232 (RJ12) for LTE unit, scripting, CLI, and TLS 1.2. Integrated features include email alerts on alarm (SMTP), user management with rights management, LDAP(S)/Radius/Active Directory integration, and Syslog server connection (up to 2 servers). The fully redundant Ethernet interface (10/100/1000 Mbit/s) enables integration into DCIM software. Optional CMC III CAN-Bus sensors can be connected to monitor environmental data such as temperature or humidity.

Mounting and Installation
Installation is tool-free in the Zero-U-Space of Rittal VX IT or TS IT racks. The delivery includes mounting hardware. The PDU is self-powered and does not require external power supply. Dimensions are 44 mm (width) × 1,495 mm (length) × 70 mm (depth). Operating temperature ranges from 5 °C to 50 °C, and relative humidity (non-condensing) from 10 % to 95 %. Storage temperature is -20 °C to 70 °C.

Operational Advantages
The PDU enables precise energy measurement, load distribution, and remote control. The integrated real-time clock, battery backup, and retention of relay states ensure reliable operation even during power failures. Support for protocols such as SNMP, Modbus/TCP, and OPC-UA facilitates integration into existing monitoring and management systems. The ability to set thresholds for voltage, current, and power, along with operating hour counters (total and cyclic, resettable), supports maintenance and optimisation of IT infrastructure. The PDU is suitable for enclosure types VX IT with cabinet frame ≥ 1,800 mm or 19-inch profile rails ≥ 1,800 mm.

The PDU is certified according to standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21, as well as directives EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. Measurement functions include voltage, current, frequency, active power, active energy, apparent power, apparent energy, power factor (cosPhi), phase angle, neutral conductor current measurement, and unbalanced load detection. For PDUs with integrated fuses, fuse monitoring is provided. The PDU is designed for IT infrastructures requiring high reliability, transparency, and controllability of power supply.

General
ModelPDU, switched
MaterialAluminium profile, black anodised, mounting slots: plastic
Scope of deliveryIncluding mounting hardware
Width44 mm
Depth70 mm
Length1.495 mm
Number of sockets and type24 x C13 / 6 x C19
Socket outlets24 x C 13, 6 x C 19
Rated operating voltage400 V (AC)
Rated current (max.)16 A
Nominal power11 kW
Power suppliesPhases per input: 3~
Connection cable length3 m
Electrical connection typeCEE
InterfacesUSB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s
PoliciesEMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
StandardsEN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21
ProtocolsWeb server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer)
Operating temperature range5 °C...50 °C
Humidity (non-condensing)10...95 %
Storage temperature range-20 °C...70 °C
Suitable forHousing type: VX IT cabinet frame: ≥ 1,800 mm, housing type: VX IT 19"-profile rails: ≥ 1,800 mm


Product data sheet
Datasheet for Rittal 7979336, EAN: 4028177947986

Questions & answers

What is the delivery time of Rittal 7979336 PDU switched 16A/3P CEE 24xC13 6xC19?

The article Rittal 7979336 PDU switched 16A/3P CEE 24xC13 6xC19 is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7979336 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 7979336 PDU switched 16A/3P CEE 24xC13 6xC19 always at the best possible price. We can give you a discount of 2% on Rittal 7979336 PDU switched 16A/3P CEE 24xC13 6xC19 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
