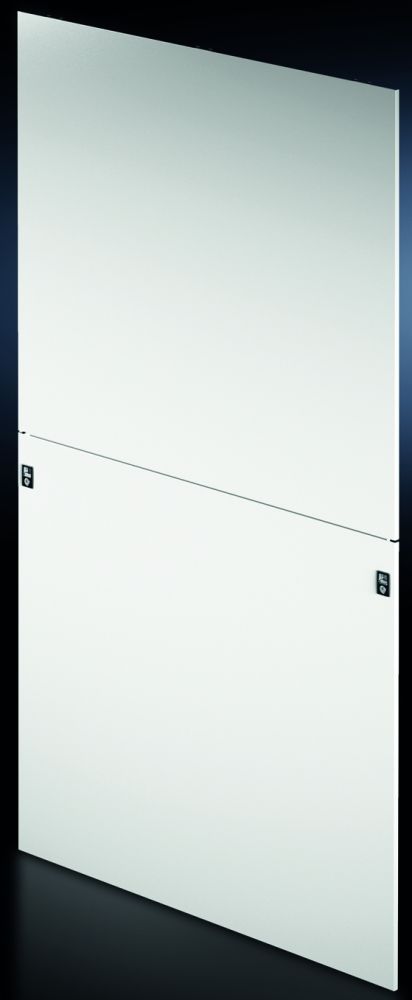

Rittal 5301261 VX IT side panel, horizontally divided, 2200x1200 mm

Your rating:
Average rating
product review for Rittal 5301261 VX IT side panel, horizontally divided, 2200x1200 mm
( 4.3 / 5 ) 3 ratings
Rittal 5301261
This image may differ from the desired article.
Rittal 5301261Rittal 5301261Rittal 5301261
260,48 EUR
( 309,97 EUR incl. VAT )
≈ £218.02  |  ≈ $286.27
plus delivery charges: 235,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 5301261 VX IT side panel, horizontally divided, 2200x1200 mm
Datasheet:file_download Download
Lieske Part No.:1910579
Mfg Part No: 5301261
UPC/EAN: 4028177950689
Weight:25.2 kg
Type:VX 5301261

Product information for Rittal 5301261:

The Rittal side panel VX 5301261 is a horizontal, two-part component for IT rack systems of type VX IT. It is designed for closing the side surfaces of enclosures in single installation or in baying. The product is specifically designed for enclosures with a height of 2,200 mm and a depth of 1,200 mm. The side panel is made of sheet steel and powder-coated in the colour RAL 7035, ensuring a robust and uniform surface. The protection class IP 20 according to IEC 60 529 protects against contact with fingers and against solid foreign objects, but is not waterproof or dust-tight.

Applications

The side panel is designed for use in IT infrastructures where secure and orderly closing of enclosure sides is required. It is suitable for both individual enclosures and multiple units arranged side by side (baying). The horizontal division enables easy installation and maintenance, as the individual parts can be handled independently.

Functions and equipment in detail

The side panel offers tool-free insertion and removal, simplifying installation and maintenance. The locking is achieved via a security locking system of type 3524 E, ensuring secure closure. An integrated internal locking mechanism provides additional security and prevents accidental opening. The product is supplied with an upper part and a lower part, supplemented by 6 mounting brackets and 2 locking components. The fastening material is also included in the delivery scope.

Technology explained clearly

The horizontal division of the side panel enables modular handling. The tool-free insertion and removal reduces installation effort and accelerates maintenance work. The security locking system 3524 E is a standardised locking system widely used in industry and offers high security. The integrated internal locking ensures that the side panel cannot be opened even under mechanical stress or vibrations. The surface made of powder-coated sheet steel provides corrosion protection and is suitable for use in industrial environments.

Compatibility and accessories

The side panel is specifically designed for enclosures of type VX IT with dimensions of 2,200 mm height and 1,200 mm depth. As suitable accessories, the internal locking DK 7824510 is offered, which is suitable for lockable side panels. This can be used to extend security functions.

Installation and mounting

Mounting is carried out using the supplied mounting brackets and locking components. The tool-free mounting enables quick and easy installation. The horizontal division facilitates the insertion and replacement of the side panel, especially during maintenance work.

Advantages in operation

The side panel provides reliable closure for IT enclosures, thereby increasing the security of the installed devices. The tool-free mounting reduces work effort and accelerates installation. The integrated internal locking and the security locking system 3524 E ensure a high security standard. The robust construction made of sheet steel and the powder-coated surface ensure long service life and resistance to mechanical stress.

General
Materialsteel sheet
Surface protectionPowder-coated
ColourRAL 7035
Scope of deliveryTop section, bottom section, 6 mounting brackets, 2 locking parts, including fastening material
Suitable forHousing type: VX IT, height: = 2,200 mm, depth: = 1,200 mm
Degree of protection IP according to IEC 60 529IP 20
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)96 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 5301261, EAN: 4028177950689

Questions & answers

What is the delivery time of Rittal 5301261 VX IT side panel, horizontally divided, 2200x1200 mm?

The article Rittal 5301261 VX IT side panel, horizontally divided, 2200x1200 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5301261 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5301261 VX IT side panel, horizontally divided, 2200x1200 mm always at the best possible price. We can give you a discount of 2% on Rittal 5301261 VX IT side panel, horizontally divided, 2200x1200 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
