Rittal 3239308 Blue e+ outlet filter, RAL 9005

Your rating:
Average rating
product review for Rittal 3239308 Blue e+ outlet filter, RAL 9005
( 4.7 / 5 ) 3 ratings
Rittal 3239308
This image may differ from the desired article.
Rittal 3239308Rittal 3239308Rittal 3239308Rittal 3239308Rittal 3239308Rittal 3239308Rittal 3239308
32,66 EUR
( 38,87 EUR incl. VAT )
≈ £27.34  |  ≈ $35.89
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 3239308 Blue e+ outlet filter, RAL 9005
Datasheet:file_download Download
Lieske Part No.:683804
Mfg Part No: 3239308
UPC/EAN: 4028177998384
Weight:0.47 kg
Type:SK 3239.308

Product information for Rittal 3239308:

The Rittal SK 3239.308 is an outlet filter for filter fans of the SK 3239.7xx series, specifically designed for enclosure climate control. It serves to dissipate waste heat from enclosures, ventilate the interior space, and protect temperature-sensitive components. The function is achieved by directly supplying ambient air, the temperature of which must be below the permissible enclosure internal temperature. The device is designed for wall mounting and is made of plastic in the colour RAL 9005. Dimensions are 204 mm width, 204 mm height, and 45.8 mm depth, with the mounting cutout requiring a 177 mm width and 177 mm height opening.

Applications
The outlet filter is used in industrial installations where controlled ventilation and cooling of enclosures are required. It is particularly suitable for environments with increased dust or moisture exposure, as it can achieve various protection ratings in combination with appropriate filters. The device is used exclusively in conjunction with the filter fan SK 3239.7xx, creating a complete climate control solution.

Functions and Equipment in Detail

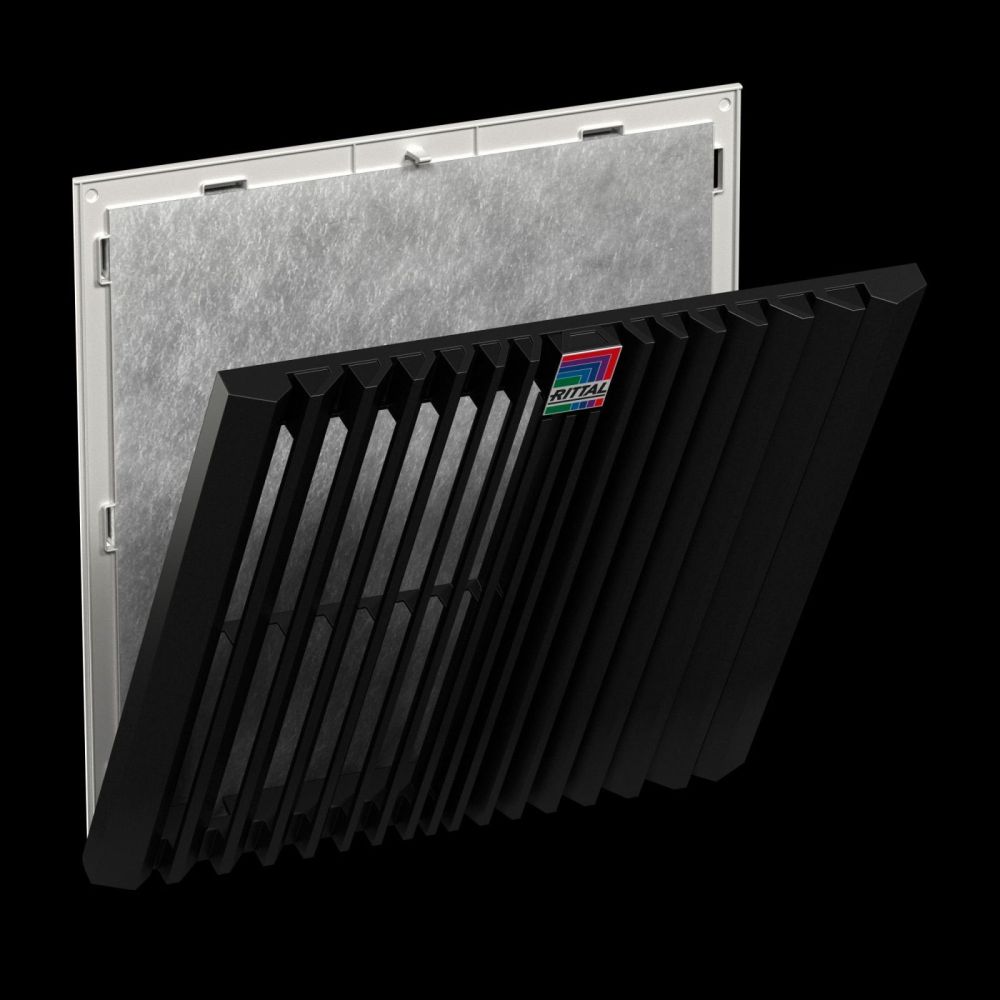

The filter features a new opening mechanism on the louver grille, which simplifies filter replacement. Mounting to the enclosure is tool-free and accelerated by optimised snap hooks. The delivery includes the outlet filter and a pleated filter. The filter components ensure efficient air purification and contribute to achieving the desired protection ratings.

Technology Explained Simply
Protection rating IP 54 is achieved when the filter is operated with a non-woven or pleated filter. For IP 54, an additional absorber mat is required, while IP 54 is achieved by combining a non-woven or pleated filter with a spray water hood. According to NEMA standards, the filter provides Type 12 protection with non-woven or pleated filter, and Type 3, 3R, 4, and 4X when used with an additional spray water hood. These protection ratings ensure effective protection against dust and splashing water, making it suitable for outdoor use or in moist industrial environments.

Compatibility and Accessories
The outlet filter is specifically designed for filter fans of the SK 3239.7xx series. Available accessories include replacement filter mats, spray water hoods made of stainless steel, absorber mats for IP 54, pleated filters for IP 54, and blanking covers for mounting cutouts. These components allow adaptation of the protection rating to specific environmental conditions and support maintenance and replacement of filter elements.

Mounting and Installation
Mounting is tool-free and can be quickly and securely performed on the enclosure using optimised snap hooks. A mounting cutout of 177 mm × 177 mm must be provided in the enclosure. The tool-free mounting reduces installation time and minimises the risk of mounting errors.

Advantages in Operation
The filter offers simple and quick maintenance thanks to the new opening mechanism on the louver grille. Tool-free mounting and rapid installation on the enclosure increase efficiency during commissioning and maintenance. The combination with various filter and protection components allows flexible adaptation to different operating conditions, thereby enhancing operational reliability and the service life of enclosure components.

General
ModelWall surface mounted
MaterialPlastic
ColourRAL 9005
Scope of deliveryOutlet filter, pleated filter
Mounting cutoutCutout width: 177 mm, cutout height: 177 mm
Suitable for part no.SK 3239.7xx
Width204 mm
Height204 mm
Depth45,8 mm
NEMA degree of protectionType 12 with felt filter/pleated filter, Type 3, 3R, 4, 4X with felt filter/pleated filter and spray water hood
Degree of protection IP according to IEC 60 529IP 54 with nonwoven filter/pleated filter, IP 55 with pleated filter and absorber mat, IP 56 with nonwoven filter/pleated filter and spray water hood


Product data sheet
Datasheet for Rittal 3239308, EAN: 4028177998384
