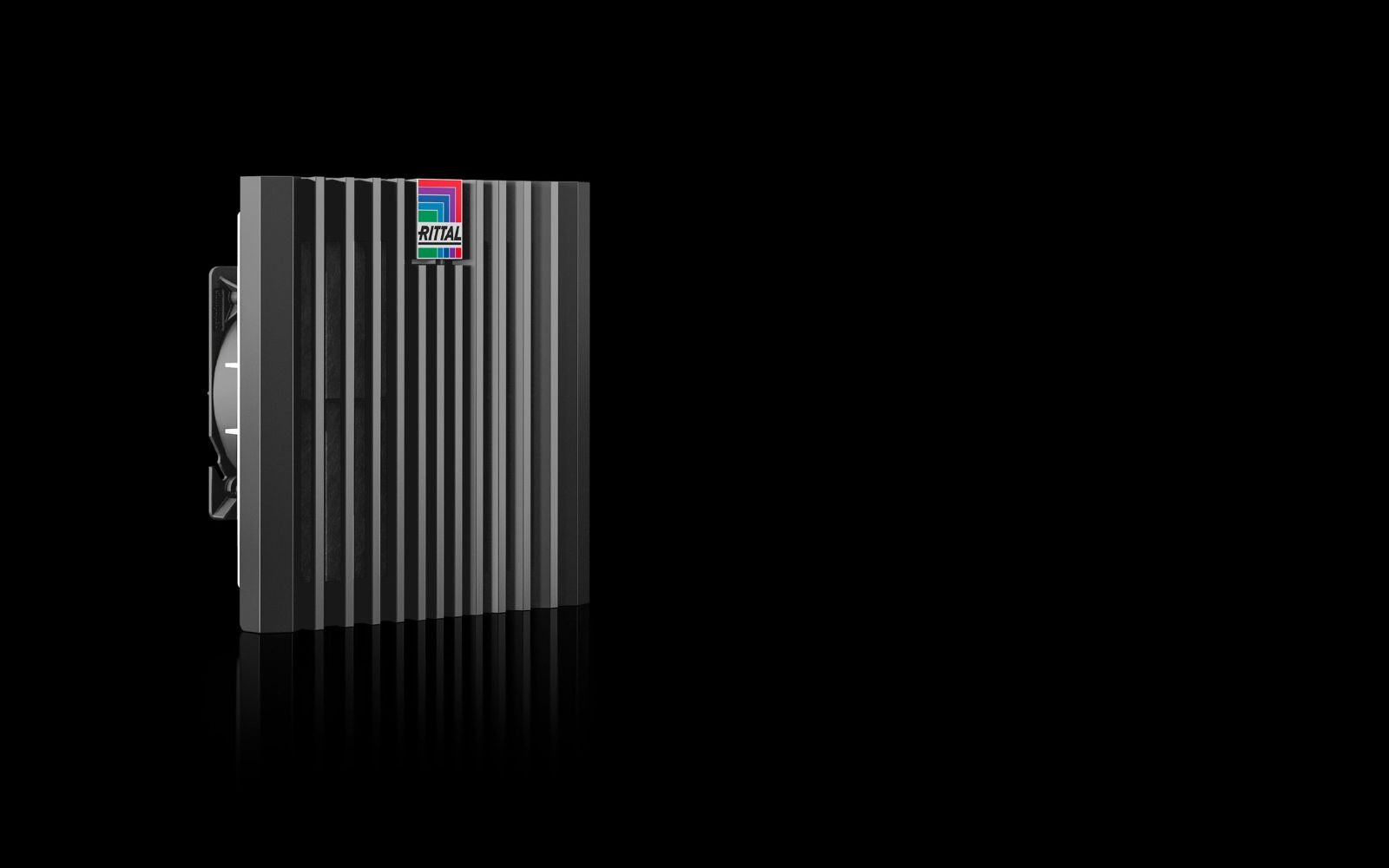

Rittal 3239718 Blue e+ filter fan 110/125 m³/h, 115 V, RAL 9005
|
117,65 EUR 119,26 EUR |
|
|
( 140,00 EUR incl. VAT ) ≈ £98.47 | ≈ $129.30 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 683816 |
| Mfg Part No: | 3239718 |
| UPC/EAN: | 4028177998186 |
| Weight: | 0.92 kg |
| Type: | SK 3239.718 |
Product information for Rittal 3239718:
Applications
The filter fan is suitable for industrial systems requiring continuous, clean air circulation within enclosures. It is commonly used in machine building, automation technology, and process control, where compliance with protection ratings and prevention of dust and particle ingress are critical. The diagonal fan technology ensures more uniform and consistent air distribution within the enclosure, guaranteeing more efficient cooling of electronic assemblies.
Functions and Equipment in Detail

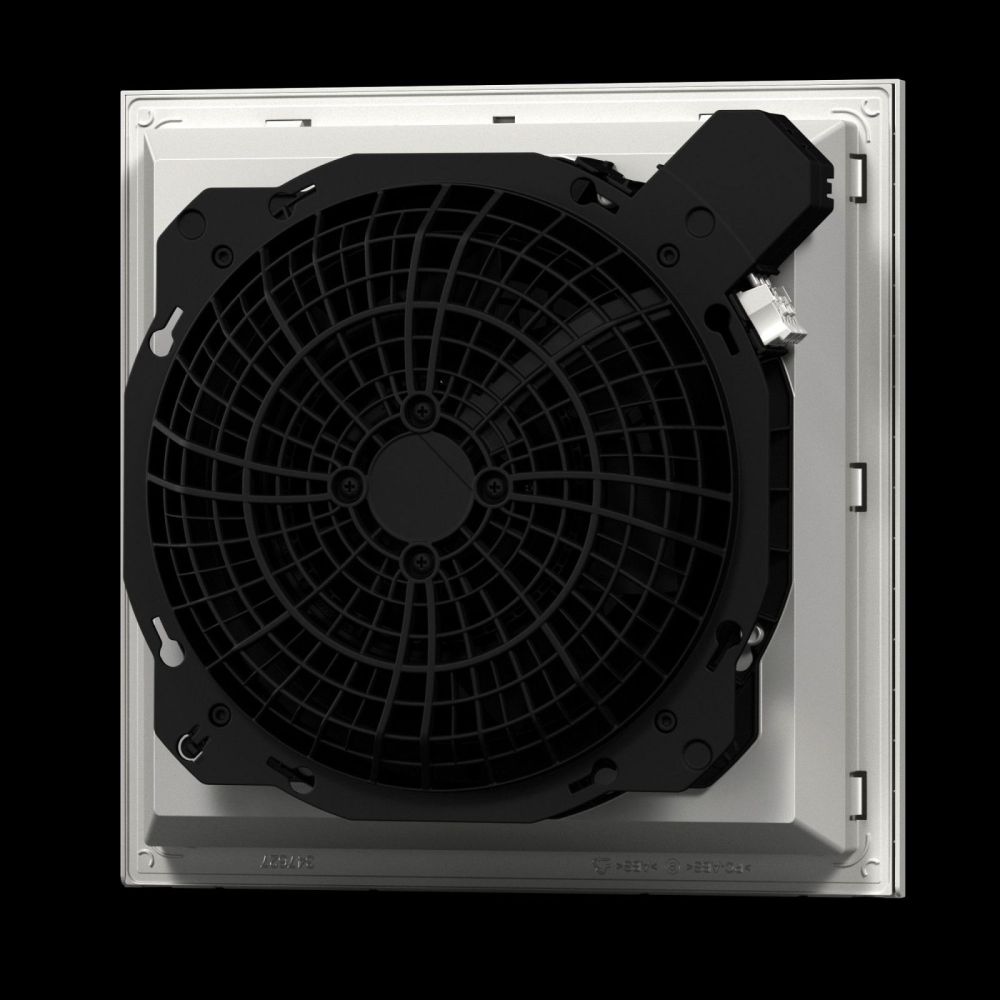

The fan features an axial fan with a split-pole motor, designed for reliable and quiet operation. The air performance is 110 m³/h at 50 Hz and 125 m³/h at 60 Hz when free-blown, decreasing to 92 m³/h (50 Hz) and 104 m³/h (60 Hz) when an outlet filter is used. The rated power is 15.4 W (50 Hz) and 15.8 W (60 Hz), with a rated current of up to 0.2 A (50 Hz) or 0.21 A (60 Hz). The rated operating voltage is 115 V, 1~, 50 Hz/60 Hz, enabling universal use in various power networks.
Technology Explained Simply
The diagonal airflow direction ensures even air distribution within the enclosure, resulting in more consistent cooling performance. The pleated filters included in the delivery filter dust and particles from the incoming air, increasing air cleanliness inside the enclosure. The protection rating IP 54 is achieved when the fan is operated with a nonwoven or pleated filter. Using an absorber mat increases the protection rating to IP 55, and with a spray water hood, it reaches IP 56. According to NEMA standards, the device corresponds to Type 12 with filters and Type 3, 3R, 4, 4X with filters and spray water hood. The sound pressure levels are 51 dB(A) (50 Hz) and 54 dB(A) (60 Hz), ensuring acoustically pleasant operation.
Compatibility and Accessories
Various accessories are available to extend protection ratings and functionality. These include outlet filters in RAL 9005, replacement filter mats with filtration efficiency of 95 % or higher, a spray water hood made of stainless steel, an absorber mat for IP 54, and pleated filters in packs of five. For precise temperature control, a thermostat, speed controller, or digital temperature display and control can be used. A blanking plate for the mounting cutout is also available if the fan is not installed.
Mounting and Installation
Mounting is tool-free, using optimized snap hooks that allow quick and secure attachment to the enclosure. The mounting cutout measures 177 mm (width) × 177 mm (height), and the installation depth is 84 mm. The device dimensions are 204 mm (width) × 204 mm (height) × 105 mm (depth). Electrical connection is made via spring clamp terminals, whereas other models of type 3237.XXX provide connection via individual wires. The fuse has a rated current of 2 A.
Operational Advantages
The filter fan offers high air performance with low energy consumption and allows flexible adjustment of protection ratings through additional filters and covers. Tool-free mounting and easy filter replacement via a new opening mechanism on the louver grille reduce maintenance time. The operating temperature range is -15 °C to 55 °C, and the storage temperature range is -30 °C to 70 °C, ensuring broad applicability in various environments.
| General | |
| Model | Wall surface mounted |
| Material | Plastic |
| Colour | RAL 9005 |
| Scope of delivery | Complete ready-to-install unit, including pleated filter |
| Fan | Axial, split-pole motor |
| Airflow free blowing (with pleated filter) | At 50 Hz: 110 m³/h, At 60 Hz: 125 m³/h |
| Airflow with associated exhaust filter including pleated filter | At 50 Hz: 92 m³/h, At 60 Hz: 104 m³/h |
| Airflow free-blowing (with filter) | At 50 Hz: 100 m³/h, At 60 Hz: 115 m³/h |
| Airflow with associated exhaust filter including felt filter | At 50 Hz: 75 m³/h, At 60 Hz: 86 m³/h |
| Rated operating voltage | 115 V, 1~, 50 Hz/60 Hz |
| Rated power Pel | At 50 Hz: 15.4 W, at 60 Hz: 15.8 W |
| Rated current max. | At 50 Hz: 0.2 A, At 60 Hz: 0.21 A |
| Width | 204 mm |
| Height | 204 mm |
| Depth | 105 mm |
| Built-in depth | 84 mm |
| Mounting cutout | Cutout width: 177 mm, cutout height: 177 mm |
| Degree of protection IP according to IEC 60 529 | IP 54 with nonwoven filter/pleated filter, IP 55 with pleated filter and absorber mat, IP 56 with nonwoven filter/pleated filter and spray water hood |
| NEMA degree of protection | Type 12 with felt filter/pleated filter, Type 3, 3R, 4, 4X with felt filter/pleated filter and spray water hood |
| Fuse | Circuit breaker/fuse: 2 A |
| Note | For the filter fan 3237.XXX, the electrical connection is made via 2 individual wires (approx. 300 mm length) on the device; for all other filter fans, via spring clamp terminal. |
| Operating temperature range | -15 °C...55 °C |
| Storage temperature range | -30 °C...70 °C |
| Sound pressure level | At 50 Hz: 51 dB(A), At 60 Hz: 54 dB(A) |
