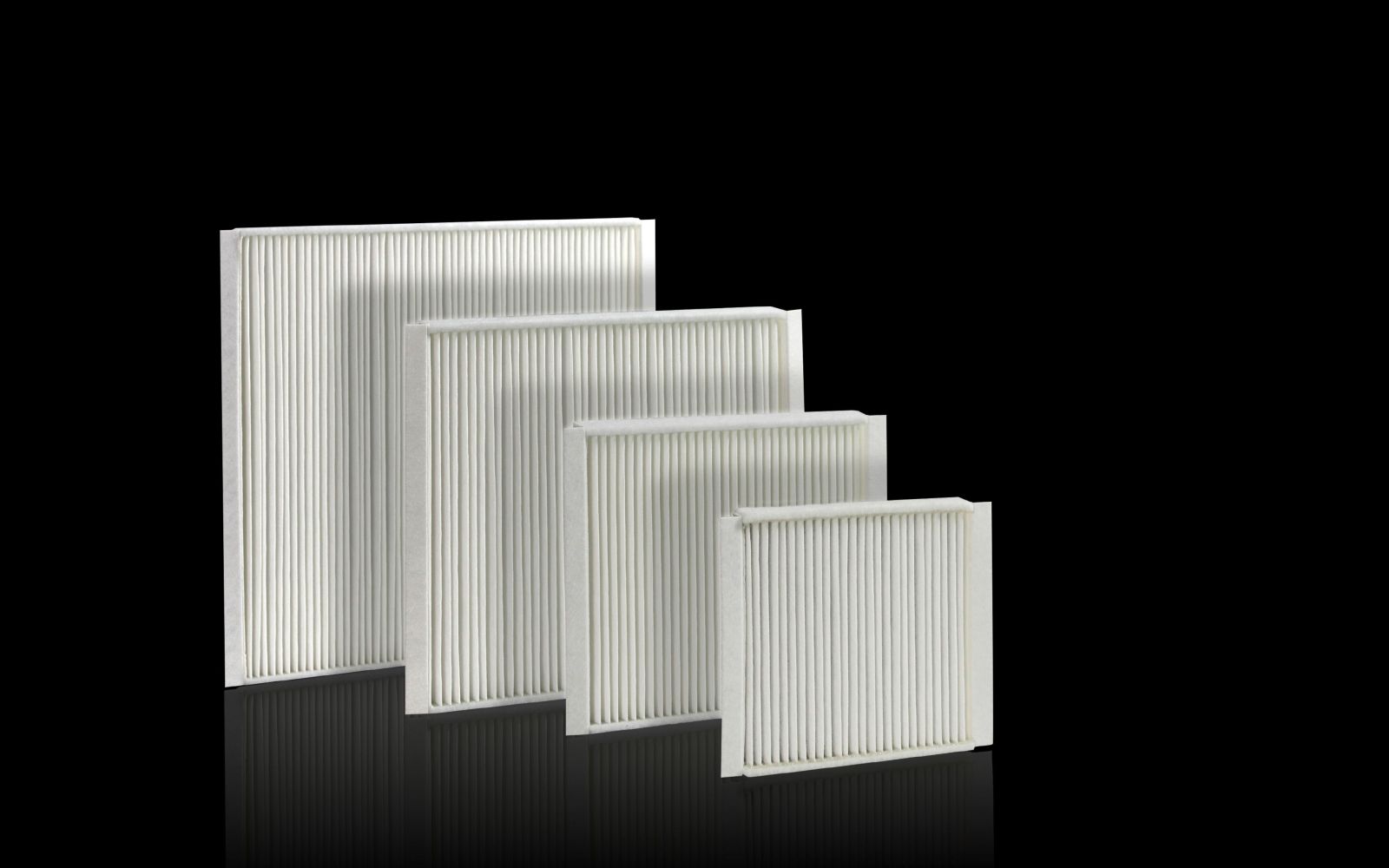

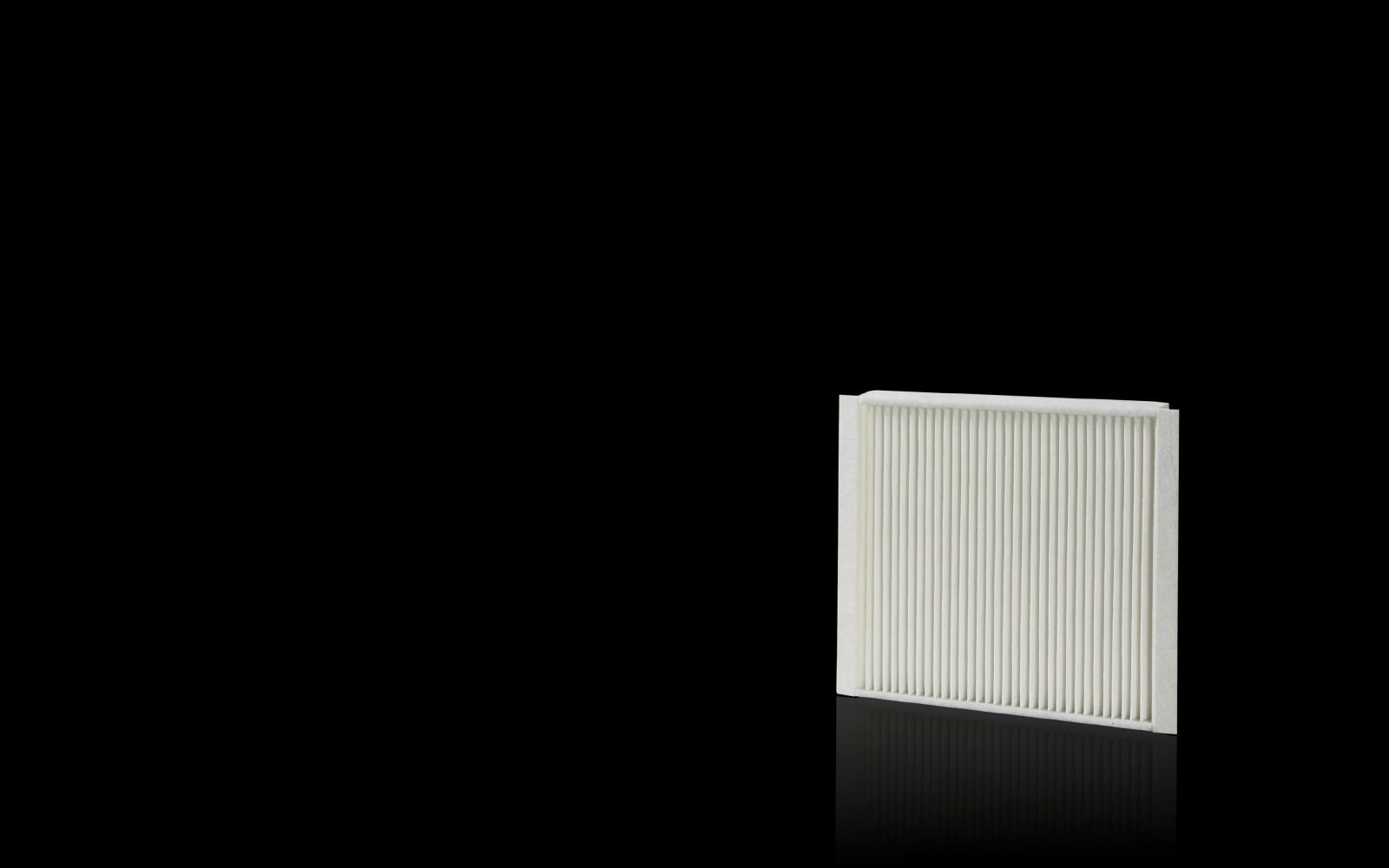

Rittal 3171120 Pleated filter IP54 for filter fan/outlet filter

Your rating:
Average rating
product review for Rittal 3171120 Pleated filter IP54 for filter fan/outlet filter
( 4.5 / 5 ) 4 ratings
Rittal 3171120
This image may differ from the desired article.
Rittal 3171120Rittal 3171120
39,79 EUR
( 47,35 EUR incl. VAT )
≈ £33.30  |  ≈ $43.73
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 3171120 Pleated filter IP54 for filter fan/outlet filter
Datasheet:file_download Download
Lieske Part No.:836425
Mfg Part No: 3171120
UPC/EAN: 4028177969155
Weight:0.22 kg
Type:SK 3171120

Product information for Rittal 3171120:

The Rittal SK 3171120 is a pleated filter for filter fans and outlet filters, specifically designed for use in enclosures and industrial climate control systems. The product is made of PET material and is available in white. It is intended for use with devices of article number 3239.xxx, where the performance data, protection rating, and approvals of the devices are only guaranteed when used with original Rittal filter mats. The filter has dimensions of 167 mm width, 167 mm height, and 21 mm depth. It is not suitable for use in EMC filter fans.

Applications

The pleated filter is used in filter fans, roof fans, cooling units, and chillers to improve air quality within enclosures. It is particularly suitable for applications requiring efficient dust separation and simultaneous air permeability. The filter technology ensures less dust enters the enclosure, extending the lifespan of electronic components and increasing maintenance intervals.

Functions and Features in Detail

The filter achieves filter class G4 according to DIN EN 779 and ISO Coarse 70 % according to DIN EN ISO 16890. This classification means it effectively retains fine particles in the range of 10 to 100 micrometers. The pleated structure allows for higher airflow compared to conventional nonwoven filters, increasing the performance of climate control units and reducing energy consumption. The filter mats are made of PET, a robust and chemical-resistant material suitable for industrial applications.

Technology Explained Simply

Pleated filter technology offers significantly higher airflow compared to conventional filters, as the pleats increase the filter surface area without increasing the overall size of the filter. This reduces air resistance, thereby increasing fan efficiency. The protection rating IP 54, achieved when mounted in filter and roof fans/outlet filters, means the filter is protected against dust and splashing water. This makes it suitable for use in industrial environments where some contamination and moisture may occur.

Compatibility and Accessories

The filter is specifically developed for use with devices of article number 3239.xxx. It is not compatible with EMC filter fans. The use of original Rittal filter mats is required to ensure full performance data and device approvals. The filter mats are available in packs of five.

Installation and Mounting

Mounting is done into the designated filter holders of filter fans or outlet filters. The exact installation instructions are provided in the respective device manual for article number 3239.xxx. The filter mats must be securely inserted into the holder to ensure optimal airflow and filter performance.

Operational Advantages

Improved filter performance keeps the air inside the enclosure cleaner, increasing the reliability of electronic components. The longer service life of the filter mats reduces maintenance costs and the need for service calls. The lower air resistance leads to more efficient fan operation and thus lower energy consumption. The IP 54 protection rating ensures reliable operation even in dirty or moist environments.

General
Modelfor filter fans/exhaust filters
MaterialPET
ColourWhite
NoteThe performance data, degree of protection and approvals of the devices are only guaranteed in combination with original Rittal filter mats.
Suitable for part no.3239.xxx
Width167 mm
Height167 mm
Depth21 mm
Filter classaccording to DIN EN 779: G4, according to DIN EN ISO 16890: ISO Coarse 70 %
Degree of protection IP according to IEC 60 529IP 54 when mounted in filter & roof fan/exhaust filter
Note on part numberNot suitable for use in EMC filter fans.


Product data sheet
Datasheet for Rittal 3171120, EAN: 4028177969155

Questions & answers

What is the delivery time of Rittal 3171120 Pleated filter IP54 for filter fan/outlet filter?

The article Rittal 3171120 Pleated filter IP54 for filter fan/outlet filter is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3171120 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3171120 Pleated filter IP54 for filter fan/outlet filter always at the best possible price. We can give you a discount of 2% on Rittal 3171120 Pleated filter IP54 for filter fan/outlet filter if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
