Rittal 3239710 Blue e+ filter fan 110/125 m³/h, 115 V, RAL 7035

Your rating:
Average rating
product review for Rittal 3239710 Blue e+ filter fan 110/125 m³/h, 115 V, RAL 7035
( 4.8 / 5 ) 4 ratings

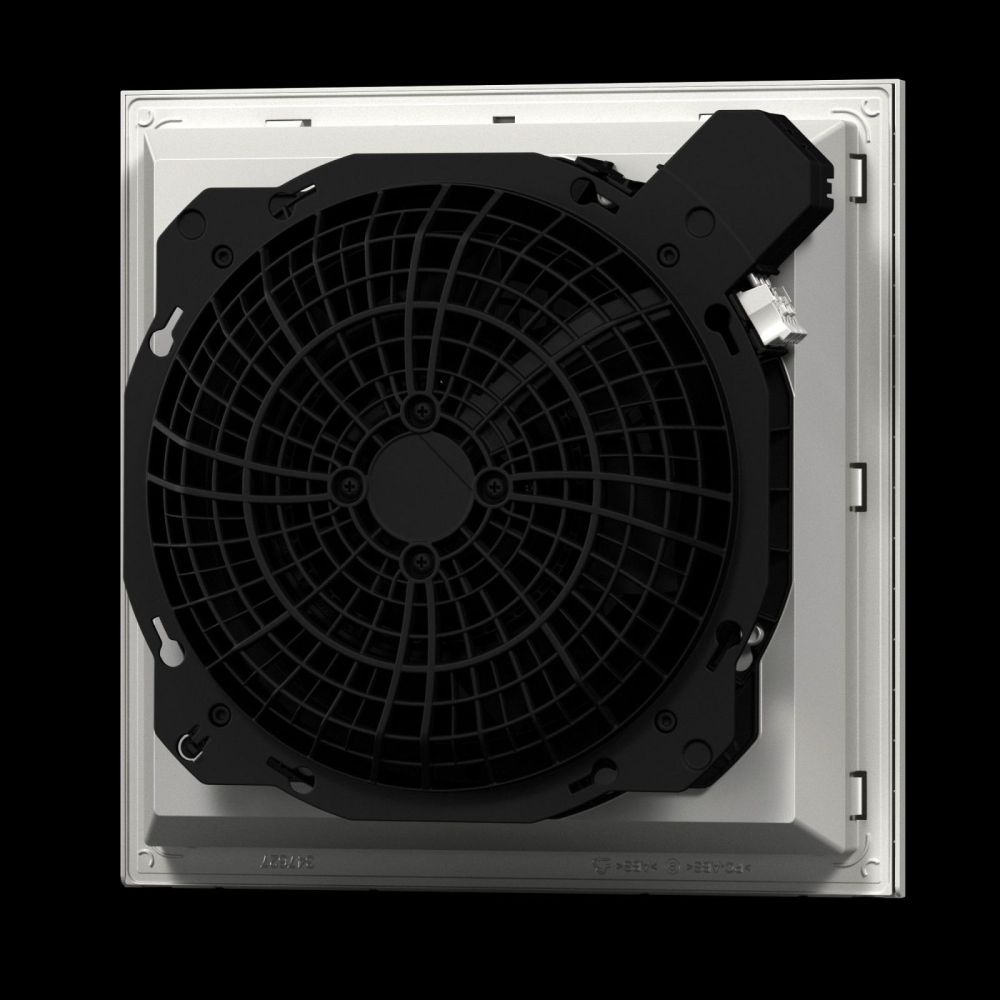

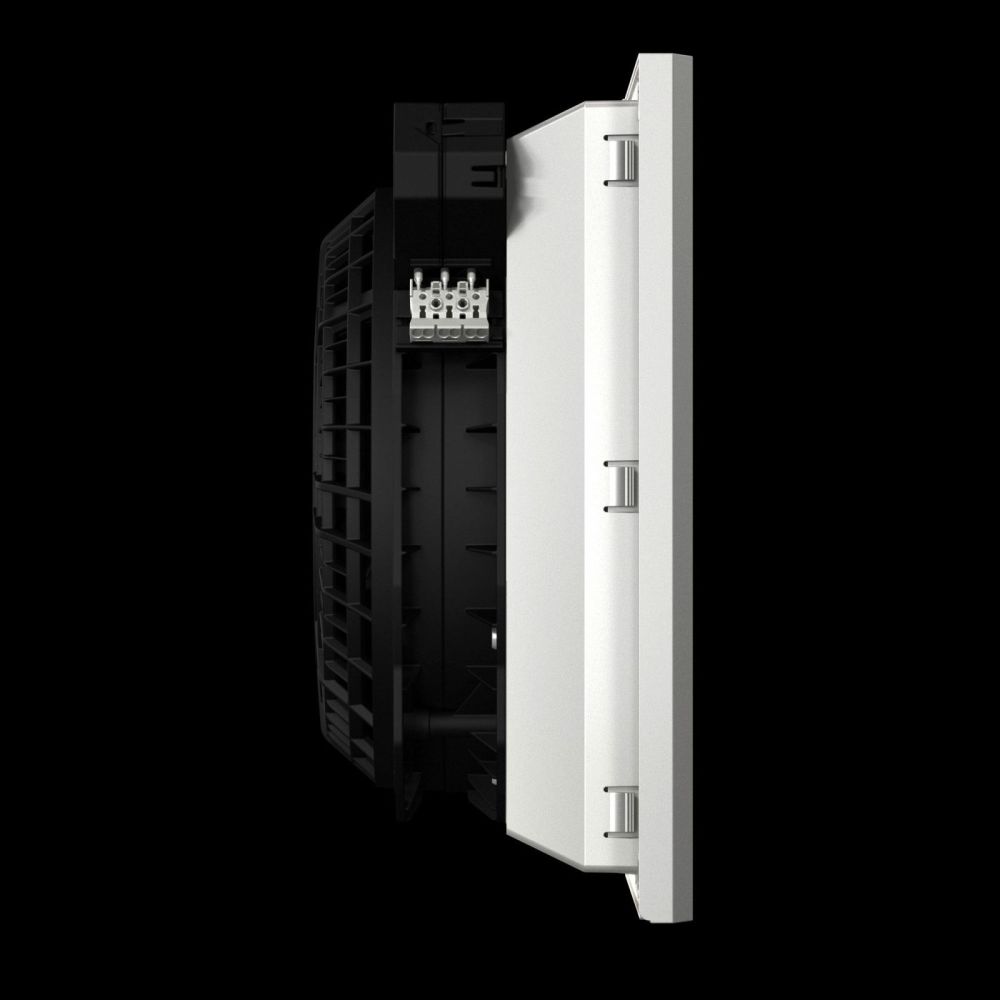

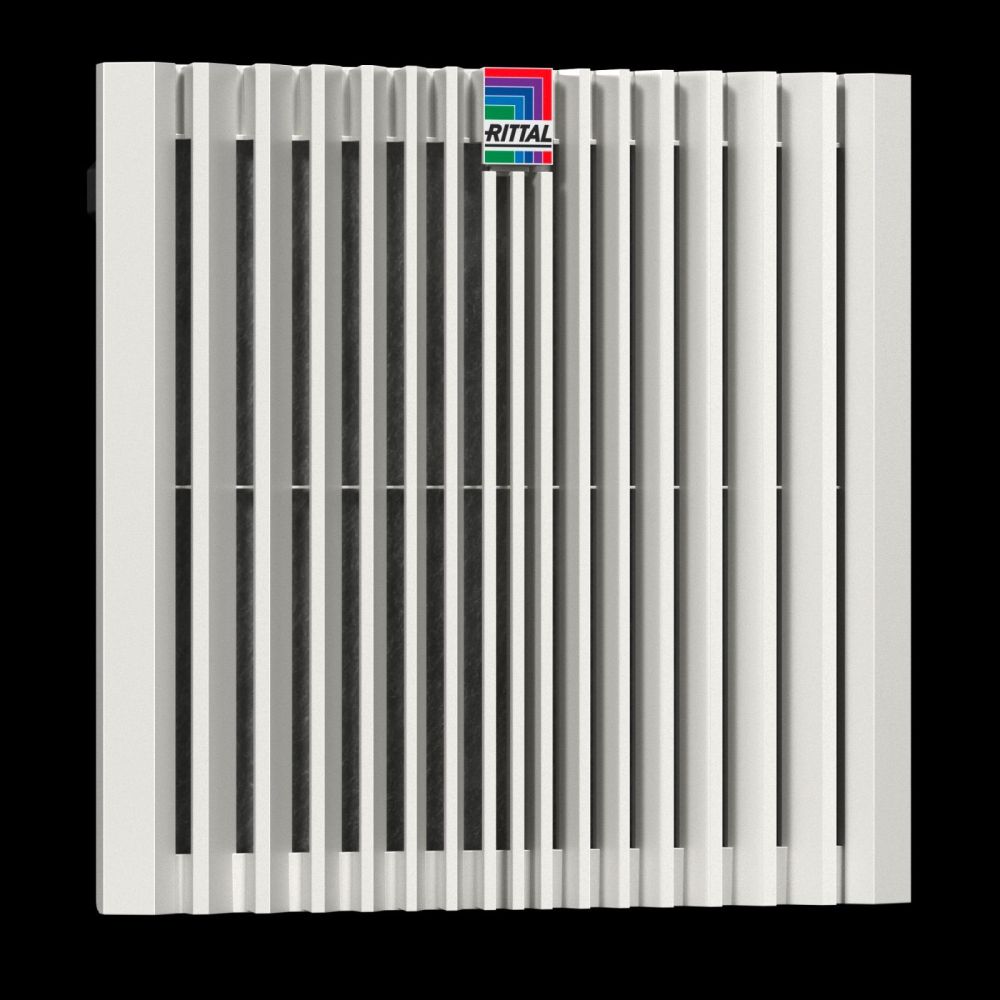

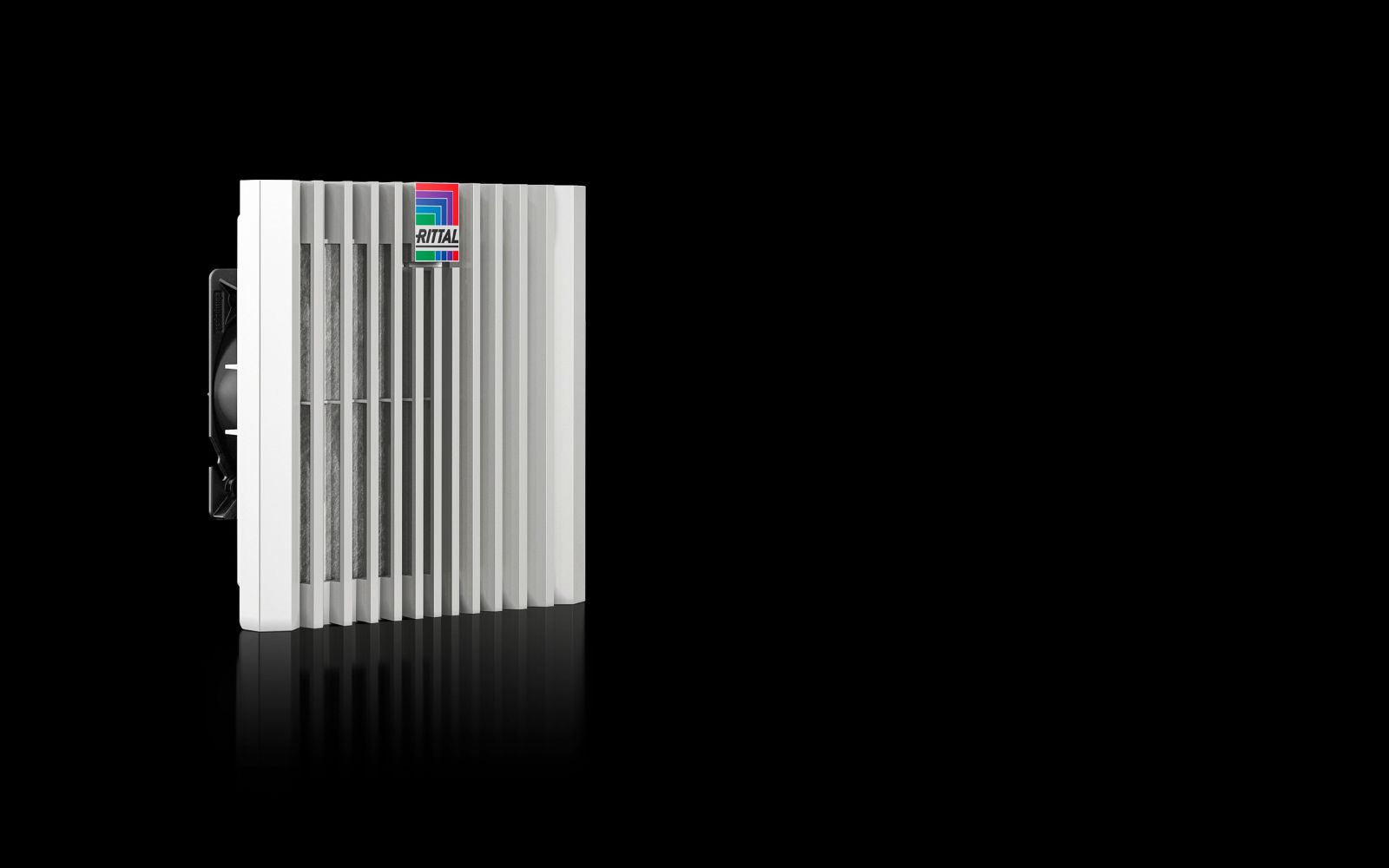

Rittal 3239710
This image may differ from the desired article.
Rittal 3239710Rittal 3239710Rittal 3239710Rittal 3239710Rittal 3239710
110,06 EUR
( 130,97 EUR incl. VAT )
≈ £92.12  |  ≈ $120.96
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 3239710 Blue e+ filter fan 110/125 m³/h, 115 V, RAL 7035
Datasheet:file_download Download
Lieske Part No.:683810
Mfg Part No: 3239710
UPC/EAN: 4028177998193
Weight:1.243 kg
Type:SK 3239.710

Product information for Rittal 3239710:

The Rittal SK 3239.710 is a filter fan from the SK Blue e+ series, designed for enclosure climate control in industrial applications. The device is mounted as a wall-mounted installation and serves for controlled ventilation of enclosures, regulating internal temperature and extending the service life of electronic components. It features diagonal fan technology, enabling higher pressure stability and more even air distribution within the enclosure. The diagonal airflow direction ensures more consistent air performance and more efficient cooling of devices inside the enclosure.

Applications

The filter fan is suitable for use in industrial environments where continuous ventilation is required to control operating temperature within the enclosure. It is particularly suited for installations operated in rooms with moderate dust and humidity levels. The integrated filter technology protects the interior of the enclosure from particles and prevents dust accumulation on electronic components. The protection rating IP 54 is standard, and higher protection levels up to IP 54 can be achieved with additional components such as absorber mat or spray water hood.

Functions and Equipment in Detail

The device is supplied with a pleated filter as standard, enabling a maximum free-blowing air performance of 110 m³/h at 50 Hz and 125 m³/h at 60 Hz. When using a matching outlet filter, air performance drops to 92 m³/h (50 Hz) or 104 m³/h (60 Hz). Alternatively, a nonwoven filter can be used, providing free-blowing air performance of 100 m³/h (50 Hz) or 115 m³/h (60 Hz), with performance decreasing to 75 m³/h (50 Hz) or 86 m³/h (60 Hz) when an outlet filter is used. Air performance depends on the frequency of the operating voltage and is influenced by the filter type. The fan is equipped with an axial fan based on a split-pole motor. The rated operating voltage is 115 V, 1~, designed for frequencies of 50 Hz and 60 Hz. The rated power is 15.4 W (50 Hz) or 15.8 W (60 Hz), and the maximum rated current is 0.2 A (50 Hz) or 0.21 A (60 Hz). The fuse is rated at 2 A.

Technology Explained Simply

The diagonal fan technology ensures that air flows diagonally rather than vertically from the device. This results in better pressure stability and more even air distribution within the enclosure, improving cooling performance. The integrated filter technology ensures that dust particles and other contaminants are filtered from the incoming air before entering the enclosure. Filter replacement is simplified by a new opening mechanism on the louver grille. Installation is tool-free via optimized snap hooks, accelerating mounting on the enclosure. The installation depth is 84 mm, and the mounting cutout measures 177 mm in width and height. The device is made of plastic and is available in the color RAL 7035.

Compatibility and Accessories

The filter fan can be combined with various accessories to increase protection rating or extend functionality. These include outlet filters in various designs, absorber mats to increase protection rating to IP 54, and spray water hoods for IP 54 protection. Additionally, thermostats, speed controllers, and digital temperature display and control units are available to enable more precise ventilation control. Electrical connection is made via spring clamp terminals; for other models (3237.xxx), connection via individual wires is provided.

Mounting and Installation

Mounting is tool-free onto the enclosure wall. The installation depth is 84 mm, with the mounting cutout measuring 177 mm in width and height. The device dimensions are 204 mm width, 204 mm height, and 105 mm depth. The delivery includes a front-side cover, which seals the fan after installation. Installation is quick and easy, requiring no tools.

Advantages in Operation

The operating temperature range is between -15 °C and 55 °C, with storage temperature up to 70 °C. The sound pressure level is 51 dB(A) at 50 Hz and 54 dB(A) at 60 Hz, ensuring quiet operation. The combination of diagonal fan technology and filtration ensures efficient and reliable climate control for the enclosure. Tool-free mounting and easy filter replacement reduce maintenance time and increase operational reliability. The IP 54 protection rating is standard, with higher protection levels achievable using additional components. Compatibility with various accessories allows flexible adaptation to different requirements in industrial applications.

General
ModelWall surface mounted
MaterialPlastic
ColourRAL 7035
Scope of delivery1 cover (front side)
FanAxial, split-pole motor
Airflow free blowing (with pleated filter)At 50 Hz: 110 m³/h, At 60 Hz: 125 m³/h
Airflow with associated exhaust filter including pleated filterAt 50 Hz: 92 m³/h, At 60 Hz: 104 m³/h
Airflow free-blowing (with filter)At 50 Hz: 100 m³/h, At 60 Hz: 115 m³/h
Airflow with associated exhaust filter including felt filterAt 50 Hz: 75 m³/h, At 60 Hz: 86 m³/h
Rated operating voltage115 V, 1~, 50 Hz/60 Hz
Rated power PelAt 50 Hz: 15.4 W, at 60 Hz: 15.8 W
Rated current max.At 50 Hz: 0.2 A, At 60 Hz: 0.21 A
Width204 mm
Height204 mm
Depth105 mm
Built-in depth84 mm
Mounting cutoutCutout width: 177 mm, cutout height: 177 mm
Degree of protection IP according to IEC 60 529IP 54 with nonwoven filter/pleated filter, IP 55 with pleated filter and absorber mat, IP 56 with nonwoven filter/pleated filter and spray water hood
NEMA degree of protectionType 12 with felt filter/pleated filter, Type 3, 3R, 4, 4X with felt filter/pleated filter and spray water hood
FuseCircuit breaker/fuse: 2 A
NoteFor the filter fan 3237.XXX, the electrical connection is made via 2 individual wires (approx. 300 mm length) on the device; for all other filter fans, via spring clamp terminal.
Operating temperature range-15 °C...55 °C
Storage temperature range-30 °C...70 °C
Sound pressure levelAt 50 Hz: 51 dB(A), At 60 Hz: 54 dB(A)


Product data sheet
Datasheet for Rittal 3239710, EAN: 4028177998193
